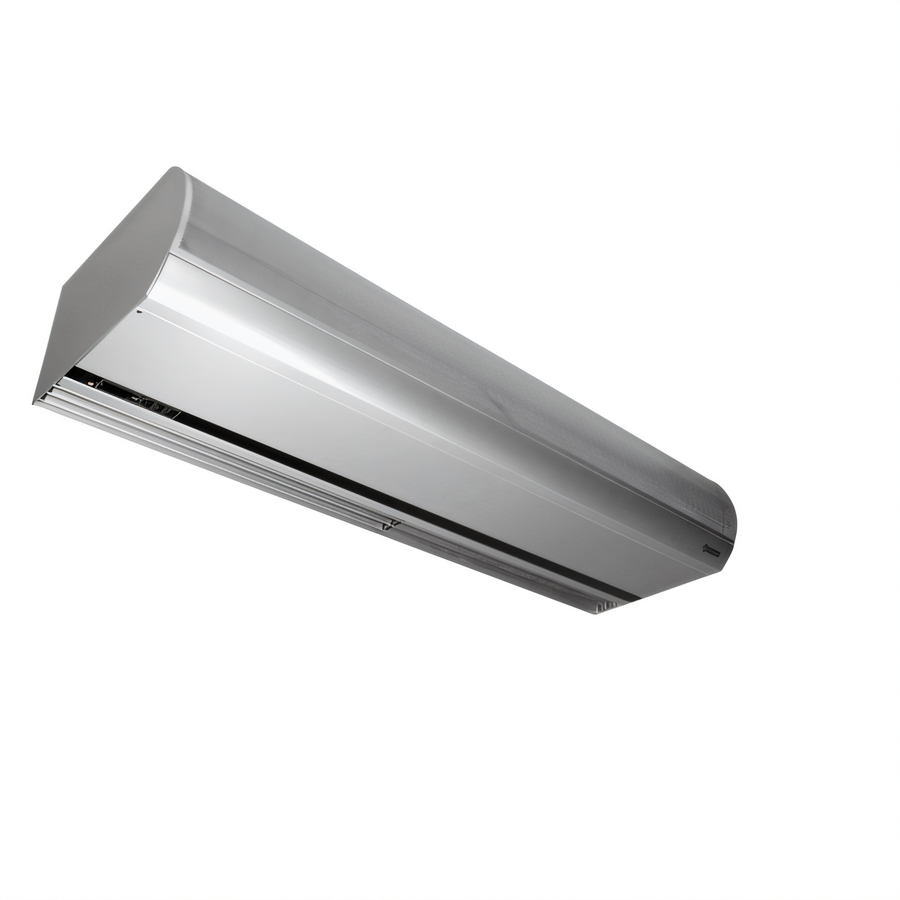

Berner Architectural Icon 10 Electric Heated Air Curtain, 36 Inch Wide, 1 Motor, 1/2 HP

Recommended Up to 10-Foot Mounting Heights; Wall or Top Mounting

Maintain comfortable interior conditions and help block insects with a quiet, electric heated air curtain built for 36-inch openings.

  • Electric heated air curtain for environmental separation and climate control at door openings.
  • Recommended for mounting heights up to 10 feet, with insect control up to 8 feet.
  • 36-inch wide design with one 1/2 HP motor and ten-speed operation.
  • Factory-installed Intelliswitch digital controller for easy operation.
  • Washable filter, high-efficiency Pro-V nozzle, and low-noise operation.
  • Wall or top mounting with a clear satin anodized aluminum exterior cabinet.

Overall Dimensions:

38.13"W x 22.0"D x 12.63"H

Product Weight:

111.0 lb

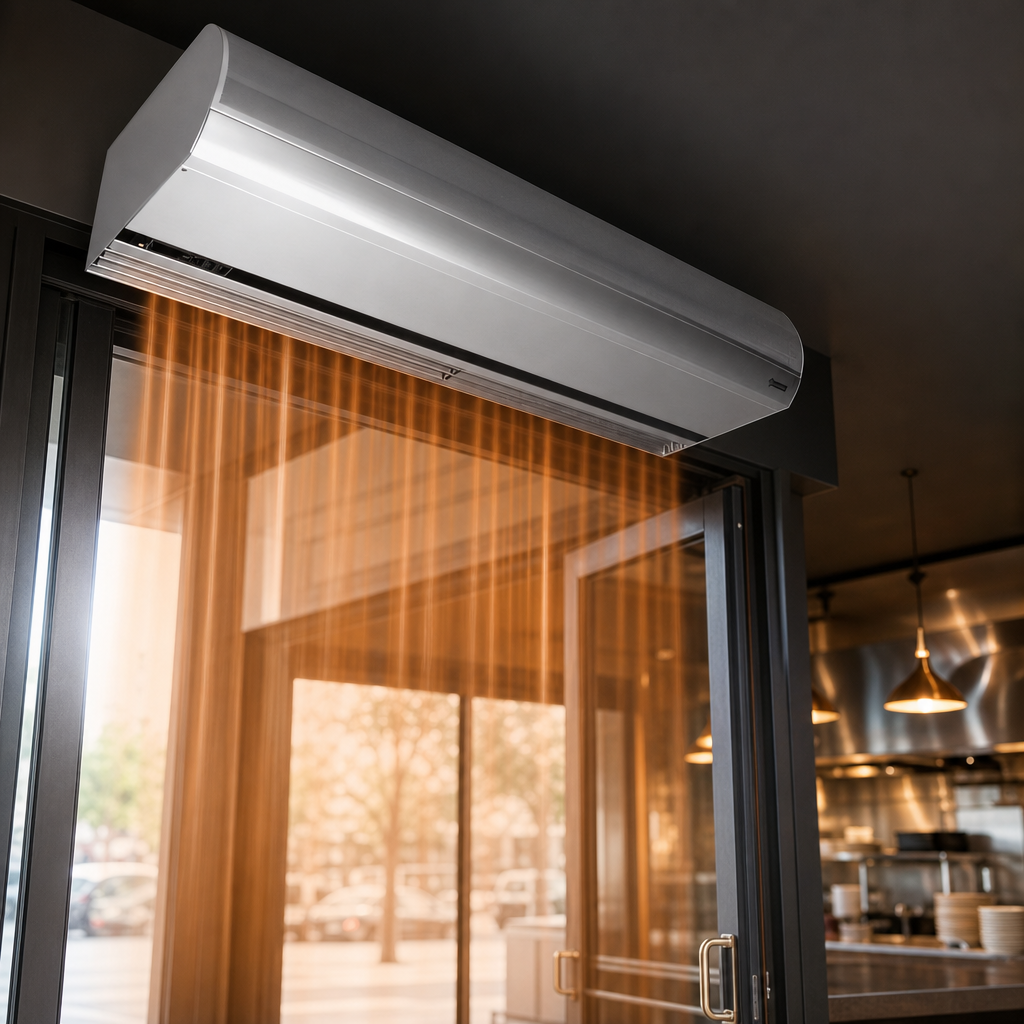

Electric Heated Air Curtain

Provides heated air separation for doorways to help maintain interior comfort and reduce infiltration.

Electric Heated Air Curtain

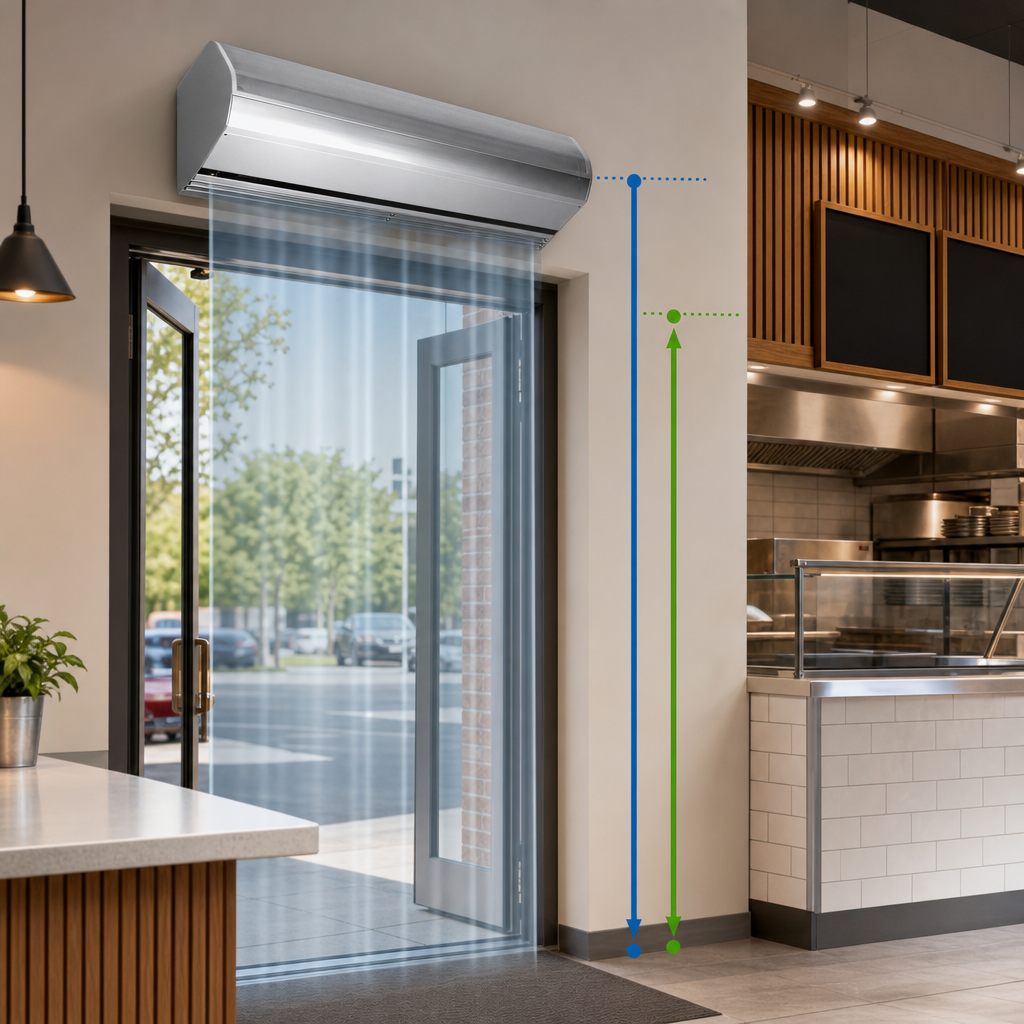

Recommended Mounting Heights

Designed for mounting heights up to 10 feet for environmental separation and up to 8 feet for insect control.

Recommended Mounting Heights

Single 1/2 HP Motor

Uses one 1/2 HP motor with ten-speed operation for adjustable airflow.

Intelliswitch Digital Controller

Factory-installed digital controller with LED clock display, low-voltage BMS activation, external thermostat provision, Comfort Plus provision, and temperature probe support for heated units.

Pro-V Nozzle

High-efficiency, low-noise articulating three-vane nozzle for improved airflow direction.

Washable Filter

Reusable filter helps simplify maintenance.

Wall or Top Mounting

Can be wall mounted or top mounted; wall mounting system is included.

Anodized Aluminum Cabinet

Clear satin anodized aluminum exterior cabinet provides a clean architectural look.

Type Heated Air Curtain
Style Architectural
Installation Type Wall Mounted
Material Aluminum
Finish Clear Satin Anodized
Country of Origin USA
Horsepower Per Motor 1/2 HP
Motors 1
Maximum Mounting Height 10 Feet
Insect Control Height 8 Feet
Controls Digital Programmable
Shipping Width 39 Inches
Shipping Depth 22 Inches
Shipping Height 13 Inches
Shipping Weight 111 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited parts warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 10 feet for environmental separation and up to 8 feet for insect control.
Yes. The unit supports wall or top mounting, and wall mounting hardware is included.
It includes a factory-installed Intelliswitch digital controller.
Yes, the unit includes a washable filter.
Heated units carry a 2-year limited parts warranty.
