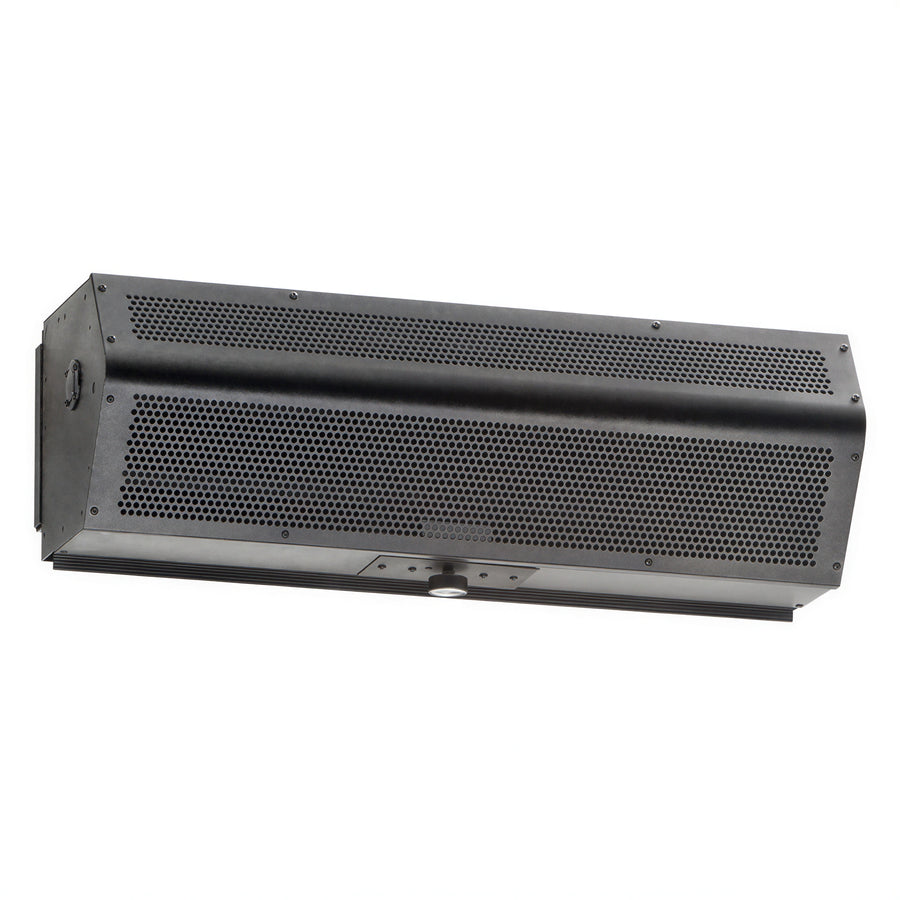

Play manufacturer video for Mars Air Systems LPV272-1UA-OB Unheated Air Curtain for 72 in Door, 1/6 HP Motor, Galvanized Steel CabinetMars Air Systems LPV272-1UA-OB Unheated Air Curtain for 72 in Door, 1/6 HP Motor, Galvanized Steel Cabinet
The Mars Air Systems LPV272-1UA-OB is an unheated LoPro Series 2 air curtain specified for a 72-inch-wide door. It has a galvanized steel cabinet with an Obsidian Black powder coat finish, one 1/6 HP motor, and 115 V, 60 Hz, single-phase electrical service.
- Maximum air volume of 1,800 cfm and maximum velocity of 1,800 fpm.
- Variable speed controller with off setting.
- Adjustable air directional vane with a 40-degree sweep front to back.
- Removable wall mounting bracket.
- 5-year parts warranty.
Product Weight:
100.0 lbUnheated operation
This model is specified as an unheated air curtain.
Door opening coverage
The model is listed for a 72 in wide door, with a maximum opening height of 8 ft.
Motor and electrical service
Uses one 1/6 HP continuous-duty NEMA 1 motor with 115 V, 60 Hz, single-phase service.
Variable speed control
Includes a variable speed controller with an off setting.
Directional airflow
The adjustable air directional vane provides a 40-degree sweep from front to back.
Cabinet finish
The cabinet is galvanized steel with an Obsidian Black powder coat finish.
Mounting
A removable wall mounting bracket is specified.
Air performance
Maximum listed performance is 1,800 fpm velocity and 1,800 cfm air volume.
Sound level
The listed sound level for 60–96 in units is 53 dBA measured at 10 ft in a free field.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
