Play manufacturer video for Mars Air Systems PH8144-2UA-PW Unheated Air Curtain for 144-Inch Door, Aluminum Cabinet, Pearl White Finish, 2 MotorsMars Air Systems PH8144-2UA-PW Unheated Air Curtain for 144-Inch Door, Aluminum Cabinet, Pearl White Finish, 2 Motors

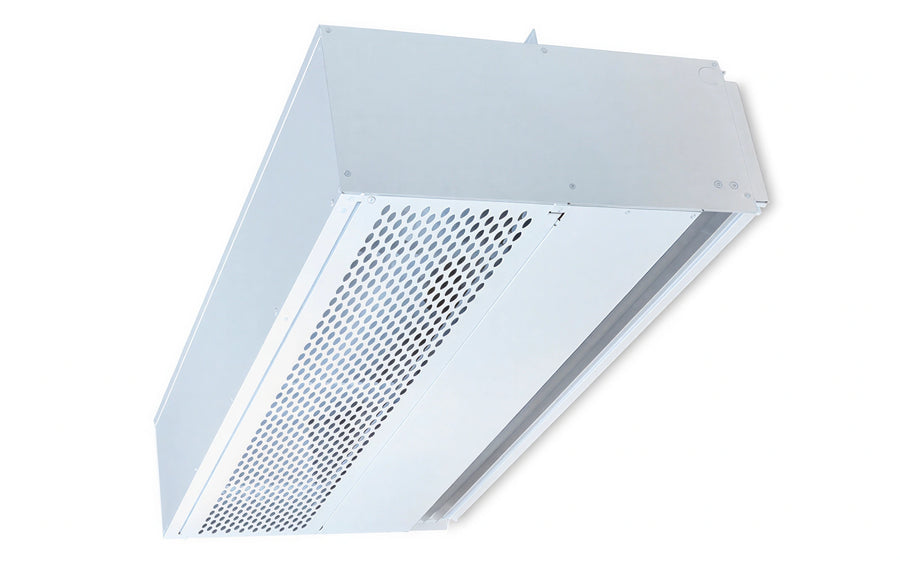

The Mars Air Systems PH8144-2UA-PW is an unheated Phantom 8 air curtain for a 144-inch door. Its aluminum cabinet has a Pearl White powder coat finish and houses two 1/6 HP motors.
The unit operates on 115 V, 60 Hz, single-phase power and includes an integrated 24 V control circuit with an industrial magnetic switch 99-125. Standard features include a variable speed controller with off setting, an adjustable air directional vane with a 40-degree front-to-back sweep, and a removable wall mounting bracket.
Overall Dimensions:
144.0"W x 17.25"D x 7.75"HProduct Weight:
150.0 lbUnheated operation
Provides an unheated air curtain for 144-inch door openings.
Dual motor configuration
Uses two 1/6 HP continuous-duty motors.
Pearl White aluminum cabinet
Features an aluminum cabinet with a Pearl White powder coat finish.
Integrated controls
Includes a factory-wired 24 V control circuit and industrial magnetic switch 99-125.
Variable speed control
Includes a variable speed controller with an off setting.
Adjustable air direction
The air directional vane has a 40-degree sweep from front to back.
Wall mounting bracket
Includes a removable wall mounting bracket.
Warranty & Protection
5-year parts warranty.
