Berner Architectural Recessed 12 Ambient Air Curtain, 60-Inch Wide, Unheated, 1/2 HP

Factory-Installed Intelliswitch Touchscreen, White Aluminum, Top Mount

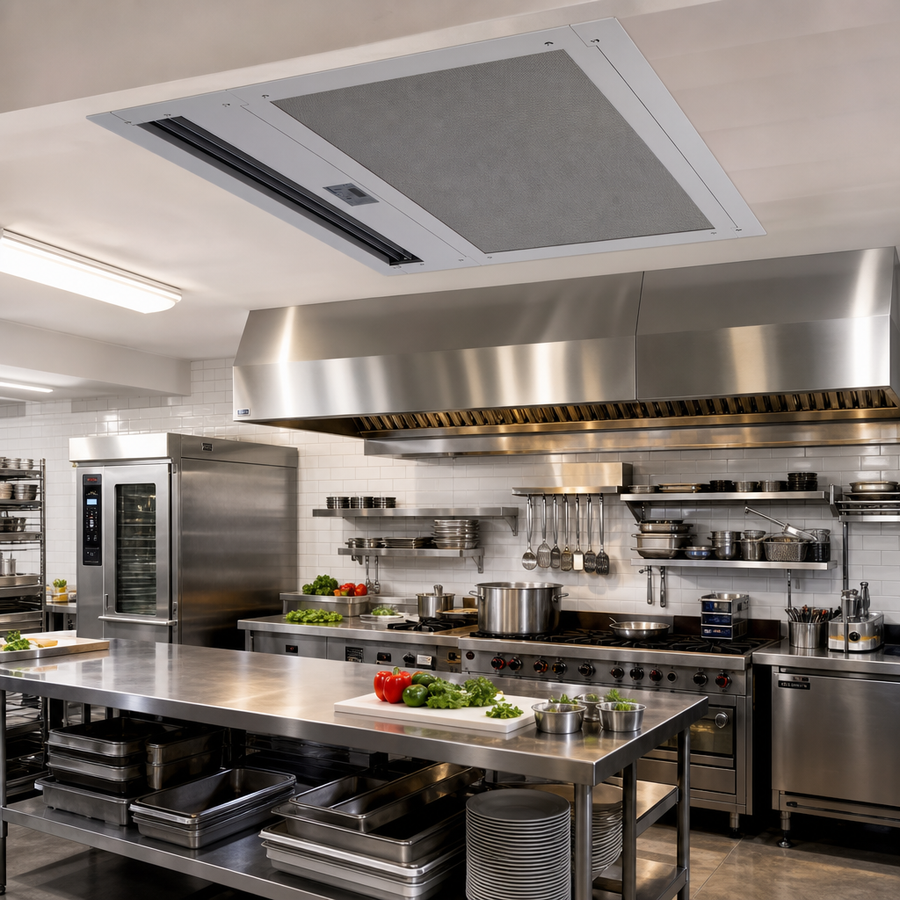

A recessed ambient air curtain that helps protect open entrances while staying nearly invisible in the ceiling.

  • Ambient, unheated design for environmental separation without added heat
  • Recommended for mounting heights up to 12 feet and top-mount recessed installation
  • Factory-installed Intelliswitch touchscreen digital controller with Berner AIR BASIC smart control
  • 1/2 HP motor with ten-speed operation for flexible airflow adjustment
  • High-efficiency Pro-V nozzle and washable polyester filter for quieter operation and easy maintenance
  • White aluminum exterior panel with hinged removable access panel
  • Optional Wi-Fi, remote display, and BMS connectivity upgrades sold separately

Product Weight:

164.0 lb

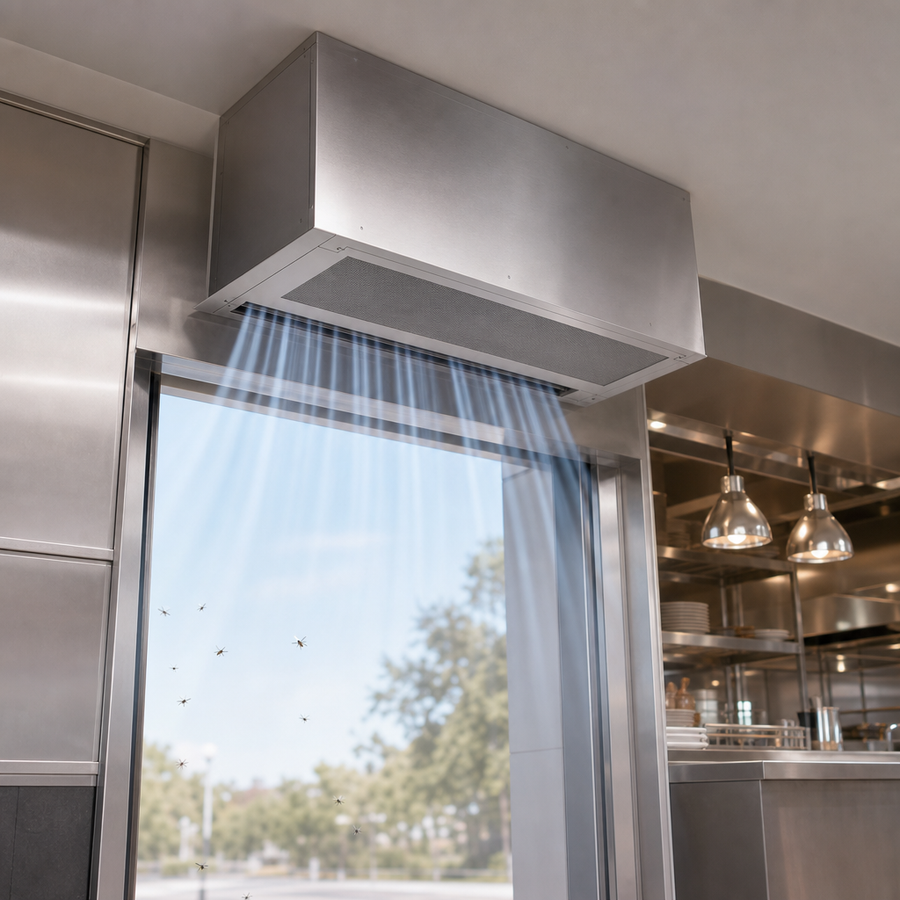

Ambient (Unheated) Air Curtain

Provides air movement for environmental separation and insect control without heat.

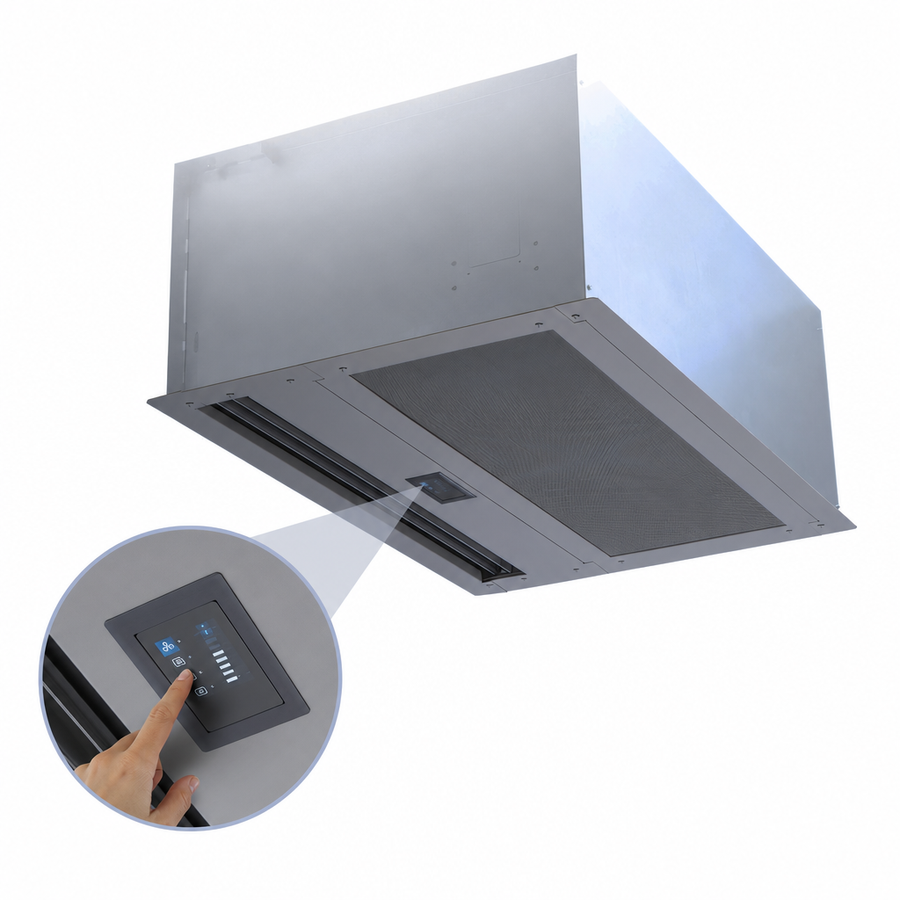

Factory-Installed Intelliswitch Touchscreen Controller

Built-in digital controller with touchscreen interface and Berner AIR BASIC smart control.

1/2 HP Motor with Ten Speeds

Standard AC motor setup delivers flexible performance with ten speed settings.

High-Efficiency Pro-V Nozzle

Low-noise nozzle design helps provide smooth air delivery at the opening.

Washable Filter and Hinged Access Panel

Recleanable polyester filter and hinged removable bottom panel make service easier.

Top-Mount Recessed Design

Mounts flush with the ceiling and requires 15 inches of clearance above the ceiling.

White Aluminum Exterior Panel

Standard white aluminum appearance with custom color or stainless steel options available.

Optional Connectivity Upgrades

Wi-Fi Controller, remote display, and BMS integration are available separately.

Type Air Curtain
Style Ambient
Installation Type Built-In
Motor Count 1
Horsepower Per Motor 1/2 HP
Controls Touchscreen Digital
Voltage 120 Volts
Amps 8.5 Amps
Hertz 60 Hz
Phase 1-Phase
Material Aluminum
Color White
Finish White Aluminum
Shipping Weight 164 lb.
Recommended Mounting Height Up to 12 Feet
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

No. It is an ambient (unheated) air curtain.
It is recommended for mounting heights up to 12 feet for environmental separation and up to 10 feet for insect control.
It includes a factory-installed Intelliswitch digital controller with a touchscreen interface and Berner AIR BASIC smart control.
Yes. It has a washable recleanable polyester filter behind a hinged removable access panel.
Yes. A Wi-Fi Controller, remote display, and BMS integration are available separately.
Unheated models are covered by a 5-year limited warranty from the original date of shipment, subject to the manufacturer’s terms.
