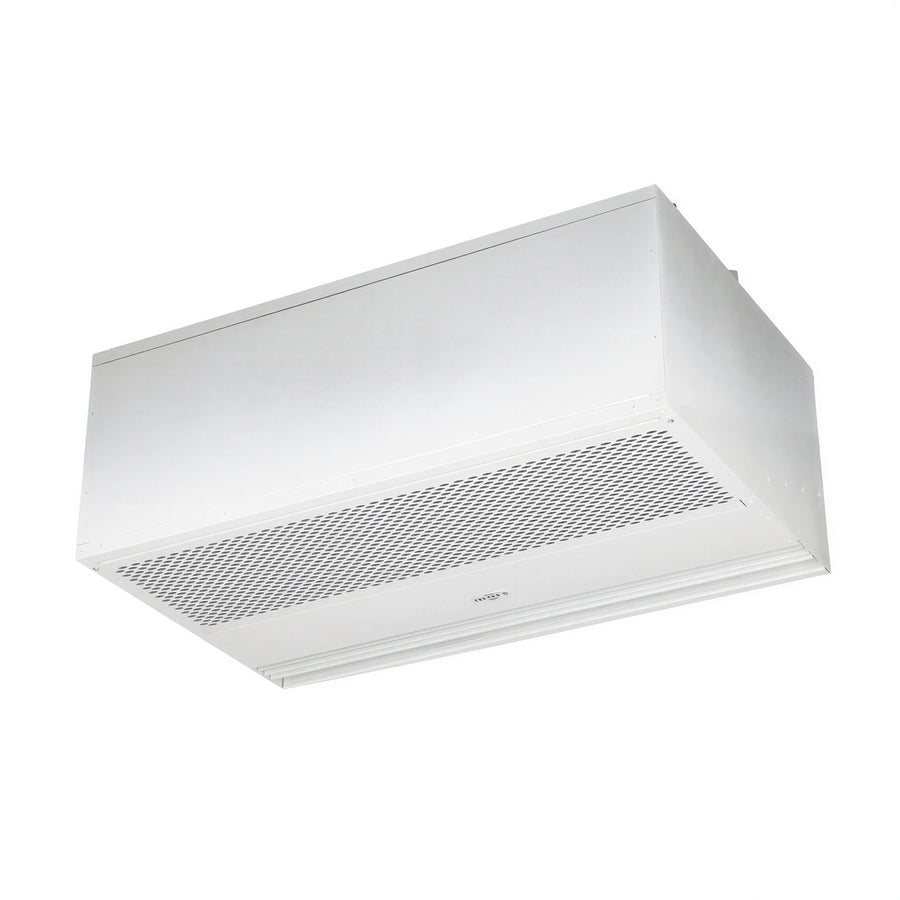

Play manufacturer video for Mars Air Systems PH1096-2UD-PW Unheated Air Curtain for 96 in Door, 2 Motors, 1/2 HP EachMars Air Systems PH1096-2UD-PW Unheated Air Curtain for 96 in Door, 2 Motors, 1/2 HP Each
Unheated air-curtain coverage for 96-inch doors. The Mars Air Systems Phantom 10 PH1096-2UD-PW has an aluminum cabinet with a Pearl White powder coat finish and two 1/2 HP motors.
- Configured for 208–230 V, 60 Hz, single-phase power.
- Includes an integrated 24 V control circuit and industrial magnetic switch 99-125.
- Features adjustable air directional vanes with a 40° front-to-back sweep.
- Cleanable polyester filters are installed standard.
Unheated operation
Designed as an unheated air curtain for a 96-inch door.
Dual 1/2 HP motors
Uses two 1/2 HP motors.
Electrical configuration
Configured for 208–230 V, 60 Hz, single-phase power.
24 V control circuit
Includes an integrated 24 V control circuit.
Industrial magnetic switch
Includes industrial magnetic switch 99-125.
Aluminum cabinet and finish
Uses an aluminum cabinet with a Pearl White powder coat finish.
Adjustable air direction
Air directional vanes provide a 40° front-to-back sweep.
Standard filtration
Cleanable polyester filters are installed standard.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
