Mars Air Systems PH1072-2UH-PW Unheated Air Curtain for 72" Door, Aluminum Cabinet, (2) 1/2 HP Motors

SKU: PH1072-2UH-PW
$3,032.40
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

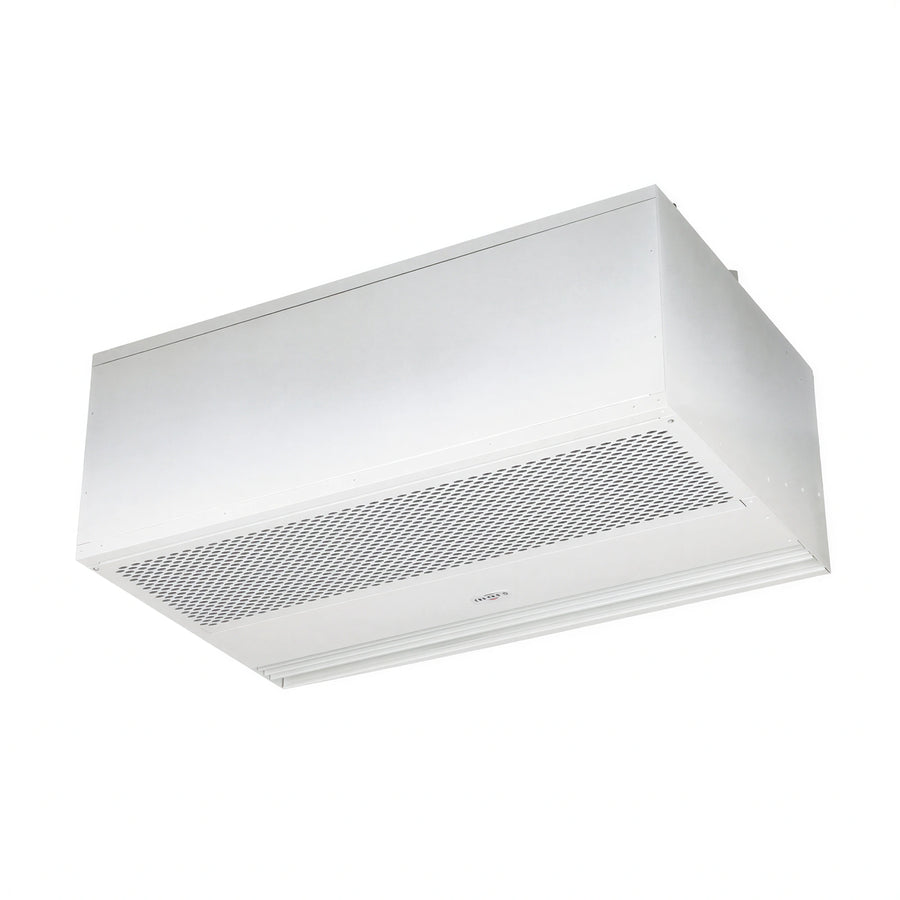

The Mars Air Systems PH1072-2UH-PW is an unheated Phantom 10 air curtain for a 72-inch door. It features an aluminum cabinet with a Pearl White powder coat finish, two 1/2 HP motors, and 460 V, 60 Hz, three-phase electrical service.

  • Integrated 24 V control circuit
  • Commercial magnetic switch 99-018
  • Adjustable air directional vanes with a 40-degree front-to-back sweep
  • Documented airflow volume of 2,920 cfm

Unheated operation

Designed as an unheated air curtain for a 72-inch door.

Aluminum cabinet

Aluminum cabinet with a Pearl White powder coat finish.

Dual motors

Two 1/2 HP continuous-duty TEAO motors with NEMA 1 construction.

Electrical configuration

Uses 460 V, 60 Hz, three-phase power and includes an integrated 24 V control circuit.

Magnetic switch

Includes commercial magnetic switch 99-018.

Adjustable air direction

Directional vanes provide a 40-degree sweep from front to back.

Documented airflow

The listed airflow volume is 2,920 cfm with an average velocity of 1,947 fpm.

Series Phantom 10
Type Unheated air curtain
Designed door width 72 in
Maximum opening height 8 ft
Overall length 72 in
Nozzle length 72 in
J-box distance from each edge 36 in
Cabinet material Aluminum
Finish Pearl White powder coat
Motors 2 motors
Horsepower per motor 1/2 hp
Motor type Continuous-duty TEAO, NEMA 1
Voltage 460 V
Frequency 60 Hz
Phase 3 phase
Full-load amperage 1.6 A
Control circuit 24 V integrated
Magnetic switch 99-018
Maximum core velocity at nozzle 3,950 fpm
Average velocity 1,947 fpm
Air volume 2,920 cfm
Velocity uniformity 91%
Power rating 916 W
Sound level 68 dBA at 10 ft in a free field

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year parts warranty.

Documents

PDF Cutsheet PDF Download PDF Ph10 unheated submittals PDF Download PDF Marketing sheet PDF Download PDF Collateral PDF Download PDF Video PDF Download PDF Collateral refrigeration PDF Download

Frequently Asked Questions

No. It is an unheated air curtain.
It uses 460 V, 60 Hz, three-phase power.
It has two 1/2 HP continuous-duty TEAO motors.
Yes. It has an integrated 24 V control circuit and commercial magnetic switch 99-018.
The documented warranty is 5 years for parts. The 24 V control components have a 1-year warranty.
