Mars Air Systems PH1060-2UH-PW Unheated Air Curtain, 60 in Wide, 8 ft Opening, Two 1/2 HP Motors

SKU: PH1060-2UH-PW
$2,868.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

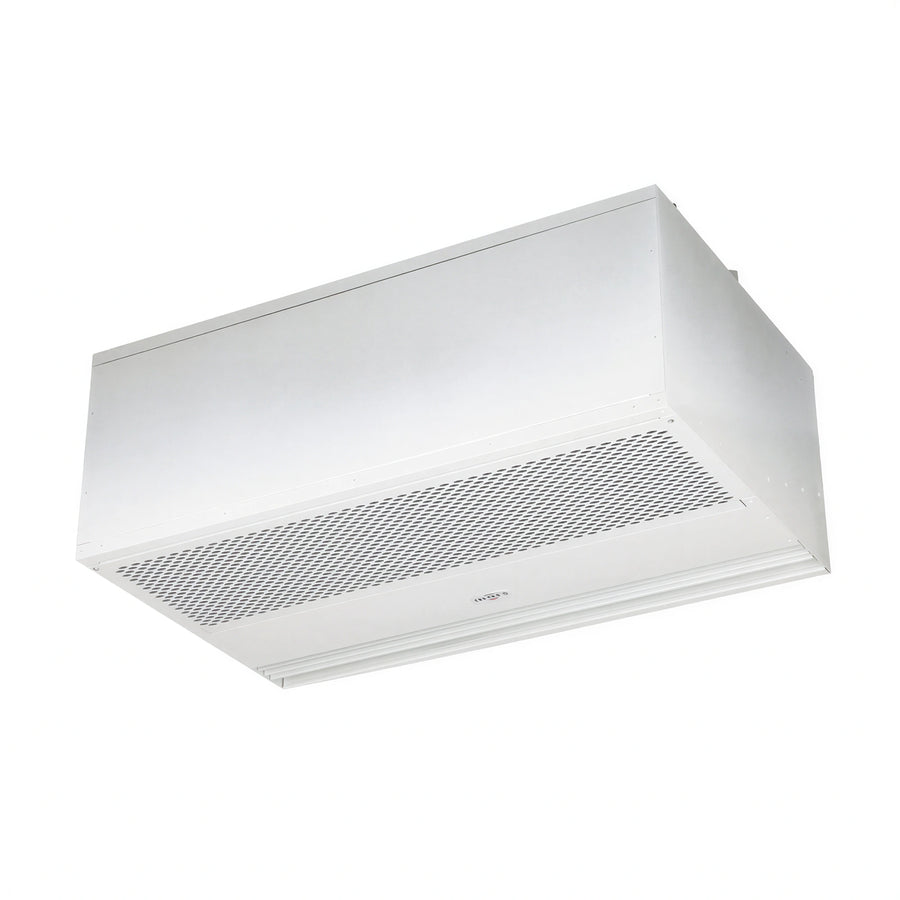

PH1060-2UH-PW is a Mars Air Systems Phantom 10 unheated air curtain configured for a 60 in wide opening up to 8 ft high.

  • Motor configuration: Two 1/2 hp continuous-duty TEAO motors.
  • Electrical: 460 V, 60 Hz, three-phase power with an integrated 24 V control circuit.
  • Construction: Aluminum cabinet with Pearl White powder coat finish.
  • Controls: Commercial magnetic switch 99-018 and adjustable air directional vanes with a 40-degree front-to-back sweep.

Unheated operation

The unit is specified as an unheated air curtain.

Two-motor configuration

Includes two 1/2 hp continuous-duty Totally Enclosed Air Over motors.

Integrated low-voltage control

Includes an integrated 24 V control circuit and commercial magnetic switch 99-018.

Adjustable air direction

Directional vanes provide a 40-degree sweep from front to back.

Aluminum cabinet

The cabinet is aluminum with a Pearl White powder coat finish.

Cleanable filters

Cleanable polyester filters are installed as standard.

Electrical configuration

Configured for 460 V, 60 Hz, three-phase operation.

Manufacturer Mars Air Systems
Product series PH10 Phantom 10
Type Unheated air curtain
Width 60 in
Maximum opening height 8 ft
Motor count 2
Horsepower per motor 1/2 hp
Voltage 460 V
Frequency 60 Hz
Phase 3-phase
Control circuit 24 V
Cabinet material Aluminum
Finish Pearl White powder coat
Magnetic switch Commercial magnetic switch 99-018
Air volume 2771 cfm
Maximum core velocity 4250 fpm
Average velocity 2217 fpm
Velocity uniformity 93%
Power rating 861 W
Sound level 68 dBA

Certifications & Compliance

Warranty & Protection

5-year parts warranty.

Documents

PDF Cutsheet PDF Download PDF Ph10 unheated submittals PDF Download PDF Video PDF Download PDF Collateral PDF Download PDF Marketing sheet PDF Download PDF Collateral refrigeration PDF Download

Frequently Asked Questions

No. It is specified as an unheated air curtain.
The unit is 60 in wide and has a listed maximum opening height of 8 ft.
It is configured for 460 V, 60 Hz, three-phase power.
It has two 1/2 hp continuous-duty TEAO motors.
The specifications identify an integrated 24 V control circuit and commercial magnetic switch 99-018.
No. The product documents specifically identify the PH1060-2 model as not AMCA-certified.
The product documents specify a 5-year parts warranty and a 1-year warranty for 24 V control components.
