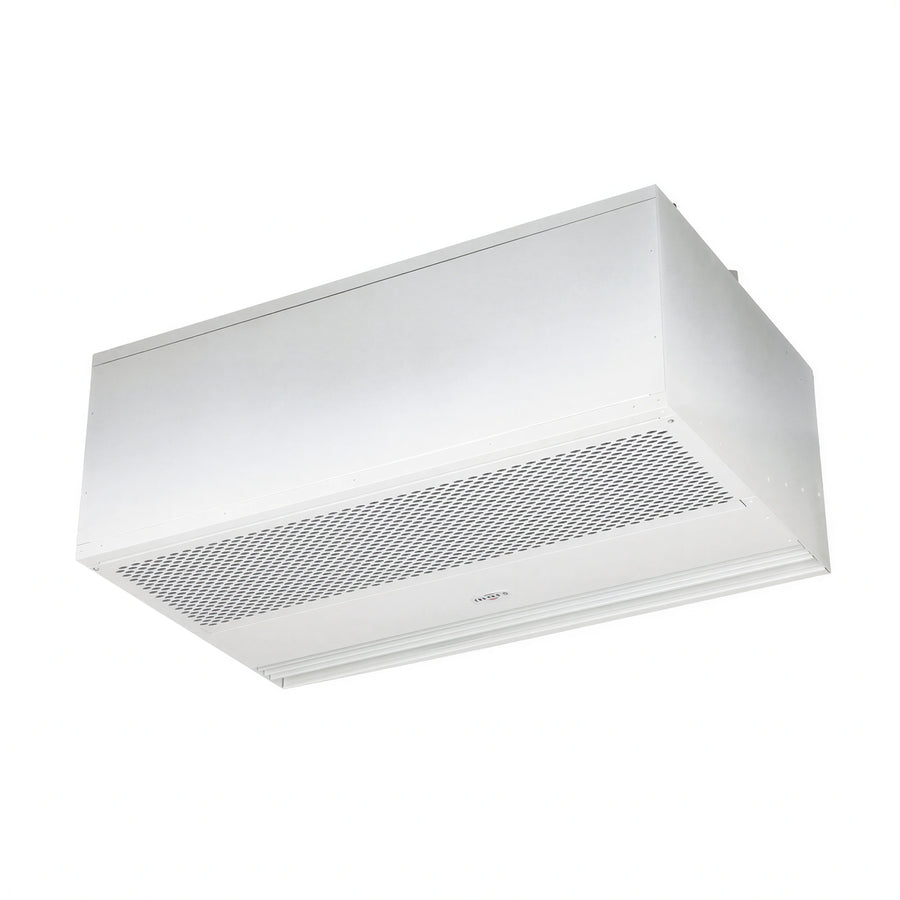

Mars Air Systems PH1060-2UA-PW Unheated Air Curtain, 60 in. Wide, 8 ft Max Opening, 2 x 1/2 HP Motors
The Mars Air Systems PH1060-2UA-PW is an unheated 60 in. Phantom 10 air curtain for openings up to 8 ft high. It uses two 1/2 HP motors with 115 V, 60 Hz, single-phase power and an integrated 24 V control circuit.
The aluminum cabinet has a Pearl White powder coat finish, and commercial magnetic switch 99-018 is included. The exact PH1060 model is not AMCA-certified.
- 60 in. overall and nozzle length
- 10.2 A full-load amperage at 115 V
- Listed product weight of 100 lb
Unheated design
The unit is specified as an unheated air curtain.
Two 1/2 HP motors
The unit uses two continuous-duty TEAO motors with NEMA 1 construction.
115 V electrical configuration
The unit is configured for 115 V, 60 Hz, single-phase power.
24 V control circuit
An integrated 24 V control circuit is provided.
60 in. overall and nozzle length
The listed overall length and nozzle length are each 60 in.
Aluminum Pearl White cabinet
The cabinet is aluminum with a Pearl White powder coat finish.
Magnetic switch
Commercial magnetic switch 99-018 is included.
Adjustable air direction
Adjustable air directional vanes provide a 40° front-to-back sweep.
Certifications & Compliance
Warranty & Protection
5-year parts warranty and 1-year warranty for 24 V control components.
