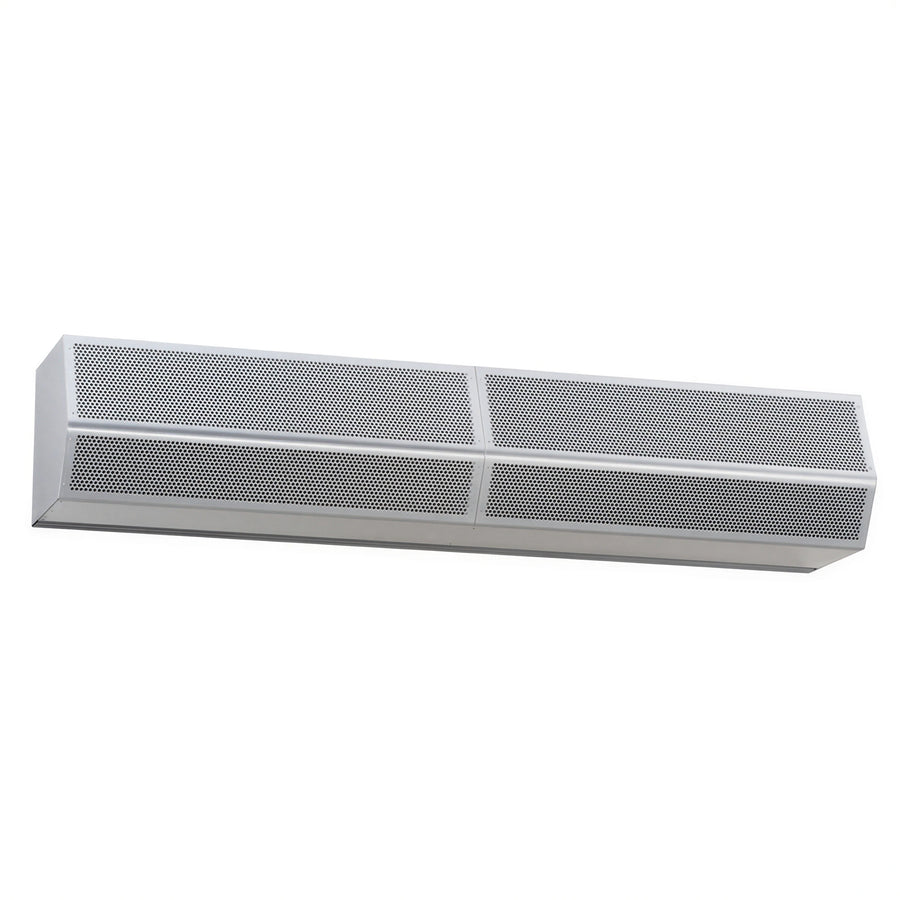

Mars Air Systems NH296-2UG-TS Unheated High-Velocity Air Curtain, 96 in Wide, 8 ft Opening, 2 Motors
The Mars Air Systems NH296-2UG-TS is an unheated High Velocity Series 2 air curtain for a 96-inch door and openings up to 8 feet. It operates at 208-230 V, 60 Hz, three-phase power and uses two 1 HP motors.
The unit features a galvanized steel cabinet with a Titanium Silver powder coat finish and is sanitation certified to ANSI/NSF 37 standards.
- Maximum core velocity at nozzle: 6,144 fpm
- Average velocity at nozzle: 2,447 fpm
- Adjustable air directional vanes with 40° sweep
- 5-year parts warranty
Unheated operation
Provides air curtain operation without a heating element.
Two 1 HP motors
Uses two continuous-duty Totally Enclosed Air Over motors rated at 1 HP each.
Sanitation certification
Certified to ANSI/NSF 37 standards for sanitation service entrance applications.
Galvanized steel cabinet
Built with a galvanized steel cabinet and Titanium Silver powder coat finish.
High-velocity air delivery
The exact model data lists a maximum core velocity of 6,144 fpm and an average velocity of 2,447 fpm at the nozzle.
Adjustable airflow direction
Air directional vanes provide a 40° sweep from front to back.
AMCA-rated performance
The NH296 model is included in the AMCA-certified performance data.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
