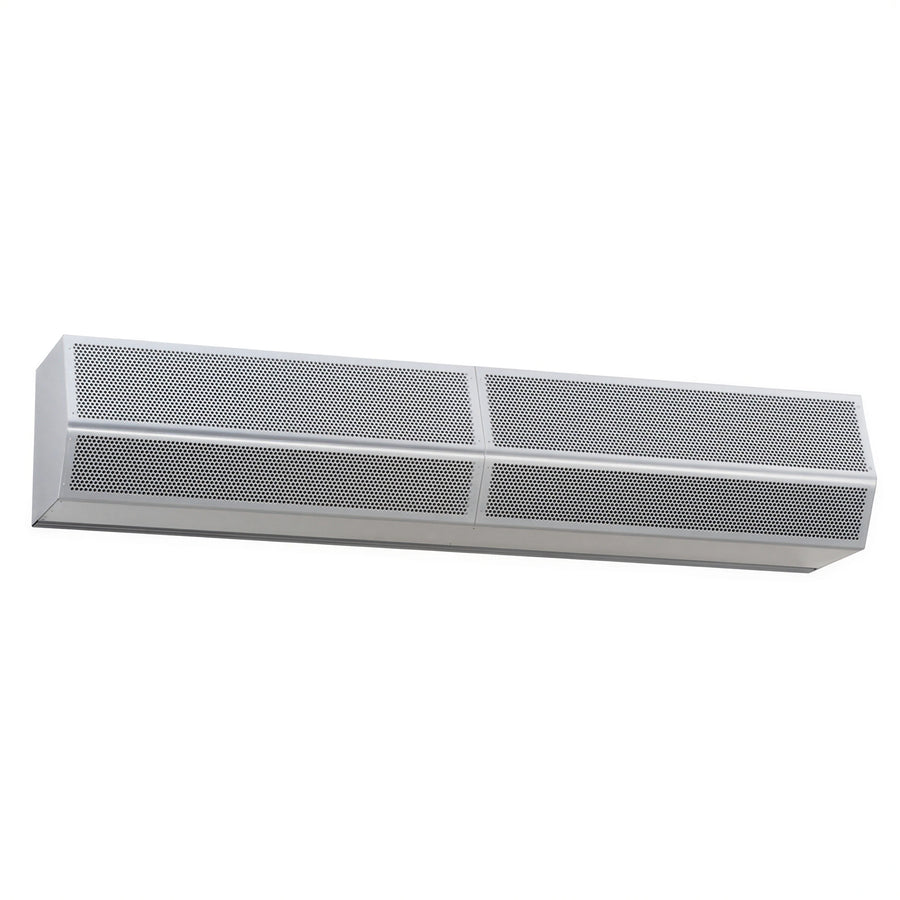

Mars Air Systems NH296-2UD-TS Unheated Air Curtain, 96" Wide, 8' Maximum Opening, 2 Motors
SKU: NH296-2UD-TS
$3,091.20
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout
The Mars Air Systems NH296-2UD-TS is an unheated High Velocity Series 2 air curtain sized for a 96-inch door. It uses two 1 HP motors configured for 208–230 V, 60 Hz, single-phase operation.
- Galvanized steel cabinet with Titanium Silver powder coat finish
- Sanitation certified to ANSI/NSF 37 standards
- Adjustable air directional vanes with a 40° front-to-back sweep
Unheated operation
Configured as an unheated air curtain.
96-inch coverage
Sized for a 96-inch door.
Dual 1 HP motors
Uses two 1 HP continuous-duty TEAO motors.
Electrical configuration
Rated for 208–230 V, 60 Hz, single-phase operation.
Cabinet and finish
Galvanized steel cabinet with Titanium Silver powder coat finish.
Adjustable air direction
Air directional vanes provide a 40° front-to-back sweep.
Sanitation certification
Sanitation certified to ANSI/NSF 37 standards.
Product type
Unheated air curtain
Series
High Velocity Series 2
Coverage width
96 in
Maximum opening height
8 ft
Motors
2 motors
Horsepower per motor
1 hp
Motor type
Continuous-duty TEAO, NEMA 1
Voltage
208–230 V
Frequency
60 Hz
Phase
Single-phase
Cabinet material
Galvanized steel
Finish
Titanium Silver powder coat
Airflow
4,894 cfm
Maximum core velocity
6,144 fpm
Average velocity
2,447 fpm
Velocity uniformity
88%
Power rating
2,720 W
Sound level
73 dBA at 10 ft
Weight
250 lb
Sanitation standard
ANSI/NSF 37
Certifications & Compliance
Warranty & Protection
5-year parts warranty
Frequently Asked Questions
No. The NH296-2UD-TS is an unheated air curtain.
It is sized for a 96-inch door.
It has two 1 HP continuous-duty TEAO motors.
It is configured for 208–230 V, 60 Hz, single-phase power.
The listed maximum opening height is 8 ft.
The product documentation lists a 5-year parts warranty.
