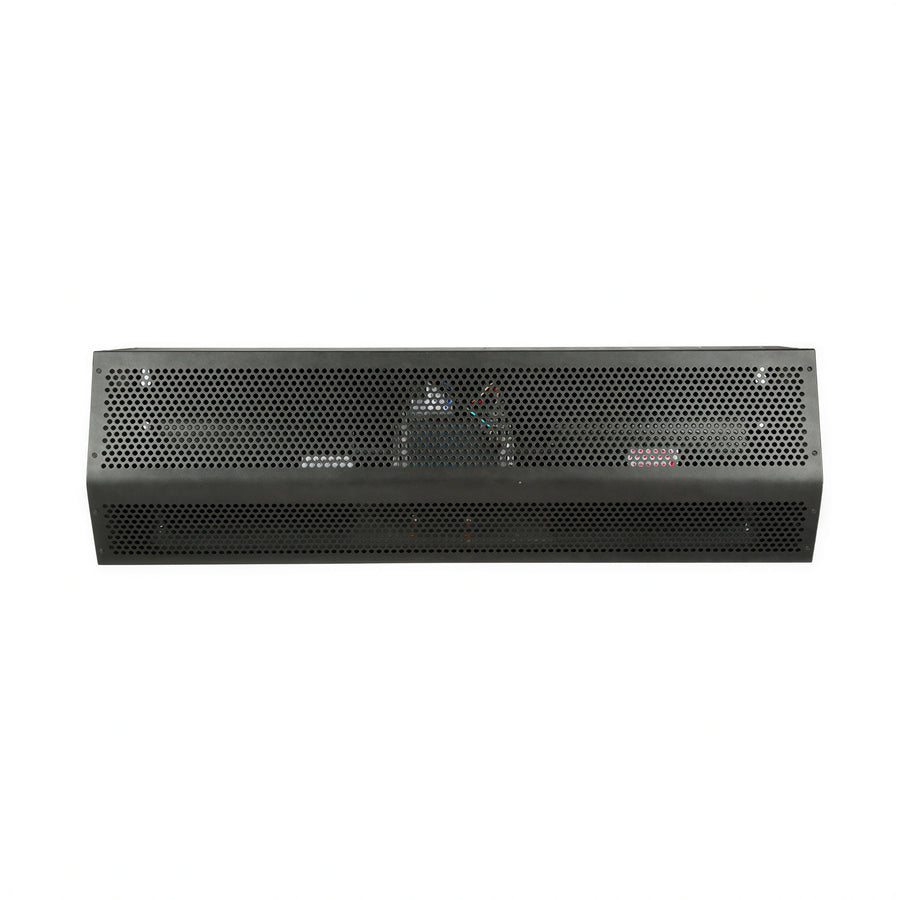

Mars Air Systems N272-2UD-OB Unheated Air Curtain for 72-Inch Door, Two 1/2 HP Motors
The Mars Air Systems N272-2UD-OB is an unheated N2 Series air curtain for a 72-inch-wide door. It operates at 208–230 V, 60 Hz, single phase, with two 1/2 hp motors.
- Galvanized steel cabinet with Obsidian Black powder coat finish.
- ETL-certified to conform to ANSI/NSF 37 standards for customer entrances.
- Adjustable air directional vanes provide a 40-degree sweep from front to back.
- AMCA-certified performance data includes 2,758 cfm volume and 2,206 fpm average velocity at the nozzle.
Unheated operation
N2 Series air curtain configured for unheated operation.
Dual motor configuration
Two 1/2 hp continuous-duty Totally Enclosed Air Over motors rated NEMA 1.
Sanitation standard
ETL-certified to conform to ANSI/NSF 37 standards for customer entrances.
Electrical configuration
Designed for 208–230 V, 60 Hz, single-phase operation.
Cabinet and finish
Galvanized steel cabinet with an Obsidian Black powder coat finish.
Adjustable air direction
Directional vanes provide a 40-degree sweep from front to back.
AMCA performance data
The model's data lists 2,758 cfm volume, 2,206 fpm average velocity and 84% velocity uniformity.
Warranty
Includes a 5-year parts warranty.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
