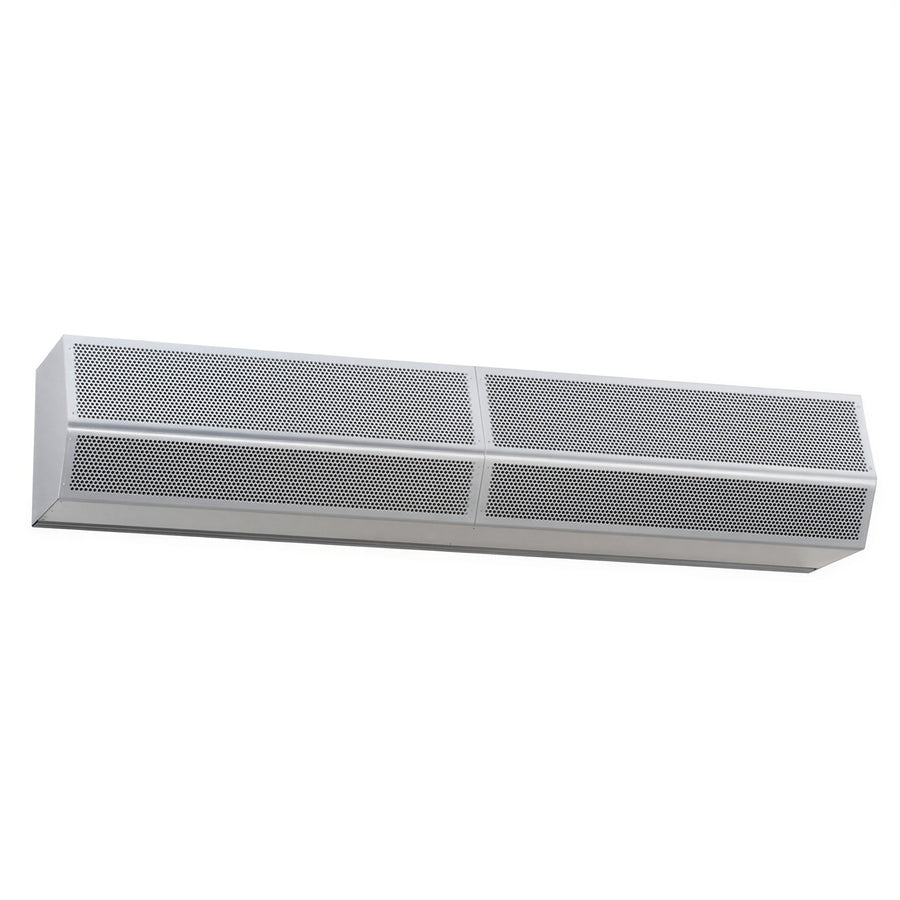

Mars Air Systems HV284-2UG-TS Unheated Air Curtain for 84-Inch Door, 2 Motors, 1 HP per Motor
The Mars Air Systems HV284-2UG-TS is an unheated High Velocity 2 air curtain designed for an 84-inch door opening. It uses two 1 HP motors and operates on 208–230 V, 60 Hz, three-phase power.
The galvanized steel cabinet has a Titanium Silver powder coat finish. Adjustable air directional vanes provide a 40° front-to-back sweep.
- Unheated configuration
- Two 1 HP continuous-duty TEAO motors
- 84-inch nozzle and overall width
- Environmental separation for openings up to 14 feet high
Overall Dimensions:
84.0"W x 15.63"D x 14.0"HUnheated operation
Provides an unheated air curtain configuration for the exact HV284-2UG-TS model.
Two 1 HP motors
Equipped with two 1 HP continuous-duty Totally Enclosed Air Over motors in a NEMA 1 configuration.
84-inch format
The model has an 84-inch nozzle length and overall width for an 84-inch door opening.
Three-phase electrical configuration
Configured for 208–230 V, 60 Hz, three-phase power.
Galvanized steel cabinet
The cabinet is galvanized steel with a Titanium Silver powder coat finish.
Adjustable air direction
Adjustable air directional vanes provide a 40° front-to-back sweep.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
