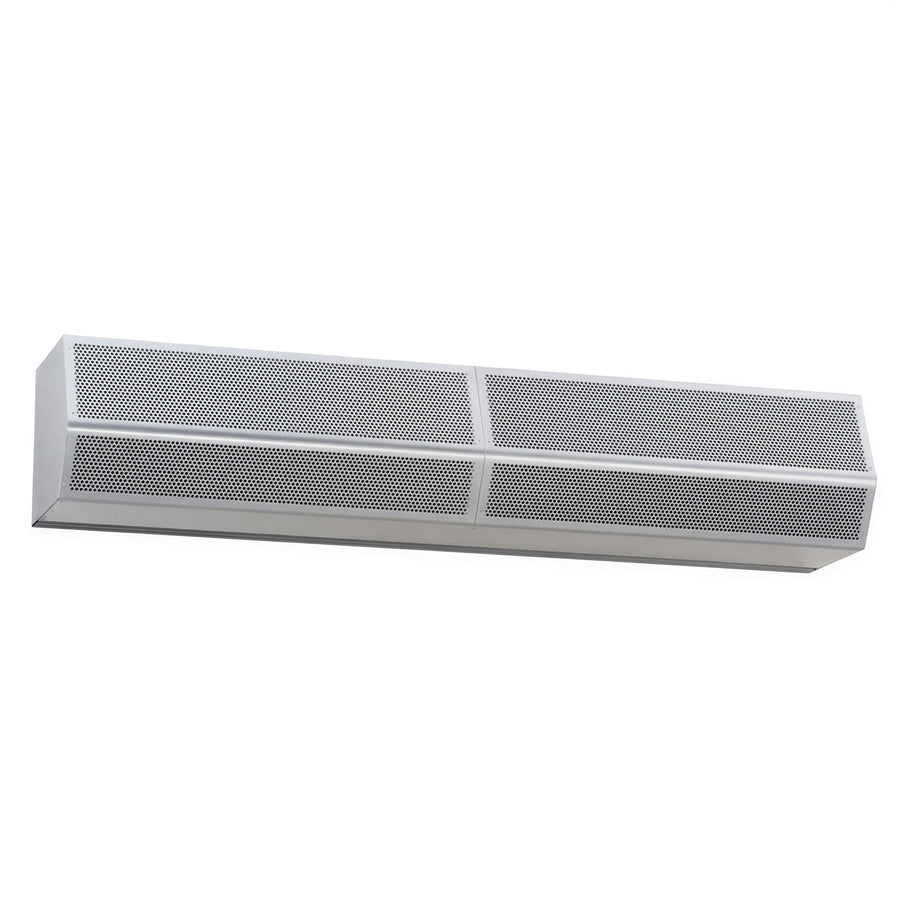

Mars Air Systems HV272-2UG-TS Unheated Air Curtain for 72 in Door, 2 x 1 HP Motors, Galvanized Steel Cabinet
SKU: HV272-2UG-TS
$3,208.80
The Mars Air Systems HV272-2UG-TS is an unheated High Velocity 2 air curtain specified for a 72-inch door. It has a galvanized steel cabinet with a Titanium Silver powder coat finish and two 1 HP motors.
- 208–230 V, 60 Hz, three-phase electrical configuration
- Adjustable air directional vanes with a 40° front-to-back sweep
- Specified maximum opening height of 14 ft
- AMCA lab data lists 4,118 cfm air volume and 6,000 fpm maximum core velocity at the nozzle
Overall Dimensions:
72.0"W x 15.63"D x 14.0"HUnheated operation
The HV272-2UG-TS is specified as an unheated air curtain.
72-inch door coverage
The unit is specified for a 72-inch-wide door.
Two 1 HP motors
The air curtain uses two 1 HP continuous-duty TEAO motors.
Galvanized steel cabinet
The cabinet is galvanized steel with a Titanium Silver powder coat finish.
Adjustable air direction
Air directional vanes provide a 40° sweep from front to back.
Three-phase electrical configuration
The specified electrical configuration is 208–230 V at 60 Hz and three phase.
Series
High Velocity 2
Type
Unheated
Door width
72 in
Motor count
2
Horsepower per motor
1 hp
Motor type
Totally Enclosed Air Over (TEAO), NEMA 1
Voltage
208–230 V
Frequency
60 Hz
Phase
3 phase
Cabinet material
Galvanized steel
Finish
Titanium Silver powder coat
Maximum opening height
14 ft
Maximum core velocity at nozzle
6,000 fpm
Average velocity
2,745 fpm
Air volume
4,118 cfm
Velocity uniformity
90%
Power rating
2,490 W
Sound level
73 dBA
Warranty & Protection
5-year parts warranty.
Frequently Asked Questions
No. The HV272-2UG-TS is an unheated air curtain.
It is specified for a 72-inch-wide door.
The specified electrical configuration is 208–230 V, 60 Hz, three phase.
It has two 1 HP motors.
The product is 72 inches wide, 15.63 inches deep, and 14 inches high.
The provided product documentation specifies a 5-year parts warranty.
