Play manufacturer video for Mars Air Systems HV2144-3UH-TS Unheated Air Curtain for 144" Door, 3 x 1 HP Motors, Galvanized Steel CabinetMars Air Systems HV2144-3UH-TS Unheated Air Curtain for 144" Door, 3 x 1 HP Motors, Galvanized Steel Cabinet

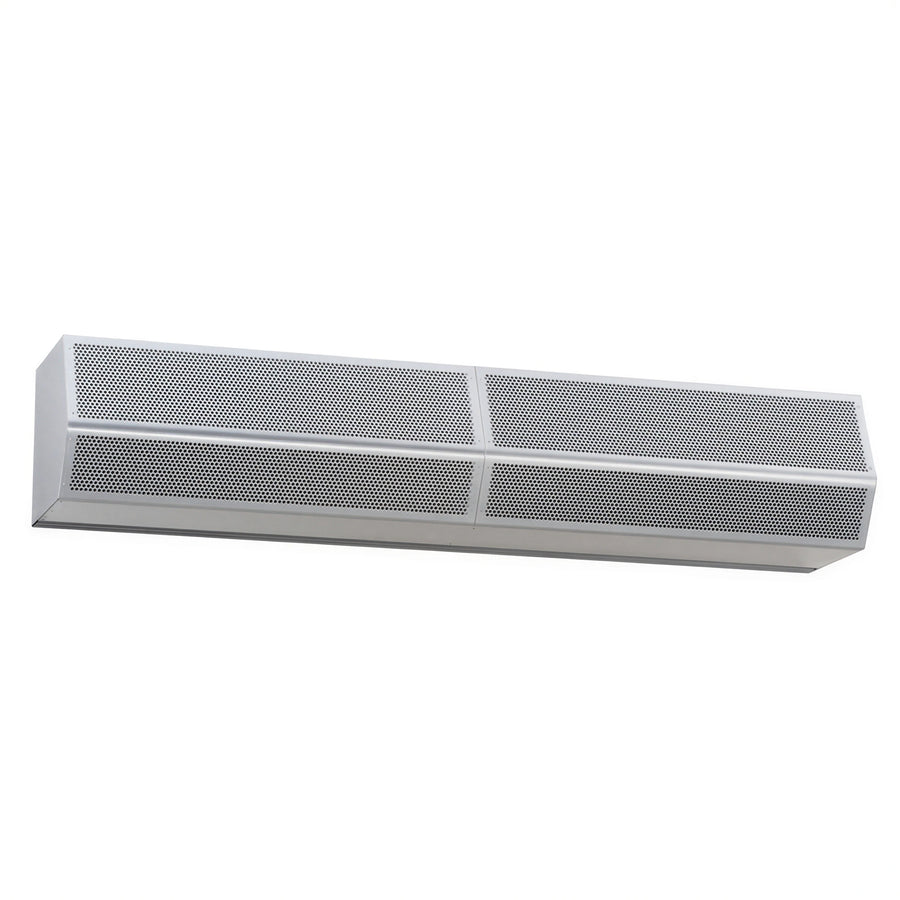

HV2144-3UH-TS is a Mars Air Systems High Velocity 2 unheated air curtain designed for a 144-inch-wide door opening. It features a galvanized steel cabinet with a Titanium Silver powder coat finish and three 1 HP motors.
- Unheated operation: Provides air separation without a heating element.
- 144-inch coverage: The nozzle and overall unit length are both 144 inches.
- Three-motor configuration: Includes three continuous-duty TEAO motors rated at 1 HP each.
- Adjustable airflow direction: Air directional vanes provide a 40-degree sweep from front to back.
- Electrical configuration: 460 V, 60 Hz, three-phase.
- Cabinet finish: Galvanized steel cabinet with Titanium Silver powder coat finish.
Overall Dimensions:
144.0"W x 15.63"D x 14.0"HUnheated operation
The HV2144-3UH-TS is an unheated air curtain.
144-inch coverage
The unit has a 144-inch nozzle length and 144-inch overall length for a 144-inch-wide door.
Three 1 HP motors
The configuration uses three 1 HP continuous-duty Totally Enclosed Air Over motors with NEMA 1 rating.
Adjustable directional vanes
Air directional vanes provide a 40-degree sweep from front to back.
Galvanized steel cabinet
The cabinet is galvanized steel with a Titanium Silver powder coat finish.
AMCA performance data
The exact model is listed with AMCA certified lab data, including 7,341 cfm volume and 2,447 fpm average velocity.
Certifications & Compliance
Warranty & Protection
5-year parts warranty
