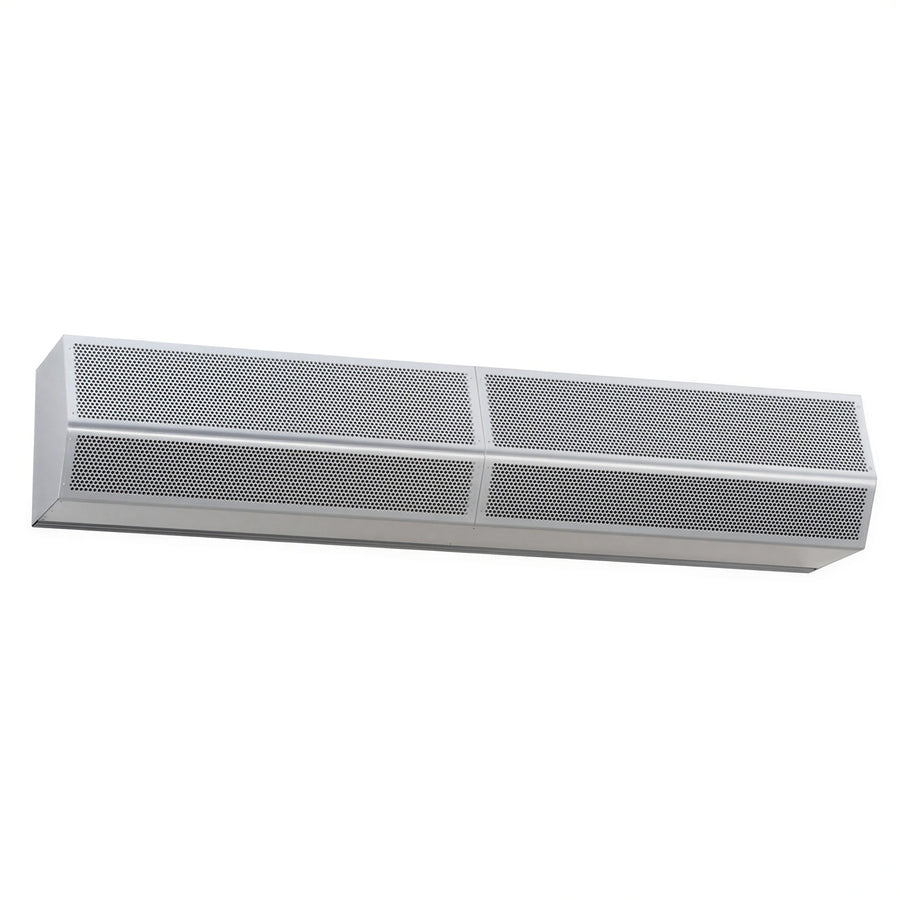

Mars Air Systems HV2108-3UH-TS Unheated Air Curtain, 108"W, 3 x 1 HP Motors, Galvanized Steel Cabinet
The Mars Air Systems HV2108-3UH-TS is an unheated High Velocity 2 air curtain for a 108-inch door. It has a galvanized steel cabinet with a Titanium Silver powder coat finish and three 1 HP motors.
This model is specified for 460 V, 60 Hz, three-phase service. Listed mechanical data includes 6,177 cfm air volume, 6,000 fpm maximum core velocity, and 2,745 fpm average velocity.
- 108 in wide, 15.63 in deep, and 14 in high
- Maximum listed opening height of 14 ft
- Adjustable air directional vanes with a 40-degree front-to-back sweep
- 5-year parts warranty
Overall Dimensions:
108.0"W x 15.63"D x 14.0"HUnheated operation
Specified as an unheated air curtain for the High Velocity 2 series.
Three 1 HP motors
Uses three 1 HP continuous-duty TEAO motors with NEMA 1 construction.
Galvanized steel cabinet
The cabinet is galvanized steel with a Titanium Silver powder coat finish.
460 V electrical configuration
Specified for 460 V, 60 Hz, three-phase service.
Adjustable air direction
Adjustable air directional vanes provide a 40-degree front-to-back sweep.
Listed airflow performance
Exact-model mechanical data lists 6,177 cfm air volume, 6,000 fpm maximum core velocity, and 2,745 fpm average velocity.
Parts warranty
The product data specifies a 5-year parts warranty.
Certifications & Compliance
Warranty & Protection
5-year parts warranty
