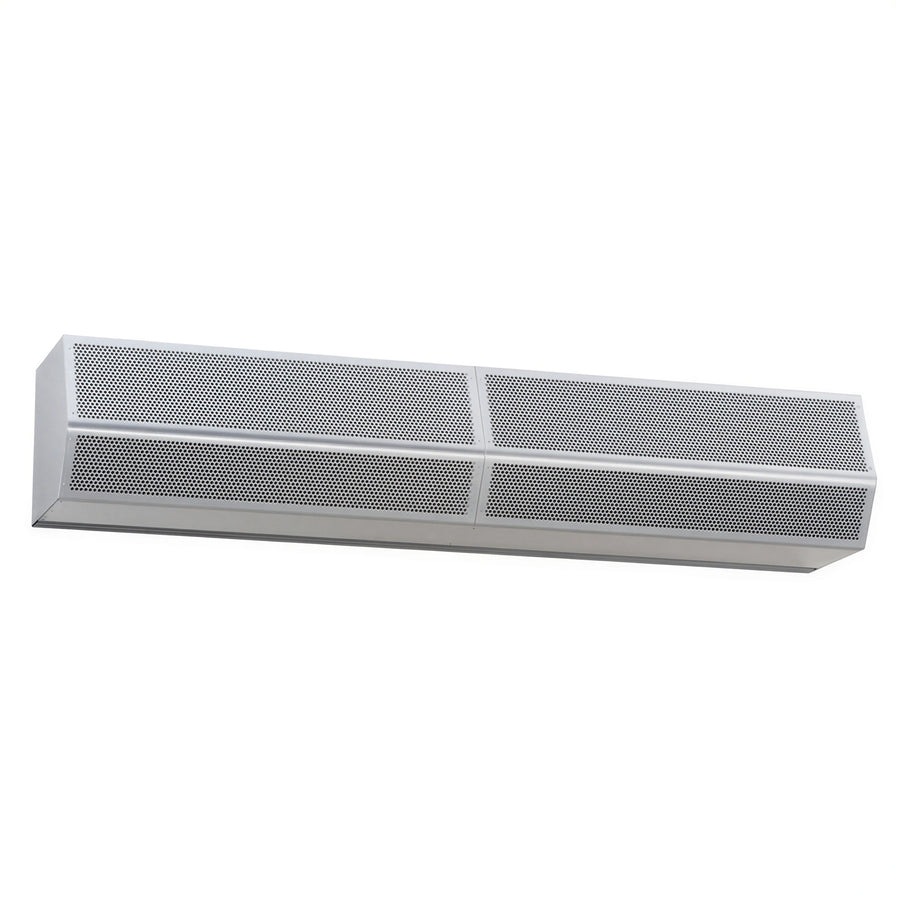

Mars Air Systems HV2108-3UG-TS Unheated Air Curtain, 108"W, 3 × 1 HP Motors

SKU: HV2108-3UG-TS
$4,317.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

The Mars Air Systems HV2108-3UG-TS is an unheated High Velocity 2 air curtain sized for a 108 in. opening. It uses three 1 HP motors and a 208-230 V, 60 Hz, three-phase electrical configuration.

  • Galvanized steel cabinet with Titanium Silver powder coat finish.
  • Adjustable air directional vanes with a 40° sweep from front to back.
  • cETLus certified.

Overall Dimensions:

108.0"W x 15.63"D x 14.0"H

Unheated operation

Configured as an unheated air curtain.

Three-motor configuration

Uses three 1 HP continuous-duty Totally Enclosed Air Over motors with NEMA 1 construction.

108 in. length

The nozzle length and overall length are each 108 in.

Electrical configuration

Designed for 208-230 V, 60 Hz, three-phase power.

Cabinet and finish

Galvanized steel cabinet with a Titanium Silver powder coat finish.

Adjustable airflow direction

Air directional vanes provide a 40° sweep from front to back.

Opening height

Listed for a maximum window or door opening height of 14 ft.

Airflow data

Listed performance data includes 6000 fpm maximum core velocity, 2745 fpm average velocity, and 6177 cfm air volume.

Series High Velocity 2
Type Unheated
Nozzle length 108 in.
Overall length 108 in.
Motors 3
Horsepower per motor 1 HP
Motor type Continuous-duty TEAO, NEMA 1
Voltage 208-230 V
Frequency 60 Hz
Phase 3-phase
Maximum opening height 14 ft
Cabinet material Galvanized steel
Finish Titanium Silver powder coat
Maximum core velocity 6000 fpm
Average velocity 2745 fpm
Air volume 6177 cfm
Velocity uniformity 90%
Power rating 3735 W
Full-load amperage 9.9/9.6 A
Air directional vane sweep 40° front to back

Certifications & Compliance

Warranty & Protection

5-year parts warranty.

Documents

PDF Cutsheet PDF Download PDF Hv2 unheated submittals PDF Download PDF Collateral PDF Download PDF Video PDF Download PDF Collateral refrigeration PDF Download PDF Marketing sheet PDF Download

Frequently Asked Questions

No. The HV2108-3UG-TS is an unheated air curtain.
It has a 108 in. nozzle and overall length and is listed for a 108 in. opening.
It uses 208-230 V, 60 Hz, three-phase power.
It has three 1 HP continuous-duty TEAO motors with NEMA 1 construction.
The listed maximum window or door opening height is 14 ft.
The product sheet lists a 5-year parts warranty.
