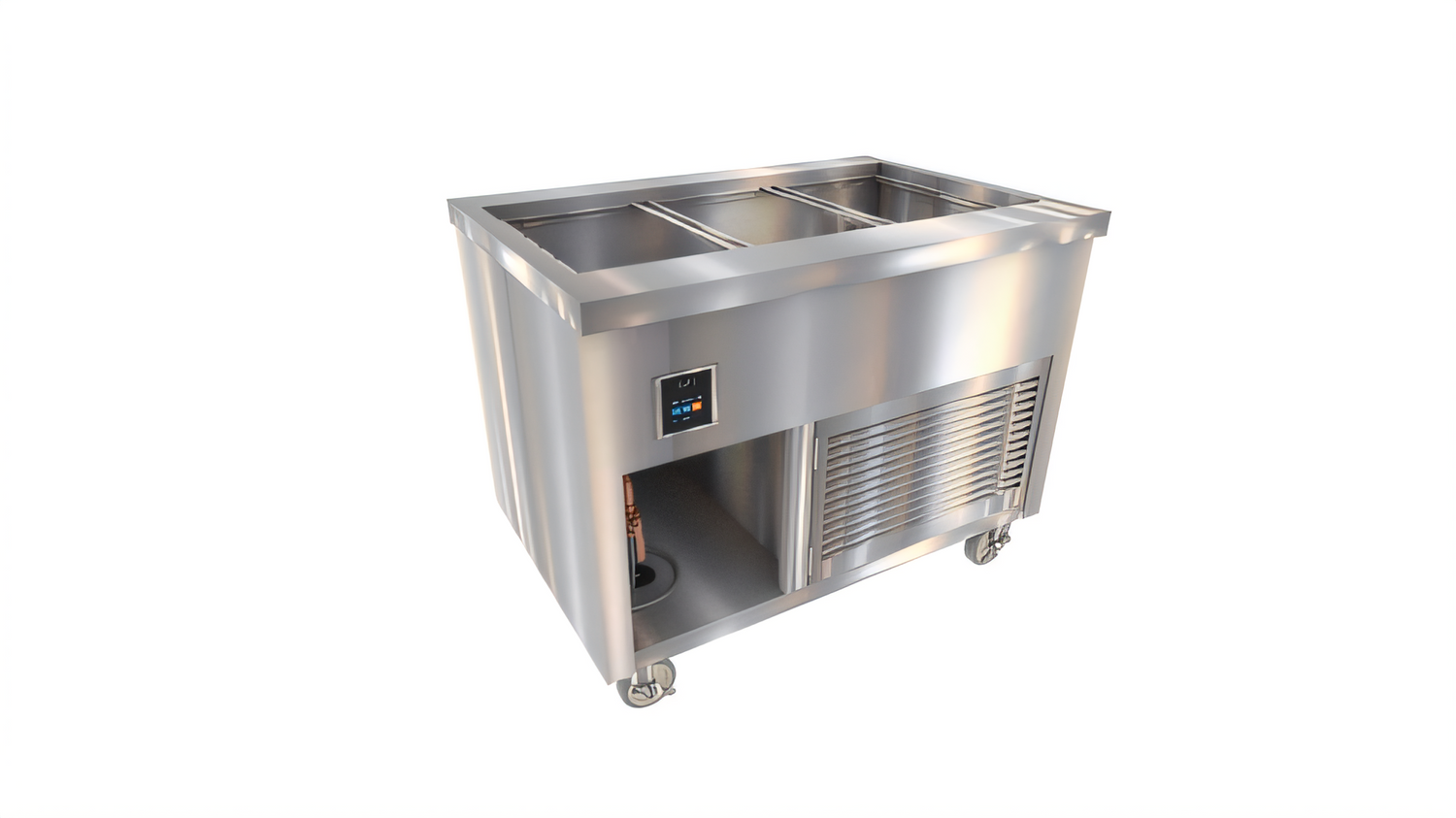

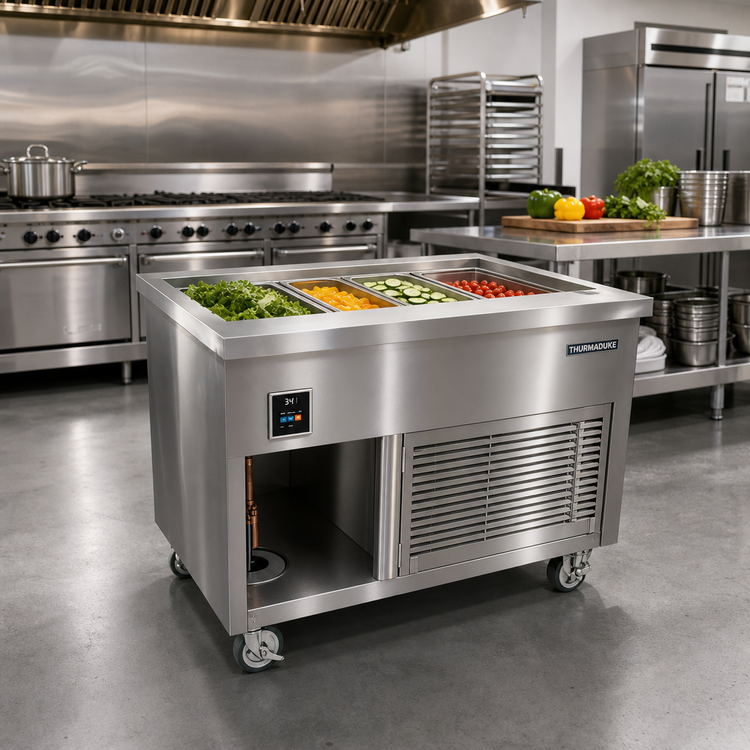

Thurmaduke TCM-46SS-N7 46-inch Mobile Cold Food Unit with NSF 7 Cold Pan

Full-Size, Mechanically Cooled, Stainless Steel Body

This Thurmaduke mobile cold food unit provides efficient, NSF 7 compliant refrigeration to maintain food safety and presentation in any commercial setting.

  • Mobile design with 5-inch swivel casters and brakes for effortless relocation and secure positioning.
  • NSF Standard 7 compliant mechanical cold pan ensures food is kept at safe holding temperatures.
  • Constructed with durable 16-gauge 300 Series stainless steel top and a matching stainless steel body.
  • Features an intuitive touchscreen control with three pre-set temperatures for precise and easy operation.
  • Utilizes R290 refrigerant, offering an environmentally friendly and efficient cooling solution.
  • Equipped with an 8-inch deep cold pan liner and a convenient 1-inch drain with shut-off valve.

Overall Dimensions:

46.0"W x 32.0"D x 36.0"H

Product Weight:

354.0 lb

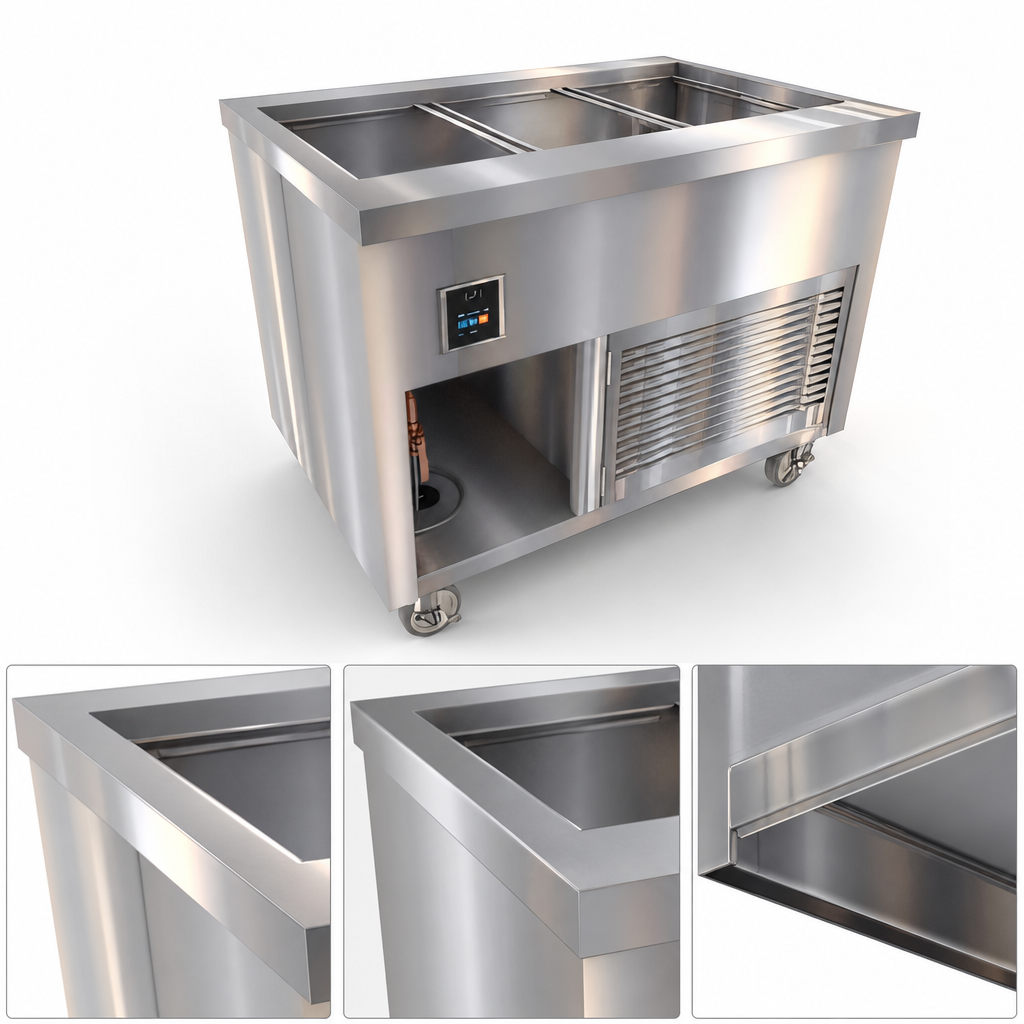

Heavy-Duty Stainless Steel Top

Constructed from 16-gauge 300 Series stainless steel with all four edges flanged down 2 inches at 90 degrees, ensuring durability and a clean finish.

NSF 7 Mechanical Cold Pan

An 8-inch deep cold pan liner made from 300 Series stainless steel, insulated on all four sides and bottom to maintain consistent cold temperatures.

Intuitive Touchscreen Control

Ease-to-use touchscreen control system with 3 pre-set temperatures allows for precise and effortless temperature management.

Environmentally Friendly Refrigeration

Features a mechanically cooled system using R290 refrigerant, with the condensing unit conveniently located below the top on the operator's right.

Robust Mobile Design

Equipped with 5-inch diameter swivel casters and brakes, providing excellent mobility for flexible placement and stability when locked.

Durable Stainless Steel Body

The entire body and undershelf are constructed from stainless steel, ensuring longevity and a professional appearance in any commercial environment.

Integrated Drain System

Includes a 1-inch drain pipe and a shut-off valve located on the operator's right, simplifying cleaning and maintenance.

Hinged Louvered Grille

A stainless steel louvered grille is hinged for easy access and promotes optimal air circulation for the refrigeration system.

Type Cold Food Unit
Style Mobile
Installation Type Floor Model (With Casters)
Material Stainless Steel
Top Construction 16 gauge 300 Series Stainless Steel
Interior Finish 300 Series Stainless Steel
Cold Pan Liner Length 42 1/2 Inches
Cold Pan Liner Width 21 3/4 Inches
Cold Pan Depth 8 Inches
Controls Touchscreen
Drain Connection Size 1 Inch
Drain Connection Required
Refrigeration Type Mechanically Cooled
Refrigerant Type R290
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 5.2 Amps
Plug Type NEMA 5-15
Cord Length 6 Feet
Shipping Width 46 Inches
Shipping Depth 32 Inches
Shipping Height 36 Inches
Shipping Weight 354 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor, with an additional 4-year replacement warranty on refrigeration compressors.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Color chart PDF Download PDF Parts manual PDF Download PDF Warranty PDF Download PDF Service manual PDF Download

Frequently Asked Questions

The cold pan liner has interior dimensions of 42 1/2 inches in length, 21 3/4 inches in width, and is 8 inches deep.
This unit utilizes R290 refrigerant, which is an environmentally friendly option for mechanical cooling.
While the standard unit comes with an intuitive touchscreen control, a basic mechanical control is available as an optional configuration.
The standard configuration places the drain and condensing unit on the operator's right, but an option for placement on the operator's left is available.
The unit comes with a 1-year parts and labor warranty, with an additional 4-year replacement warranty specifically for refrigeration compressors. The warranty applies to products used in the United States, Canada, and Mexico.
