Key specifications

Phase
1-Phase
Dimensions
88.0"W × 28.0"D × 36.0"H
Type
Cold Food Counter
Style
Mobile
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Dinex SKU: DXP6CM

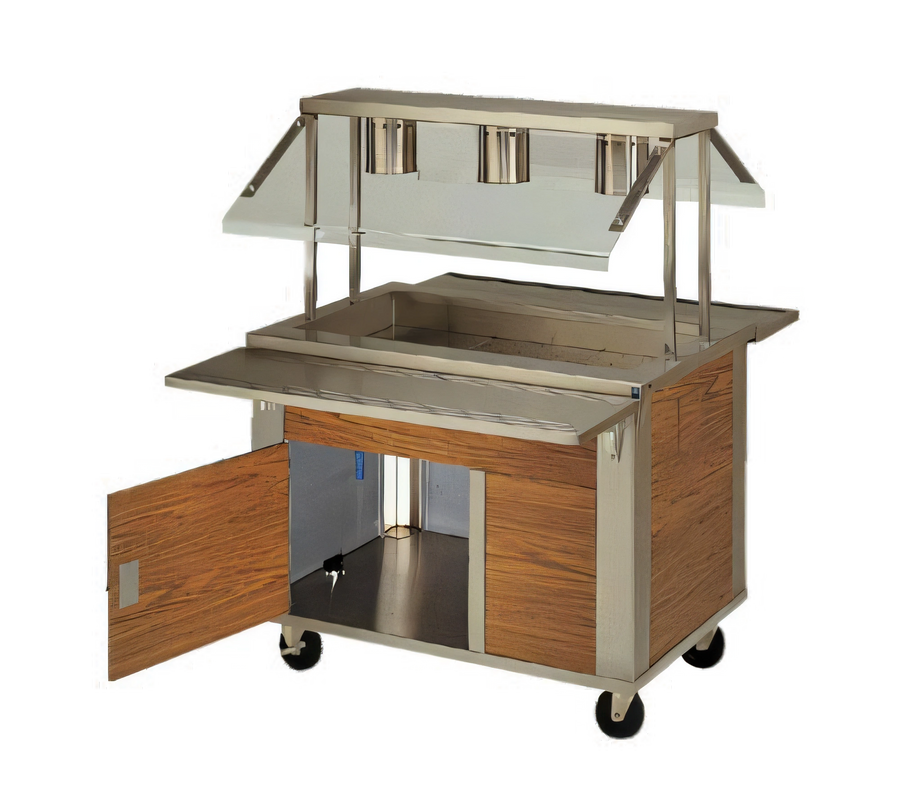

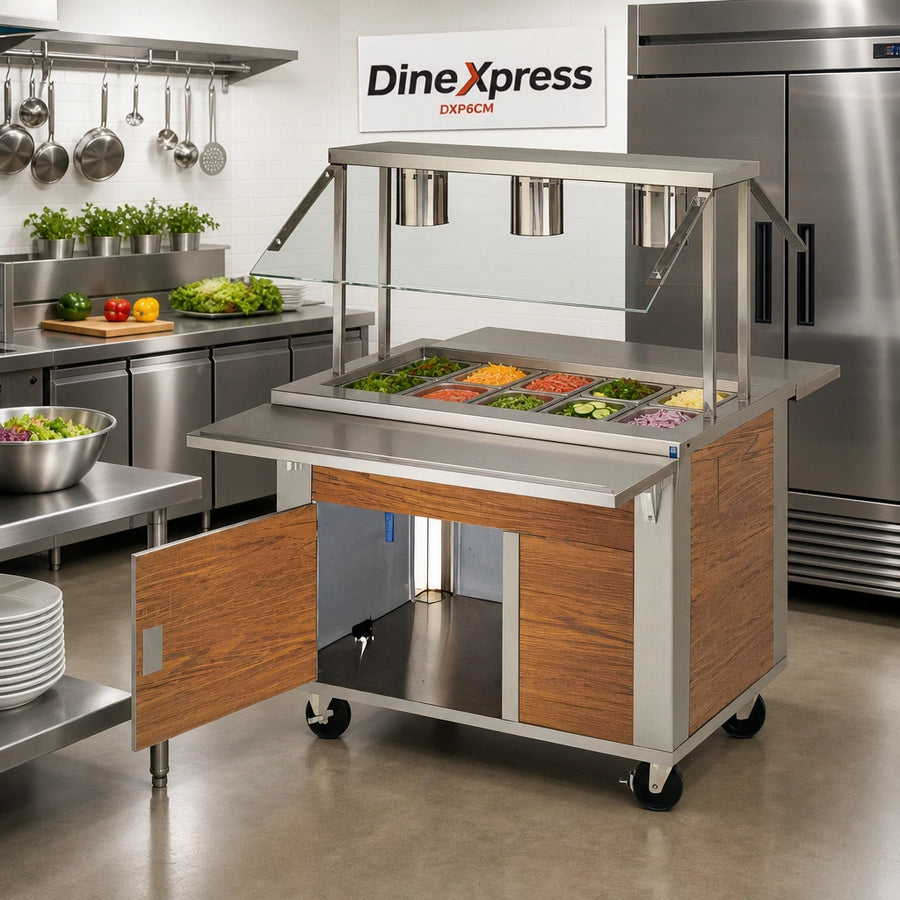

Dinex DineXpress DXP6CM Mobile Mechanically Cooled 6-Pan Counter

$10,114.83
/each
Estimated to ship in 4–7 business days
Refrigeration system
Pan capacity
Height
Refrigerated storage base
Cutting boards
Tray slides
Bread shelf material

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $936/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Food Counter
Style Mobile
Installation Type Floor Model
Material Stainless Steel
Country of Origin USA
Base Design Fully Enclosed
Refrigeration Type Mechanically Cooled
Pan Capacity 6 Pans
Pan Size 12 x 20 Inches
Well Type Enclosed
Well Depth 5 Inches
Door Type Sliding
Top Gauge 14 Gauge
Panel Gauge 20 Gauge
Voltage 120 Volts
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Controls On/Off Switch; Pilot Light
Compressor Horsepower 1/3 HP
Condensing Unit Fan Cooled
Caster Diameter 5 Inches
Caster Brakes 2 Casters
Drain Size 1 Inch
Drain Valve Shut-Off Valve
Selling Unit 1 Each

Description

The DineXpress DXP6CM is a mobile, mechanically cooled cold food counter for chilled food service. It provides six 12 x 20 pan positions in enclosed 5-inch-deep wells.

The unit features a stainless steel top, front and removable end panels, standard sliding doors, an undershelf, a 1-inch drain with shut-off valve, and 5-inch swivel plate casters with two brakes.

  • Fan-cooled condensing unit with 1/3 hp compressor
  • 120-volt, single-phase electrical connection with 8-foot cord and NEMA 5-15P plug
  • On/off switch and pilot light

Overall Dimensions:

88.0"W x 28.0"D x 36.0"H

Product Weight:

385.0 lb

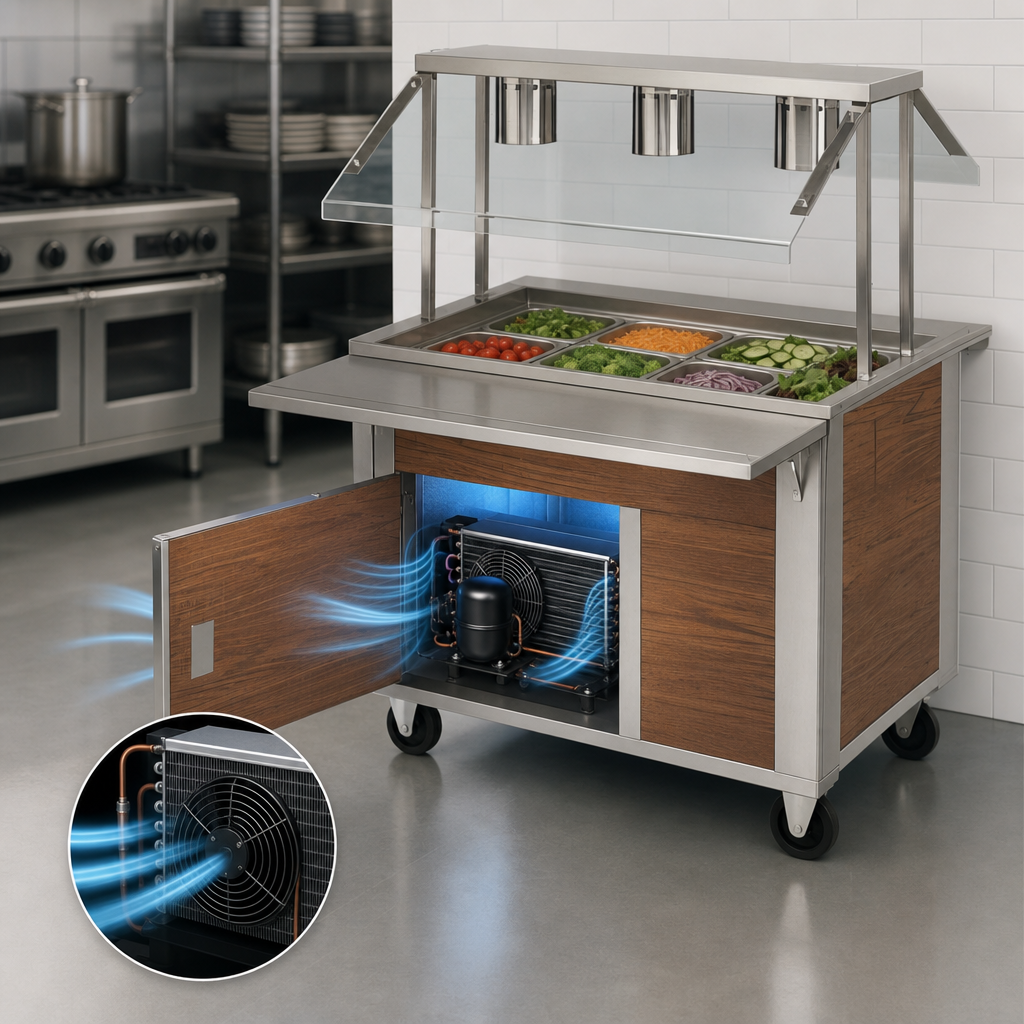

Mechanical Cooling

A fan-cooled condensing unit with a valve pressure control switch and 1/3 hp compressor provides mechanical cooling.

Six-Pan Capacity

The counter accommodates six 12 x 20 pans in enclosed 5-inch-deep wells.

Stainless Steel Construction

The top is 14-gauge stainless steel, while the front and removable end panels are 20-gauge stainless steel.

Sliding Doors

Sliding doors are standard for the unit.

Mobile Base

The unit uses 5-inch swivel plate casters, with two casters equipped with brakes.

Drain and Undershelf

A 1-inch drain with shut-off valve and an undershelf are included.

Electrical Controls

The unit includes an on/off switch, pilot light, 8-foot electrical cord, and NEMA 5-15P plug.

Frequently Asked Questions

It accommodates six 12 x 20 pans.
Yes. It has a fan-cooled condensing unit with a 1/3 hp compressor.
The product measures 88 inches wide by 28 inches deep by 36 inches high.
It uses 120-volt, single-phase power with a NEMA 5-15P plug and an 8-foot electrical cord.
Yes. Sliding doors are standard on the mechanically cooled unit.
The product has a one-year parts and labor warranty.
