Key specifications

Amps
6.3 Amps
Phase
1-Phase
Dimensions
88.0"W × 28.0"D × 36.0"H
Type
Cold Food Counter
Style
Extra Deep
Installation Type
Floor Model
Spec sheet
Dinex SKU: DXP6BCM

Dinex DineXpress DXP6BCM 6-Pan Refrigerated Food Counter

$10,124.73
/each
Estimated to ship in 4–7 business days
Cooling
Pan capacity
Height
Storage base
Protector guard
Cutting board material
Tray slide type

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $937/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Food Counter
Style Extra Deep
Installation Type Floor Model
Material Stainless Steel
Base Design Fully Enclosed
Mobility Mobile
Refrigeration Type Mechanically Cooled
Pan Capacity 6 Pans
Pan Size 12 x 20 Inches
Well Depth 9-7/16 Inches
Door Type Sliding Doors
Caster Diameter 5 Inches
Top Gauge 14 Gauge
Well Gauge 20 Gauge
Controls On/Off Switch, Pilot Light
Compressor Horsepower 1/3 HP
Voltage 120 Volts
Amps 6.3 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Selling Unit 1 Each

Description

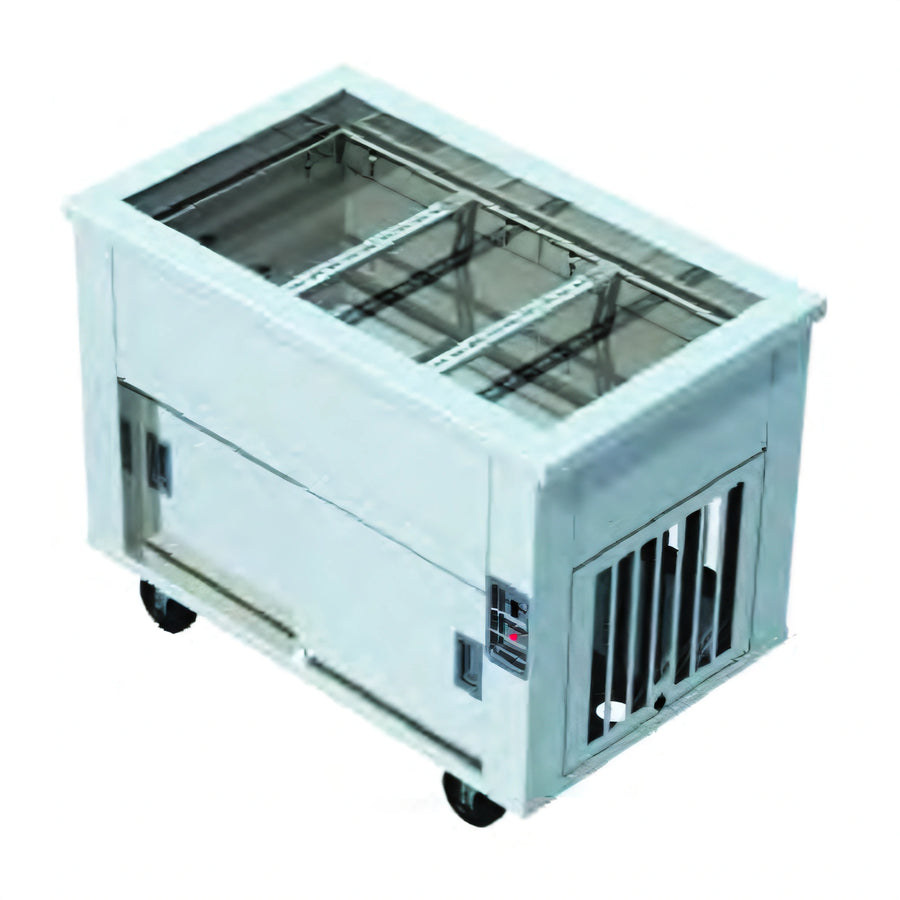

The Dinex DXP6BCM is a mechanically cooled cold food counter with six 12 x 20-inch pan positions and 9-7/16-inch-deep wells.

Its mobile modular design includes an interlocking mechanism, a 14-gauge stainless steel top, a fully enclosed cabinet base, sliding doors, an undershelf, a louvered panel, and 5-inch casters.

The counter measures 88 inches wide by 28 inches deep by 36 inches high and uses 120-volt, single-phase power with a NEMA 5-15P plug.

Overall Dimensions:

88.0"W x 28.0"D x 36.0"H

Product Weight:

480.0 lb

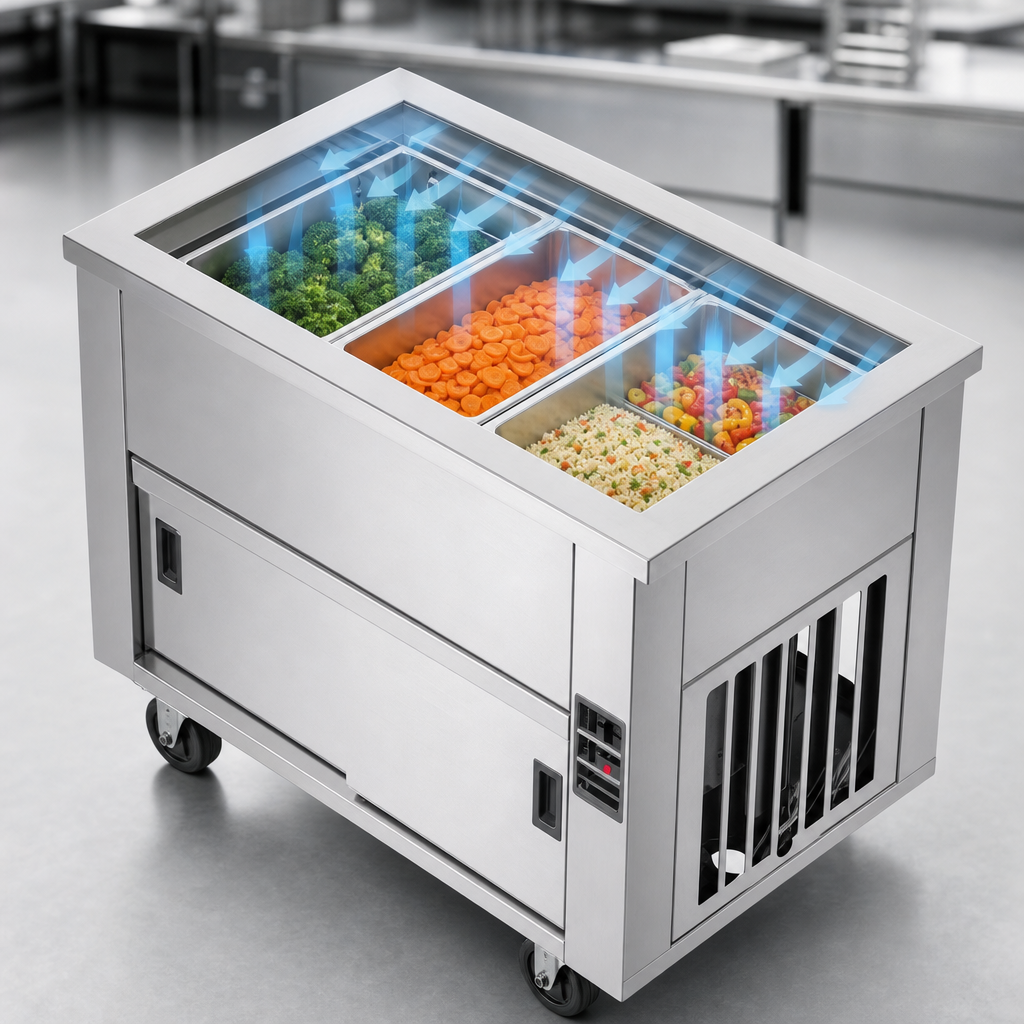

Mechanically Cooled Wells

Extra-deep 9-7/16-inch wells are mechanically refrigerated and require no ice.

Six-Pan Capacity

Accommodates six 12 x 20-inch pans.

Mobile Modular Design

The unit has 5-inch swivel plate casters, including two with brakes, and an interlocking mechanism for other Dinex units.

Stainless Steel Top

The top is constructed from 14-gauge stainless steel.

Enclosed Cabinet Base

The fully enclosed base includes sliding doors and an undershelf.

Electrical Connection

The unit uses 120 volts, single-phase power at 6.3 amps with an NEMA 5-15P plug and an eight-foot cord.

Ventilation Panel

A louvered panel provides ventilation for the condensing unit.

Frequently Asked Questions

The counter accommodates six 12 x 20-inch pans.
No. The DXP6BCM is mechanically refrigerated and requires no ice.
The unit is 88 inches wide, 28 inches deep, and 36 inches high.
It uses 120 volts, single-phase power at 6.3 amps with an NEMA 5-15P plug and an eight-foot cord.
The unit has a fully enclosed cabinet base with sliding doors and an undershelf.
The warranty is one year for parts and labor.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
