Key specifications

Phase
1-Phase
Dimensions
74.0"W × 28.0"D × 36.0"H
Type
Cold Food Counter
Style
Cool Breeze
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Dinex SKU: DXP5CB

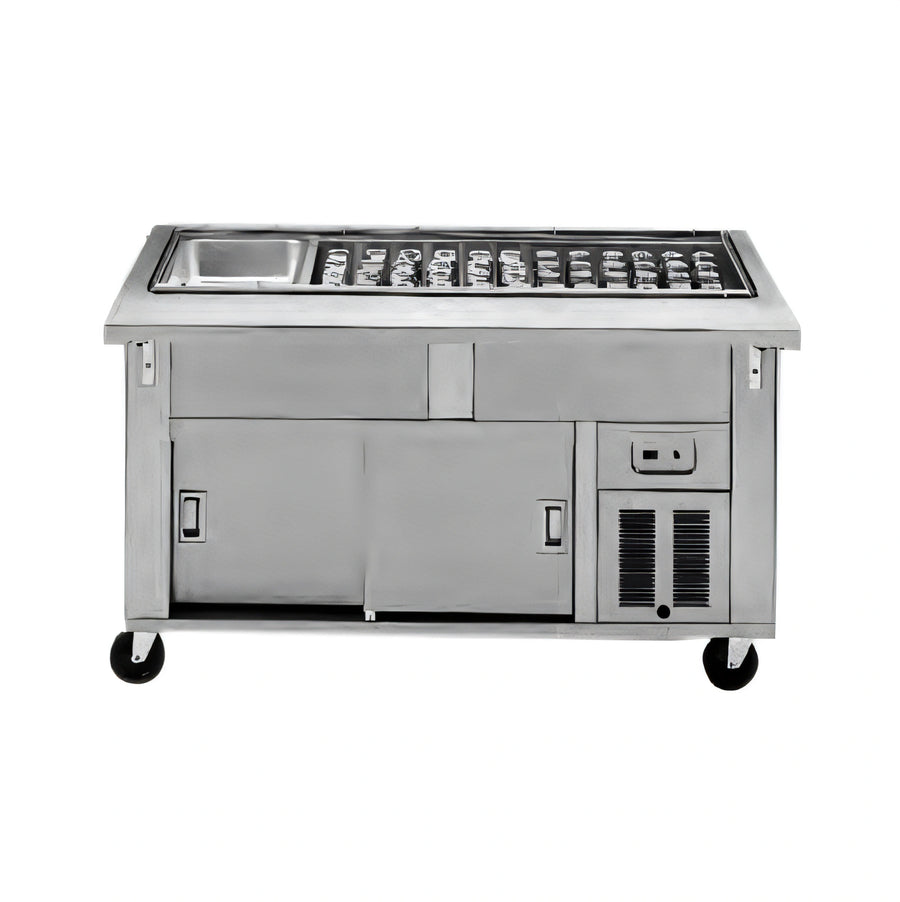

Dinex DineXpress DXP5CB 5-Pan Mobile Cold Food Counter

$11,562.21
/each
Estimated to ship in 4–7 business days
Pan capacity
Protector guard
Cutting board
Tray slide
Bread shelf material
Bread shelf side

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,070/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Food Counter
Style Cool Breeze
Installation Type Floor Model
Material Stainless Steel
Country of Origin USA
Base Design Fully Enclosed
Mobility Mobile
Pan Capacity 5 Pans
Overall Width 74 in
Overall Depth 28 in
Working Height 36 in
Voltage 120 Volts
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 ft
Refrigeration Type Mechanically Cooled
Cooling Method Forced Air
Refrigerant Type 134A
Temperature Range 41°F or less
Compressor Size 1/3 HP
Controls On/Off Switch, Pilot Light
Caster Diameter 5 in

Description

The DineXpress DXP5CB is a mobile, mechanically cooled cold food counter with a 74-inch stainless steel top and five-pan capacity. Its Cool Breeze forced-air system maintains product at 41°F or less without ice.

  • Mobile modular design with interlocking construction and 5-inch casters
  • Sliding doors, undershelf, and removable louvered panel
  • 120-volt, single-phase electrical connection with an 8-foot cord

Overall Dimensions:

74.0"W x 28.0"D x 36.0"H

Product Weight:

485.0 lb

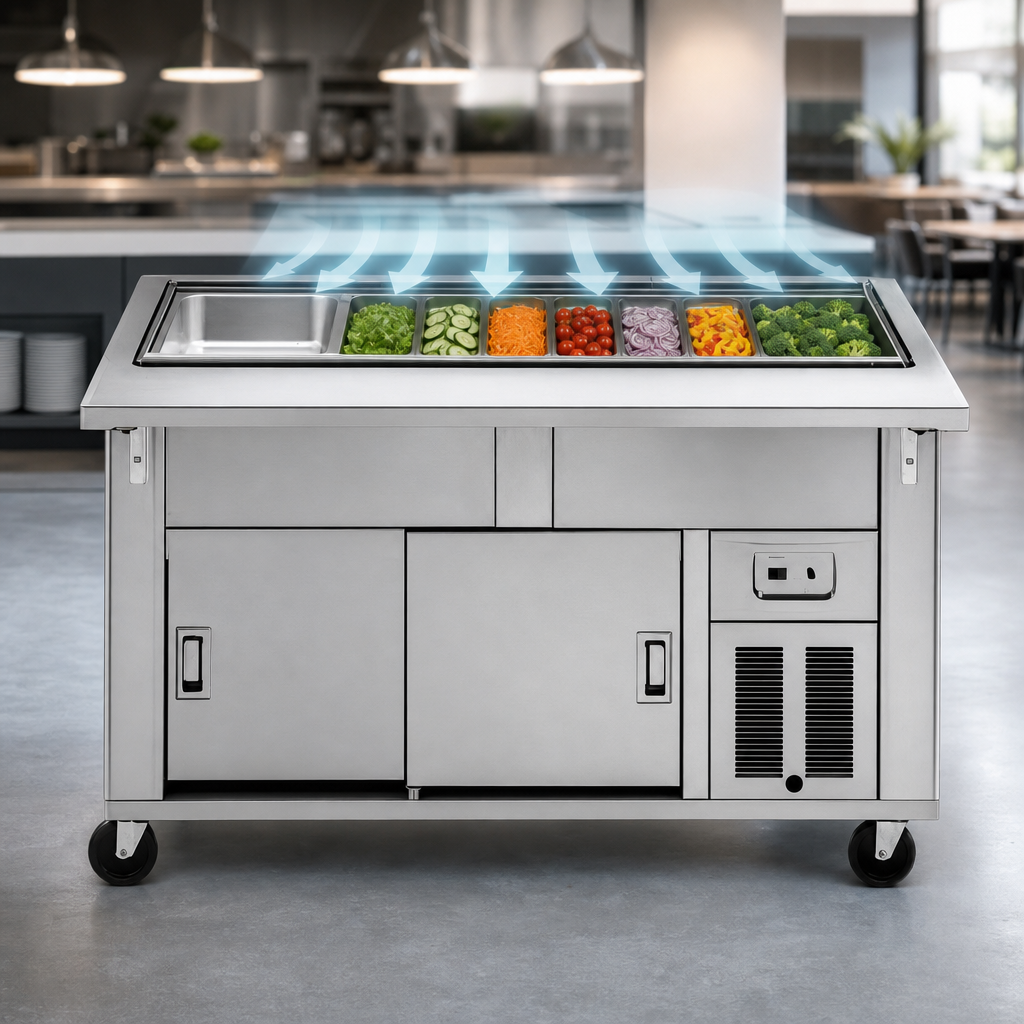

Cool Breeze Forced-Air Cooling

The air curtain maintains product at 41°F or less without ice and is designed not to dry product out or cause freezer burn.

Five-Pan Capacity

The counter is configured for five pans.

Mobile Modular Design

Interlocking modular construction and 5-inch swivel plate casters support mobile placement; two casters have brakes.

Stainless Steel Construction

The standard unit includes a stainless steel top, front, and end panel.

Storage Access

Sliding doors and an undershelf provide access to the lower section.

Service Access

The removable louvered end panel provides access to the compressor.

Electrical Connection

The unit uses 120-volt, single-phase power with an 8-foot cord and NEMA 5-15P plug.

Refrigeration System

The system includes a 1/3 HP compressor, fan-cooled condensing unit, capillary tube expansion device, and thermostat.

Drain

A 1-inch drain with shutoff valve is located on the operator's left side.

Frequently Asked Questions

The DXP5CB has a five-pan capacity.
No. Its Cool Breeze forced-air system is specified to maintain product at 41°F or less without ice.
The counter measures 74 in wide, 28 in deep, and 36 in high.
Yes. It has a mobile modular design with 5-inch casters, including two casters with brakes.
It uses 120-volt, single-phase power with an 8-foot cord and NEMA 5-15P plug.
The listed warranty is one year for parts and labor.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
