Key specifications

Amps
6.3 Amps
Phase
1-Phase
Dimensions
74.0"W × 28.0"D × 36.0"H
Type
Cold Food Counter
Style
Extra Deep
Installation Type
Floor Model
Spec sheet
Dinex SKU: DXP5BCM

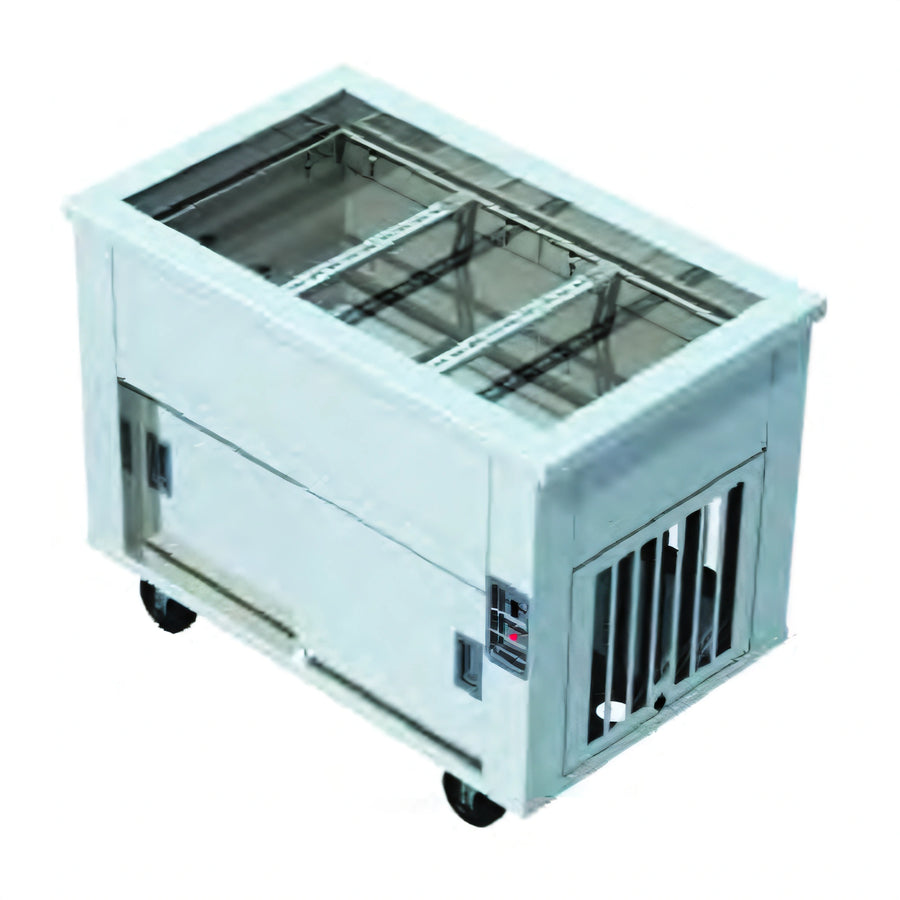

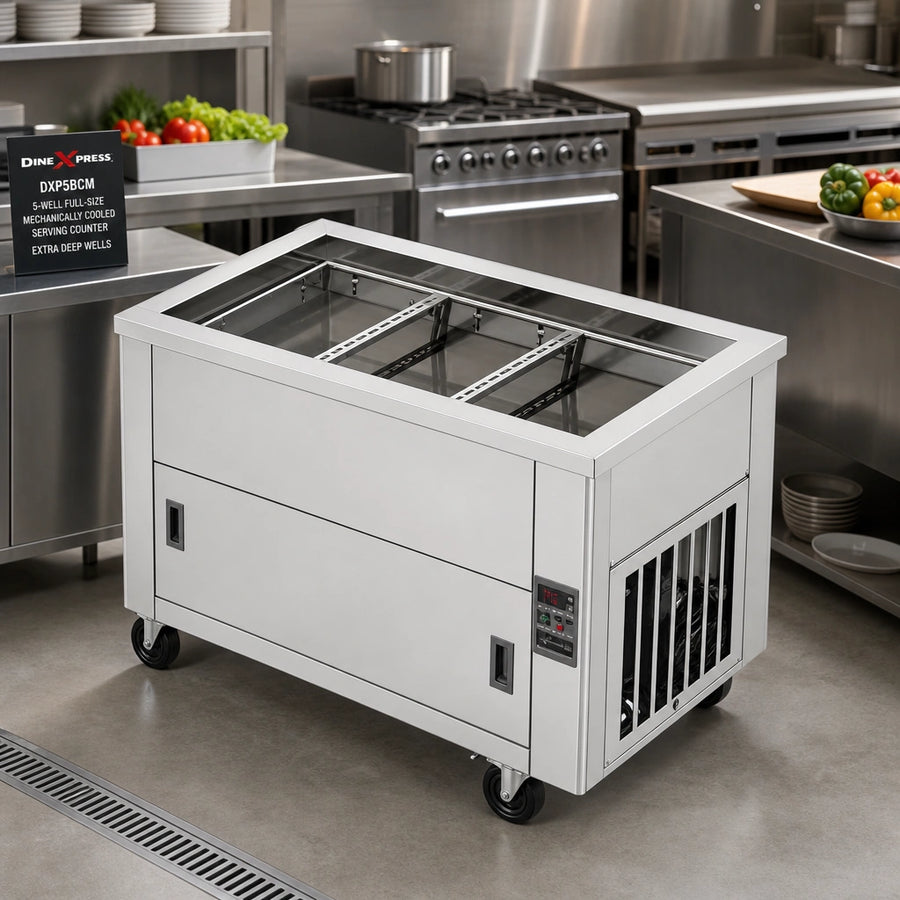

Dinex DineXpress DXP5BCM 5-Well Mechanically Cooled Cold Counter

$9,740.61
/each
Estimated to ship in 4–7 business days
Pan capacity
Storage base
Protector guard
Cutting board
Tray slide
Bread shelf material

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $901/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Food Counter
Style Extra Deep
Installation Type Floor Model
Material Stainless Steel
Base Design Fully Enclosed
Mobility Mobile
Refrigeration Type Mechanically Cooled
Pan Size 12 x 20 Inches
Pan Capacity 5 Pans
Well Depth 9-7/16 Inches
Top Gauge 14 Gauge
Door Type Sliding Doors
Caster Diameter 5 Inches
Voltage 120 Volts
Amps 6.3 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Controls On/Off Switch, Pilot Light
Selling Unit Each

Description

The DineXpress DXP5BCM is a mobile, mechanically cooled cold food counter with five extra-deep wells for 12 x 20-inch pans. It measures 74 inches wide, 28 inches deep, and 36 inches high.

  • 9-7/16-inch-deep wells with mechanical refrigeration and no ice required
  • 14-gauge stainless steel top with stainless steel front and end panels
  • Sliding doors, undershelf, louvered panel, and interlocking mechanism
  • 5-inch swivel plate casters, including two with brakes
  • 120-volt, single-phase electrical connection with NEMA 5-15P plug

Overall Dimensions:

74.0"W x 28.0"D x 36.0"H

Product Weight:

440.0 lb

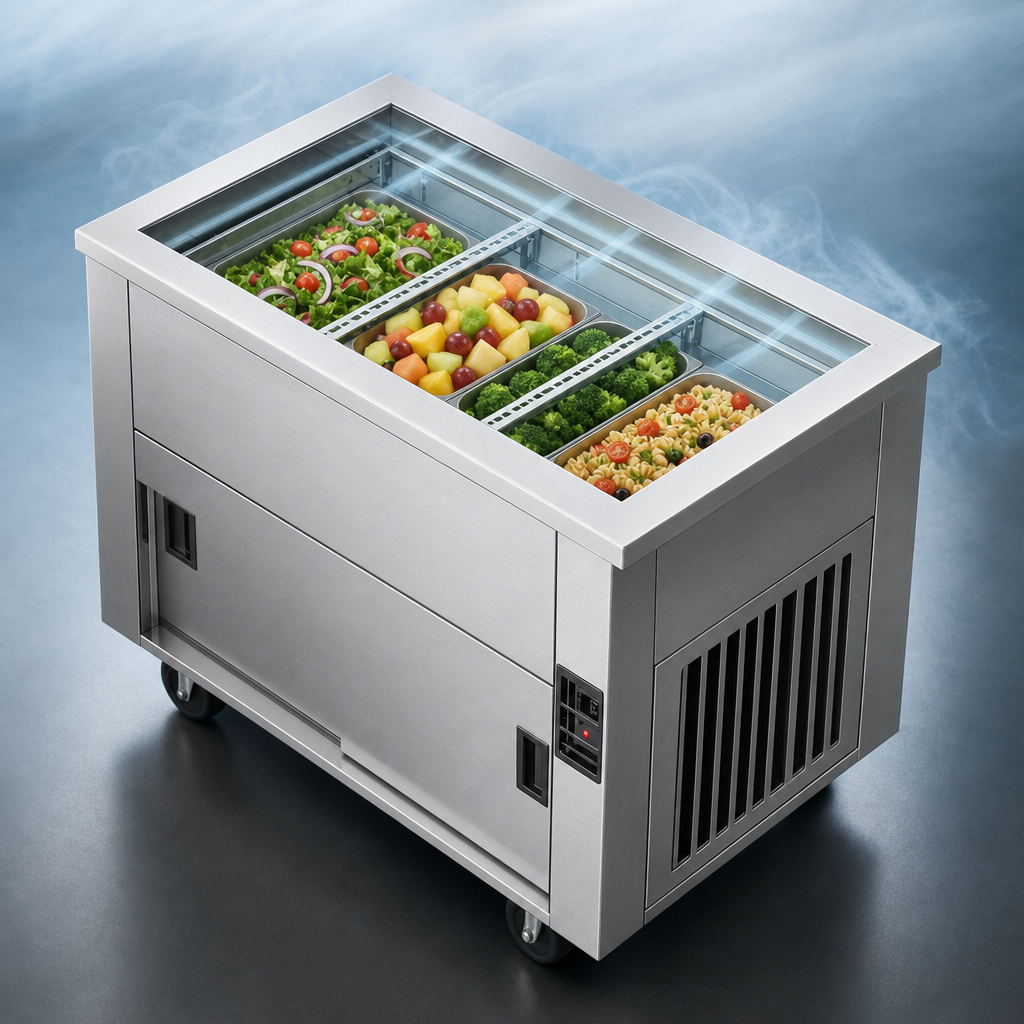

Mechanically Cooled Wells

Five extra-deep wells provide mechanically refrigerated holding for 12 x 20-inch pans without ice.

Extra-Deep Well Design

The wells are 9-7/16 inches deep, with food recessed on removable rails.

Stainless Steel Construction

The unit has a 14-gauge stainless steel top with stainless steel front and end panels.

Mobile Casters

The counter has 5-inch swivel plate casters, with two casters equipped with brakes.

Modular Interlocking

An interlocking mechanism is provided for connecting with other Dinex units.

Sliding Door Understorage

Sliding doors and an undershelf are listed as standard features.

Electrical Connection

The documented configuration uses 120 volts, single phase, 6.3 amps, an 8-foot cord, and a NEMA 5-15P plug.

Operator Controls

An On/Off switch and pilot light are mounted on the operator-side control panel.

Frequently Asked Questions

It holds five 12 x 20-inch pans.
The wells are 9-7/16 inches deep.
No. The DXP5BCM is mechanically refrigerated and requires no ice.
Yes. It has 5-inch swivel plate casters, including two with brakes.
The documented configuration is 120 volts, single phase, 6.3 amps, with an 8-foot cord and NEMA 5-15P plug.
Yes. Sliding doors are listed as a standard feature.
The product is listed with NSF/ANSI Standard 7 and UL certifications.
The warranty is one year for parts and labor.
