Key specifications

Amps
6.3 Amps
Phase
1-Phase
Dimensions
54.25"W × 28.0"D × 36.0"H
Type
Cold Food Counter
Style
Extra Deep
Installation Type
Floor Model
Spec sheet
Dinex SKU: DXP4BCM

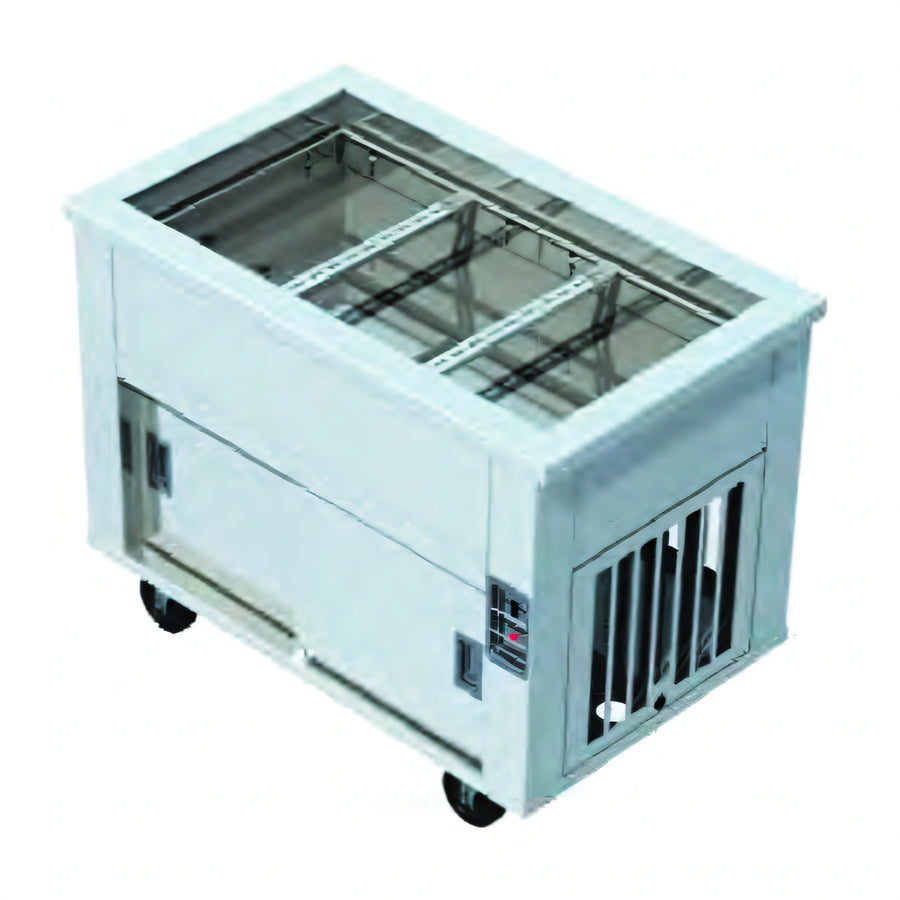

Dinex DineXpress DXP4BCM 4-Pan Mechanically Cooled Food Bar

$8,804.52
/each
Estimated to ship in 4–7 business days
Pan capacity
Height36 in.
Storage base
Cold pan arrangement
Cold pan bottom
Door type

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $814/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Food Counter
Style Extra Deep
Installation Type Floor Model
Material Stainless Steel
Mobility Mobile
Base Design Fully Enclosed
Overall Length 60 Inches
Pan Capacity 4 Pans
Pan Size 12 x 20 Inches
Well Depth 9-7/16 Inches
Refrigeration Type Mechanically Cooled
Voltage 120 Volts
Amps 6.3 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Controls On/Off Switch and Pilot Light
Top Gauge 14 Gauge
Door Type Sliding Doors
Caster Diameter 5 Inches
Braking Casters 2 Casters
Compressor Horsepower 1/3 HP
Drain Size 1 Inch
Drain Valve Shutoff Valve

Description

DineXpress DXP4BCM is a mechanically cooled cold food serving counter with capacity for four 12 x 20-inch pans in 9-7/16-inch-deep wells. The unit requires no ice.

  • 14-gauge stainless steel top
  • Stainless steel front and end panels
  • Fully enclosed cabinet base with sliding doors and undershelf
  • 5-inch swivel plate casters, including two with brakes
  • Interlocking mechanism for connection with other Dinex units

The counter operates at 120 volts, single-phase, with a 6.3-amp electrical requirement, 8-foot cord and NEMA 5-15P plug.

Overall Dimensions:

54.25"W x 28.0"D x 36.0"H

Product Weight:

405.0 lb

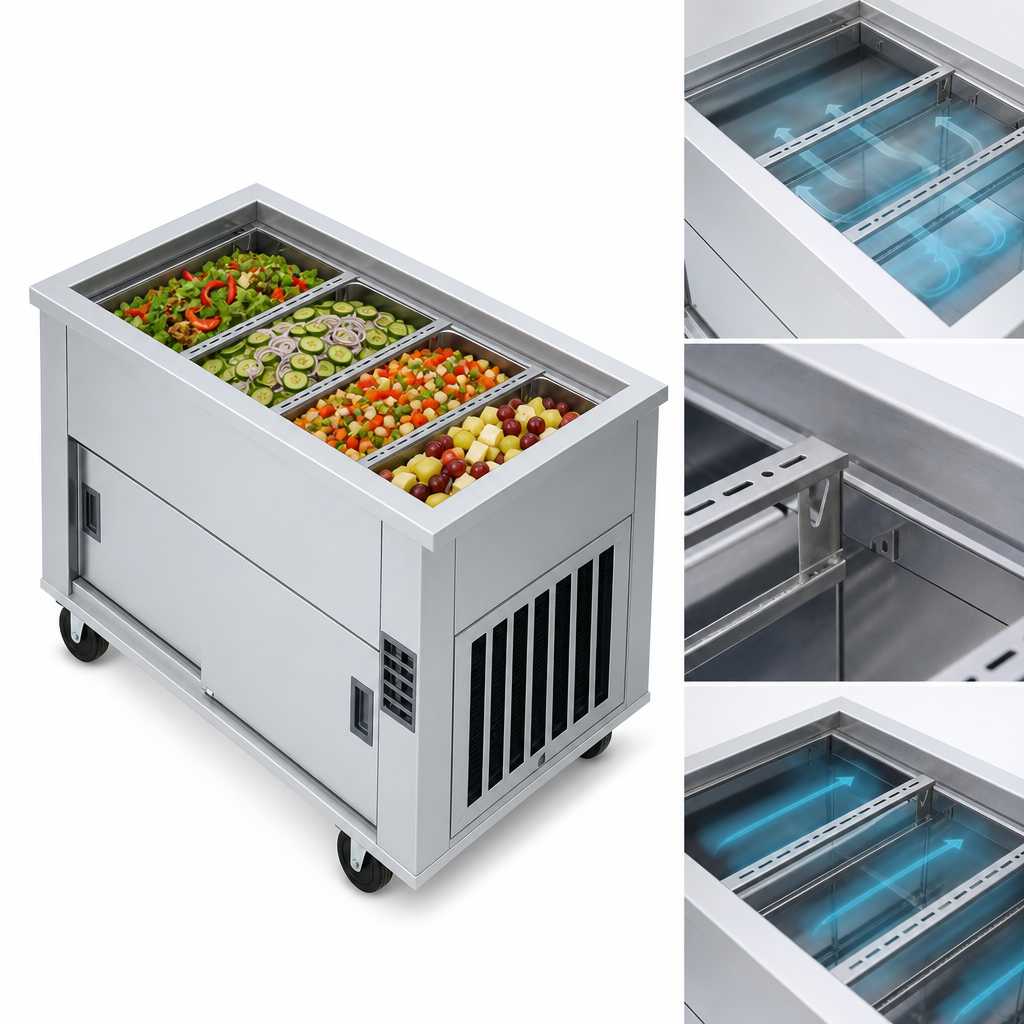

Extra-Deep Refrigerated Wells

The unit has four 12 x 20-inch pan positions with 9-7/16-inch-deep wells.

Mechanical Cooling

The unit is mechanically refrigerated and requires no ice.

Stainless Steel Construction

The counter includes a 14-gauge stainless steel top, stainless steel front and end panels, a louvered panel and an undershelf.

Enclosed Storage Base

The fully enclosed cabinet base has sliding doors and an undershelf.

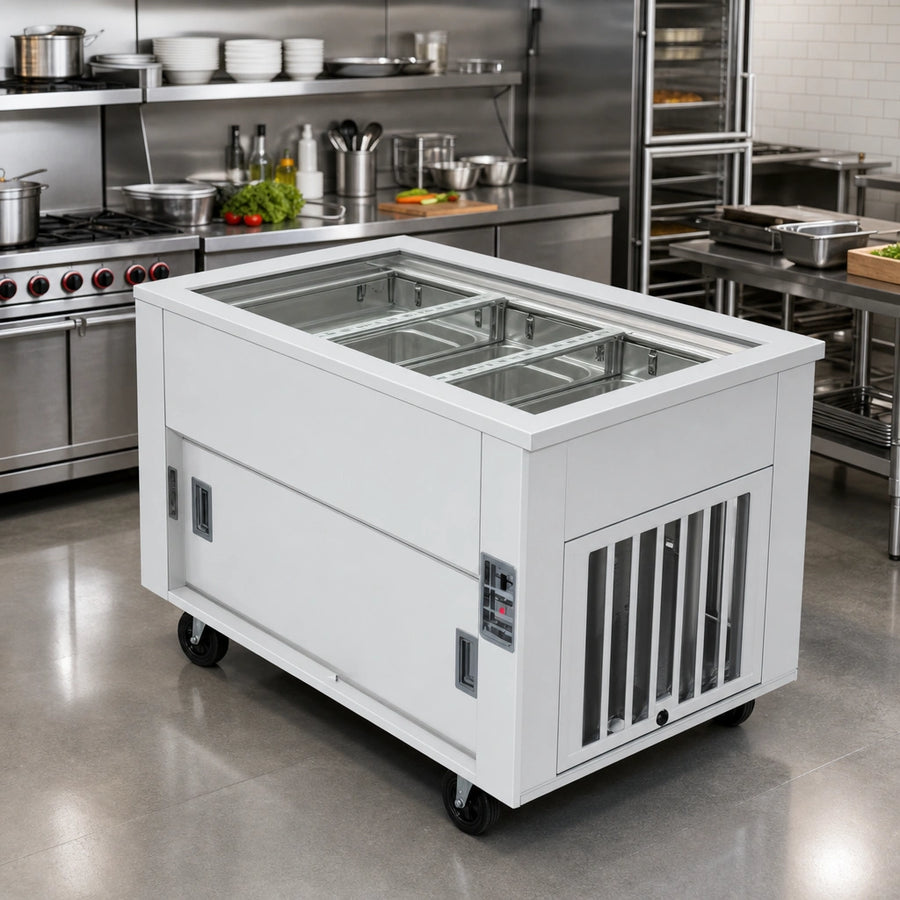

Mobile Modular Design

Five-inch swivel plate casters, including two with brakes, support mobility, while the interlocking mechanism connects with other Dinex units.

Electrical Controls

The operator-side control panel includes an on/off switch and pilot light.

Drain

A 1-inch drain with shutoff valve is located below the unit on the operator's left side; the valve is 3/4-inch FTP.

Refrigeration System

The refrigeration system uses a 1/3-horsepower compressor and fan-cooled condensing unit.

Frequently Asked Questions

It holds four 12 x 20-inch pans.
No. The DXP4BCM is mechanically refrigerated and requires no ice.
The unit requires 120 volts, 6.3 amps and single-phase power. It includes an 8-foot cord with a NEMA 5-15P plug.
Yes. It has 5-inch swivel plate casters, including two with brakes.
The product has a one-year parts and labor warranty.
