Key specifications

Amps
6.3 Amps
Phase
1-Phase
Dimensions
72.0"W × 19.0"D × 36.0"H
Type
Cold Food Counter
Style
Slimline
Installation Type
Floor Model
Spec sheet
Dinex SKU: DXP3CMSL

Dinex DineXpress DXP3CMSL 3-Pan Mechanically Cooled Cold Counter

$8,416.98
/each
Estimated to ship in 4–7 business days
Cooling system
Pan capacity
Storage base
Cutting board
Tray slide
Protector guard
End guard side

Need something else? Contact us.

Included: Dinex warranty One-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $779/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Food Counter
Style Slimline
Installation Type Floor Model
Material Stainless Steel
Country of Origin USA
Cooling Type Mechanically Cooled
Mobility Mobile
Pan Size 12 x 20 Inches
Pan Capacity 3 Pans
Well Depth 5 Inches
Door Type Sliding Doors
Voltage 120 Volts
Amps 6.3 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Controls On/Off Switch, Pilot Light
Compressor Size 1/3 HP
Condensing Unit Fan Cooled
Drain Size 1 Inch
Top Gauge 14 Gauge
Panel Gauge 20 Gauge
Caster Diameter 5 Inches
Caster Brakes 2
Shelf Type Undershelf

Description

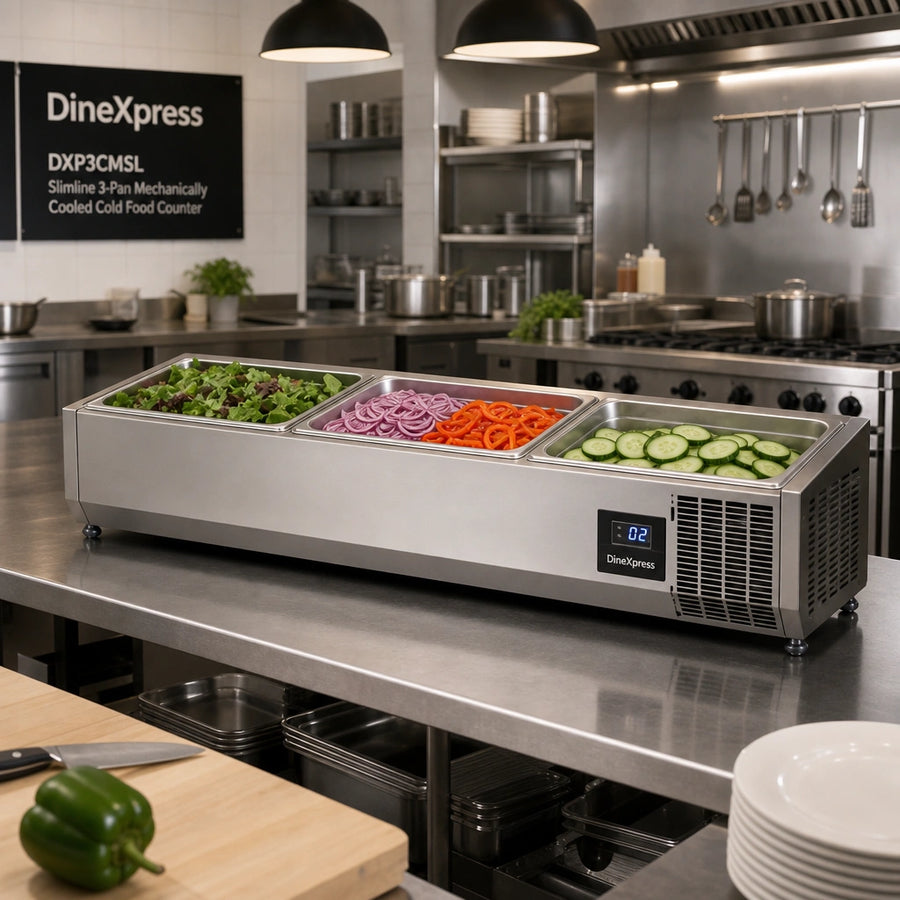

The Dinex DineXpress DXP3CMSL is a slimline, mechanically cooled cold food counter with capacity for three 12 x 20-inch pans. Its enclosed well includes standard sliding doors.

The mobile unit has a 14-gauge stainless steel top, 20-gauge stainless steel front and removable end panels, a 1-inch drain with shut-off valve, and an 8-foot electrical cord.

  • Fan-cooled condensing unit with valve pressure control switch
  • 5-inch diameter swivel plate casters, including two with brakes
  • On/off switch and pilot light
  • NSF/ANSI Standard 2 compliant

Overall Dimensions:

72.0"W x 19.0"D x 36.0"H

Product Weight:

265.0 lb

Three-Pan Capacity

Holds three 12 x 20-inch pans.

Mechanical Cooling

Uses a fan-cooled condensing unit with a valve pressure control switch.

Enclosed Well

The well is enclosed, with sliding doors standard.

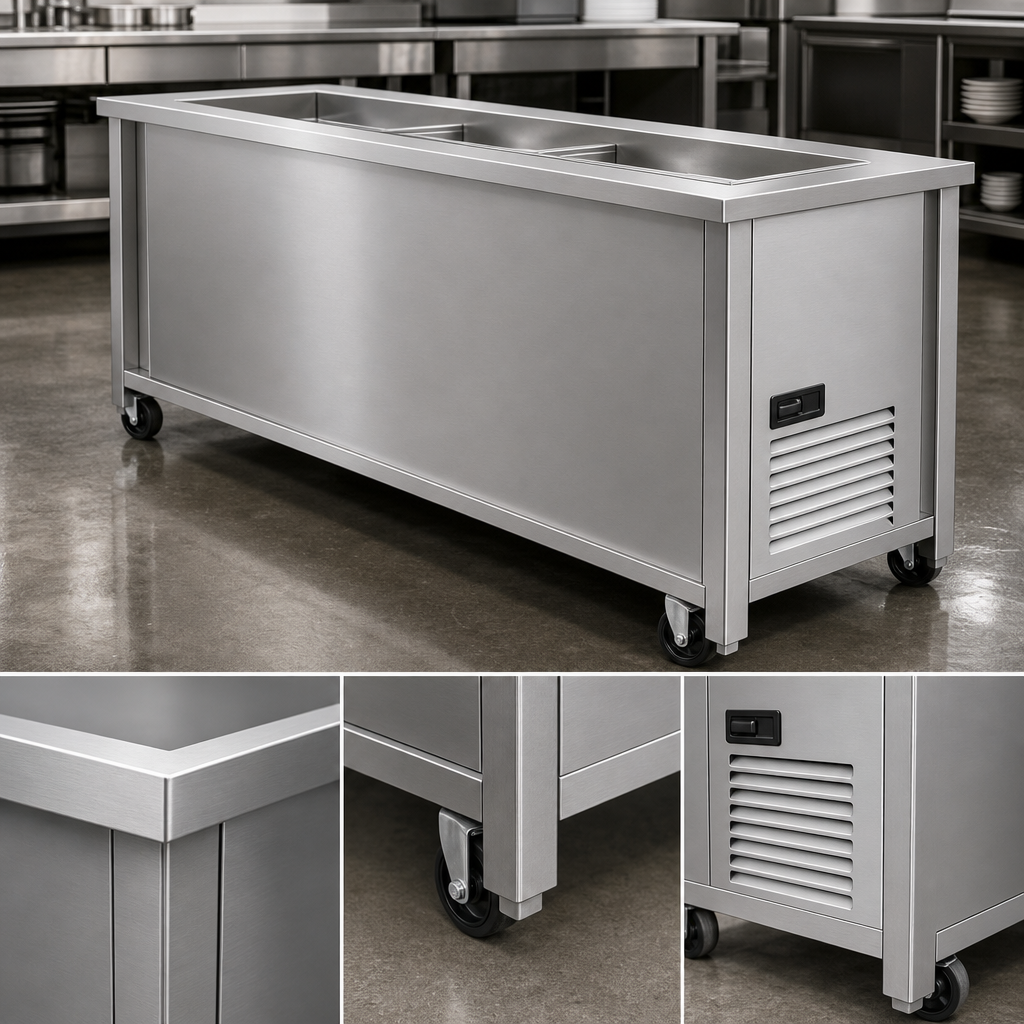

Stainless Steel Construction

Includes a 14-gauge stainless steel top and 20-gauge stainless steel front and removable end panels.

Mobile Base

Includes 5-inch diameter swivel plate casters, with two casters equipped with brakes.

Drain

Includes a 1-inch drain with shut-off valve.

Electrical Controls

Includes an on/off switch, pilot light, and 8-foot electrical cord.

Undershelf

Includes an undershelf.

Frequently Asked Questions

It has capacity for three 12 x 20-inch pans.
It is mechanically cooled and uses a fan-cooled condensing unit.
The unit uses 120 volts, single-phase power at 6.3 amps, with a NEMA 5-15P plug and an 8-foot cord.
The unit measures 72 inches wide by 19 inches deep by 36 inches high and weighs 265 pounds.
Yes. Sliding doors are standard, and the well is enclosed.
The product has a one-year parts and labor warranty.
The product is made in the USA.
