Key specifications

Amps
6.3 Amps
Phase
1-Phase
Dimensions
46.0"W × 28.0"D × 36.0"H
Type
Cold Food Counter
Style
Enclosed Well
Installation Type
Floor Model
Spec sheet
Dinex SKU: DXP3CM

Dinex DineXpress DXP3CM 3-Pan Mechanically Cooled Counter

$8,416.98
/each
Estimated to ship in 4–7 business days
Pan capacity
Height
Finish
Protector guards
End guard style
End guard side

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $779/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Food Counter
Style Enclosed Well
Installation Type Floor Model
Material Stainless Steel
Country of Origin USA
Base Design Fully Enclosed
Pan Capacity 3 Pans
Pan Size 12 x 20 Inches
Well Depth 5 Inches
Door Type Sliding Doors
Undershelf Included
Voltage 120 Volts
Amps 6.3 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Refrigeration Type Mechanically Cooled
Compressor Horsepower 1/3 HP
Condensing Unit Fan Cooled
Controls On/Off Switch and Pilot Light
Drain Size 1 Inch
Drain Valve Shut-Off Valve
Caster Diameter 5 Inches
Braking Casters 2
Top Gauge 14 Gauge
Panel Gauge 20 Gauge
Selling Unit 1 Each

Description

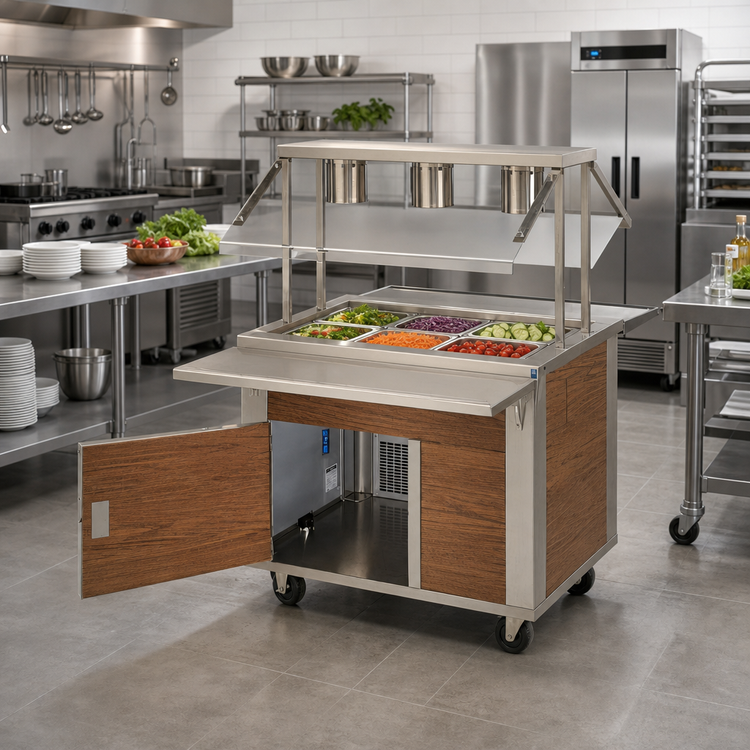

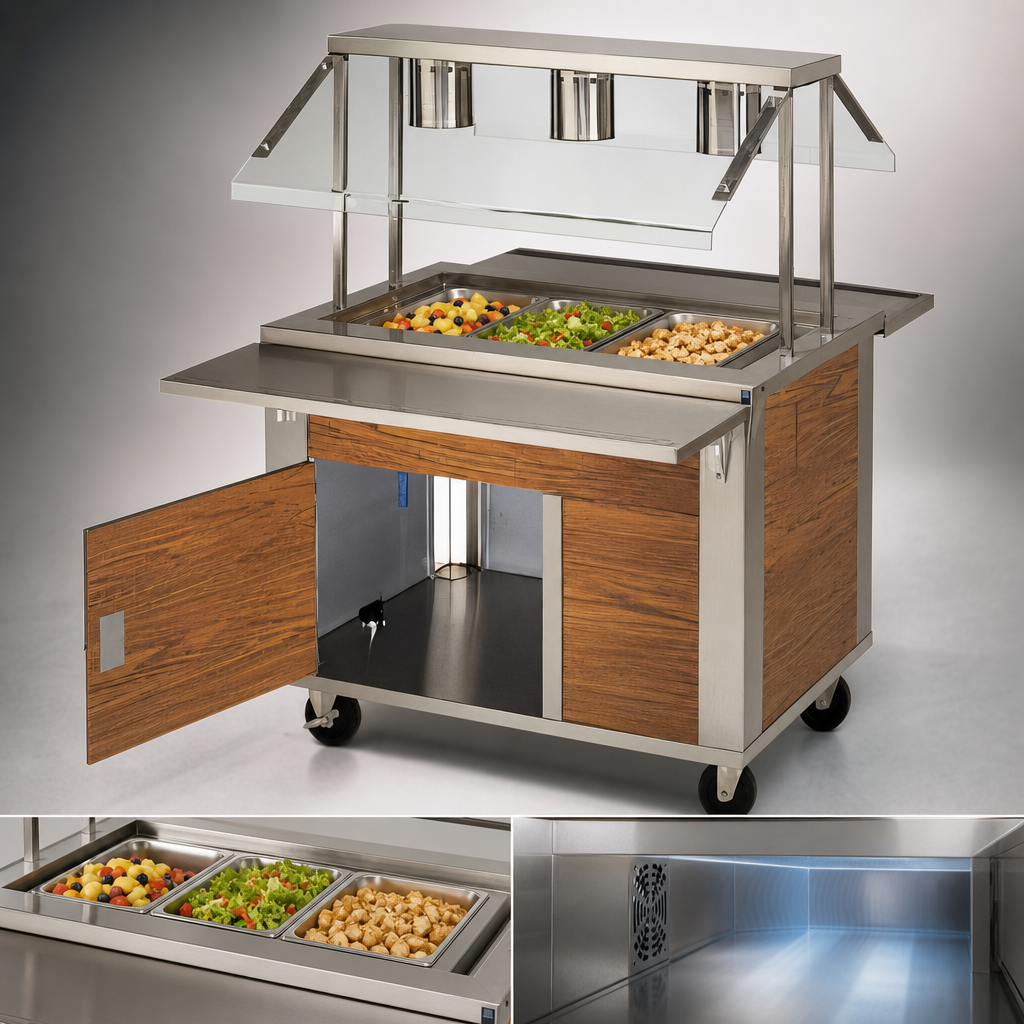

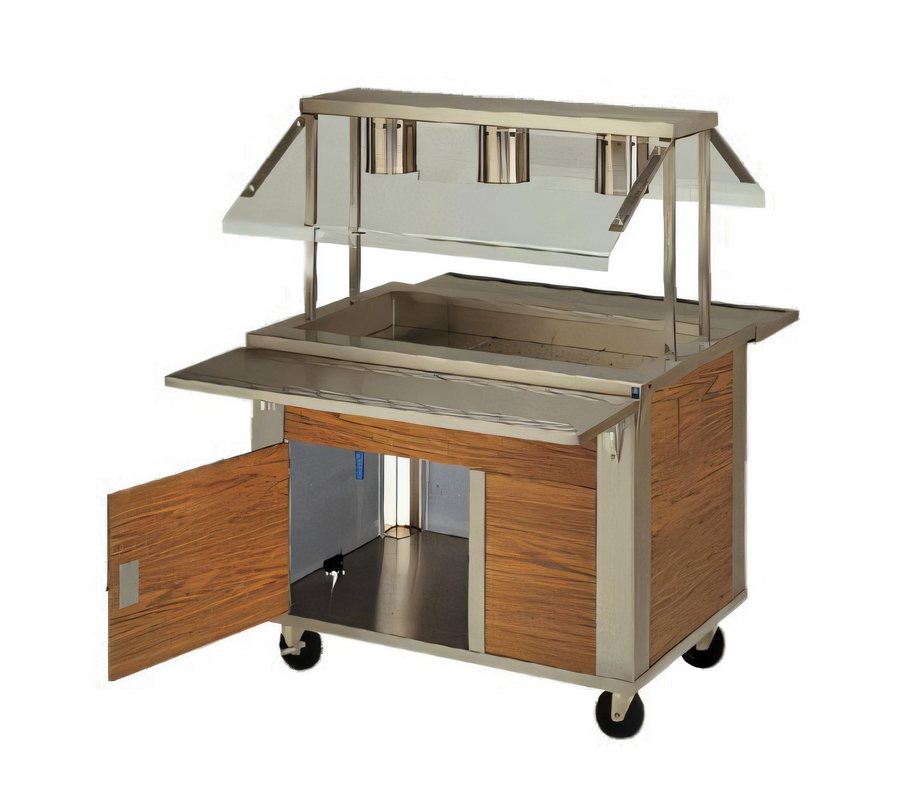

The DineXpress DXP3CM is a mobile, mechanically cooled cold food counter with three 5-inch-deep wells for 12 x 20-inch pans.

It features a 14-gauge stainless steel top, 20-gauge stainless steel front and removable end panels, standard sliding doors, an undershelf, and a 1-inch drain with shut-off valve.

  • 1/3 hp compressor with fan-cooled condensing unit
  • 5-inch swivel plate casters, two with brakes
  • 120-Volt, single-phase electrical connection with 8-foot cord

Overall Dimensions:

46.0"W x 28.0"D x 36.0"H

Product Weight:

265.0 lb

Mechanical Cooling

Mechanically cooled with a 1/3 hp compressor and fan-cooled condensing unit.

Pan Capacity

Holds three 12 x 20-inch pans in 5-inch-deep wells.

Stainless Steel Construction

Includes a 14-gauge stainless steel top and 20-gauge stainless steel front and removable end panels.

Mobile Casters

5-inch-diameter swivel plate casters, two with brakes.

Sliding Doors

Sliding doors are standard on the mechanically cooled unit.

Drain

1-inch drain with shut-off valve.

Controls

On/off switch and pilot light.

Electrical Connection

120 Volts, single-phase, 6.3 Amps, NEMA 5-15P plug, and 8-foot electrical cord.

Frequently Asked Questions

The unit holds three 12 x 20-inch pans in 5-inch-deep wells.
It is mechanically cooled and uses a 1/3 hp compressor with a fan-cooled condensing unit.
The listed specification is 120 Volts, single-phase, 6.3 Amps, with an NEMA 5-15P plug and 8-foot cord.
The unit is 46 inches wide, 28 inches deep, and 36 inches high.
Yes. Sliding doors are standard on the mechanically cooled unit.
The warranty is one year for parts and labor.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
