Key specifications

Phase
1-Phase
Dimensions
46.0"W × 28.0"D × 36.0"H
Type
Cold Food Counter
Style
Mobile
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Dinex SKU: DXP3CB

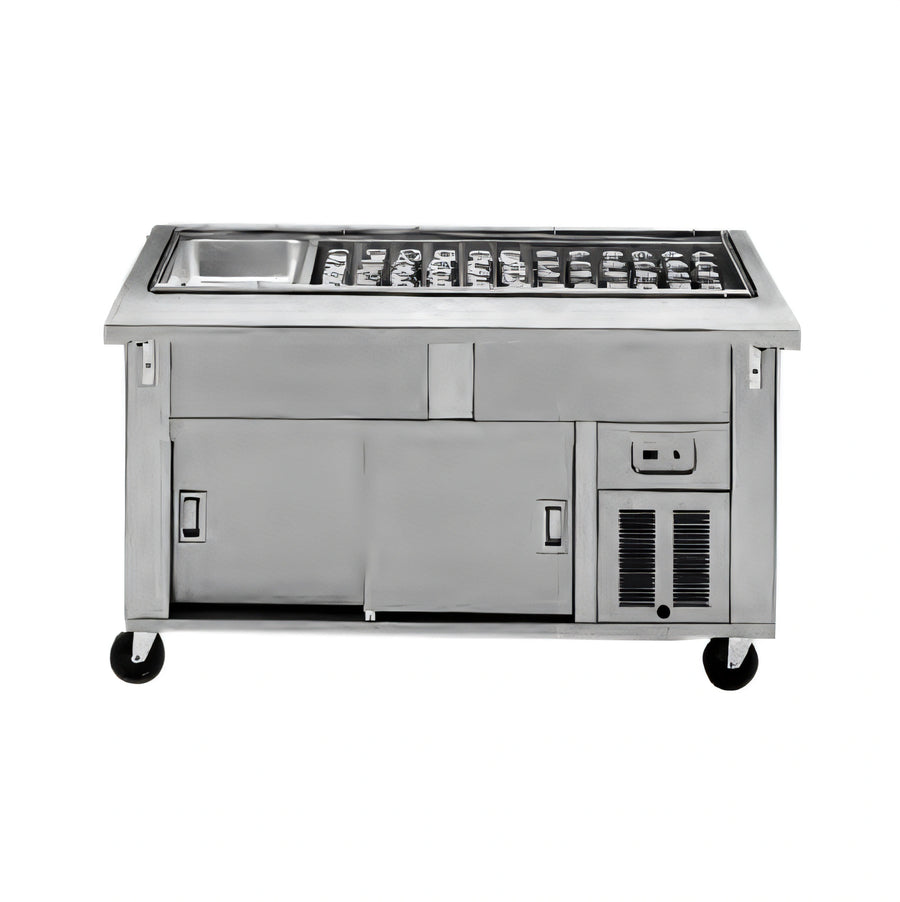

Dinex DineXpress DXP3CB 3-Pan Mechanically Cooled Cold Counter

$9,979.20
/each
Estimated to ship in 4–7 business days
Pan capacity
Cutting board
Tray slide
Bread shelf material
Bread shelf side
Protector guard

Need something else? Contact us.

Included: Dinex warranty One-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $923/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Food Counter
Style Mobile
Installation Type Floor Model
Material Stainless Steel
Country of Origin USA
Cooling Type Mechanically Cooled
Cooling Method Forced Air
Pan Capacity 3 Pans
Well Depth 4-3/4 Inches
Base Design Open Rear Base With Doors
Door Type Sliding Doors
Caster Diameter 5 Inches
Compressor Horsepower 1/3 HP
Refrigerant Type R-134a
Voltage 120 Volts
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Controls Thermostat; On/Off Switch; Pilot Light
Drain Size 1 Inch

Description

The DineXpress DXP3CB is a three-pan cold food counter with mechanically cooled forced-air circulation that requires no ice.

Its stainless steel top, front, and end panel are paired with sliding doors, an undershelf, a removable louvered panel, and 5-inch casters for a mobile modular serving-line setup.

The counter measures 46 inches wide, 28 inches deep, and 36 inches high. Its refrigeration system uses a 1/3 hp compressor, and the unit is listed to NSF/ANSI Standard 7.

Overall Dimensions:

46.0"W x 28.0"D x 36.0"H

Product Weight:

405.0 lb

Three-Pan Cold Well

Configured to hold three pans.

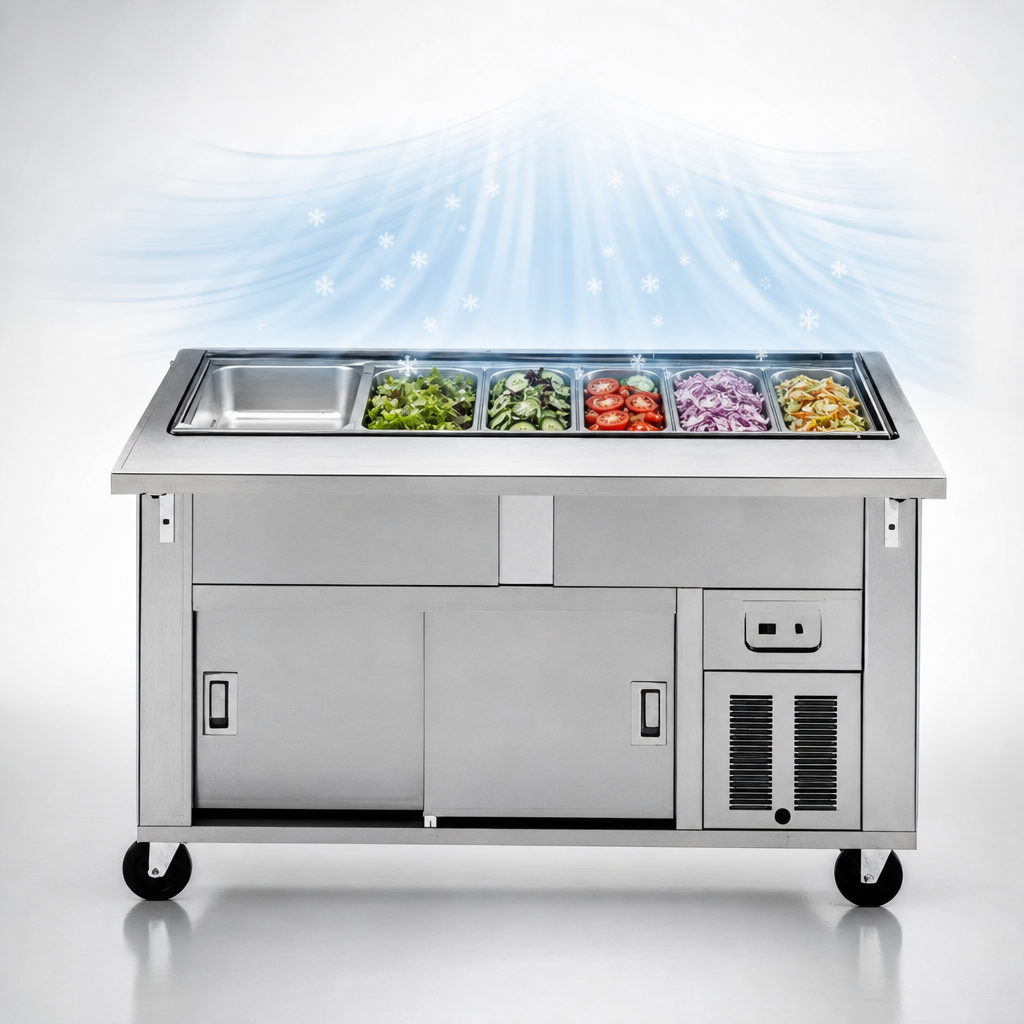

Mechanically Cooled Forced Air

The Cool Breeze system maintains product at 41°F or less without ice.

Stainless Steel Construction

The top, front, and end panel are stainless steel.

Mobile Modular Design

The counter includes interlocking capability and 5-inch casters for mobility.

Sliding Doors and Undershelf

Sliding doors and an undershelf provide access and storage below the counter.

Removable Louvered Panel

The removable end louvered panel provides access to the compressor.

Electrical Controls

The unit includes an on/off switch and pilot light on the operator-side control panel.

NSF/ANSI Standard 7 Listing

The unit is listed to NSF/ANSI Standard 7.

Frequently Asked Questions

The DXP3CB is configured for three pans.
No. The Cool Breeze system is mechanically cooled and requires no ice.
It uses mechanically cooled forced-air circulation.
The counter is 46 inches wide, 28 inches deep, and 36 inches high.
It uses 120 volts, single-phase power with a NEMA 5-15P plug and an 8-foot cord.
The product includes a one-year parts and labor warranty.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
