Key specifications

Amps
6.3 Amps
Phase
1-Phase
Dimensions
46.0"W × 28.0"D × 36.0"H
Type
Cold Food Counter
Style
Extra Deep
Installation Type
Floor Model
Spec sheet
Dinex SKU: DXP3BCM

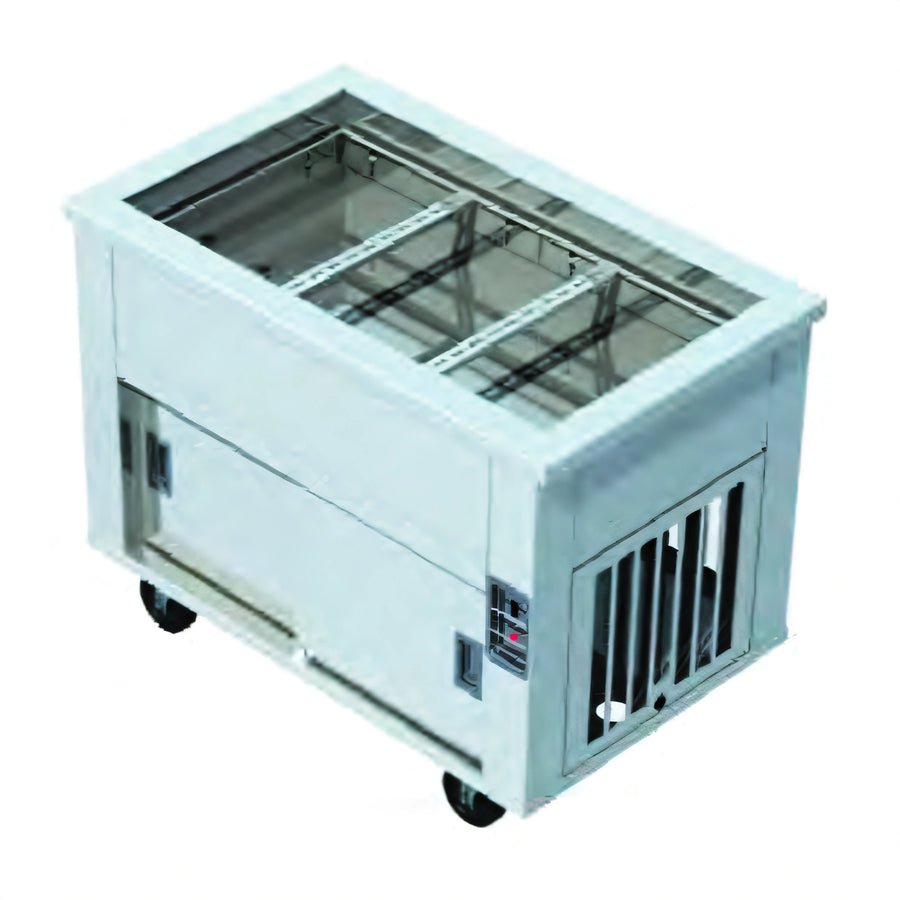

Dinex DineXpress DXP3BCM 3-Pan Mechanically Cooled Cold Counter

$8,416.98
/each
Estimated to ship in 4–7 business days
Pan capacity
Finish
Front shelf
Protector guards
Bread shelf material
Bread shelf side

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $779/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Food Counter
Style Extra Deep
Installation Type Floor Model
Material Stainless Steel
Pan Capacity 3 Pans
Pan Size 12 x 20 Inches
Well Depth 9-7/16 Inches
Refrigeration Type Mechanically Cooled
Mobility Mobile
Base Design Fully Enclosed
Door Type Sliding
Caster Diameter 5 Inches
Caster Type Swivel Plate
Caster Brakes 2 Casters
Top Gauge 14 Gauge
Drain 1 Inch With Shutoff Valve
Controls On/Off Switch, Pilot Light
Voltage 120 Volts
Amps 6.3 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Compressor Size 1/3 Horsepower
Selling Unit 1 Each

Description

The DineXpress DXP3BCM is a mechanically cooled, mobile cold food counter with three extra-deep 9-7/16-inch wells for 12 x 20-inch pans.

It features a 14-gauge stainless steel top, stainless steel front and end panels, a fully enclosed cabinet base with sliding doors, an undershelf, and louvered ventilation panels. Five-inch swivel plate casters provide mobility, with two casters fitted with brakes.

The unit operates on 120 volts, single-phase power and includes an 8-foot cord with a NEMA 5-15P plug. It requires no ice and includes an interlocking mechanism for connection with other Dinex units.

Overall Dimensions:

46.0"W x 28.0"D x 36.0"H

Product Weight:

360.0 lb

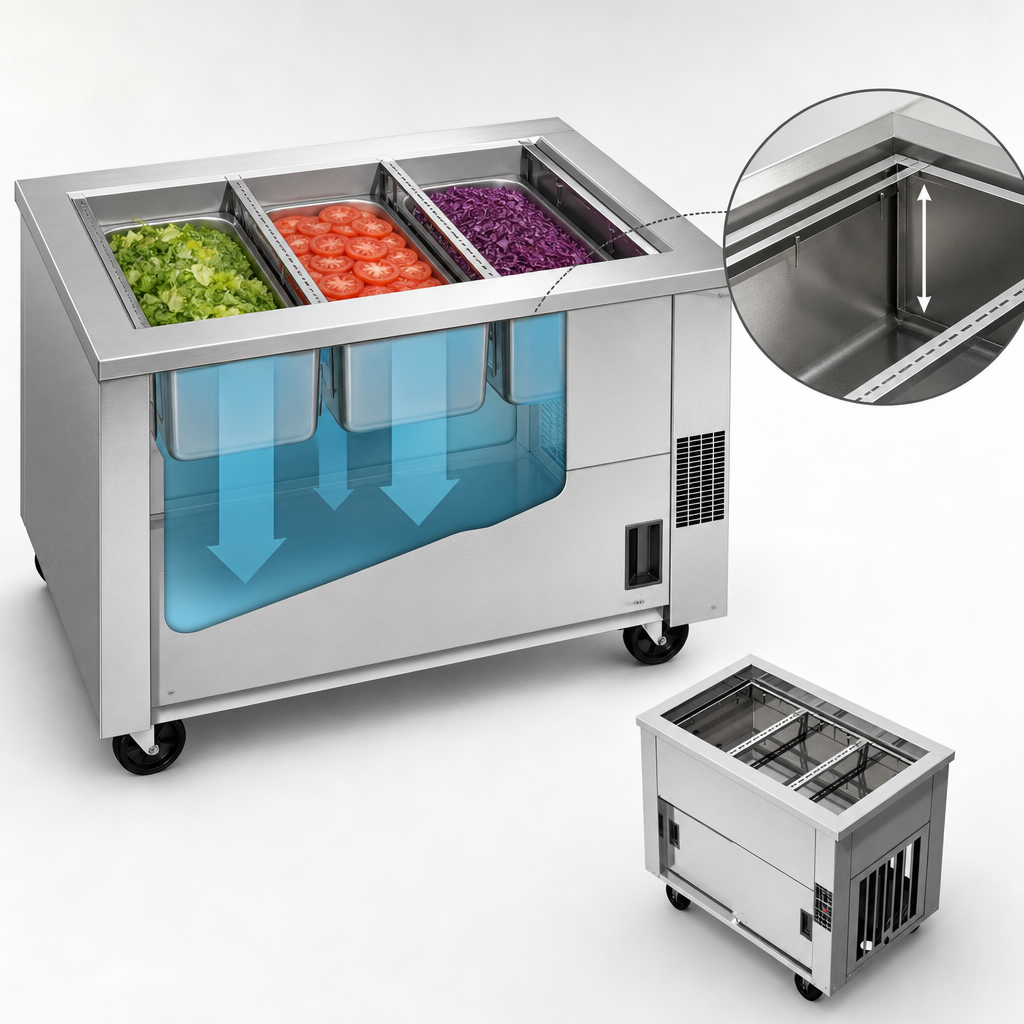

Extra-Deep Wells

Three 9-7/16-inch-deep wells are sized for 12 x 20-inch pans.

Mechanical Cooling

Mechanically refrigerated operation requires no ice.

Mobile Modular Design

The mobile counter includes an interlocking mechanism for connection with other Dinex units.

Stainless Steel Construction

The unit has a 14-gauge stainless steel top with stainless steel front and end panels.

Enclosed Understorage

The fully enclosed cabinet base includes sliding doors and an undershelf.

Caster Mobility

Five-inch swivel plate casters support mobility, with two casters fitted with brakes.

Electrical Controls

The unit includes an on/off switch and pilot light on the operator-side control panel.

Drain

The cold pan includes a 1-inch drain with a shutoff valve.

Frequently Asked Questions

It has three wells sized for 12 x 20-inch pans.
The counter is 46 inches wide, 28 inches deep and 36 inches high.
No. The DXP3BCM is mechanically refrigerated and requires no ice.
The cutsheet specifies 120 volts, single-phase power, 6.3 amps, an 8-foot cord and a NEMA 5-15P plug. Amperage and plug type may vary with options.
Yes. It includes sliding doors and five-inch swivel plate casters; two casters have brakes.
Yes. An interlocking mechanism is provided for connection with other Dinex units.
The product has a one-year parts and labor warranty.
