Key specifications

Amps
6.3 Amps
Phase
1-Phase
Dimensions
50.0"W × 19.0"D × 36.0"H
Type
Cold Food Counter
Style
Slimline
Installation Type
Floor Model
Spec sheet
Dinex SKU: DXP2CMSL

Dinex DineXpress DXP2CMSL 2-Pan Refrigerated Food Counter

$7,621.02
/each
Estimated to ship in 4–7 business days
Refrigeration system
Pan capacity
Work surface
Protector guards
Counter height
Finish
Mobility

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $705/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Food Counter
Style Slimline
Installation Type Floor Model
Material Stainless Steel
Country of Origin USA
Refrigeration Type Mechanically Cooled
Pan Capacity 2 Pans
Pan Size 12 in x 20 in
Well Depth 5 in
Door Type Sliding Doors
Top Gauge 14 Gauge
Panel Gauge 20 Gauge
Caster Diameter 5 in
Braked Caster Count 2
Drain Size 1 in
Compressor Horsepower 1/3 hp
Condensing Unit Fan Cooled
Controls On/Off Switch, Pilot Light
Voltage 120 Volts
Amps 6.3 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 ft

Description

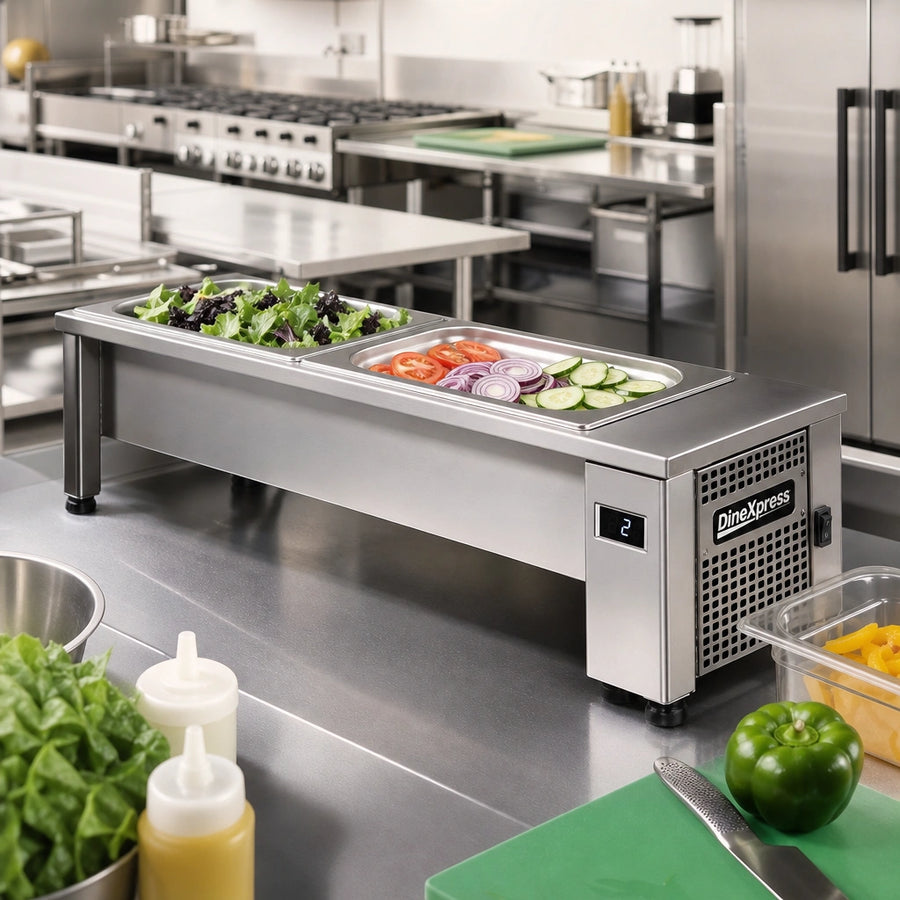

The DineXpress Slimline cold food counter provides mechanically cooled service space for two 12 in x 20 in pans. It has a 5 in enclosed well, stainless steel construction, standard sliding doors and a mobile caster base.

  • 14-gauge stainless steel top with 20-gauge stainless steel front and removable end panels
  • Fan-cooled condensing unit with a 1/3 hp compressor
  • 1 in drain with shutoff valve, undershelf and louvered ventilation panel
  • 120 Volt single-phase operation with an 8 ft electrical cord

Overall Dimensions:

50.0"W x 19.0"D x 36.0"H

Product Weight:

225.0 lb

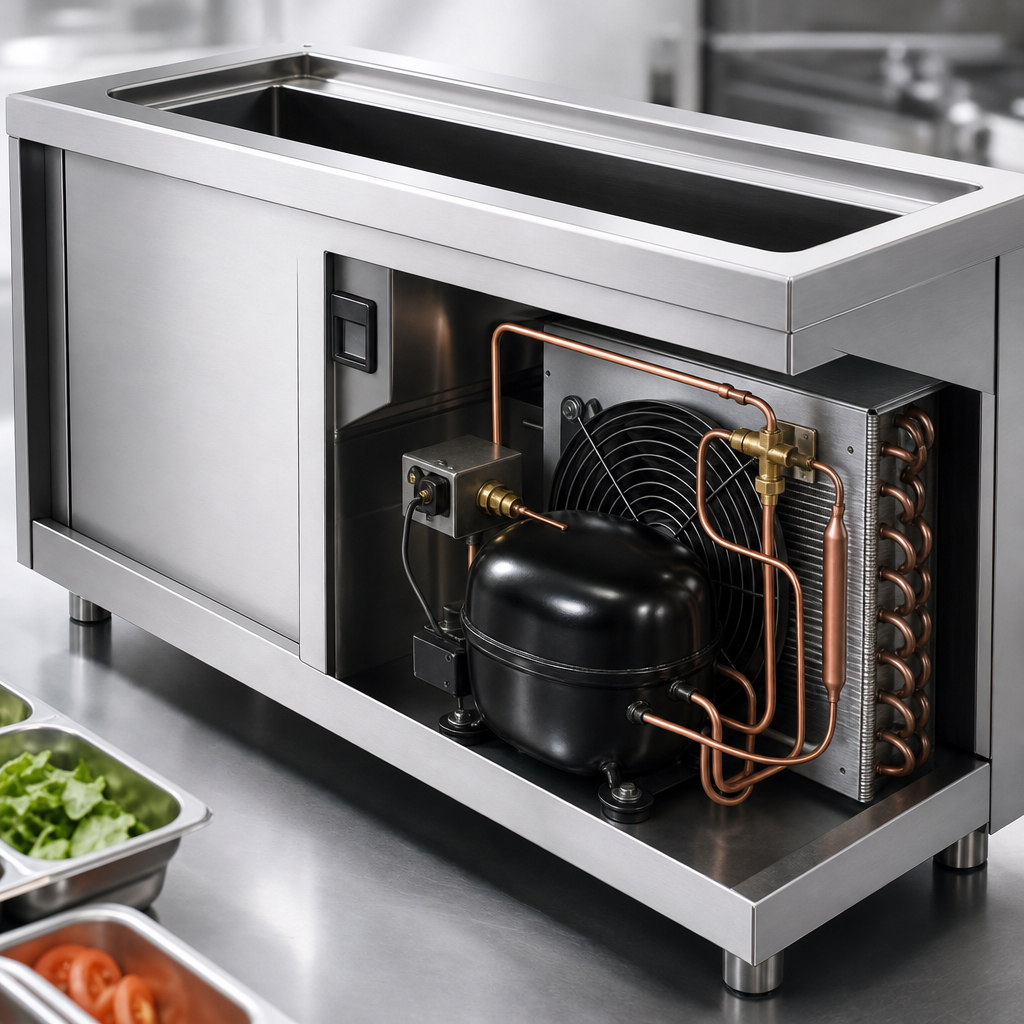

Mechanical Refrigeration

Fan-cooled condensing unit with valve pressure control switch and a 1/3 hp compressor.

Two-Pan Capacity

Accommodates two 12 in x 20 in pans.

Enclosed Well

The cold food well is 5 in deep and includes a 1 in drain with shutoff valve.

Stainless Steel Construction

The top is 14-gauge stainless steel; the front and removable end panels are 20-gauge stainless steel.

Mobile Design

Includes 5 in swivel plate casters, with two casters equipped with brakes.

Sliding Doors

Sliding doors are standard on the mechanically cooled unit.

Electrical Controls

Includes an on/off switch and pilot light.

Ventilation

Louvered panel supports ventilation of the condensing unit.

Frequently Asked Questions

It has capacity for two 12 in x 20 in pans.
It uses mechanical refrigeration with a fan-cooled condensing unit, valve pressure control switch and 1/3 hp compressor.
The unit operates at 120 Volts, single-phase, draws 6.3 Amps and uses a NEMA 5-15P plug with an 8 ft cord.
Yes. It has 5 in swivel plate casters, and two casters have brakes.
Yes. Sliding doors are standard on the mechanically cooled unit.
Yes. It includes a 1 in drain with a shutoff valve.
