Key specifications

Phase
1-Phase
Dimensions
32.0"W × 28.0"D × 36.0"H
Type
Cold Food Counter
Installation Type
Floor Model
Material
Stainless Steel
Refrigeration Type
Mechanically Cooled
Spec sheet
Dinex SKU: DXP2CM

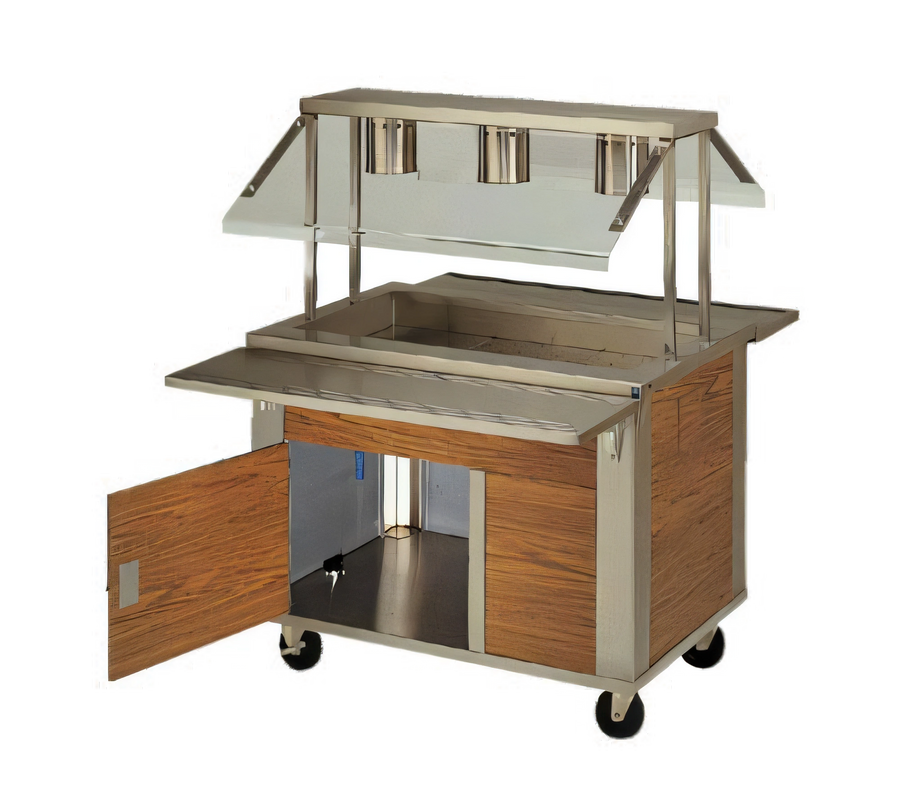

Dinex DineXpress DXP2CM 2-Pan Mechanically Cooled Food Counter

$7,627.95
/each
Estimated to ship in 4–7 business days
Cooling system
Pan capacity
Height
Protector guard
Protector guard end style
Protector guard end side
Cutting board material

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $706/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Food Counter
Installation Type Floor Model
Material Stainless Steel
Refrigeration Type Mechanically Cooled
Pan Capacity 2 Pans
Pan Size 12 in x 20 in
Well Depth 5 in
Base Design Fully Enclosed
Door Type Sliding Doors
Caster Type 5 in Swivel Plate
Braked Casters 2
Top Gauge 14 Gauge
Panel Gauge 20 Gauge
Voltage 120 Volts
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 ft
Controls On/Off Switch and Pilot Light
Drain Size 1 in
Compressor Horsepower 1/3 hp
Selling Unit 1 ea

Description

The Dinex DXP2CM is a mechanically cooled mobile cold food counter with capacity for two 12 x 20 in pans in 5 in deep enclosed wells.

It features a stainless steel top, stainless steel front and removable end panels, standard sliding doors, an undershelf, a 1 in drain with shut-off valve, and a fan-cooled condensing unit with a 1/3 hp compressor.

  • Overall dimensions: 32 in W x 28 in D x 36 in H
  • 120V single-phase electrical service with 8 ft cord and NEMA 5-15P plug
  • 5 in swivel plate casters, including two with brakes

Overall Dimensions:

32.0"W x 28.0"D x 36.0"H

Product Weight:

225.0 lb

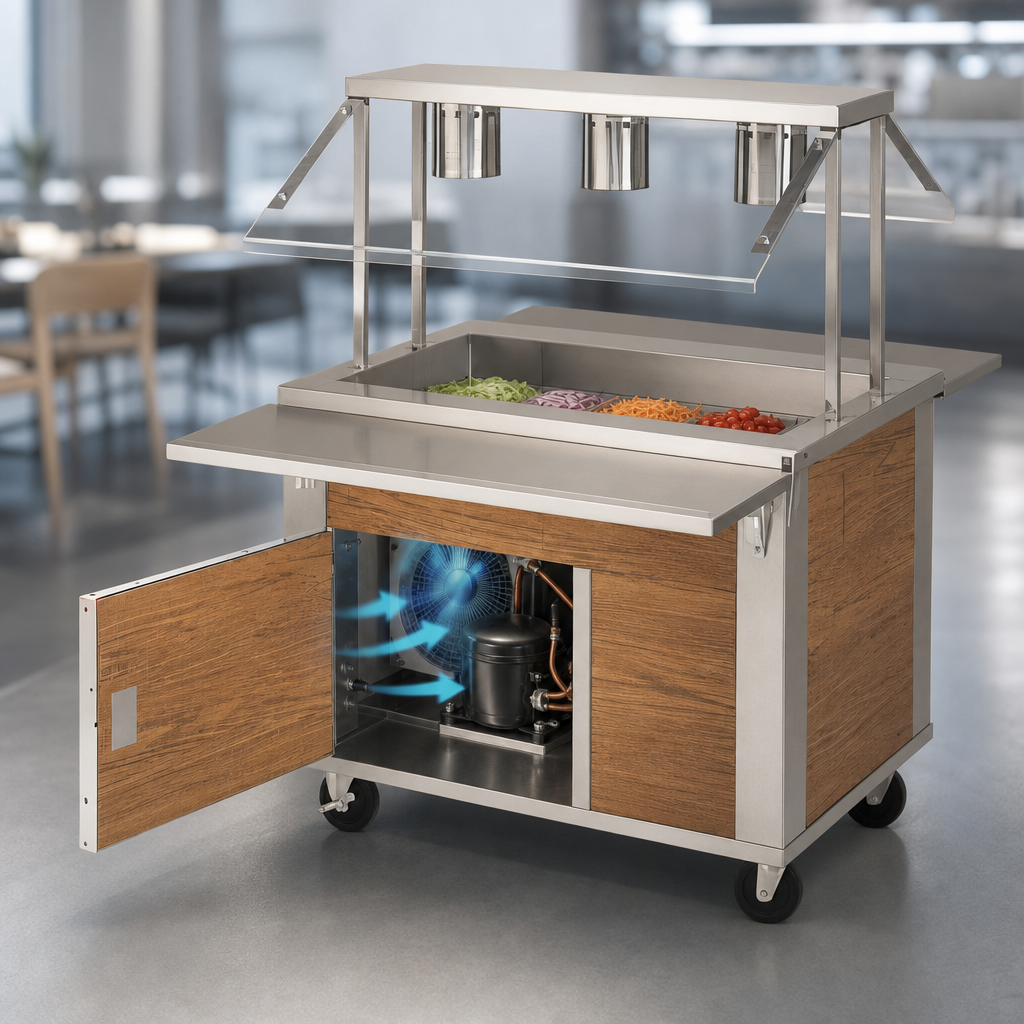

Mechanically cooled refrigeration

Fan-cooled condensing unit with valve pressure control switch and 1/3 hp compressor.

Two-pan capacity

Accommodates two 12 x 20 in pans in 5 in deep enclosed wells.

Stainless steel construction

Includes a 14-gauge stainless steel top and 20-gauge stainless steel front and removable end panels.

Sliding doors

Sliding doors are standard on the mechanically cooled unit.

Mobile base

5 in swivel plate casters are supplied, with two casters equipped with brakes.

Drain

1 in drain with shut-off valve.

Controls and indicator

On/off switch and pilot light are mounted on the control panel.

Condensing unit ventilation

Louvered panel provides ventilation for the condensing unit.

Frequently Asked Questions

It holds two 12 x 20 in pans in 5 in deep enclosed wells.
Yes. It has 5 in swivel plate casters, including two with brakes.
The product measures 32 in wide, 28 in deep, and 36 in high, with a product weight of 225 lb.
It uses 120V single-phase power and includes an 8 ft cord with a NEMA 5-15P plug.
Yes. Sliding doors are standard on the mechanically cooled unit.
The warranty is one year for parts and labor.
