Cleveland Range

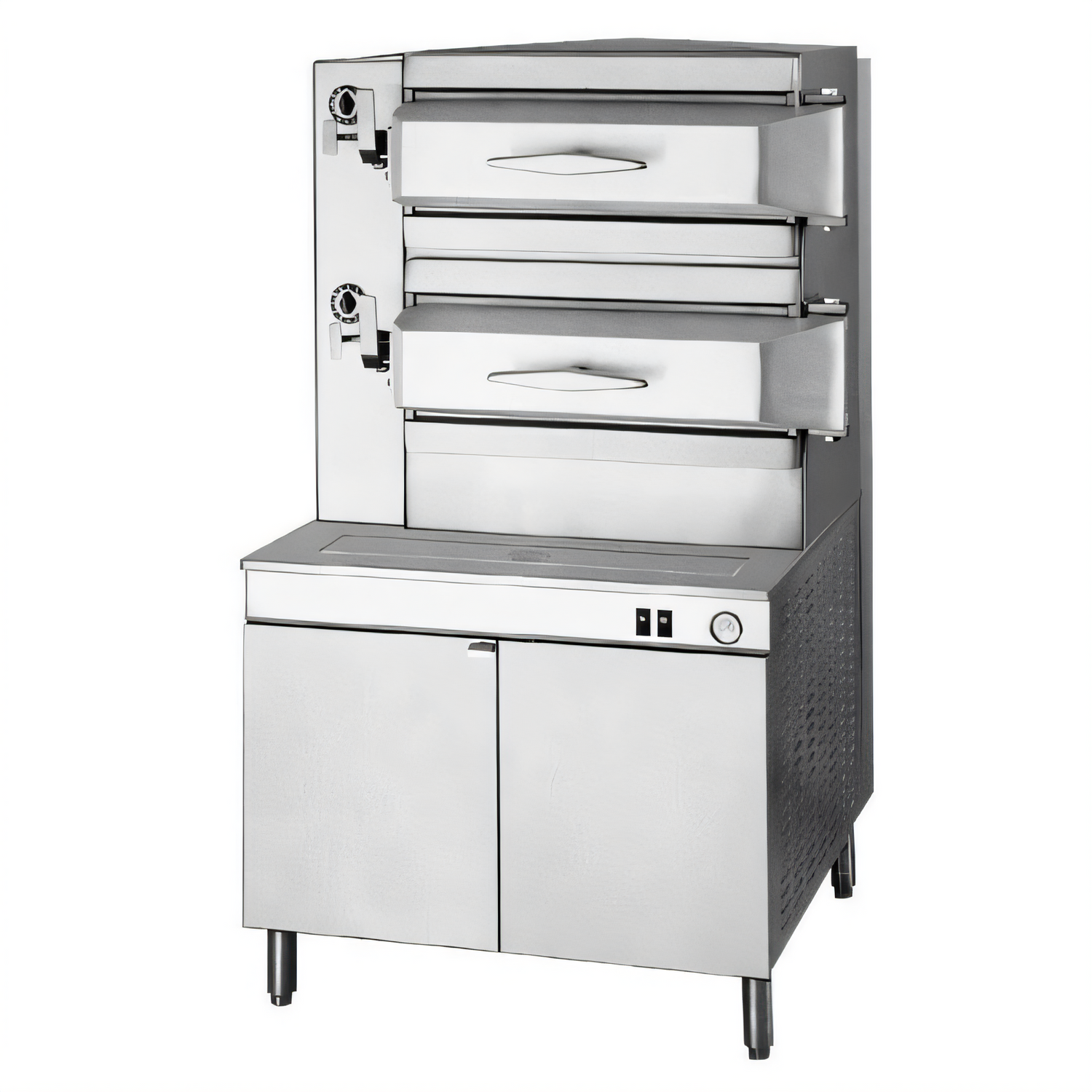

Cleveland Range PGM3002 Gas Pressure Steamer, 2-Compartment, 36-Inch Cabinet Base

SKU: PGM3002
$44,545.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleveland Range Cooking Equipment Cooking Equipment New Arrivals Pressure Steamer Pressure Steamers Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment

Cleveland Range PGM3002 Gas Pressure Steamer, 2-Compartment, 36-Inch Cabinet Base

300,000 BTU, Manual Controls, 60-Minute Mechanical Timers

Built for high-volume kitchens, this two-compartment pressure steamer pairs a powerful 300,000 BTU gas boiler with durable stainless steel construction and independent compartment timing.

  • Two-compartment pressure steamer with a 36-inch wide cabinet base.
  • 300,000 BTU gas-fired steam boiler for demanding production.
  • Each compartment holds eight 12 x 20 x 2-1/2 inch cafeteria pans or four 18 x 26 inch bun pans.
  • Manual controls with 60-minute mechanical timers and audible signal.
  • Stainless steel construction with 6-inch adjustable legs and flanged feet.
  • Single cold-water connection; hot water is not required.
  • Heavy-duty safety and service features help support reliable daily operation.

Overall Dimensions:

35.43"W x 37.0"D x 64.0"H

Product Weight:

974.0 lb

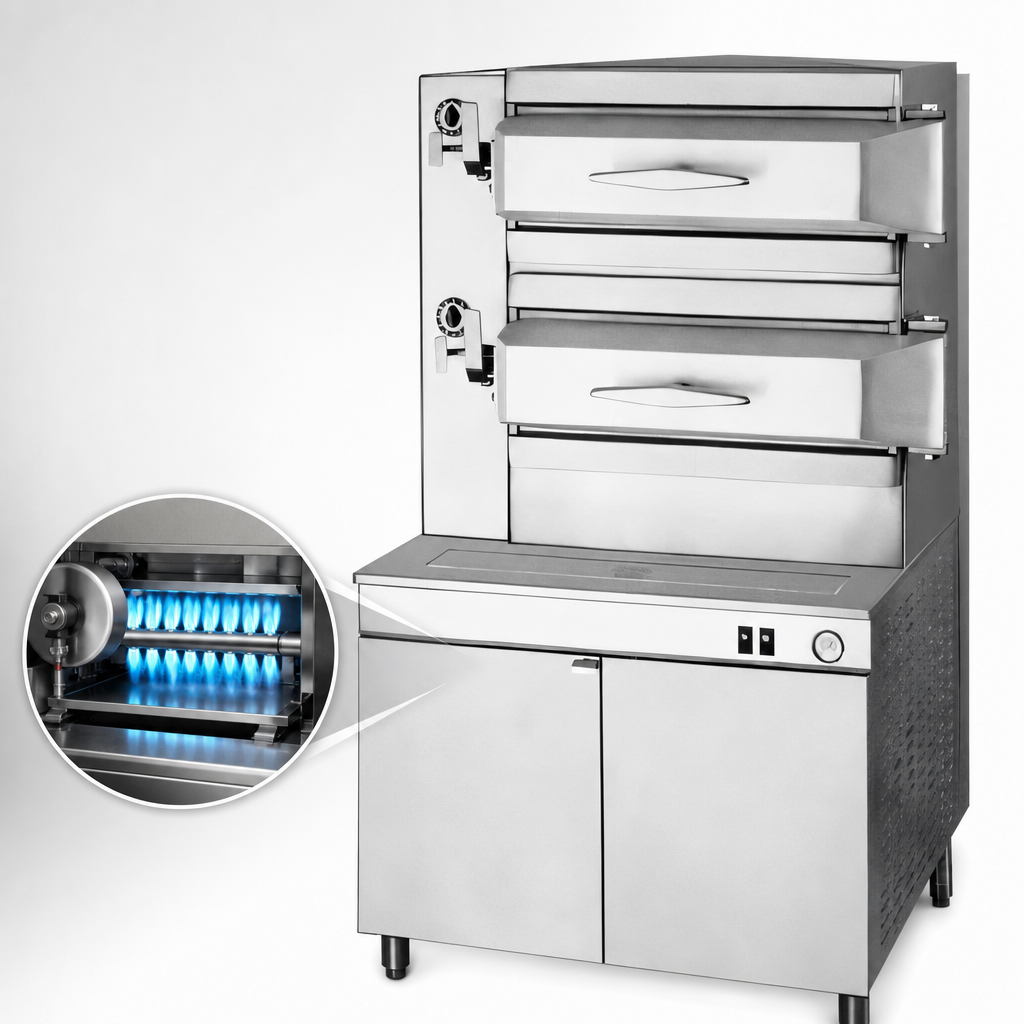

High-Output Gas Boiler

Gas-fired steam boiler delivers 300,000 BTU for fast, high-volume steaming.

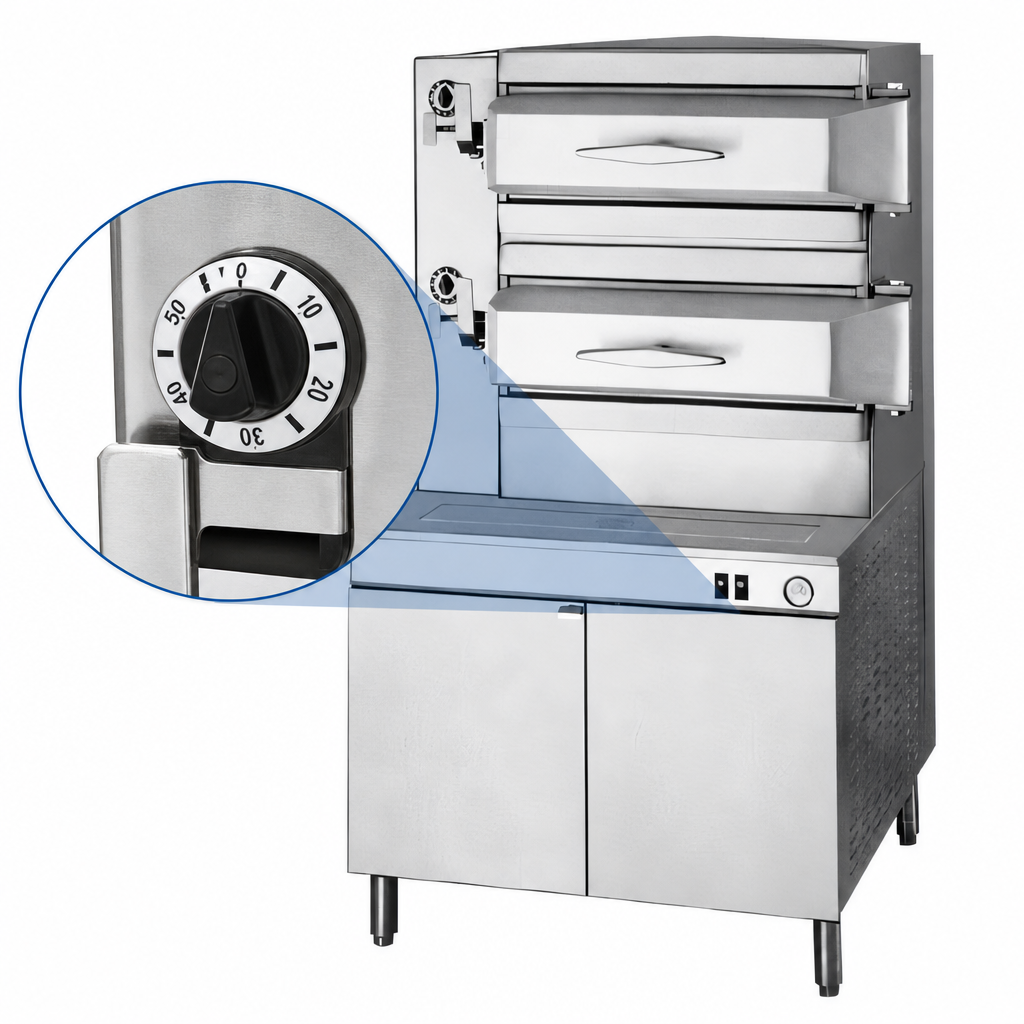

Manual Timer Controls

Each compartment has a 60-minute mechanical timer with audible signal for consistent batch cooking.

Heavy-Duty Door Design

Free-floating cast aluminum compartment doors include a safety interlock, adjustable hinge pins, and self-lubricating bushings.

Stainless Steel Construction

Type 430 stainless steel is used for the exterior enclosure, cooking compartments, and base frame for durability and easy cleaning.

Steam System Safety

Includes automatic water level control, low-water cut-off protection, pressure gauge, pressure safety valve, and automatic boiler blowdown with manual drain valve.

Front-Serviceable Design

Major components are accessible from the front of the unit to simplify service and maintenance.

Cold Water Connection

Requires a single cold water connection; no hot water supply is needed.

Adjustable Floor Support

6-inch stainless steel legs with level adjustment and flanged feet provide stable floor installation.

Type Pressure Steamer
Style Cabinet Base
Installation Type Floor Model
Controls Manual
Compartments 2
Pan Capacity 8 12 x 20 x 2-1/2 Inch Pans per Compartment
Pan Size 12 x 20 x 2-1/2 Inches
Material Stainless Steel
Interior Finish Stainless Steel
BTU 300,000 BTU
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Shipping Width 36 Inches
Shipping Depth 37 Inches
Shipping Height 64 Inches
Shipping Weight 974 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Parts manual PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Each compartment holds eight 12 x 20 x 2-1/2 inch cafeteria pans or four 18 x 26 inch bun pans.
No. The unit uses a single cold water connection and does not require hot water.
The cutsheet lists standard electrical service as 115 volts, 60 Hz, single phase.
It has manual controls with a 60-minute mechanical timer and audible signal for each compartment.
Yes. The cutsheet states that all major components are serviceable from the front of the unit.
Optional items listed in the documentation include a kettle interconnecting kit (IMK), stainless steel insulated flue (SSF), intermediate pull-out shelf (POS), water filters, and special compartment slide racks.
