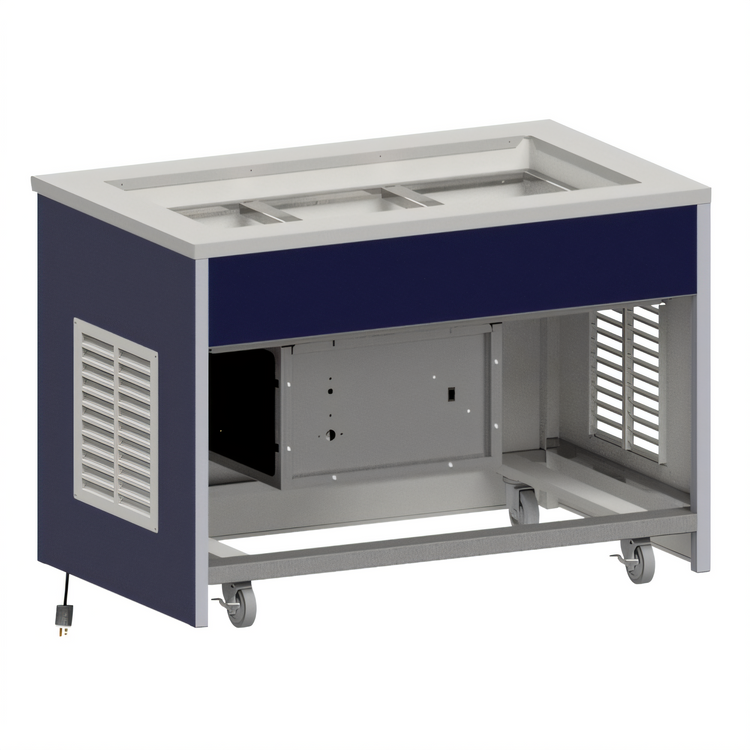

Atlas Metal INFRM-6 91-1/2" Refrigerated Cold Food Unit with 6-Pan Capacity
Atlas Metal INFRM-6 91-1/2" Refrigerated Cold Food Unit with 6-Pan Capacity
Mobile, Self-Contained, Open Cabinet Base, 3" Recessed Top
Designed for maximum efficiency and mobility, the Atlas Metal INFRM-6 provides reliable cold food holding with a self-contained refrigeration system and versatile configurations.
- Accommodates (6) full-size 12" x 20" food pans, perfect for buffet lines and serving stations.
- Features a self-contained refrigeration system with CFC-free refrigerant, simplifying installation and operation.
- Built with a durable 16 gauge, type 304 stainless steel top and hi-tensile stainless steel frame for commercial longevity.
- Fully mobile design with 4" non-marking swivel casters, two with brakes, for easy repositioning.
- Equipped with a digital electronic thermostat/thermometer for precise temperature control.
- Includes an integral locking device to align and secure units when joined, creating seamless serving lines.
- Fully insulated cold pan and body ensure maximum efficiency and energy savings.

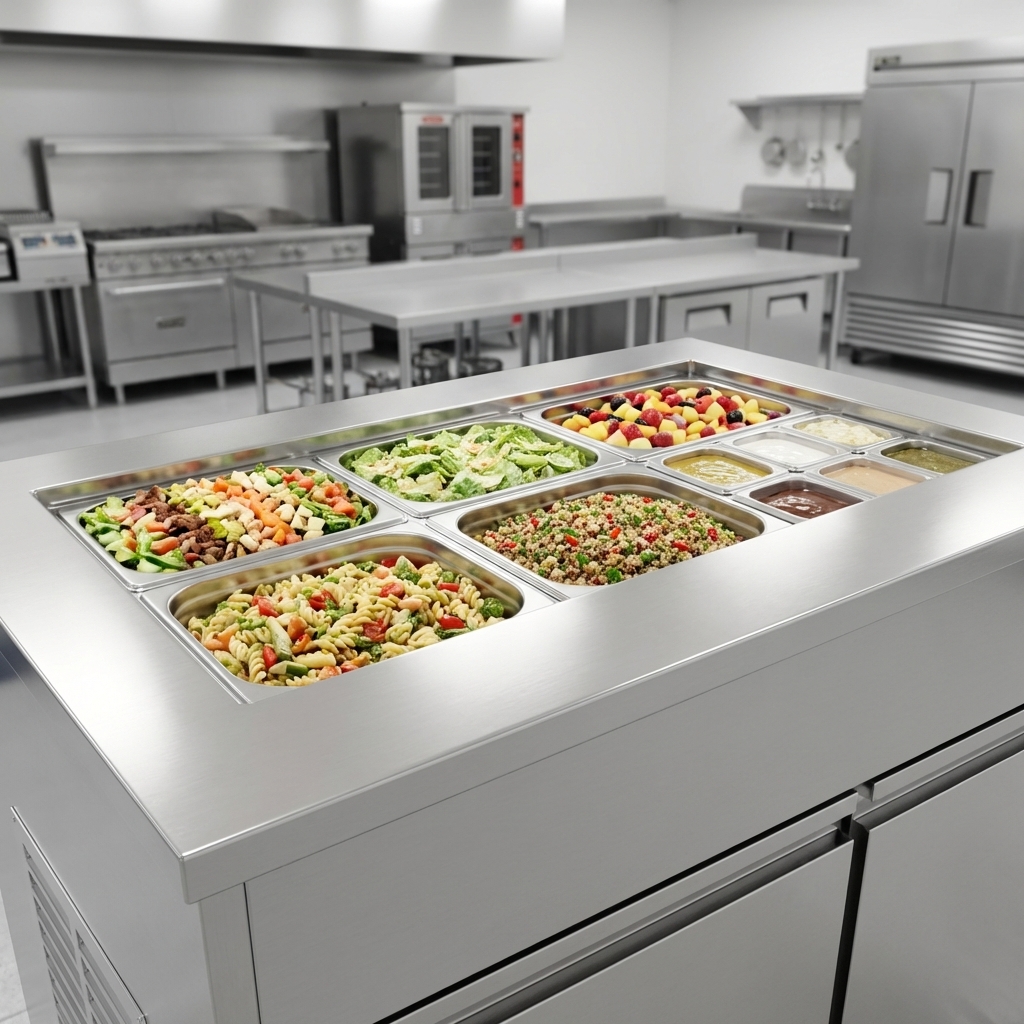

Heavy-Duty Stainless Steel Top
Constructed of 16 gauge, type 304 stainless steel, die-formed, welded, ground and polished, with a 3" recessed top for practical use.

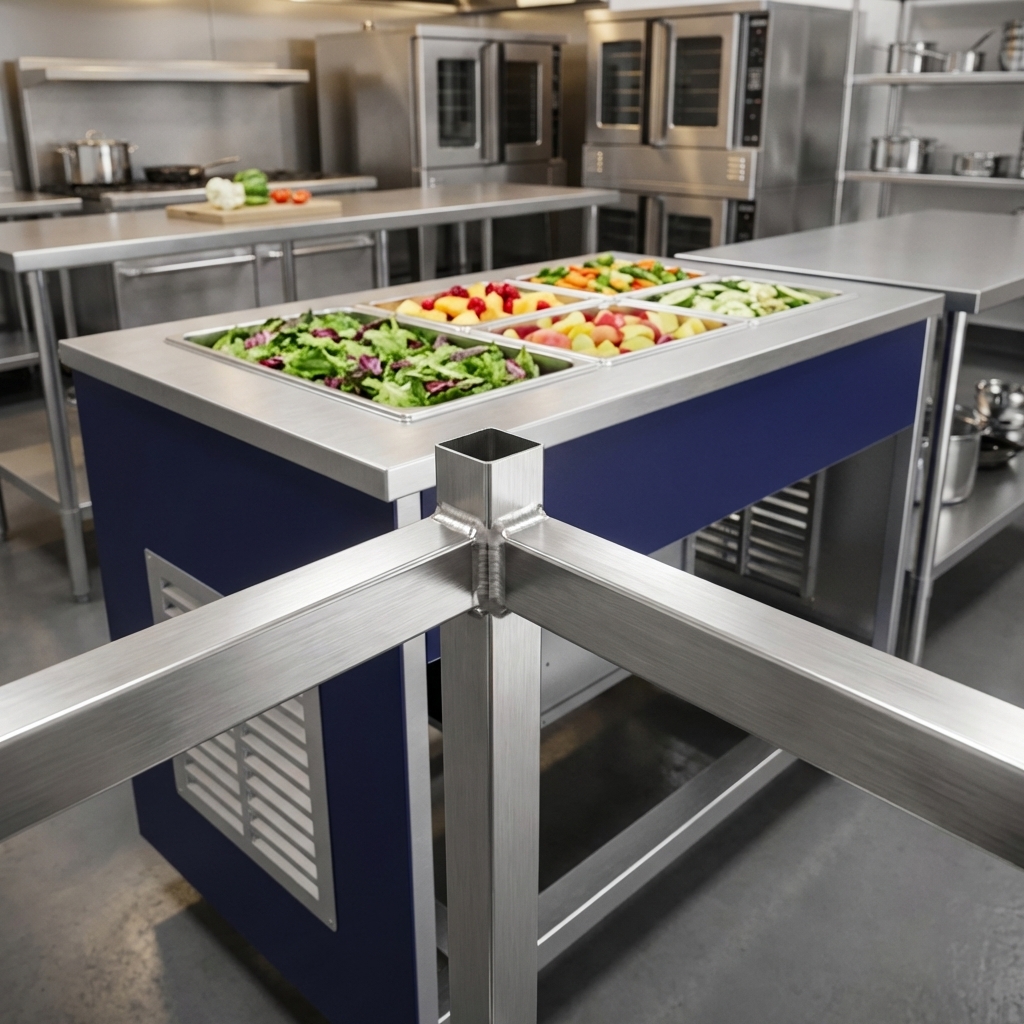

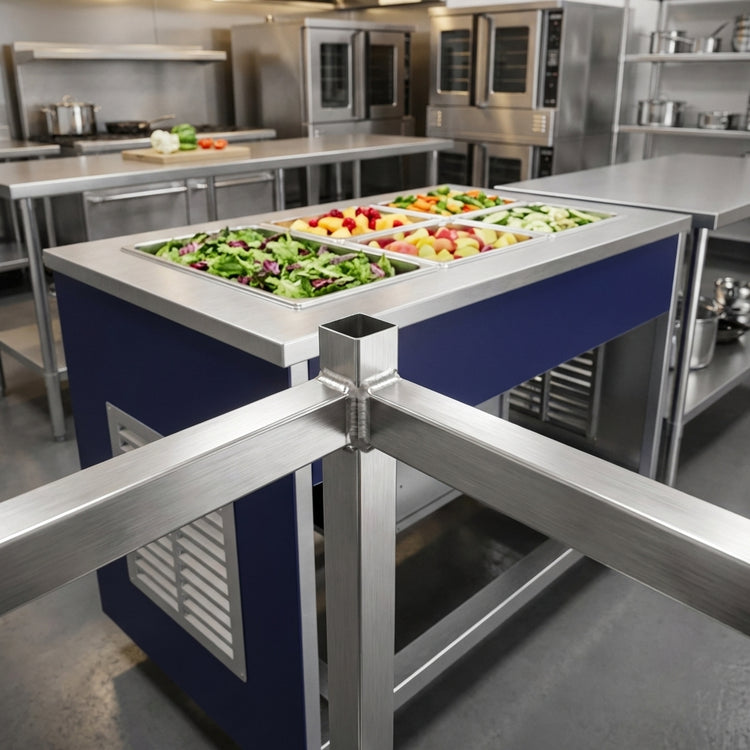

Robust Frame Construction
Frame is built from hi-tensile 1-1/4" x 1-1/4" stainless steel square tubing with welded construction, ground and polished to a uniform finish.

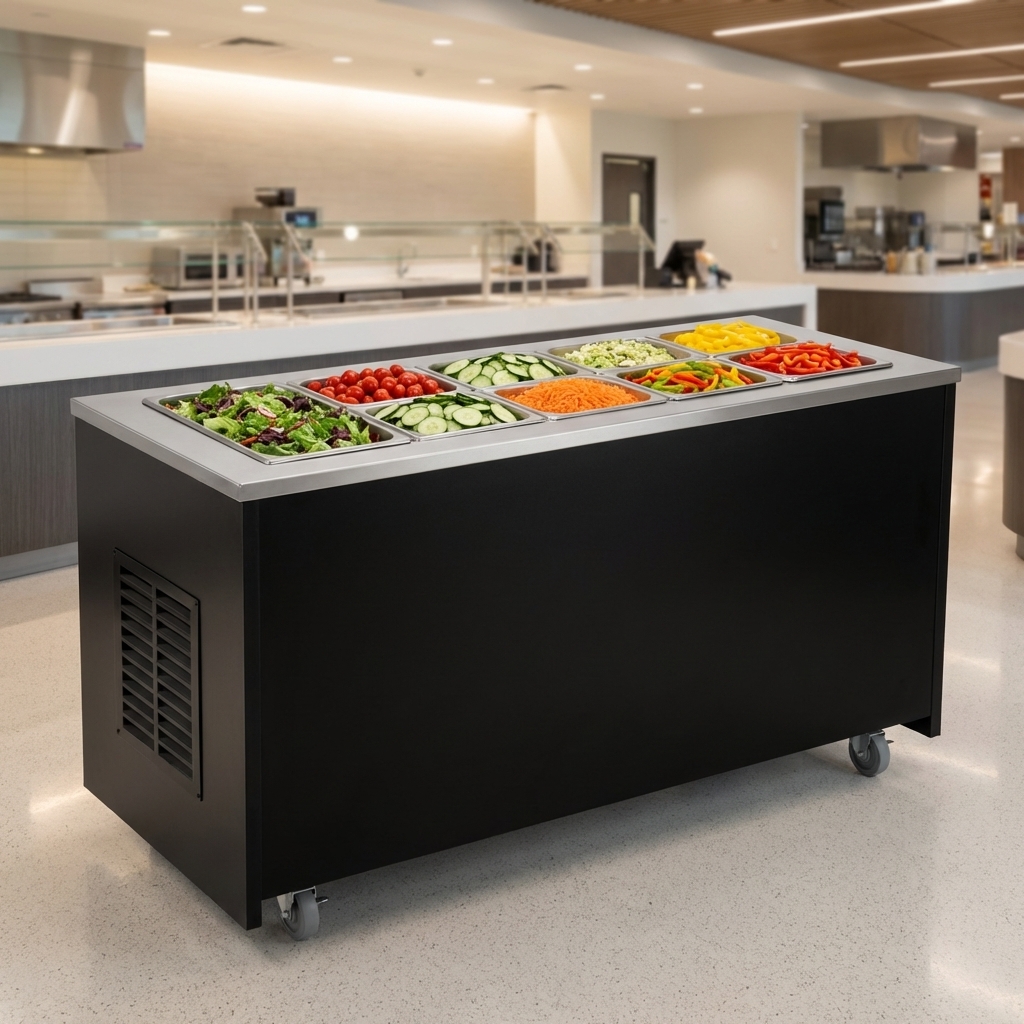

Laminate Body Panels
Body and end panels are constructed from 18 gauge stainless steel with 1/16" thick plastic laminate, allowing for owner-specified finishes.
Insulated Refrigerated Cold Pan
RM series built-in cold pan made of 18 gauge, type 304 stainless steel with a raised perimeter bead and solid vinyl gasket. Fully insulated with 1" thick polystyrene on sides and 2" on the bottom, enclosed in a 22 gauge galvanized steel outer case.
Efficient Refrigeration System
Features a fully self-contained condensing unit with a hermetically sealed compressor and a digital electronic thermostat/thermometer, pre-charged with CFC-free refrigerant.
Integrated Drain System
The cold pan includes a 3/4" diameter drain with strainer, a 4" PVC nipple, and a valve for easy cleaning and maintenance.
Undershelf Included
Comes with a removable stainless steel undershelf for additional storage.
Mobile Design
Equipped with 4" diameter non-marking rubber tired swivel casters with ball bearings and grease fittings. Two casters on the operator's side include toe-activated brakes for secure placement.
Integral Locking Device
A positive self-locking mechanism is provided to align and retain cart positioning when two or more carts are joined, ensuring a level and stable serving line.
Specifications
| Type | Refrigerated Cold Food Unit |
|---|---|
| Style | Open Cabinet Base |
| Installation Type | Floor Model (Mobile with Casters) |
| Pan Capacity | 6 Full-Size (12" x 20") |
| Cold Pan Dimensions | 19-7/8" W x 80-5/8" D x 9" H |
| Top Construction | 16 Gauge 304 Stainless Steel |
| Interior Finish | 304 Stainless Steel |
| Material | Stainless Steel with Laminate Panels |
| Controls | Digital Electronic Thermostat/Thermometer |
| Refrigeration Type | Self-Contained |
| Refrigerant Type | CFC Free |
| Horsepower | 1/2 HP |
| Voltage | 120 Volts |
| Amps | 10.7 Amps |
| Phase | 1-Phase |
| Plug Type | NEMA 5-15P |
| Cord Length | 6 Feet |
| Drain Connection Size | 3/4" Diameter |
| Caster Size | 4 Inches |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Width | 92 Inches |
| Shipping Depth | 32 Inches |
| Shipping Height | 35 Inches |
| Shipping Weight | 672 lb. |
Overall Dimensions:
91.5"W x 31.25"D x 35.0"HProduct Weight:
672.0 lbCertifications & Compliance
Warranty & Protection
1-Year Parts & Labor Warranty
