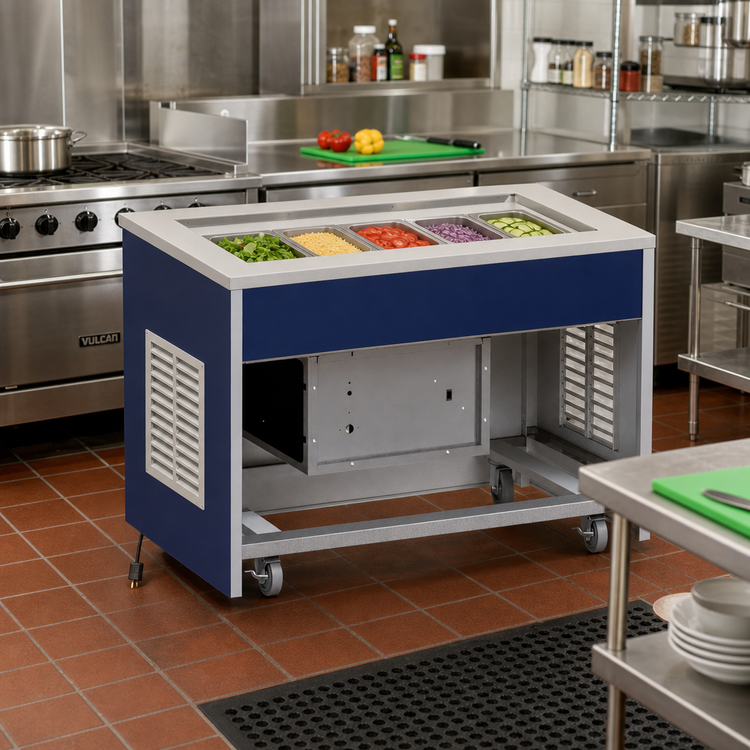

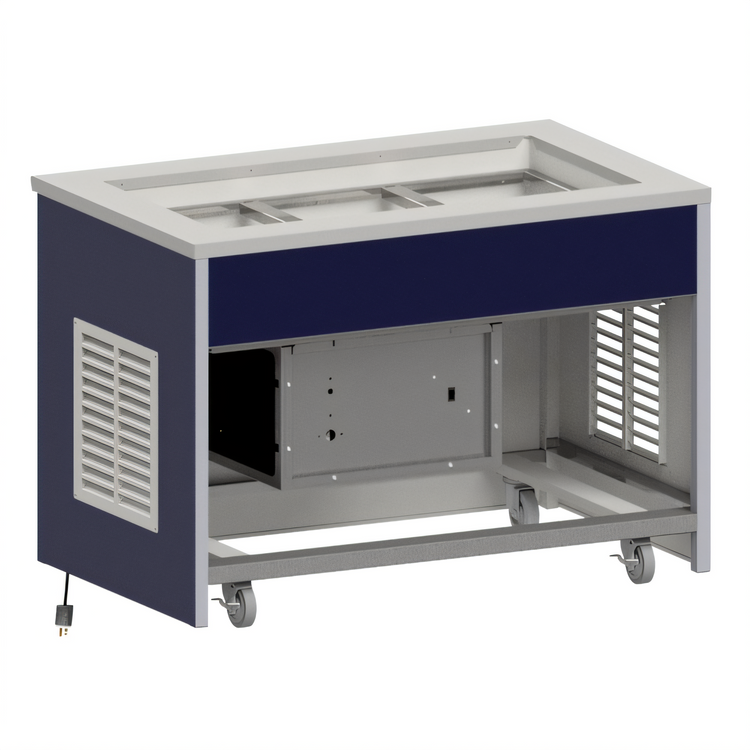

Atlas Metal INFRM-5 5-Pan Mobile Refrigerated Cold Food Unit
Full-Size, Self-Contained Refrigeration, Laminate Panels
Keep your cold foods perfectly chilled and accessible with the versatile and mobile Atlas Metal INFRM-5 refrigerated cold food unit, ideal for any commercial serving line.
- Features a self-contained refrigeration system for easy plug-and-play operation.
- Designed with a spacious 5-pan capacity, accommodating standard 12" x 20" food pans.
- Constructed with a durable 16 gauge 304 stainless steel top and high-tensile stainless steel frame.
- Equipped with 4-inch swivel casters, two with brakes, for effortless mobility and secure positioning.
- Fully insulated cold pan ensures maximum efficiency and energy savings.
- Includes a removable stainless steel undershelf for convenient storage.
Overall Dimensions:
77.75"W x 31.25"D x 35.0"HProduct Weight:

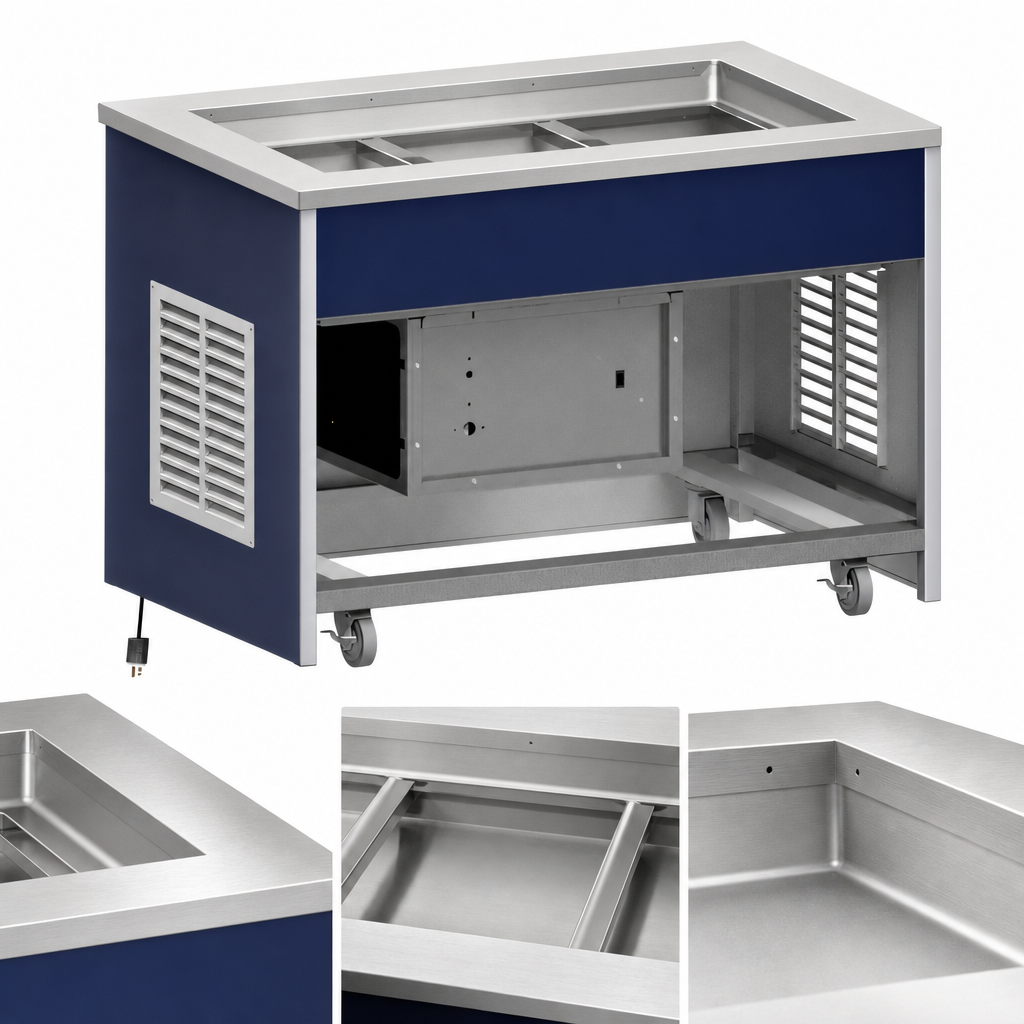

522.0 lbHeavy-Duty Stainless Steel Top
Constructed of 16 gauge, type 304 stainless steel, die-formed, welded, ground, and polished with a 3-inch recessed top.
Robust Frame Construction
Frame is built from hi-tensile stainless steel square tubing (1-1/4" x 1-1/4") with welded construction, ground and polished for a uniform finish.
Durable Body and Panels
Body and panels are constructed from 18 gauge stainless steel with 1/16" thick plastic laminate front and ends, and 16 gauge stainless steel rear aprons with 1/16" thick plastic laminate finish. Finish is owner specified.
Integrated Refrigerated Cold Pan
Includes an RM series built-in cold pan made of 18 gauge, type 304 stainless steel with a raised perimeter bead and solid vinyl gasket.
High-Density Insulation
The cold pan is fully insulated with 1" thick high-density polystyrene on all sides and 2" thick on the bottom, enclosed in a 22 gauge galvanized steel outer case, ensuring maximum efficiency and energy savings.
Efficient Refrigeration System
Features a self-contained condensing unit with a hermetically sealed compressor and a digital electronic thermostat/thermometer. System is fully charged with CFC-free refrigerant.
Easy Drainage
Equipped with a 3/4" diameter drain with strainer, 4" PVC nipple, and valve for convenient emptying.
Pan Separator Channels
Includes separator channels to securely hold 12" x 20" food pans.
Mobile Design
Comes with 4-inch diameter non-marking rubber tired swivel casters with ball bearings and grease fittings; two casters on the operator's side have toe-activated brakes for stability.
Removable Undershelf
A removable stainless steel undershelf (US) provides additional storage space.
Self-Locking Device
An integral locking device is provided to align and retain cart positioning when two or more units are joined.
Certifications & Compliance
Warranty & Protection
1-Year Parts & Labor Warranty
