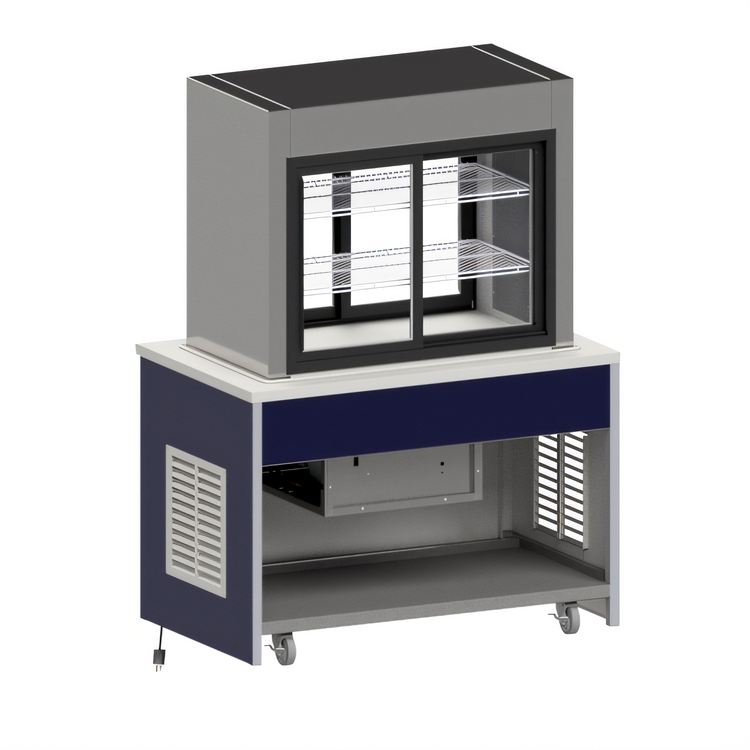

Atlas Metal INFPT-4 Mobile Cold Food Pass-Through Unit with Refrigerated Display
Atlas Metal INFPT-4 Mobile Cold Food Pass-Through Unit with Refrigerated Display
64-Inch Width, Self-Contained Refrigeration, Laminate Panels
Showcase your chilled culinary creations beautifully and efficiently with the Atlas Metal INFPT-4, a mobile pass-through unit designed for dynamic serving environments.
- Equipped with a self-contained refrigeration system and forced air evaporator for uniform temperature control.
- Features a pass-through design with sliding glass doors on both customer and operator sides for optimal access and service.
- Highly mobile with 5-inch swivel casters, including two with brakes, allowing for flexible placement.
- Constructed with a durable 16 gauge, type 304 stainless steel top and hi-tensile stainless steel frame.
- Large, lighted display area with adjustable wire shelves effectively merchandises your cold food items.
- Includes an integral locking device to securely align and join multiple units.
- Features a removable stainless steel undershelf for convenient storage.

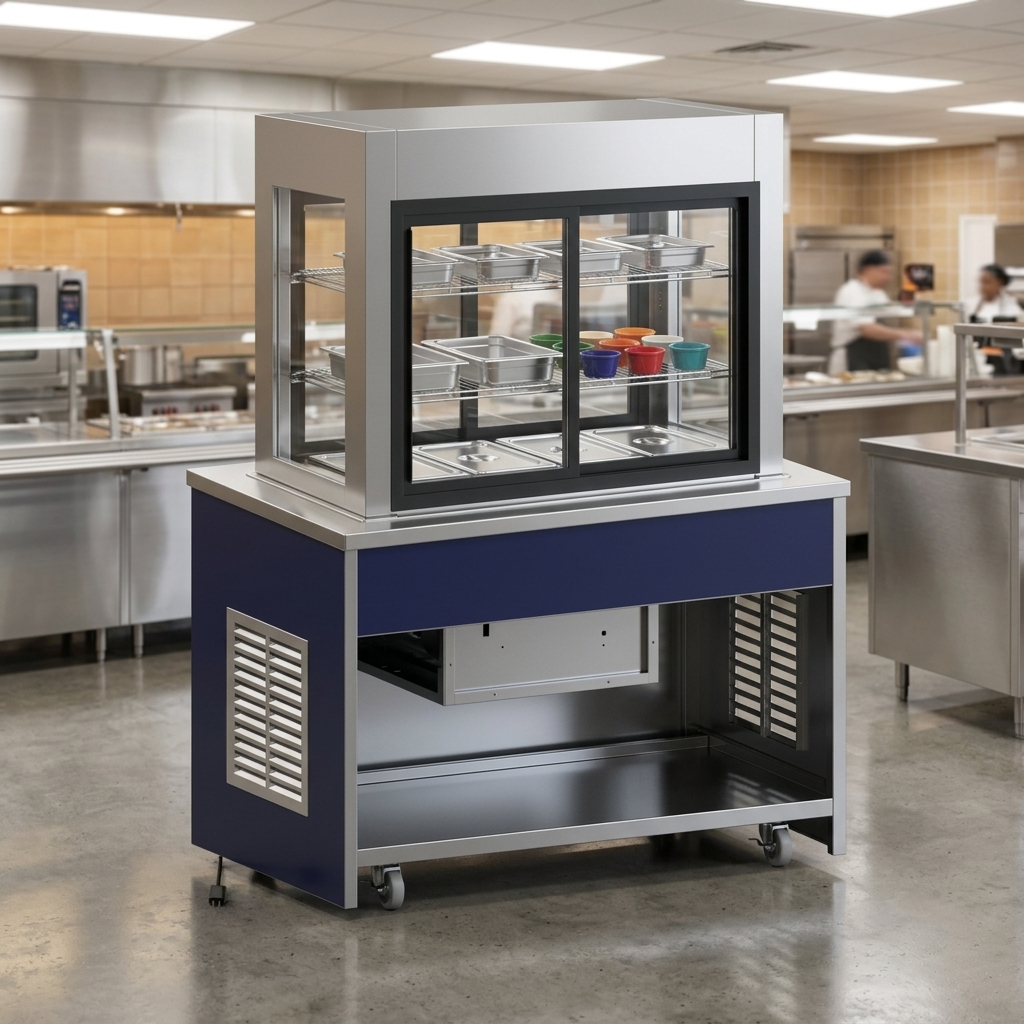

Heavy-Duty Stainless Steel Top
Constructed of 16 gauge, type 304 stainless steel, die-formed, welded, ground, and polished for exceptional durability and hygiene.

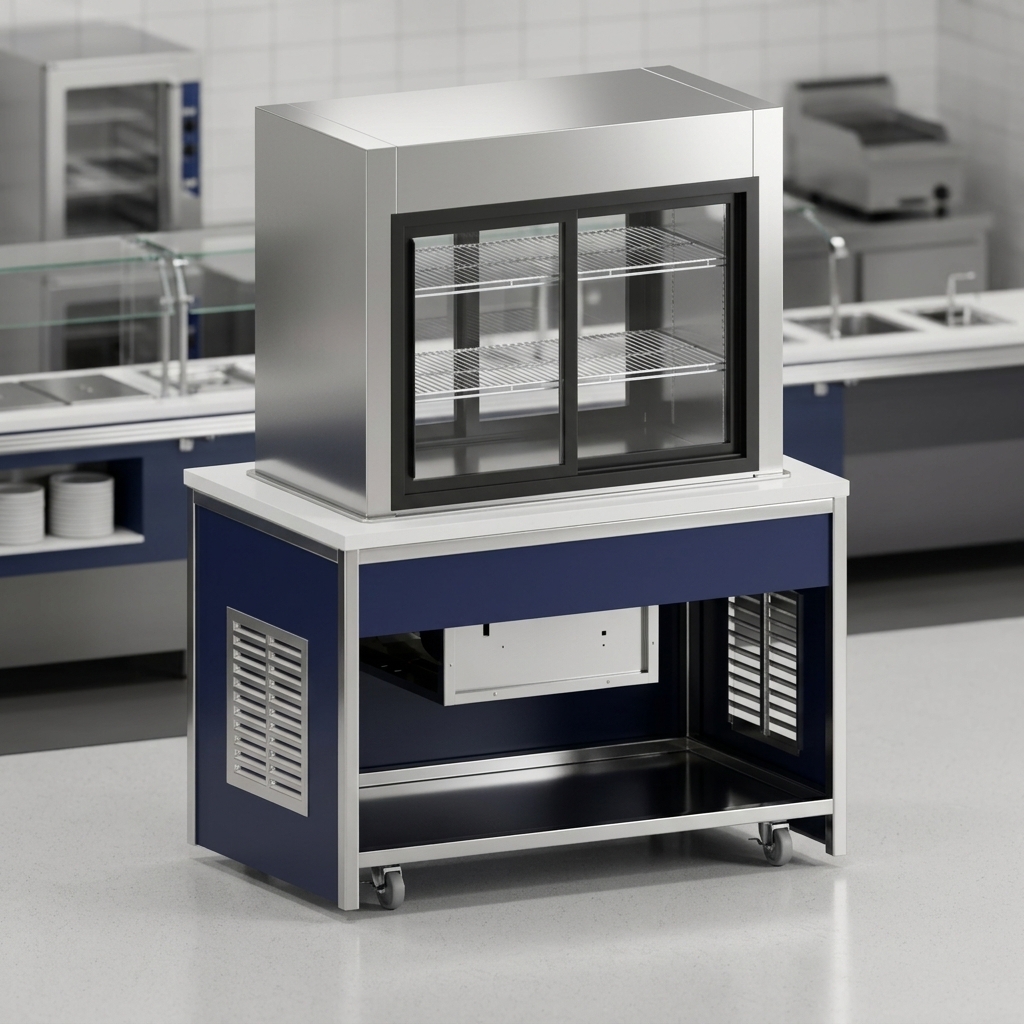

Robust Frame Construction
Frame is built from hi-tensile 1-1/4" x 1-1/4" stainless steel square tubing, welded and polished for a uniform, strong finish.

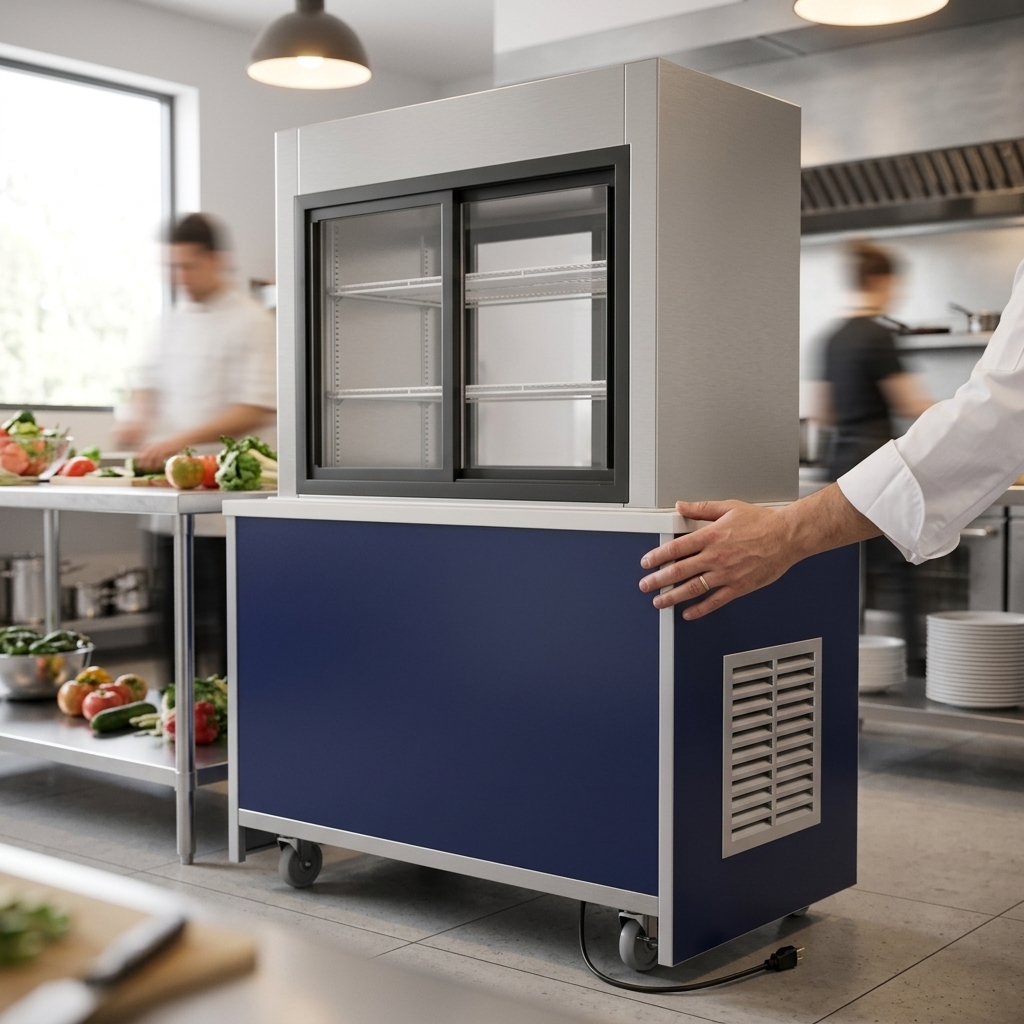

Durable Body and Panels
Body and panels are made from 18 gauge stainless steel with 1/16" thick plastic laminate on the front and ends, and 16 gauge stainless steel with 1/16" thick plastic laminate finish on the rear aprons.
Refrigerated Display Case
Integrated WCPT Series drop-in display case with double wall construction of 20 gauge type 304 stainless steel interior and exterior, insulated with 2" foamed-in-place polyurethane.
Pass-Through Sliding Glass Doors
Features two sets of sliding, self-closing, thermo-pane insulated glass doors on both the customer's and operator's sides, which are removable for easy cleaning.
Adjustable Wire Shelves
Includes two plastic coated wire shelves, adjustable on 1" increments, providing versatile merchandising options.
Illuminated Interior
Two sets of fluorescent light fixtures are mounted behind plastic guards, recessed into the side panels, with a separate on/off switch to highlight products.
Self-Contained Forced Air Refrigeration
Equipped with a hermetically sealed compressor, thermostat control, and a forced air evaporator for even temperature distribution, using CFC-free refrigerant.
Condensate Evaporator
Pre-wired condensate evaporator eliminates the need for an external drain connection.
Mobile Design
Provided with 5" diameter, non-marking rubber tired swivel casters with ball bearings and grease fittings; two casters on the operator's side include toe-activated brakes for secure positioning.
Integral Locking Device
Allows for precise alignment and retention when two or more units are joined, ensuring a seamless serving line.
Removable Stainless Steel Undershelf
Offers additional storage space within the open cabinet base, easily removable for cleaning.
Internal Thermometer
Provided within the display case for convenient temperature monitoring.
Specifications
| Type | Mobile Cold Food Pass-Through Unit |
|---|---|
| Style | Refrigerated Display Case |
| Installation Type | Floor Model (Mobile) |
| Material | Stainless Steel, Plastic Laminate |
| Top Construction | 16 Gauge 304 Stainless Steel |
| Base Construction | Laminate |
| Interior Finish | 304 Stainless Steel |
| Capacity | 16 Cubic Feet |
| Shelves | 2 |
| Caster Size | 5 Inches |
| Controls | Thermostat Control |
| Refrigeration Type | Self-Contained, Forced Air |
| Refrigerant Type | CFC Free |
| Working Height | 35 Inches |
| Voltage | 120 Volts |
| Amps | 13.5 Amps |
| Watts | 1.62 kW |
| Phase | 1-Phase |
| Plug Type | NEMA 5-15P |
| Cord Length | 6 Feet |
| Shipping Width | 64 Inches |
| Shipping Depth | 32 Inches |
| Shipping Height | 69 Inches |
| Shipping Weight | 884 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
Overall Dimensions:
64.0"W x 31.25"D x 68.5"HProduct Weight:
884.0 lbCertifications & Compliance
Warranty & Protection
1-Year Parts & Labor Warranty
