Key specifications

Amps
6.5 Amps
Phase
1-Phase
Dimensions
63.75"W × 30.5"D × 35.0"H
Type
Cold Food Counter
Installation Type
Floor Model
Material
Aluminum
Spec sheet
Atlas Metal SKU: CARM-4

Atlas Metal CARM-4 4-Pan Refrigerated Cold Food Counter

$10,320.75
/each
Estimated to ship in 61–64 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Pan capacity
Electrical120 V · 1-phase · 10.7 A
Refrigeration configuration
Tray slide
Factory Add-Ons
Condensate evaporators

Need something else? Contact us.

Included: Atlas Metal warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $955/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Food Counter
Installation Type Floor Model
Material Aluminum
Top Material 304 Stainless Steel
Pan Material 304 Stainless Steel
Front Panel Material Plastic Laminate
Base Design Fully Open
Mobility Mobile
Pan Capacity 4 Pans
Pan Size 19-7/8 inches x 53-1/8 inches x 9 inches
Pan Recess Depth 3 Inches
Refrigeration Type Self-Contained
Refrigerant Type CFC-Free
Controls Digital Thermostat/Thermometer, On/Off Switch, Pilot Light
Voltage 120 Volts
Amps 6.5 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Compressor Horsepower 1/3 HP
Caster Size 5 Inches
Caster Type Swivel
Caster Brakes 2

Description

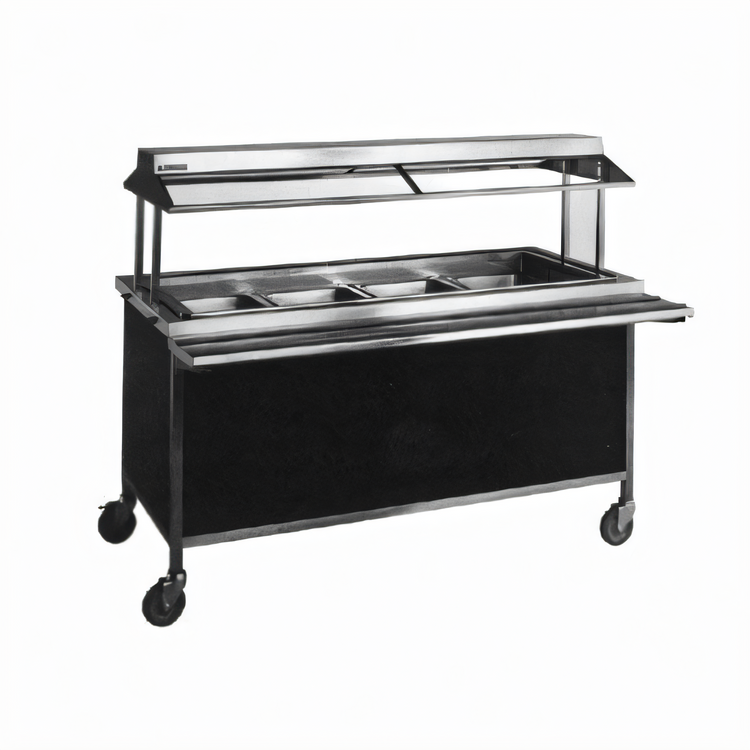

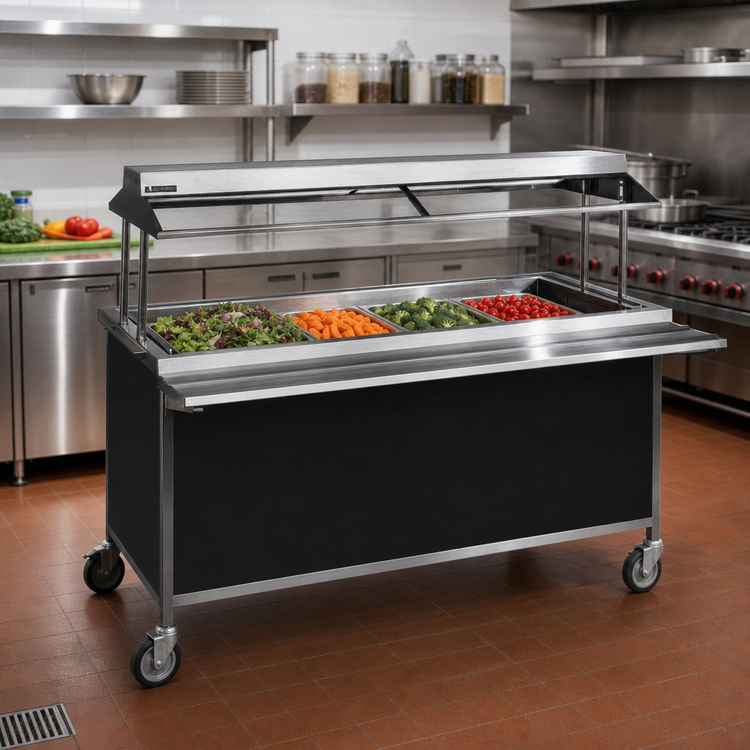

The Atlas Metal CARM-4 is a mobile refrigerated cold food serving counter with a 3-inch recessed cold pan and four pan openings.

  • 304 stainless steel top and cold pan
  • Aluminum square-tubing frame with laminated front panel
  • Self-contained refrigeration with digital thermostat/thermometer
  • 5-inch swivel casters, including two with brakes
  • 120-volt, single-phase operation with a NEMA 5-15P plug and 6-foot cord

Overall Dimensions:

63.75"W x 30.5"D x 35.0"H

Product Weight:

385.0 lb

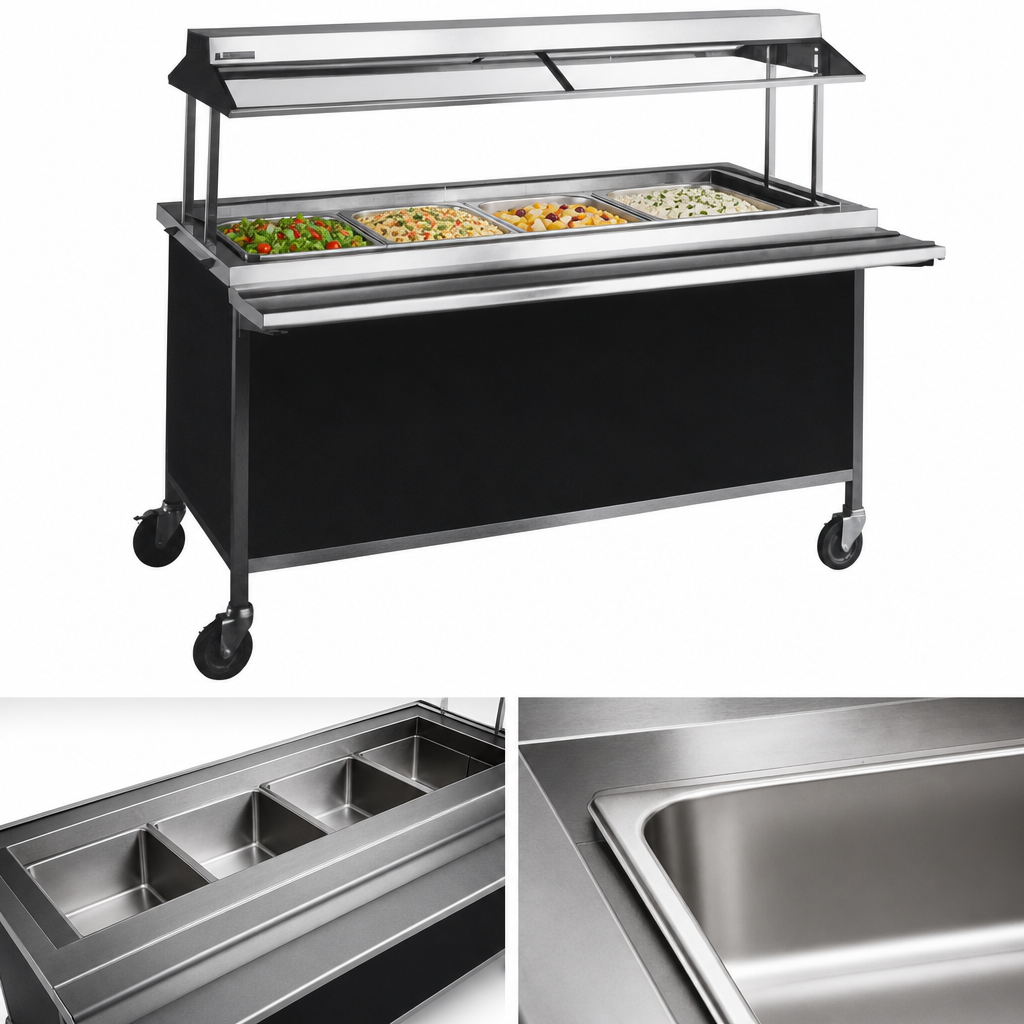

Four-Pan Cold Pan

The 3-inch recessed cold pan has four openings and a listed pan size of 19-7/8 inches x 53-1/8 inches x 9 inches.

Self-Contained Refrigeration

The unit includes a self-contained condensing system with a digital electronic thermostat/thermometer.

Stainless Steel Top

The top is constructed from 16-gauge, type 304 stainless steel.

Mobile Caster Base

Five-inch swivel casters support mobility; two casters have toe-activated brakes.

Electrical Connection

The CARM-4 is listed at 120 Volts, 6.5 Amps, and 1-Phase, with a 6-foot cord and NEMA 5-15P plug.

Frequently Asked Questions

The CARM-4 has four pan openings.
Yes. The unit includes a self-contained refrigeration system.
The product is 63.75 inches wide, 30.5 inches deep, and 35 inches high, with a listed weight of 385 lb.
It is listed at 120 Volts, 6.5 Amps, and 1-Phase, with a NEMA 5-15P plug and 6-foot cord.
Yes. It has 5-inch swivel casters, and two casters have brakes.
