Key specifications

Type
Serving Counter
Style
Open Rear
Installation Type
Floor Model
Material
Aluminum
Top Material
304 Stainless Steel
Front Panel Material
Plastic Laminate
Spec sheet
Atlas Metal SKU: CAIC-3

Atlas Metal CAIC-3 Mobile 3-Pan Ice-Cooled Serving Counter

$5,267.79
/each
Estimated to ship in 61–64 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Pan capacity
Tray slide
Work shelf
End shelf
Rear doors
Factory Add-Ons

Need something else? Contact us.

Included: Atlas Metal warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $487/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Serving Counter
Style Open Rear
Installation Type Floor Model
Material Aluminum
Top Material 304 Stainless Steel
Front Panel Material Plastic Laminate
Cooling Type Ice Cooled
Mobility Mobile
Pan Capacity 3 Pans
Pan Size 19-7/8 in x 39-1/4 in x 4-5/8 in
Caster Type 5 in Swivel, 2 with Brakes
Frame Size 1-1/4 in x 1-1/4 in
Top Gauge 16 Gauge
Drain Size 3/4 in

Description

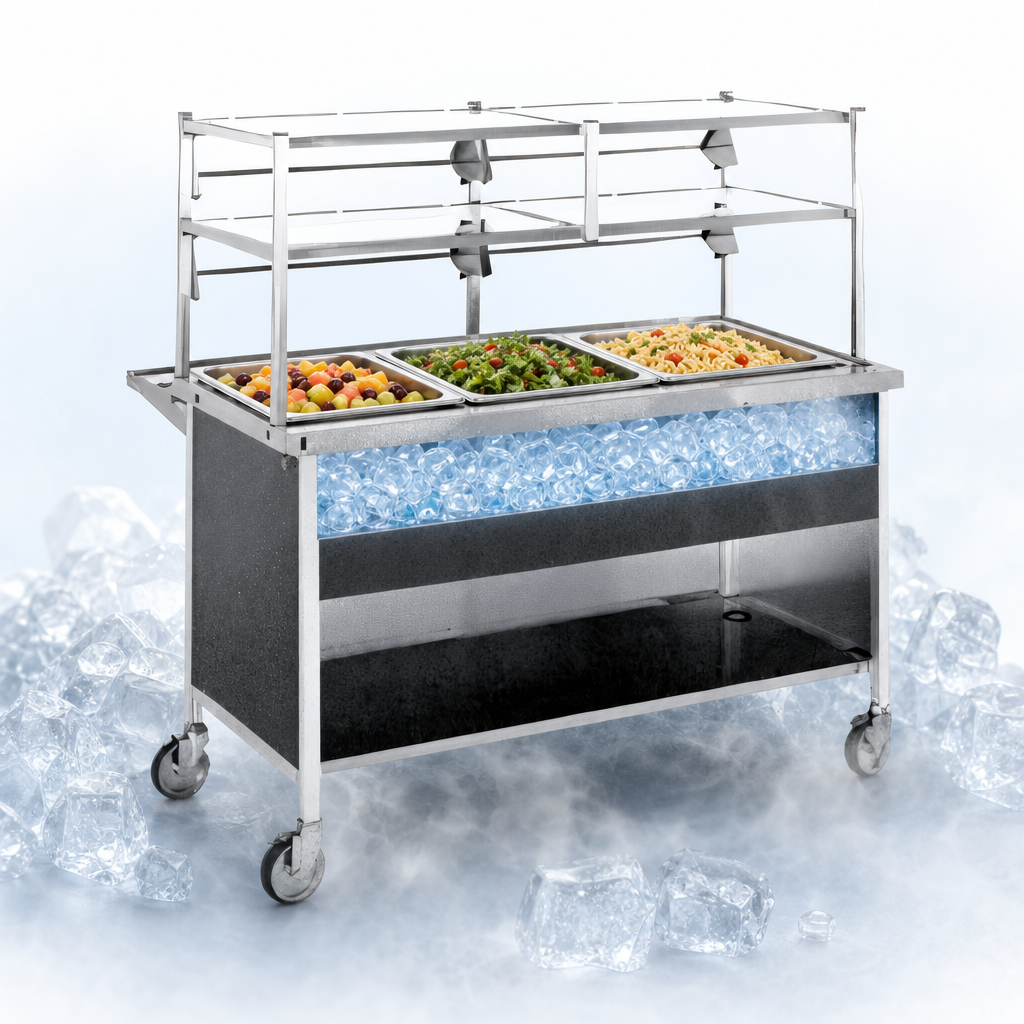

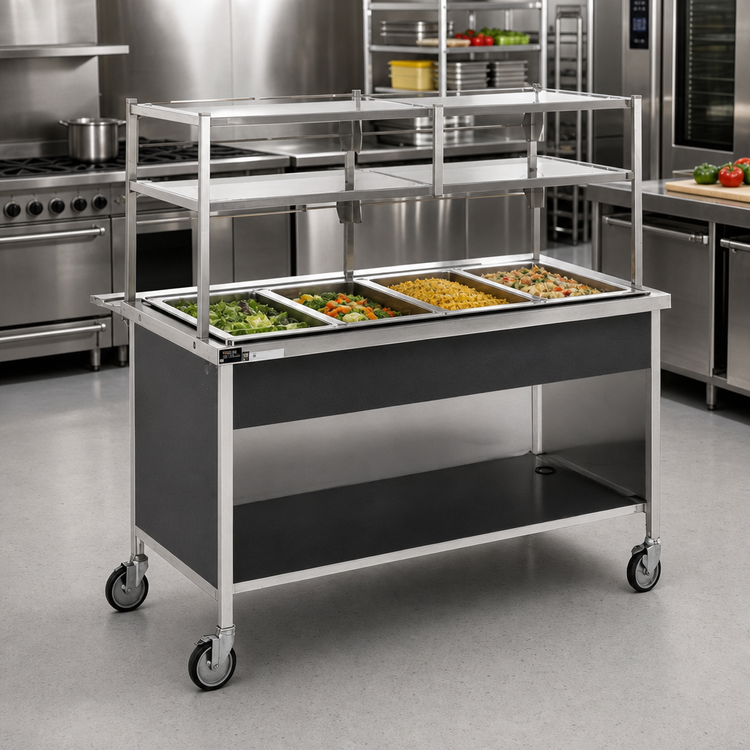

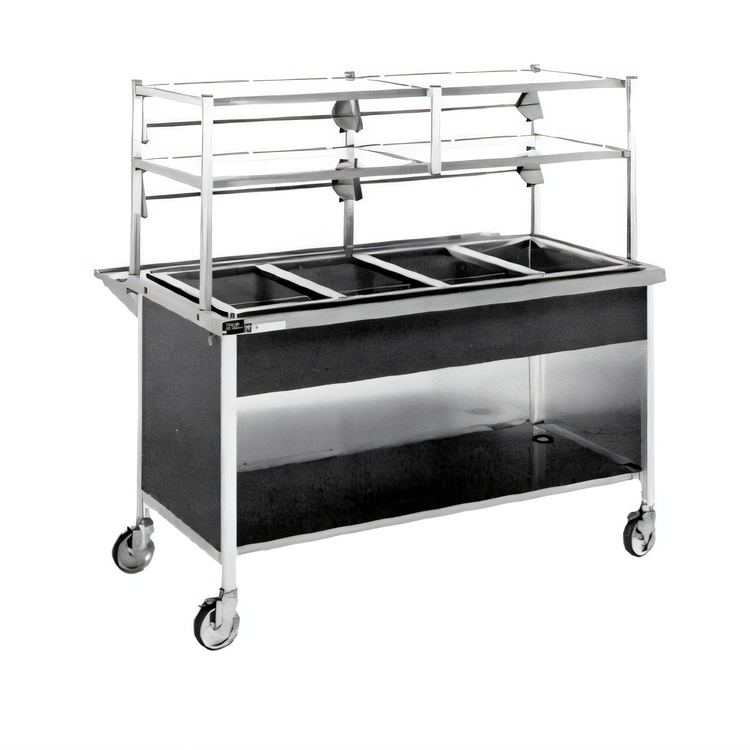

The Atlas Metal CAIC-3 is an ice-cooled cold food serving counter with a 50-inch stainless steel top, a three-pan layout, and an open rear. Its frame uses aluminum square tubing, and the front panel is laminated.

An installed drop-in iced cold pan is fully insulated and includes separator channels for 12-inch by 20-inch food pans. Five-inch swivel casters provide mobility, with two casters equipped with toe-activated brakes.

  • Overall dimensions: 50 in W x 30.5 in D x 35 in H
  • Pan size: 19-7/8 in x 39-1/4 in x 4-5/8 in
  • Top: 16-gauge type 304 stainless steel
  • Warranty: 1-year parts and labor

Overall Dimensions:

50.0"W x 30.5"D x 35.0"H

Product Weight:

160.0 lb

Ice-Cooled Pan

The counter includes an installed drop-in iced cold pan with full insulation, a drain with strainer, and a valve.

Three-Pan Layout

The CAIC-3 has 3 pan openings with a specified pan size of 19-7/8 in x 39-1/4 in x 4-5/8 in.

Stainless Steel Top

The top is constructed of 16-gauge type 304 stainless steel and is die-formed, welded, ground, and polished.

Aluminum Frame

The frame uses 1-1/4 in x 1-1/4 in high-tensile aluminum square tubing.

Open Rear Design

The counter has an open rear, a laminated front panel, and a 7 in rear apron.

Mobile Casters

Five-inch non-marking rubber-tired swivel casters provide mobility; two have toe-activated brakes.

Pan Compatibility

Included separator channels hold 12 in x 20 in food pans.

Self-Locking Device

A positive self-locking device helps keep joined tops level and equipment in place.

Frequently Asked Questions

It is ice cooled and includes an installed drop-in iced cold pan.
The CAIC-3 has 3 pan openings with a specified pan size of 19-7/8 in x 39-1/4 in x 4-5/8 in.
The counter measures 50 in wide x 30.5 in deep x 35 in high and weighs 160 lb.
The top is made of 16-gauge type 304 stainless steel.
Yes. It has 5 in swivel casters, with 2 casters equipped with brakes.
The product includes a 1-year parts and labor warranty.
