Key specifications
- Amps
- 6.5 Amps
- Phase
- 1-Phase
- Dimensions
- 77.5"W × 30.5"D × 35.0"H
- Type
- Serving Counter
- Style
- Refrigerated Cold Pan
- Installation Type
- Floor Model
Atlas Metal CABT-5 Mobile 5-Pan Refrigerated Serving Counter
Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

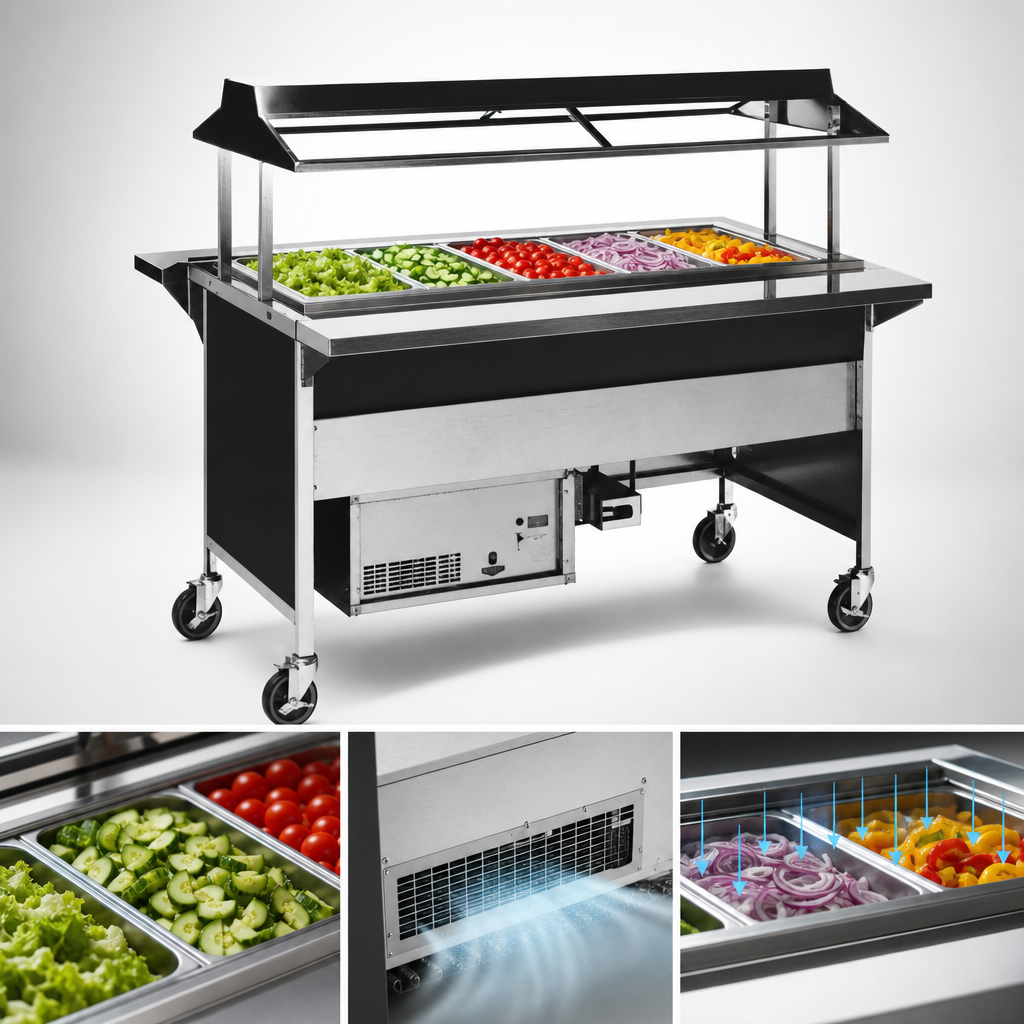

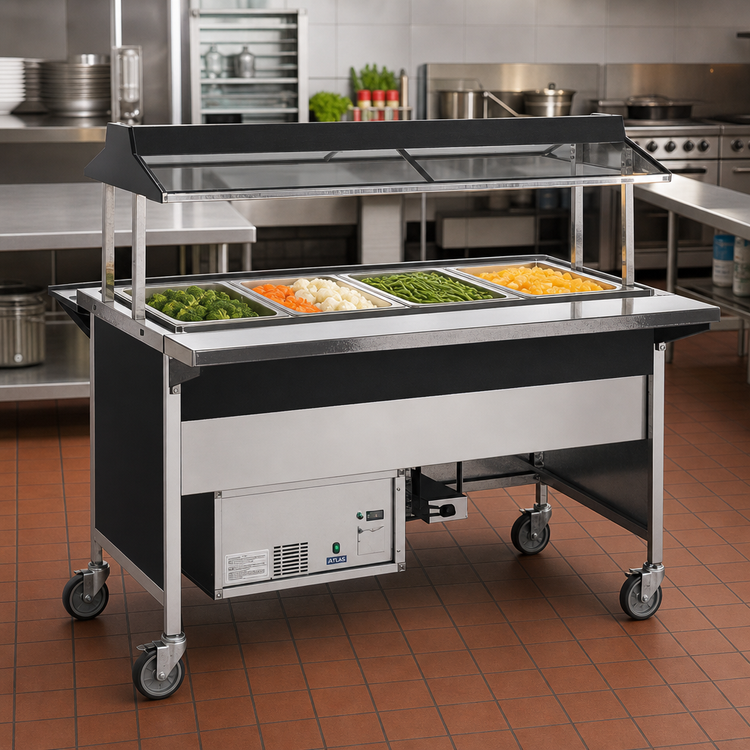

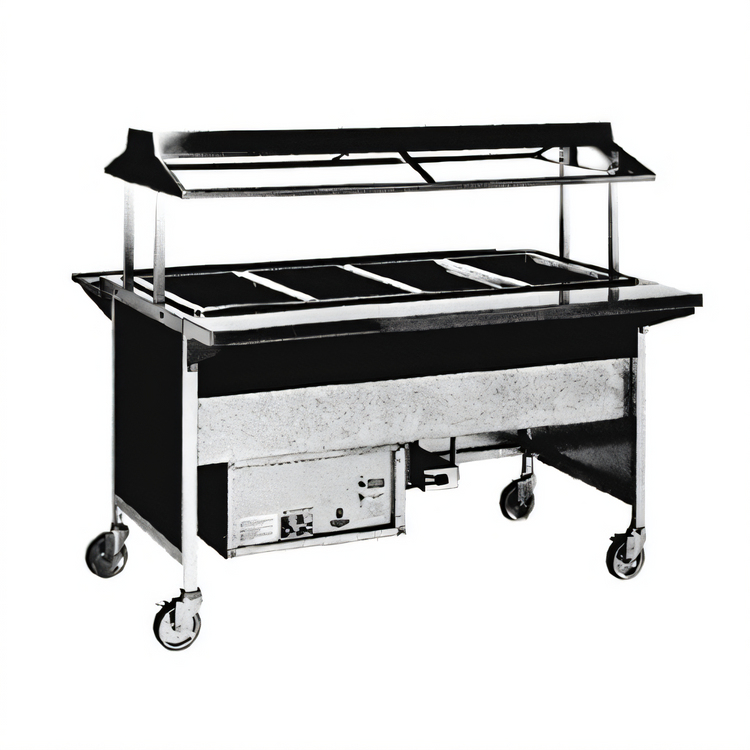

The Atlas Metal CABT-5 is a mobile refrigerated cold food serving counter with a five-pan cold pan, stainless steel top, and self-contained refrigeration.
- Measures 77.5 inches wide, 30.5 inches deep, and 35 inches high.
- Refrigeration includes a forced-air evaporator and automatic defrost system.
- The top is 16-gauge type 304 stainless steel, and the frame is aluminum square tubing with a laminated front panel.
- Five-inch swivel casters provide mobility, with two casters fitted with toe-activated brakes.
- Operates at 120 volts, single phase, and 6.5 amps, with a 6-foot cord and NEMA 5-15P plug.
Standard warranty coverage is one year for parts and labor, plus five years for the compressor.
Overall Dimensions:
77.5"W x 30.5"D x 35.0"HProduct Weight:
470.0 lbFive-Pan Capacity
The refrigerated cold pan is sized for five pans, with separator channels included to hold 12-inch x 20-inch food pans.
Self-Contained Refrigeration
The unit includes a self-contained condensing system with a forced-air evaporator, thermostat control, and condensate evaporator.
Automatic Defrost
An automatic defrost system is provided.
Stainless Steel Top
The top is constructed from 16-gauge type 304 stainless steel and includes an opening for the refrigerated drop-in unit.
Aluminum Frame
The body uses welded 1-1/4-inch x 1-1/4-inch aluminum square tubing.
Mobile Base
The counter has five-inch non-marking rubber-tired swivel casters, with two operator-side casters equipped with toe-activated brakes.
Electrical Connection
The CABT-5 is listed at 6.5 amps, 120 volts, single phase, with a 6-foot 3-wire cord and NEMA 5-15P plug.
Self-Locking Device
A positive self-locking device helps keep joined tops level and equipment in place.
