Key specifications

Amps
6.5 Amps
Phase
1-Phase
Dimensions
63.75"W × 30.5"D × 35.0"H
Type
Serving Counter
Style
Mobile
Installation Type
Floor Model
Spec sheet
Atlas Metal SKU: CABT-4

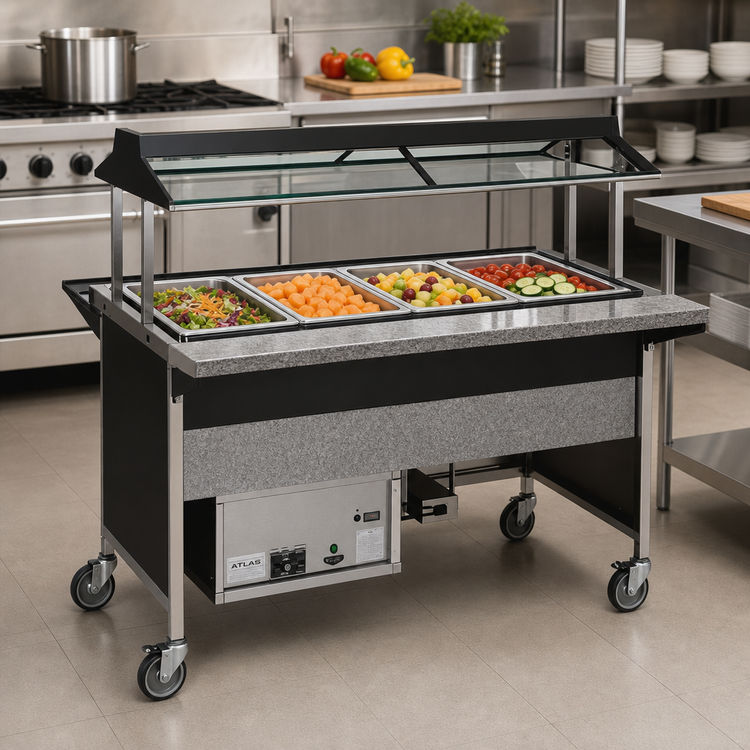

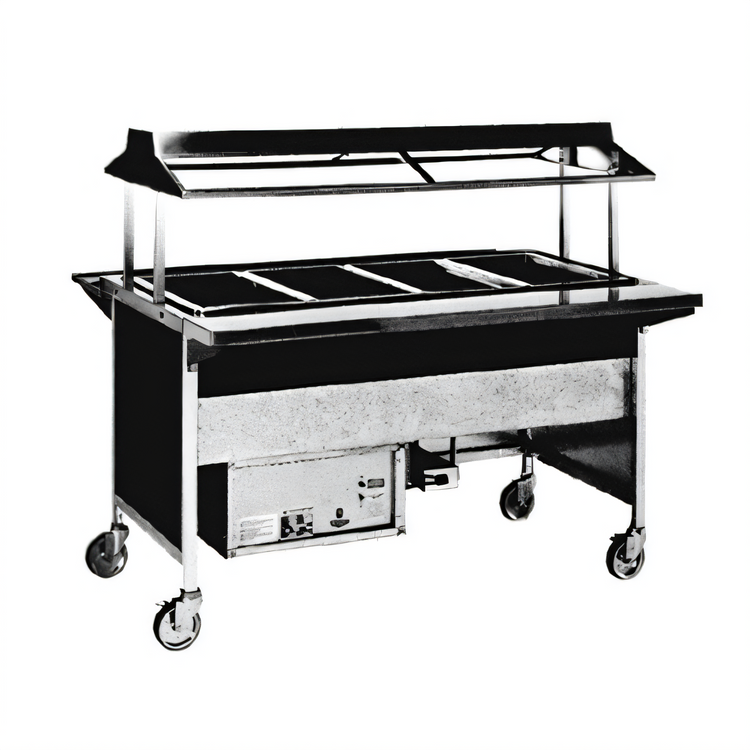

Atlas Metal CABT-4 Mobile 4-Pan Refrigerated Serving Counter

$13,593.69
/each
Estimated to ship in 61–64 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Pan capacity
Electrical
Compressor location
Rear doors
Tray slide
Factory Add-Ons

Need something else? Contact us.

Included: Atlas Metal warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,257/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Serving Counter
Style Mobile
Installation Type Floor Model
Material Aluminum
Top Material 304 Stainless Steel
Base Design Open Rear
Cooling Type Refrigerated
Refrigeration Type Self-Contained
Defrost System Automatic
Pan Capacity 4 Pans
Pan Size 19-7/8 in x 53 in x 14 in
Voltage 120 Volts
Amps 6.5 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 ft
Controls Thermostat; On/Off Switch; Pilot Light
Caster Diameter 5 in
Caster Type Swivel
Brake Count 2

Description

The Atlas Metal CABT-4 is a mobile refrigerated cold food serving counter with a self-contained refrigeration system and four-pan cold pan.

  • 63-3/4-inch counter with a stainless steel top and laminated front panel.
  • Aluminum square tubing frame with 5-inch swivel casters, including two with brakes.
  • Self-contained refrigeration with forced-air evaporator and automatic defrost system.
  • 120-volt, single-phase operation with a 6-foot cord and NEMA 5-15P plug.

Overall Dimensions:

63.75"W x 30.5"D x 35.0"H

Product Weight:

400.0 lb

Self-Contained Refrigeration

Includes a self-contained refrigeration system with thermostat control, forced-air evaporator, condensate evaporator, and automatic defrost.

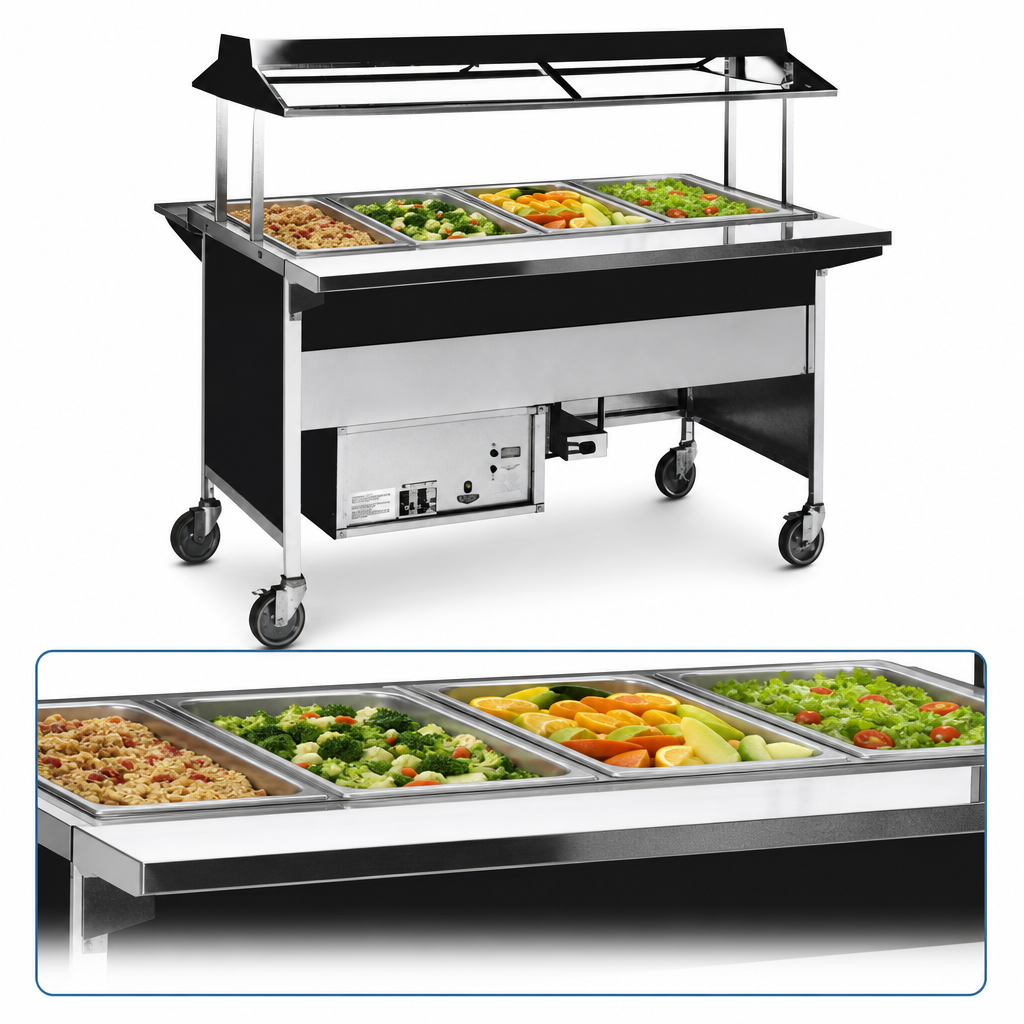

Four-Pan Cold Pan

Provides four pan openings with listed cold pan dimensions of 19-7/8 in x 53 in x 14 in.

Stainless Steel Top

The top is constructed from 16-gauge type 304 stainless steel and is die-formed, welded, ground, and polished.

Aluminum Frame

The frame uses welded hi-tensile aluminum square tubing.

Mobile Caster Base

The counter includes 5-inch swivel casters, with two equipped with toe-activated brakes.

Electrical Connection

The unit operates at 120 volts, single phase, and includes a 6-foot, 3-wire cord with a NEMA 5-15P plug.

Insulated Cold Pan

The pan is insulated with high-density polystyrene and includes a drain with strainer, PVC nipple, and valve.

Self-Locking Device

A positive self-locking device helps align and retain cart positioning when units are joined.

Frequently Asked Questions

It has a four-pan refrigerated cold pan.
Yes. The unit has a self-contained refrigeration system with forced-air evaporator and automatic defrost.
The CABT-4 operates at 120 volts, 6.5 amps, single phase, with a NEMA 5-15P plug and 6-foot cord.
Yes. It includes 5-inch swivel casters, with two casters equipped with brakes.
The dimensions are 63.75 in wide, 30.5 in deep, and 35 in high.
The cutsheet lists a 1-year parts and labor warranty.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
