Key specifications

Amps
6.2 Amps
Phase
1-Phase
Dimensions
50.0"W × 30.5"D × 35.0"H
Type
Serving Counter
Style
Open Rear
Installation Type
Floor Model
Spec sheet
Atlas Metal SKU: CABT-3

Atlas Metal CABT-3 3-Pan Refrigerated Food Serving Counter

$12,552.21
/each
Estimated to ship in 61–64 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Pan capacity
Electrical
Refrigeration system
Tray slide
Work shelf
Factory Add-Ons

Need something else? Contact us.

Included: Atlas Metal warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,161/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Serving Counter
Style Open Rear
Installation Type Floor Model
Material Aluminum
Top Material 304 Stainless Steel
Front Panel Material Plastic Laminate
Pan Capacity 3 Pans
Pan Size 19-7/8 in x 39-1/4 in x 14 in
Refrigeration Type Self-Contained
Controls On/Off Thermostat Switch, Pilot Light
Mobility Mobile
Voltage 120 Volts
Amps 6.2 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 ft
Caster Diameter 5 in
Caster Brakes 2

Description

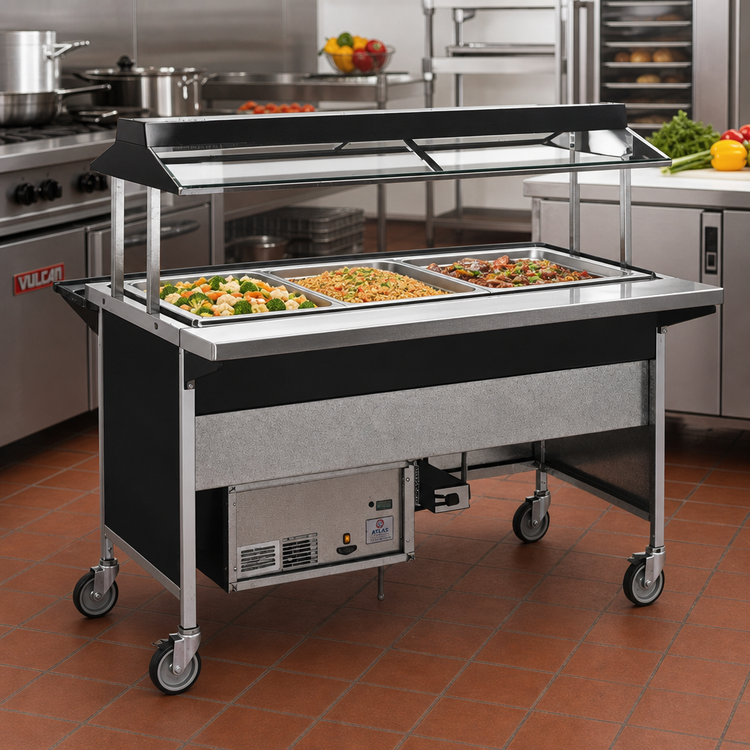

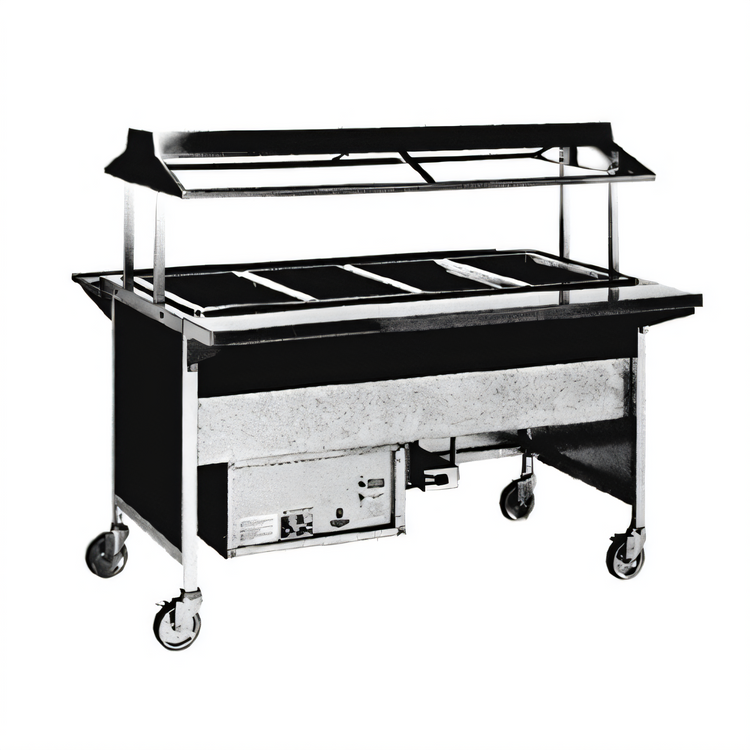

The CABT-3 is a mobile refrigerated cold food serving counter with a 50-inch stainless steel top, aluminum square tubing frame, laminated front panel, and three-pan refrigerated cold pan.

  • Refrigeration: Self-contained refrigeration with a forced-air evaporator, thermostat control, condensate evaporator, and automatic defrost system.
  • Construction: The top is 16-gauge type 304 stainless steel, and the frame uses welded aluminum square tubing.
  • Mobility: Five-inch swivel casters are provided, with two casters equipped with brakes.
  • Electrical: The unit operates at 120 volts, 6.2 amps, single phase, with a 6-foot cord and NEMA 5-15P plug.

Overall Dimensions:

50.0"W x 30.5"D x 35.0"H

Product Weight:

350.0 lb

Self-Contained Refrigeration

Includes a forced-air evaporator, thermostat control, condensate evaporator, and automatic defrost system.

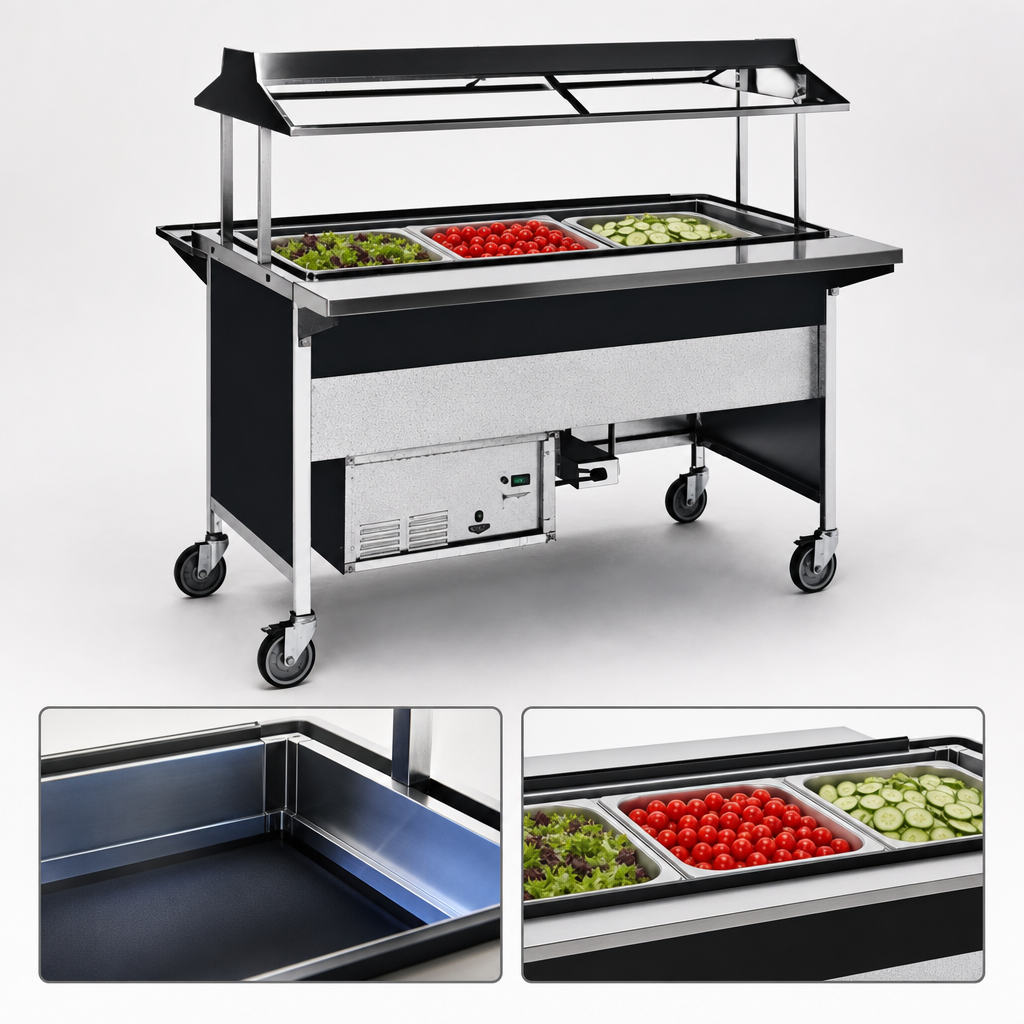

Three-Pan Refrigerated Cold Pan

The refrigerated cold pan has three openings measuring 19-7/8 in x 39-1/4 in x 14 in.

304 Stainless Steel Top

The 16-gauge type 304 stainless steel top is die-formed, welded, ground, and polished.

Aluminum Square Tubing Frame

The frame uses welded high-tensile aluminum square tubing measuring 1-1/4 in x 1-1/4 in.

Mobile Caster Base

Five-inch swivel casters provide mobility, with two casters equipped with brakes.

Electrical Connection

Operates at 120 volts, 6.2 amps, single phase, with a 6-foot cord and NEMA 5-15P plug.

Laminated Front Panel

The front panel and 7-inch rear apron use plastic laminate on aluminum.

Frequently Asked Questions

The CABT-3 has a three-pan refrigerated cold pan with openings measuring 19-7/8 in x 39-1/4 in x 14 in.
Yes. It has a self-contained refrigeration system with a forced-air evaporator, thermostat control, condensate evaporator, and automatic defrost.
The product measures 50 in wide x 30-1/2 in deep x 35 in high and weighs 350 lb.
Yes. It has five-inch swivel casters, with two casters equipped with brakes.
The unit operates at 120 volts, 6.2 amps, single phase, and includes a 6-foot cord with a NEMA 5-15P plug.
The product includes a 1-year parts and labor warranty.
