Key specifications

Phase
1-Phase
Dimensions
91.25"W × 30.5"D × 35.0"H
Type
Cold Food Counter
Style
Open Rear
Installation Type
Floor Model
Material
Aluminum
Spec sheet
Atlas Metal SKU: BLC-6-RM

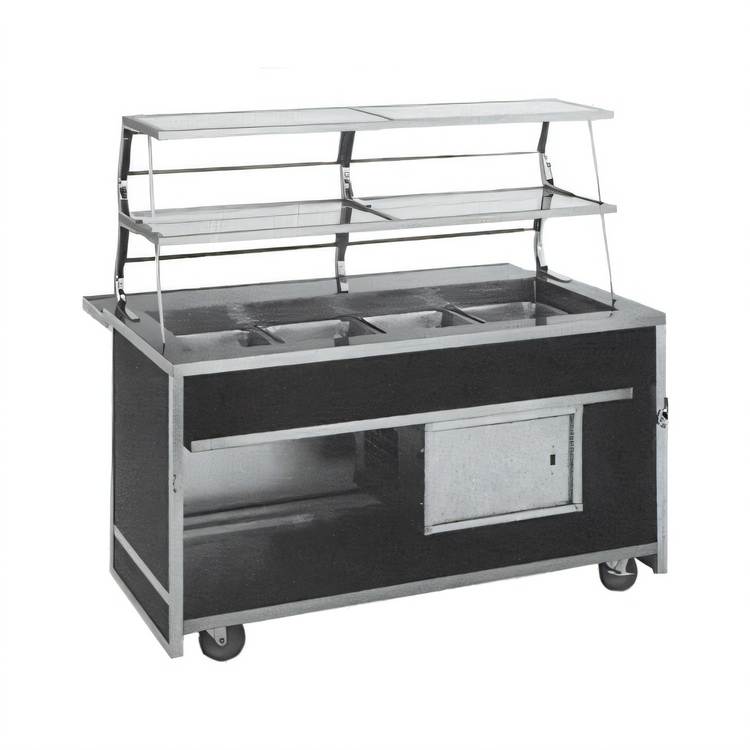

Atlas Metal BLC-6-RM 6-Pan Refrigerated Cold Food Counter

$12,917.52
/each
Estimated to ship in 61–64 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Pan capacity
Electrical120 V · 1-phase · 10.7 A
Refrigeration system
Rear enclosure
Factory Add-Ons
Accessories

Need something else? Contact us.

Included: Atlas Metal warranty 1-Year Parts & Labor Warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,195/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Food Counter
Style Open Rear
Installation Type Floor Model
Material Aluminum
Top Material 304 Stainless Steel
Panel Finish Plastic Laminate
Mobility Mobile
Refrigeration Type Self-Contained
Pan Capacity 6 Pans
Pan Size 12 in x 20 in
Cold Pan Dimensions 80-5/8 in x 19-7/8 in x 9 in
Caster Diameter 5 in
Caster Type Swivel
Caster Brakes 2
Voltage 120 Volts
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 ft
Controls Digital Thermostat/Thermometer
Compressor Horsepower 3/4 HP
Insulation High-Density Polystyrene

Description

The Atlas Metal BLC-6-RM is a mobile cold food serving counter with a 3-inch recessed refrigerated cold pan, self-contained refrigeration, and a stainless steel top.

Its cold pan measures 80-5/8 inches x 19-7/8 inches x 9 inches and includes separator channels and inserts to hold 12-inch x 20-inch food pans. The unit has an open rear, aluminum exterior, laminate front and end panels, and 5-inch swivel casters with two brakes.

It operates at 120 Volts, 1-Phase and includes a 6-foot cord with a NEMA 5-15P plug.

Overall Dimensions:

91.25"W x 30.5"D x 35.0"H

Product Weight:

560.0 lb

Six-Pan Cold Pan

The refrigerated cold pan has a 3-inch recess, is 9 inches deep overall, and includes separator channels and inserts to hold 12-inch x 20-inch food pans.

Self-Contained Refrigeration

The unit uses a fully self-contained condensing system with a digital electronic thermostat/thermometer.

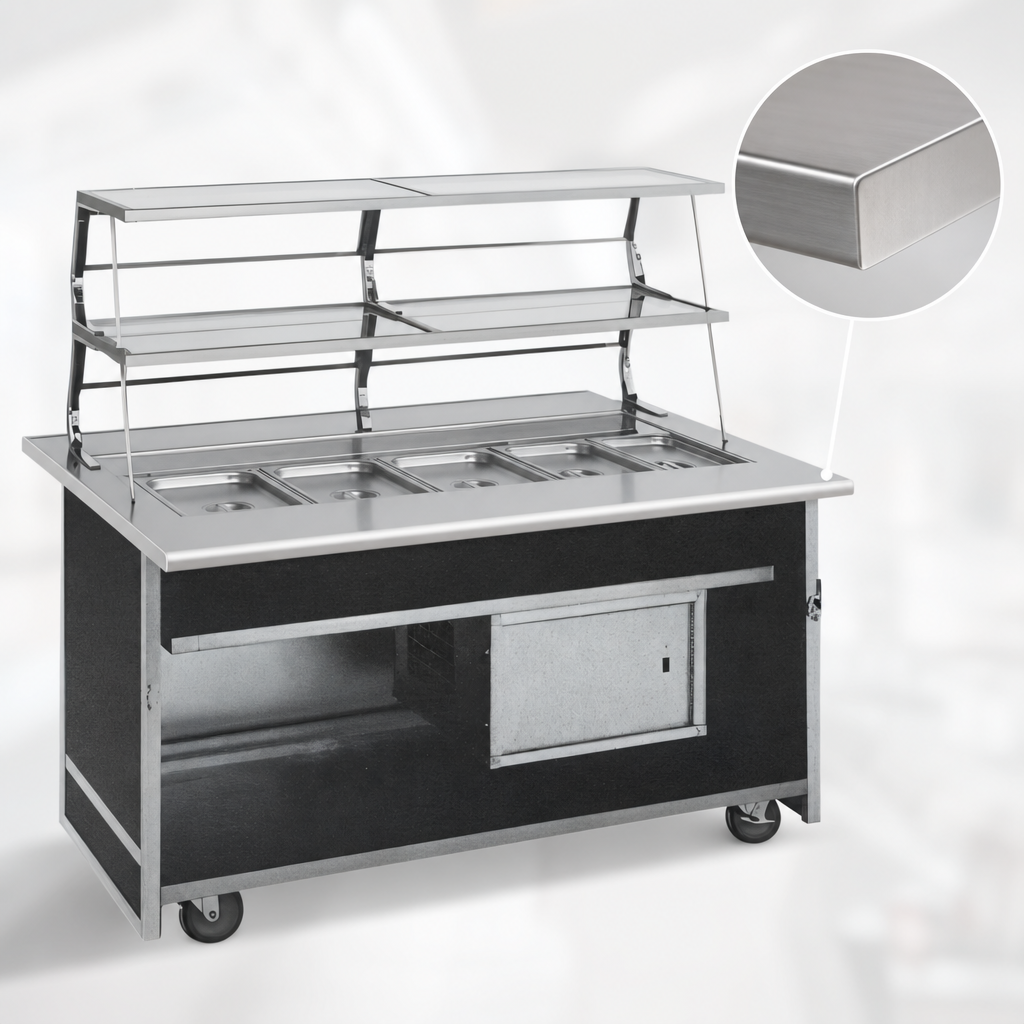

Stainless Steel Top

The top is constructed of type 304 stainless steel with a rolled front edge.

Mobile Caster Base

The unit has 5-inch swivel casters, with two casters equipped with toe-activated brakes.

Open Rear Design

The counter has an open rear and aluminum exterior with laminate front and end panels.

Modular Cam-Lock System

A cam-lock system aligns and retains cart positioning when two or more units are joined.

Electrical Connection

The unit operates at 120 Volts, 1-Phase and includes a 6-foot, 3-wire cord with a NEMA 5-15P plug.

Frequently Asked Questions

The unit has a six-pan refrigerated cold pan and includes separator channels and inserts to hold 12-inch x 20-inch food pans.
Yes. The unit has a fully self-contained condensing system with a digital electronic thermostat/thermometer.
The unit measures 91.25 inches wide x 30.5 inches deep x 35 inches high.
The unit operates at 120 Volts, 1-Phase and includes a 6-foot cord with a NEMA 5-15P plug.
Yes. It has 5-inch swivel casters, with two casters equipped with brakes.
The product includes a 1-Year Parts & Labor Warranty.
