Key specifications

Type
Cold Food Counter
Style
Open Base
Installation Type
Floor Model
Material
Aluminum
Top Material
304 Stainless Steel
Panel Finish
Plastic Laminate
Spec sheet
Atlas Metal SKU: BLC-5

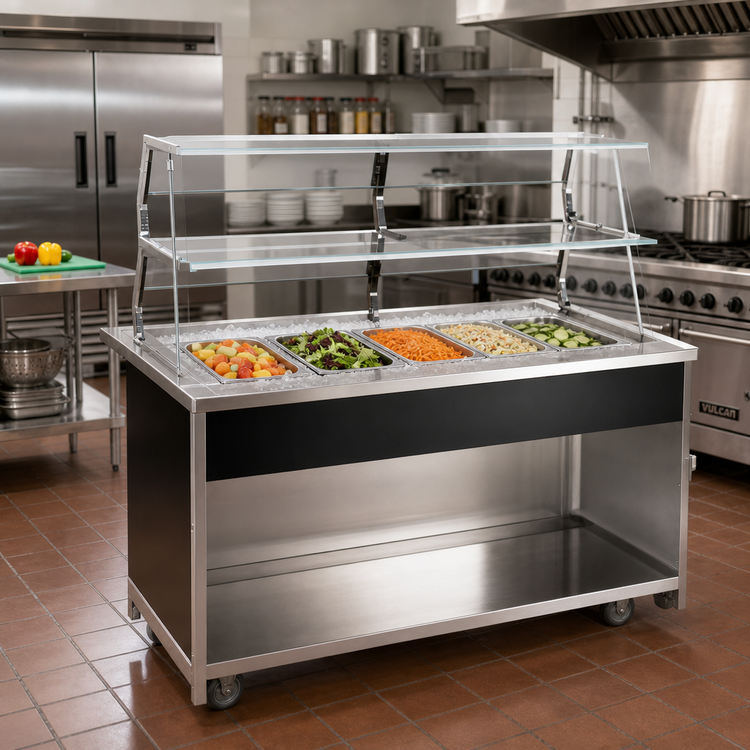

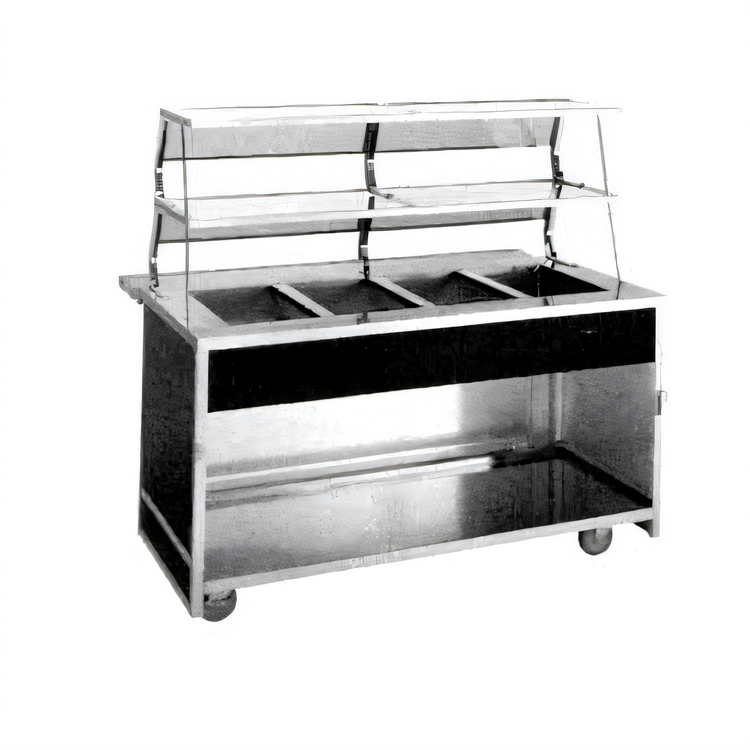

Atlas Metal BLC-5 5-Pan Mobile Ice-Cooled Cold Food Counter

$7,585.38
/each
Estimated to ship in 61–64 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Pan capacity
Cold pan depth
Tray slide
Work shelf
End shelf
Factory Add-Ons

Need something else? Contact us.

Included: Atlas Metal warranty 1-Year Parts & Labor Warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $702/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Food Counter
Style Open Base
Installation Type Floor Model
Material Aluminum
Top Material 304 Stainless Steel
Panel Finish Plastic Laminate
Refrigeration Type Ice Cooled
Mobility Mobile
Pan Capacity 5 Pans
Pan Size 12 x 20 Inches
Cold Pan Dimensions 66.75 x 19.875 x 4.625 Inches
Top Gauge 16 Gauge
Cold Pan Gauge 18 Gauge
Caster Diameter 5 Inches
Caster Type Non-Marking Rubber-Tired Swivel
Braked Casters 2 Casters
Insulation Fully Insulated
Locking System Cam-Lock

Description

Mobile five-pan cold food service. The Atlas Metal BLC-5 is an ice-cooled cold food serving counter with a 77.5-inch-wide stainless steel top and open cabinet base.

  • Cold pan: The built-in 4-5/8-inch-deep pan is fully insulated and includes separator channels for 12 x 20-inch food pans.
  • Construction: The unit has an aluminum frame, laminate-covered front and end panels, and a 304 stainless steel top and cold pan.
  • Mobility: Five-inch non-marking rubber-tired swivel casters provide mobility, with toe-activated brakes on two casters.
  • Modular use: An included cam-lock locking system aligns and retains the unit when two or more units are joined.

Overall Dimensions:

77.5"W x 30.5"D x 35.0"H

Product Weight:

330.0 lb

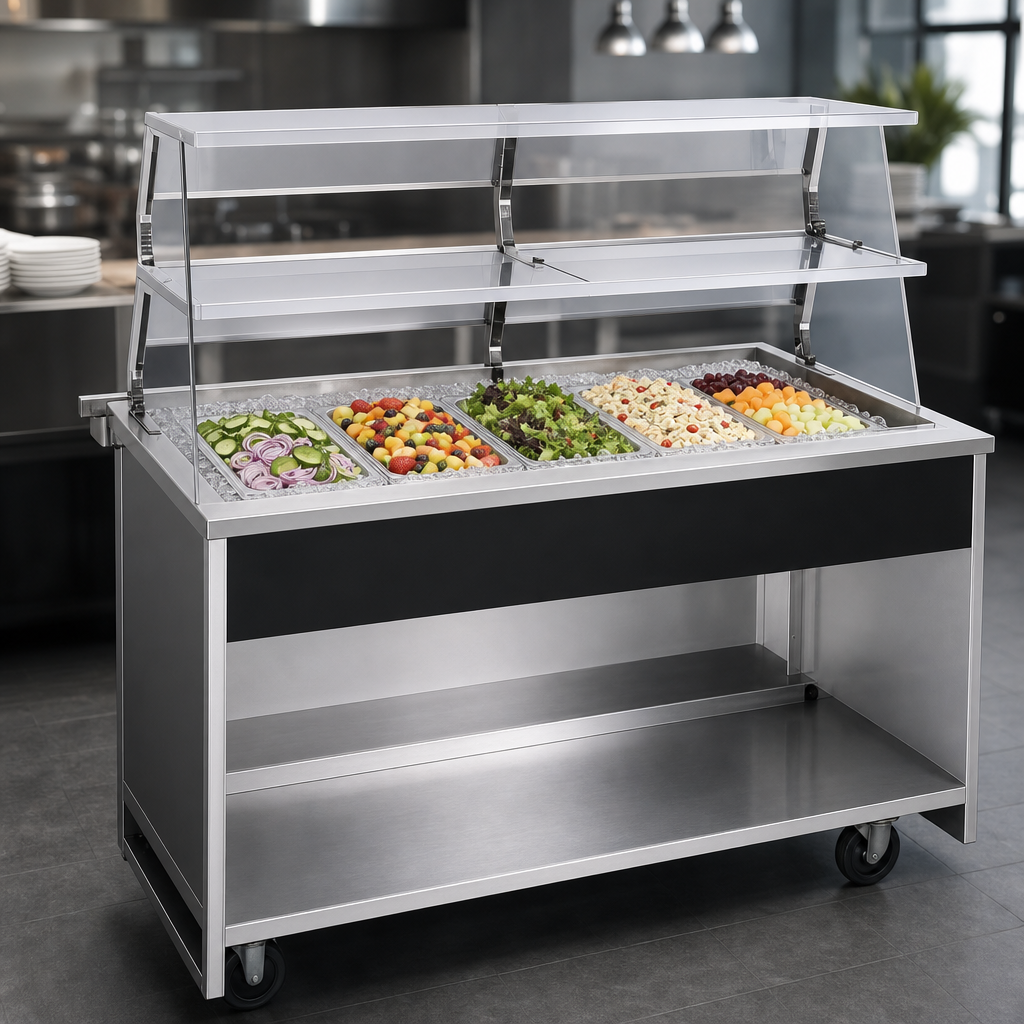

Ice-Cooled Cold Pan

The built-in 4-5/8-inch-deep pan is fully insulated and includes separator channels for 12 x 20-inch food pans.

304 Stainless Steel Top

The 16-gauge top is die-formed, welded, ground, and polished to a uniform finish, with a rolled front edge.

Aluminum Frame

The frame uses 1-1/4-inch hi-tensile aluminum square tubing, with laminate-covered front and end panels.

Mobile Caster Base

Five-inch non-marking rubber-tired swivel casters provide mobility; two casters have toe-activated brakes.

Cam-Lock System

The included cam-lock locking system aligns and retains the unit when two or more units are joined.

Cold Pan Drain

A 3/4-inch drain with strainer, 4-inch PVC nipple, and valve is provided.

Frequently Asked Questions

It uses an iced cold pan and is identified as an ice-cooled unit.
The unit has a five-pan cold pan with separator channels for 12 x 20-inch food pans.
The BLC-5 is 77.5 inches wide, 30.5 inches deep, and 35 inches high.
Yes. It has five-inch swivel casters, with brakes on two casters.
The frame is aluminum, the top and cold pan are 304 stainless steel, and the front and end panels are covered with plastic laminate.
Yes. It includes a 3/4-inch drain with strainer, 4-inch PVC nipple, and valve.
