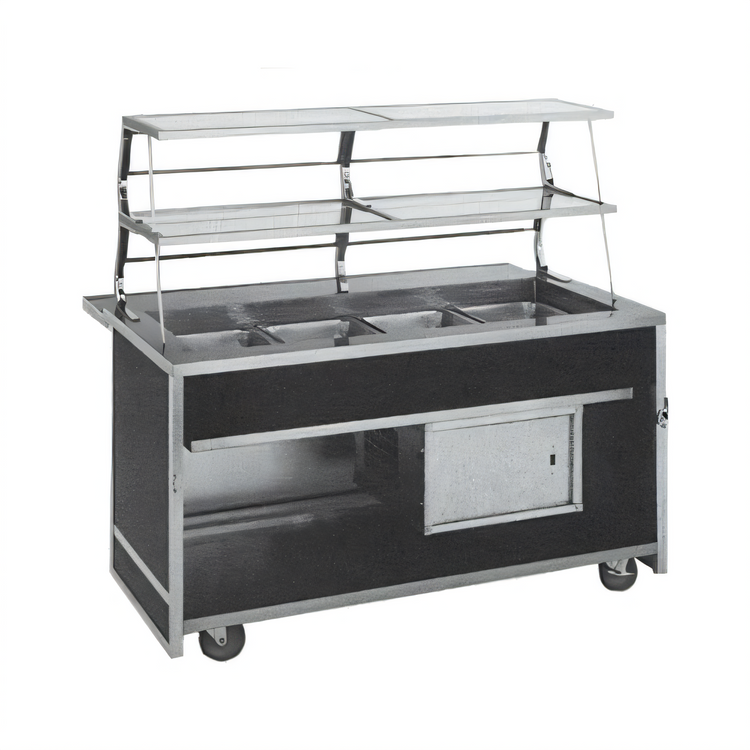

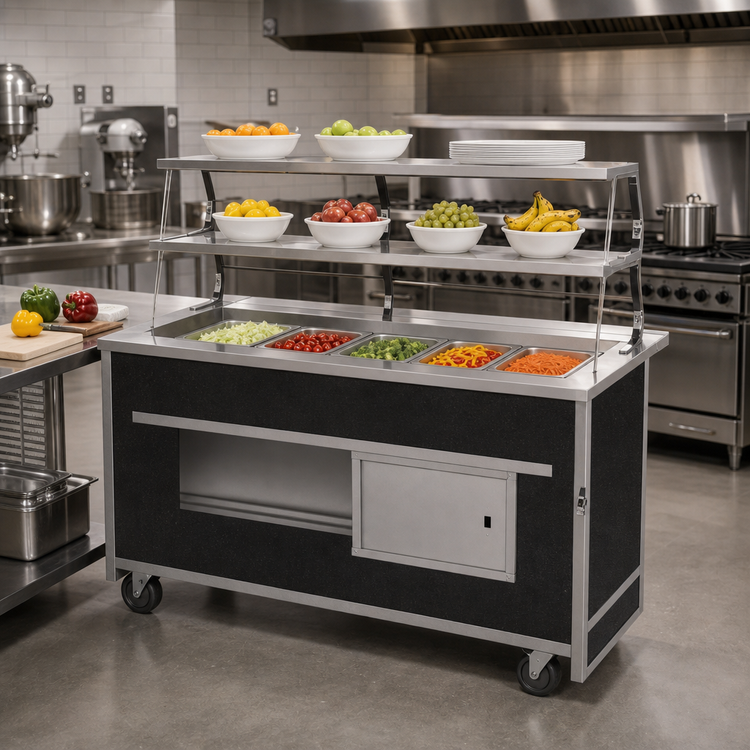

Atlas Metal BLC-5-RM 5-Pan Mobile Refrigerated Cafeteria Cold Food Serving Counter

5-Pan Capacity, 3-inch Recessed Top, Self-Contained Refrigeration

Designed for high-volume cold food service, the Atlas Metal BLC-5-RM offers reliable self-contained refrigeration in a versatile, mobile serving counter.

  • Accommodates five full-size food pans for ample cold food display.
  • Features a self-contained refrigeration system for easy plug-and-play operation.
  • Equipped with 5-inch swivel casters, including two with brakes, for effortless mobility.
  • Constructed with a durable 16 gauge type 304 stainless steel top and a 3-inch recessed cold pan.
  • Offers customizable front and end panels with plastic laminate to seamlessly blend with any decor.
  • Includes a Cam-Lock locking system to securely align and retain cart positioning when multiple units are joined.

Overall Dimensions:

77.5"W x 30.5"D x 35.0"H

Product Weight:

435.0 lb

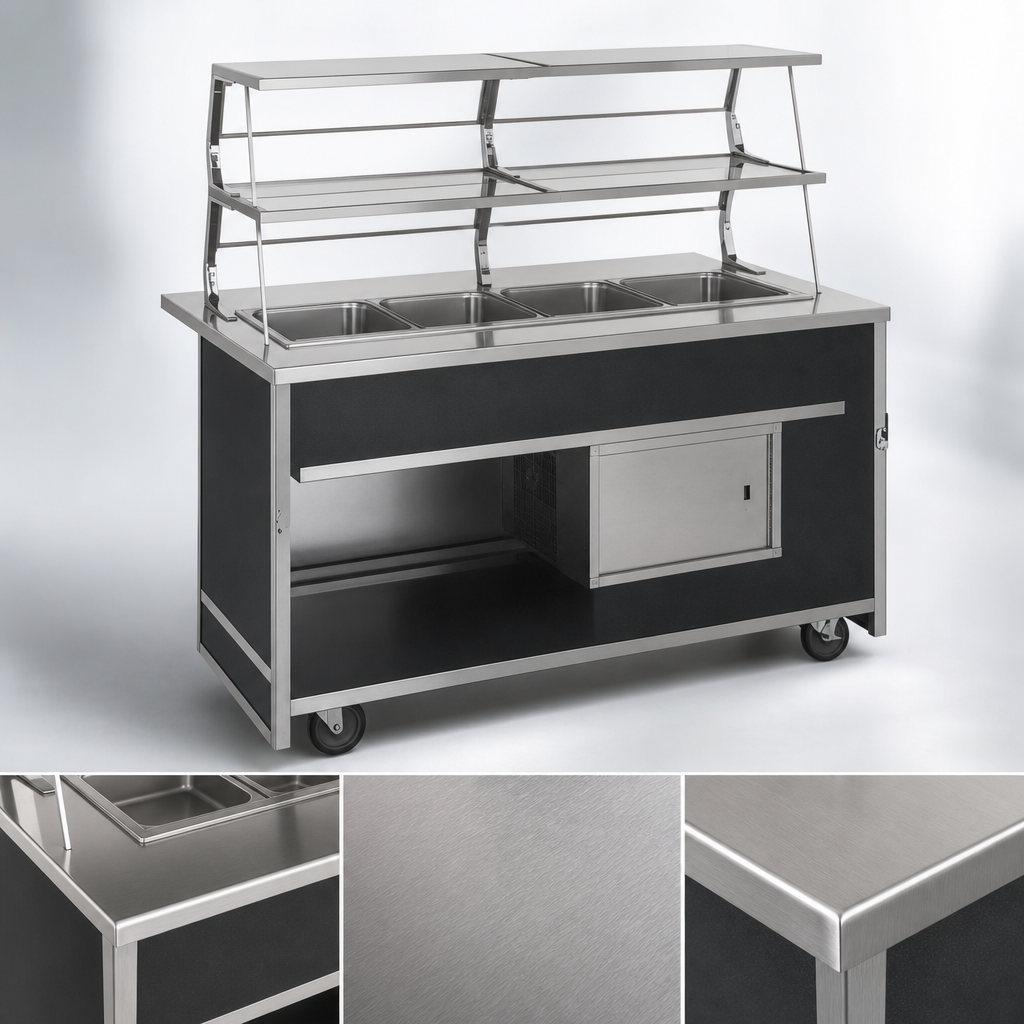

Heavy-Duty Stainless Steel Top

Constructed of 16 gauge, type 304 stainless steel, the top is die-formed, welded, ground, and polished to a uniform finish, featuring a rolled front edge for durability and aesthetics.

Heavy-Duty Stainless Steel Top

Robust Frame and Body

The frame is built from 1-1/4" hi-tensile aluminum square tubing with 3-3/4" extruded, vertical radius corners. The body includes .063 aluminum front and end panels, and an 8-5/8" rear apron of .090 aluminum, all covered with owner-specified plastic laminate.

Refrigerated Cold Pan with 3" Recess

The integrated cold pan features a 3" recess and is 9" deep overall, made from 18 gauge, type 304 stainless steel. It is fully insulated with high-density polystyrene and includes copper tubing soldered to the top 3" for efficient cooling.

Self-Contained Refrigeration System

A fully self-contained condensing unit with a hermetically sealed compressor and a digital electronic thermostat/thermometer ensures reliable cooling. The system is factory-charged with CFC-free refrigerant.

Efficient Insulation

The cold pan is fully insulated with 1" thick polystyrene on all sides and 2" thick on the bottom, maximizing efficiency and energy savings.

Mobile Design with Locking Casters

Equipped with NSF approved, 5" diameter, non-marking rubber-tired swivel plate casters with grease fittings. Both casters on the operator's side include toe-activated brakes for secure positioning.

Cam-Lock Locking System

Each unit comes with a cam-lock locking system to align and securely retain cart positioning when two or more modular units are joined, ensuring a stable serving line.

Included Pan Accessories

Separator channels and inserts are included to accommodate standard 12" x 20" food pans.

Integrated Drain

A 3/4" diameter drain with a strainer, 4" PVC nipple, and valve is provided for easy water removal.

Type Cold Food Unit
Style Cafeteria Style
Installation Type Floor Model (Mobile)
Pan Capacity 5 Full-Size Pans
Cold Pan Dimensions 66-7/8" x 19-7/8" x 9"
Recessed Top Depth 3 Inches
Top Construction 16 Gauge 304 Stainless Steel
Interior Finish 18 Gauge 304 Stainless Steel
Insulation High Density Polystyrene
Body Material Hi-Tensile Aluminum
Laminate Plastic Laminate
Refrigeration Type Self-Contained
Refrigerant Type CFC Free
Controls Digital Electronic Thermostat/Thermometer
Voltage 120 Volts
Amps 10.7 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Compressor Horsepower 3/4 HP
Drain Connection Size 3/4"
Casters 5" Swivel with Brakes
Selling Unit Each
Units Per Case 1
Shipping Weight 435 lb.
Shipping Width 78 Inches
Shipping Depth 31 Inches
Shipping Height 35 Inches

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The BLC-5-RM unit is designed to hold five full-size (12" x 20") food pans.
The interior dimensions of the refrigerated cold pan are 66-7/8" long x 19-7/8" wide x 9" deep.
Yes, the BLC-5-RM is fully mobile, equipped with 5" diameter swivel casters with non-marking rubber tires, two of which have toe-activated brakes for secure positioning.
The unit requires 120 Volts, 1-Phase, drawing 10.7 Amps. It comes with a 6-foot long, 3-wire cord and a NEMA 5-15P plug.
Yes, each unit includes a cam-lock locking system designed to align and securely retain cart positioning when two or more modular units are joined.
The cold pan is fully insulated with high-density polystyrene, featuring 1" thickness on all sides and 2" thickness on the bottom for maximum efficiency and energy savings.
