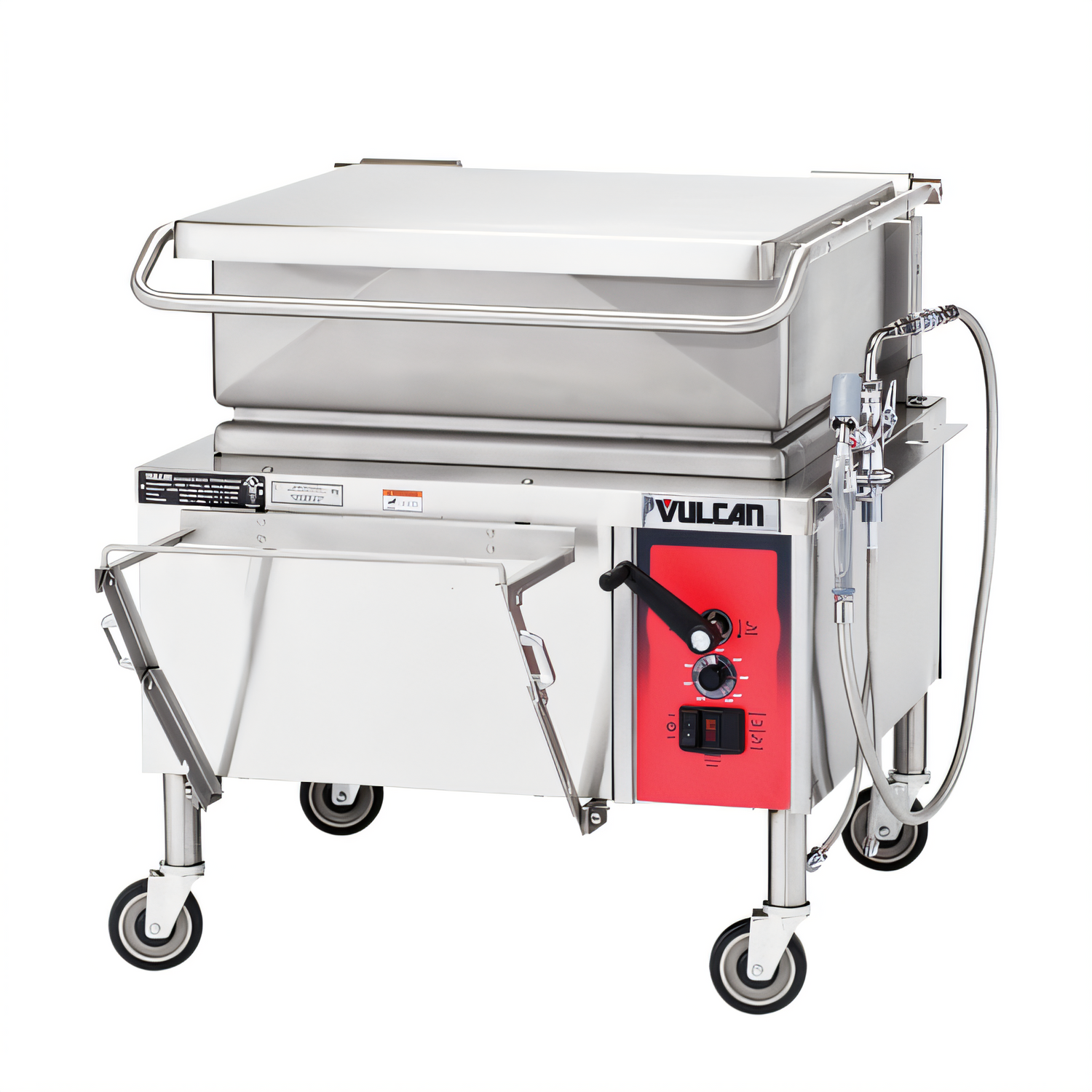

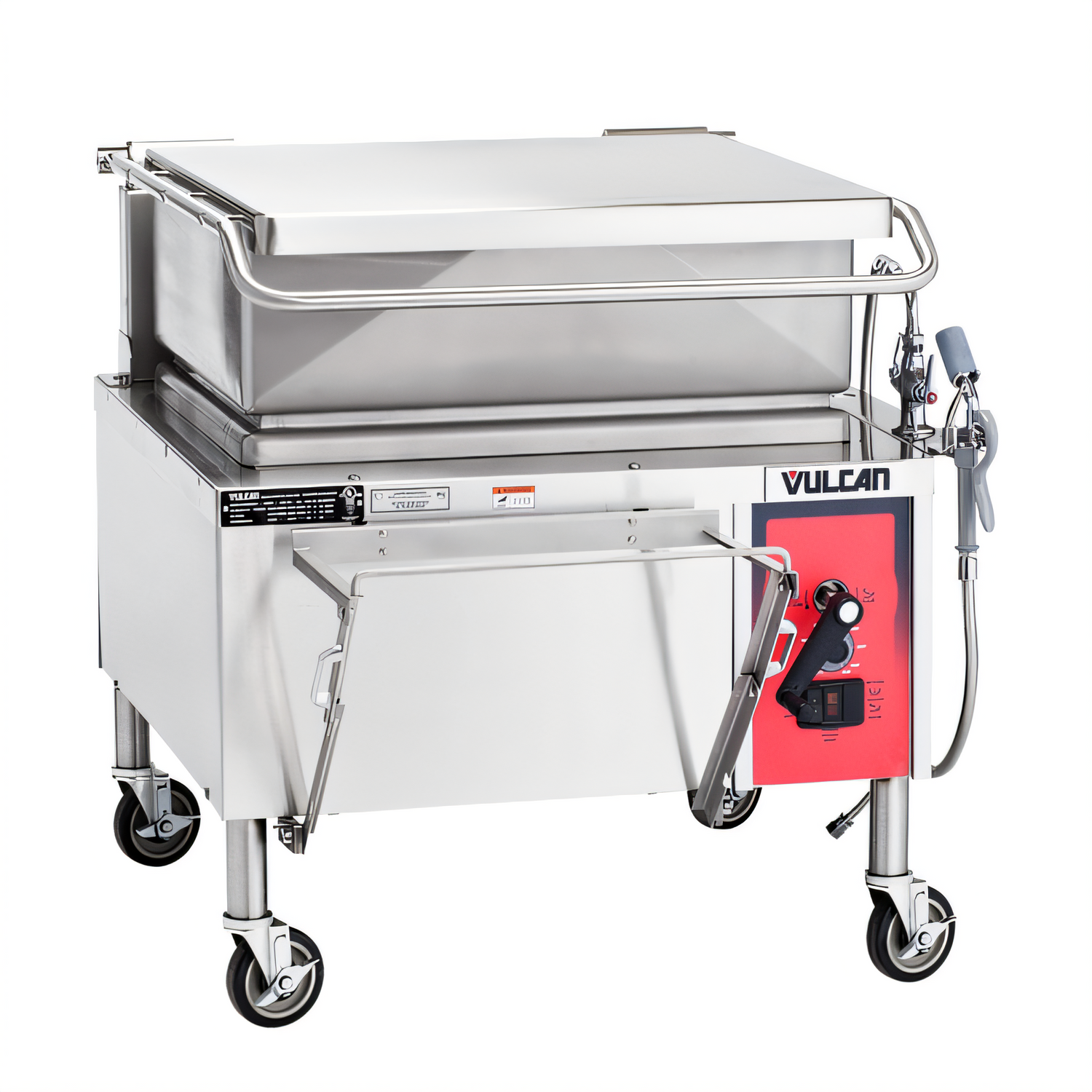

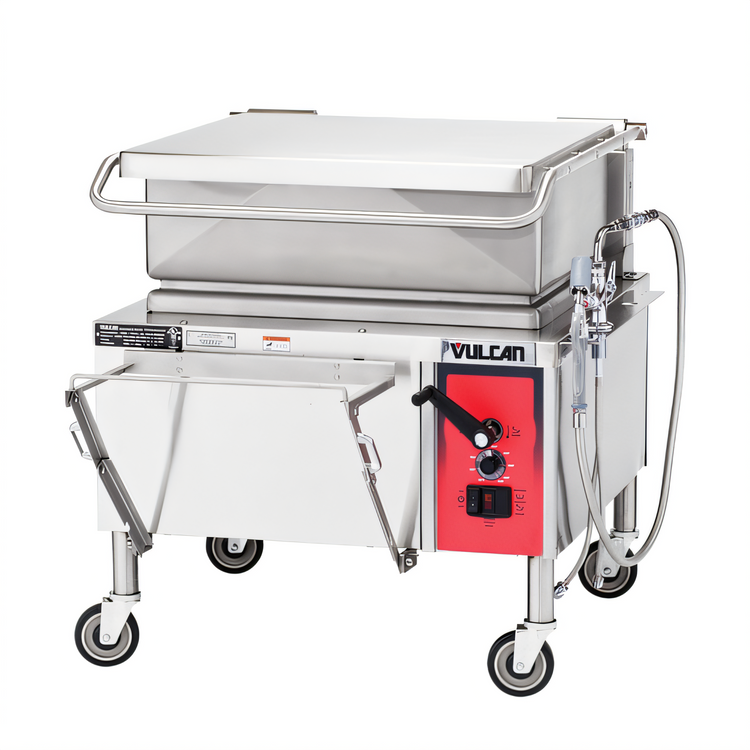

Vulcan VE40 Electric Tilting Braising Pan, 40-Gallon, Manual Tilt, Open Base
16 kW FastBatch™ Heating, 46-Inch Wide Floor Model
This 40-gallon electric braising pan combines fast, even heating with a manual tilt design to speed up high-volume batch cooking and emptying.
- 40-gallon true working capacity supports large-volume production.
- FastBatch™ embedded heating delivers rapid heat-up and even temperature distribution.
- Manual anti-jam tilt mechanism helps empty the pan with controlled operation.
- Stainless steel pan includes gallon and liter markings, a pouring lip, and a removable strainer.
- Spring-assist cover and watertight solid-state controls improve safety and usability.
- 12-inch stainless steel legs with adjustable flanged feet provide stable floor installation.
Overall Dimensions:
46.0"W x 35.5"D x 40.5"HProduct Weight:

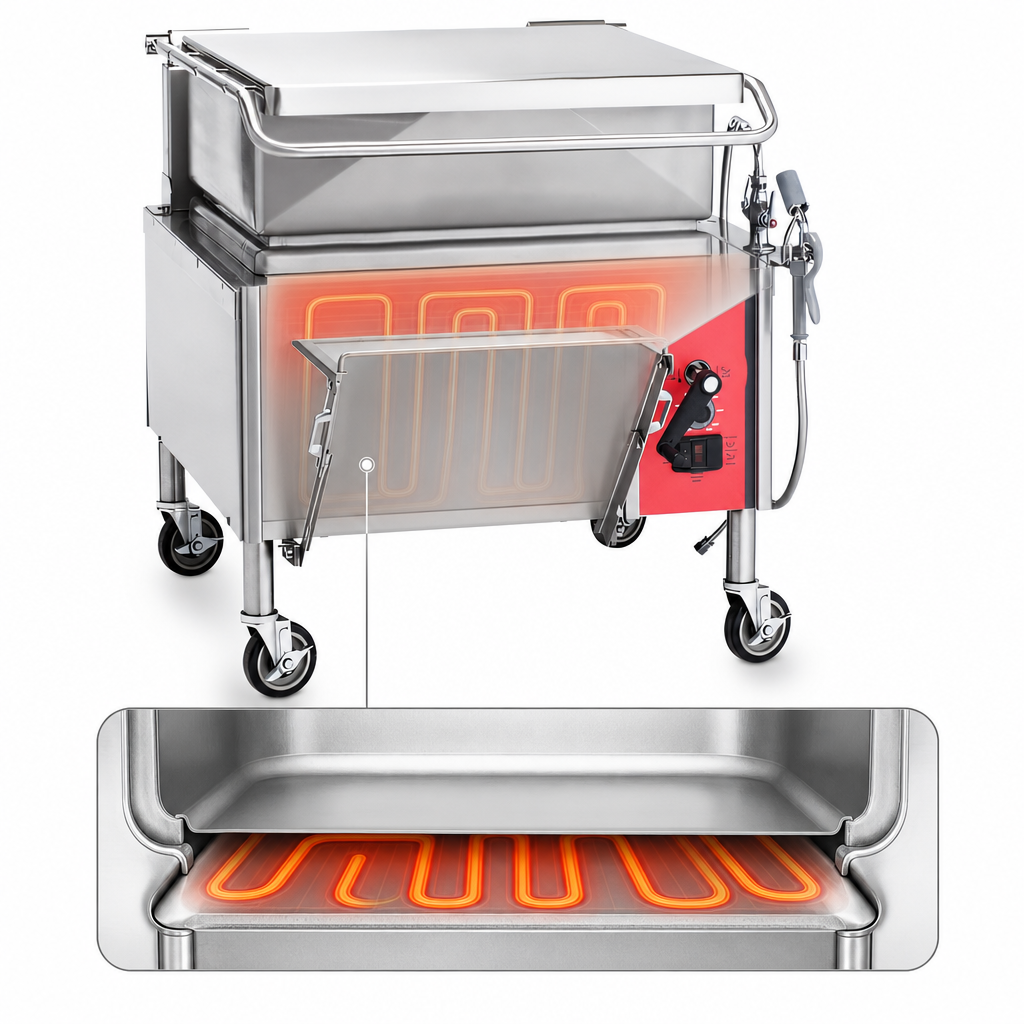

720.0 lbFastBatch™ Embedded Heating
Embedded heating elements are designed for rapid heat transfer, improved heating performance, and even temperature distribution across the pan.

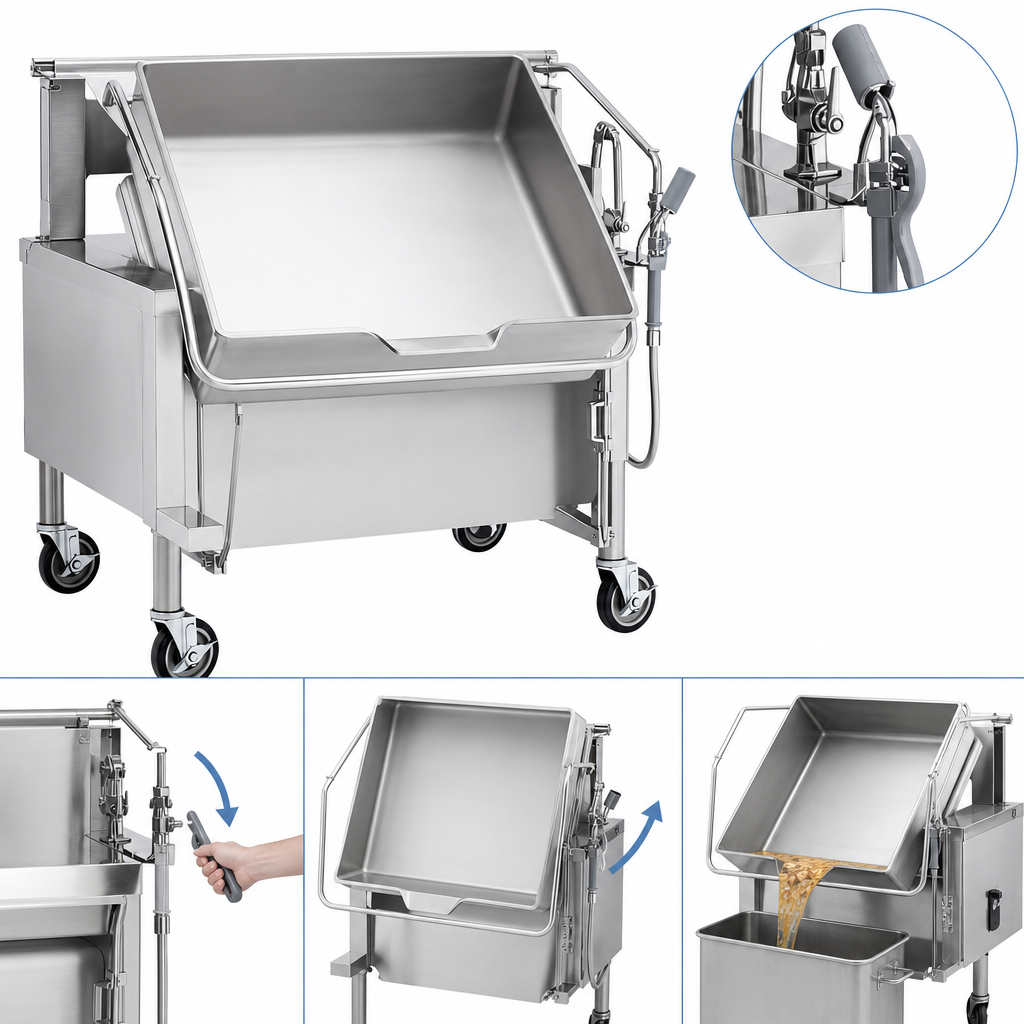

Manual Tilt Pan Lift
A manually operated anti-jam lifting mechanism with a removable handle lets the pan tilt fully for emptying.
40-Gallon Working Capacity
The VE40 provides a 40-gallon true working capacity for high-volume batch cooking.
Stainless Steel Cooking Pan
The pan features an anti-stick stainless steel clad cooking surface, coved interior corners, and embossed gallon and liter markings.
Pouring Lip And Removable Strainer
The tapered front and formed pouring lip help control transfer, while the removable perforated strainer helps catch food solids.
Spring-Assist Cover
The stainless steel cover includes a wrap-around stay-cool handle and condensate lip for easier, safer handling.
Watertight Solid State Controls
Solid-state temperature controls are housed in a watertight enclosure and adjust from 50°F to 425°F.
Safety Shutoff On Lift
Heating elements shut off when the pan is lifted beyond 5 degrees.
Faucet Mounting Bracket Included
An L faucet bracket ships loose and can be mounted on the left or right side as needed.
Heavy-Duty Floor Design
Stainless steel front, back, and sides pair with 12-inch stainless steel legs and adjustable flanged feet.
Certifications & Compliance
Warranty & Protection
1-year limited parts and labor
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
