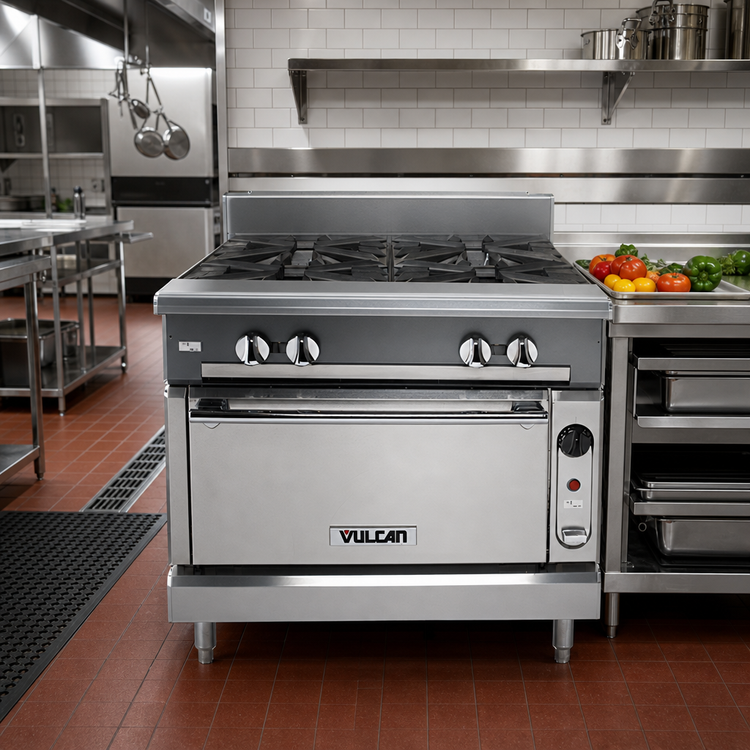

Vulcan V Series 36-Inch Heavy Duty Gas Charbroiler Range with Convection Oven Base
Vulcan V Series 36-Inch Heavy Duty Gas Charbroiler Range with Convection Oven Base
131,000 BTU, Stainless Steel Front & Sides, 6-Inch Adjustable Legs
Built for demanding kitchens, this 36-inch heavy-duty gas charbroiler range combines rugged cast-iron broiling power with a convection oven base in one durable stainless steel unit.
- 36-inch heavy-duty gas charbroiler range with a convection oven base.
- Cast iron grates and char-radiants deliver rugged broiling performance.
- Stainless steel front, ledge, sides, base, and stub back for durability.
- Convection oven includes a 32,000 BTU burner, 115V blower motor, two racks, and three rack positions.
- Total input is 131,000 BTU/hr. with individual pilots and controls for each burner.
Overall Dimensions:
36.0"W x 36.75"D x 36.0"HProduct Weight:

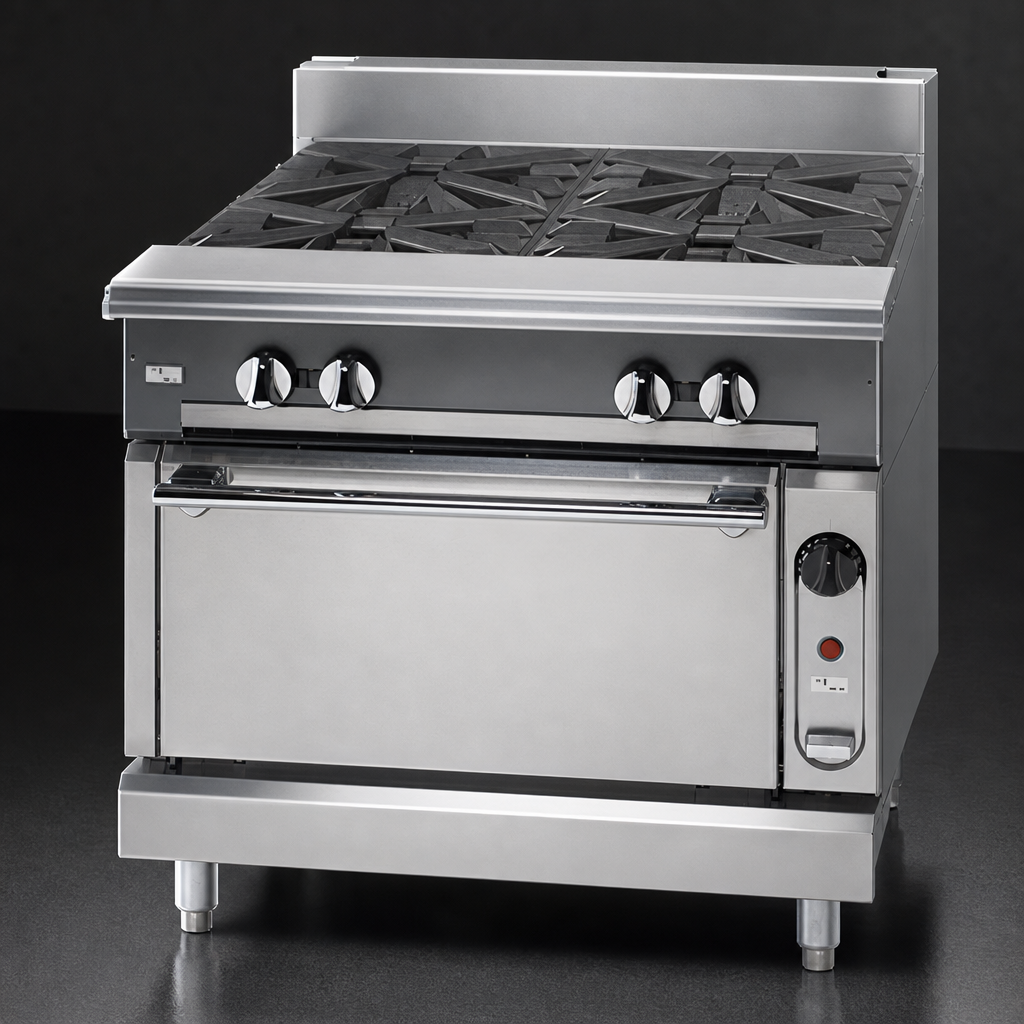

763.0 lbHeavy-Duty 36-Inch Charbroiler Range
36-inch wide gas range designed with a charbroiler top and convection oven base for versatile cooking.

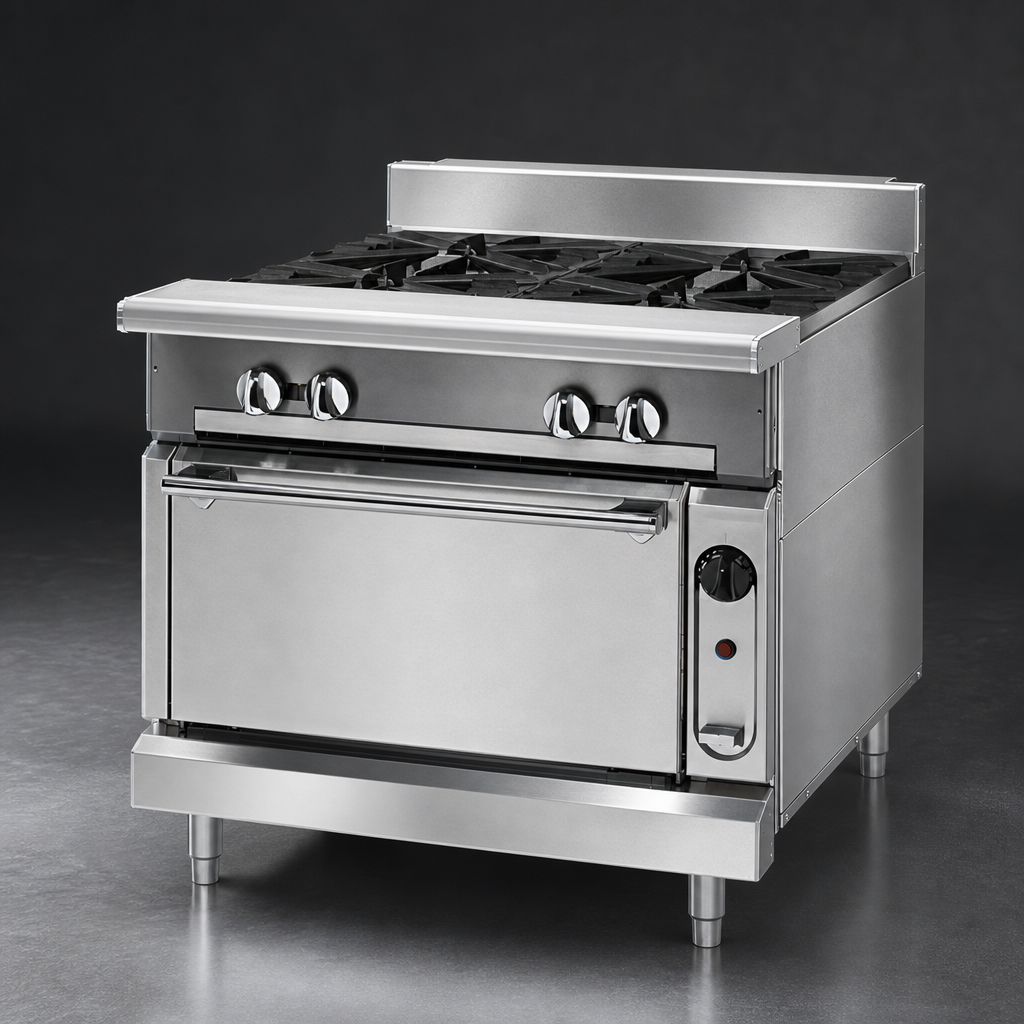

Stainless Steel Construction
Front, front top ledge, burner box, sides, base, and stub back are stainless steel for long service life and easier cleanup.
Cast Iron Grates and Char-Radiants
Heavy-duty slant cast grates and char-radiants support high-volume broiling and even heat distribution.
Six-Burner Charbroiler Top
Top section delivers 99,000 BTU/hr. total and features individual pilots and controls for each burner.
Convection Oven Base
32,000 BTU/hr. convection oven includes a porcelain-lined cavity and 115V single-phase blower motor.
Oven Rack Setup
Oven cavity measures 27"W x 27"D x 13"H and includes two racks with three rack positions.
Heavy-Duty Oven Door
Counterweight door hinges support smooth opening and closing during daily use.
Adjustable Stainless Steel Legs
6-inch adjustable stainless steel legs come standard for leveling and installation.
Gas Connection Details
Includes a 1 1/4-inch front manifold and a capped 3/4-inch rear gas connection.
Certifications & Compliance
Warranty & Protection
1-year limited parts and labor
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
