Vulcan Quick Ship SX24-4B-QS-PLATINUM Core SX24-4B Series Range. (4) 28,000 BTU open burners and a 30,000 BTU standard oven, Durable stainless steel
- Dimensions
- 24.0"W × 32.5"D × 54.5"H
- Burner count
- 4
- Burner input
- 28,000 BTU/hr per burner
- Oven type
- Standard oven
- Oven input
- 30,000 BTU/hr
- Total input
- 142,000 BTU/hr
Specifications
Description

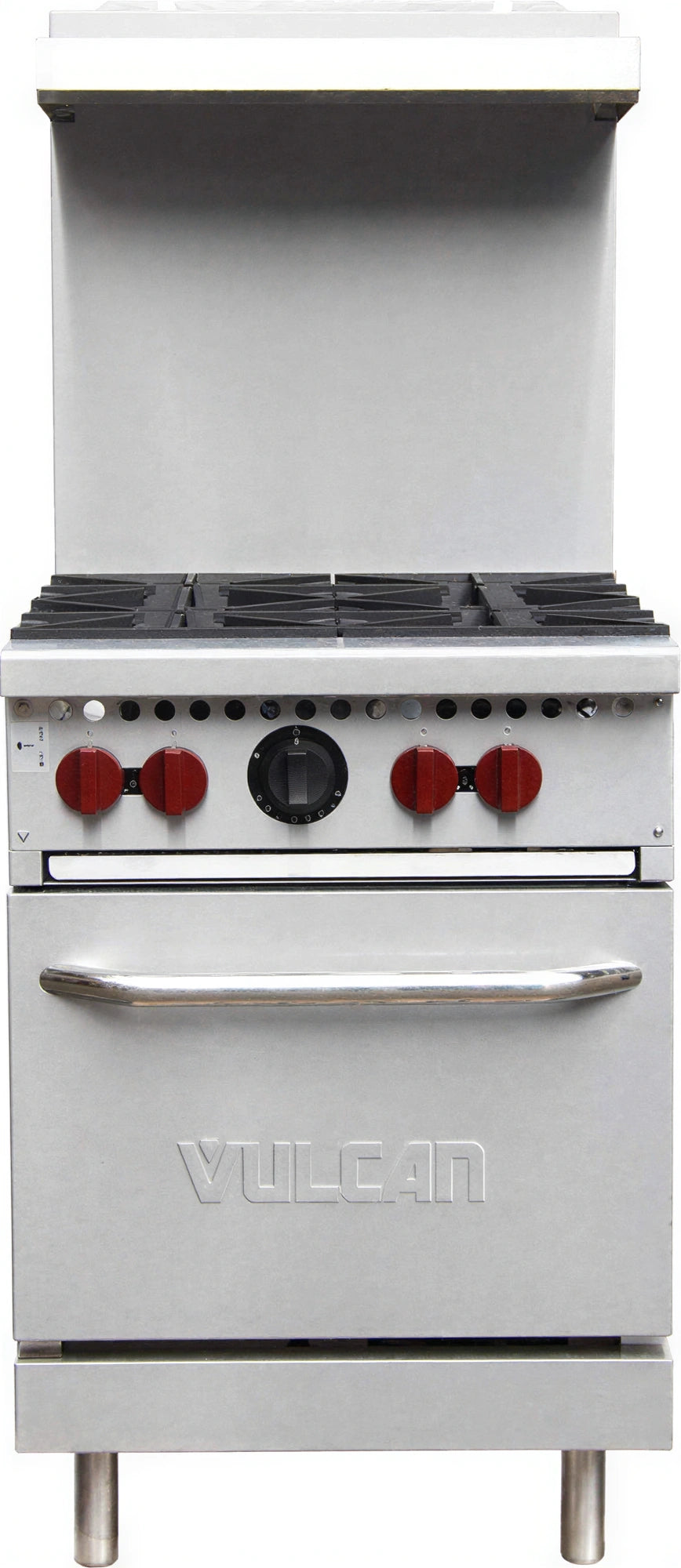

The Vulcan SX24-4B-QS-PLATINUM is a 24-inch commercial gas range with four 28,000 BTU/hr open burners and a 30,000 BTU/hr standard oven.
It features stainless steel front, sides, backriser, and lift-off high shelf, along with heavy-duty cast grates, lift-off burner heads, a shrouded flash tube pilot system, and 6-inch adjustable legs. Total input is 142,000 BTU/hr.
The standard oven has a thermostat range of 250° to 500°F, one oven rack, and four rack positions.
Overall Dimensions:
24.0"W x 32.5"D x 54.5"HProduct Weight:
350.0 lbFour open burners
The range has four 28,000 BTU/hr open burners with lift-off burner heads.
Standard oven
The 30,000 BTU/hr standard oven includes one rack and four rack positions.
Stainless steel components
The front, sides, backriser, and lift-off high shelf are stainless steel.
Heavy-duty cast grates
The open-burner top uses heavy-duty cast grates.
Flash tube pilot system
A shrouded flash tube pilot system supports burner ignition.
Adjustable legs
The range is fitted with 6-inch adjustable legs.
Oven temperature control
The oven thermostat adjusts from 250° to 500°F.
