Vulcan Quick Ship SX60-10B-QS-PLATINUM Core SX60-10B Series Range. (10) 28,000 BTU burners with lift-off burner heads, (2) standard ovens, stainless
- Dimensions
- 60.0"W × 33.25"D × 60.38"H
- Range width
- 60 in
- Range depth
- 33.25 in
- Range height
- 60.38 in
- Product weight
- 750 lb
- Burner count
- 10
Specifications
Description

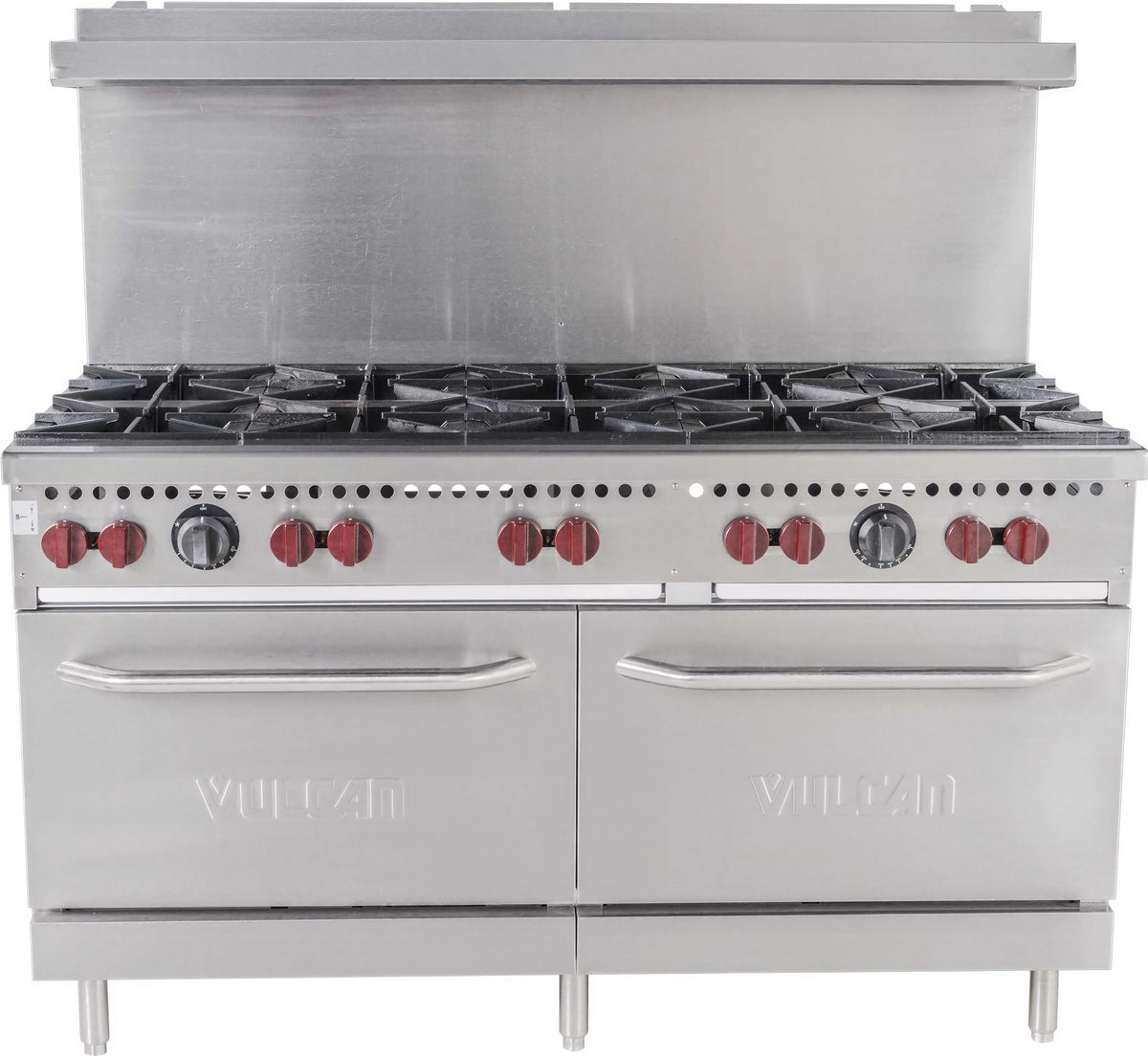

The Vulcan Quick Ship SX60-10B-QS-PLATINUM is a 60-inch commercial gas range with ten open burners and two standard ovens.
It features 28,000 BTU/hr. burners with lift-off heads, manual and thermostatic controls, stainless steel front and sides, a backriser with high shelf, and 6-inch adjustable legs.
- Ten 28,000 BTU/hr. open burners
- Two 30,000 BTU/hr. standard ovens
- Oven thermostats adjust from 250°F to 500°F
- Total input of 340,000 BTU/hr.
Overall Dimensions:
60.0"W x 33.25"D x 60.38"HProduct Weight:
750.0 lbOpen burners
Ten 28,000 BTU/hr. open burners feature lift-off burner heads.
Standard ovens
Two standard ovens provide 30,000 BTU/hr. input each, with thermostats adjustable from 250°F to 500°F.
Cooking controls
The range uses manual and thermostatic controls.
Stainless steel exterior
The front and sides are stainless steel, with a stainless steel backriser and high shelf.
Adjustable legs
Six-inch adjustable legs support the range.
Cast top grates
The top uses 12-inch by 12-inch cast grates with aeration bowls.
Oven racks
Each oven has one oven rack and four rack positions.
Pilot system
A shrouded flash tube pilot system uses one pilot for every two burners.
