Vulcan V Series Heavy Duty 36-Inch Gas Range with 6 Open Burners and Convection Oven
Vulcan V Series Heavy Duty 36-Inch Gas Range with 6 Open Burners and Convection Oven
Stainless Steel, Floor Model, 242,000 BTU
Built for high-volume kitchens, this 36-inch heavy-duty gas range combines six high-output open burners with a convection oven base for fast, flexible production.
- 36-inch-wide heavy-duty gas range with 6 open burners and a convection oven base.
- Six 35,000 BTU/hr burners feature lift-off heads plus individual pilots and controls.
- Convection oven base includes a 32,000 BTU/hr burner, 115V blower motor, and two racks.
- Stainless steel exterior and cast iron grates are built for commercial durability and easier cleanup.
- Heavy-duty counterweight oven door hinges, adjustable legs, and commercial gas connections support installation and daily use.
Overall Dimensions:
36.0"W x 36.75"D x 36.0"HProduct Weight:

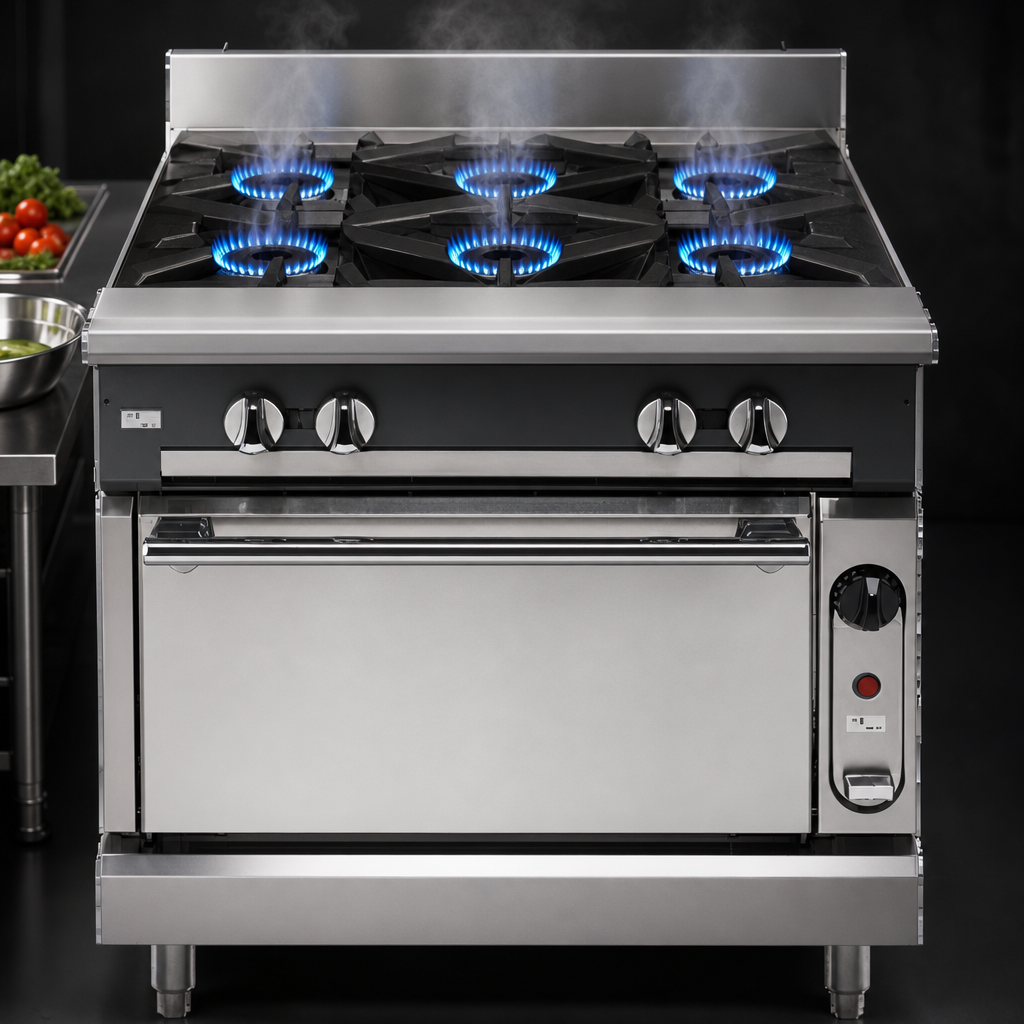

730.0 lbSix High-Output Open Burners
Each lift-off burner is rated at 35,000 BTU/hr for demanding cooking production.

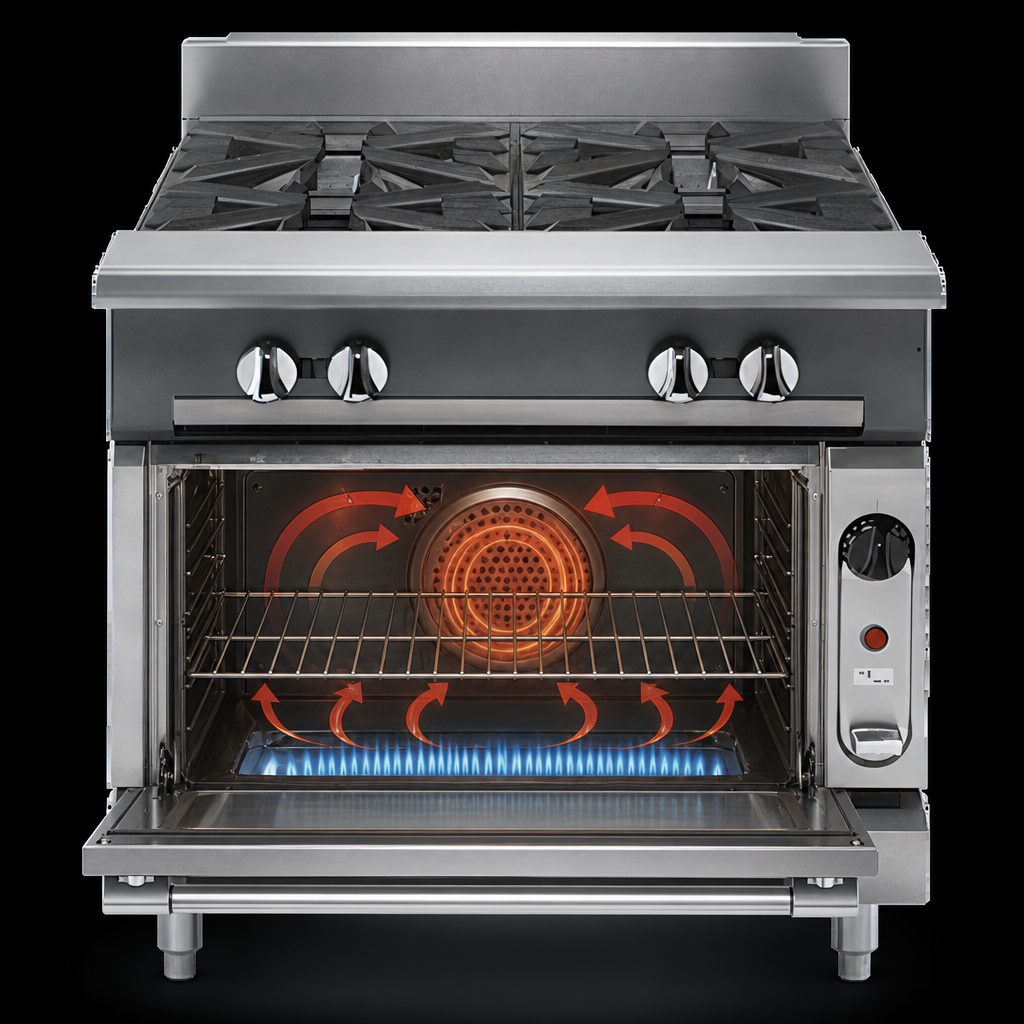

Convection Oven Base
The base oven uses a 32,000 BTU/hr burner with a 115V single-phase blower motor for even heat circulation.
Porcelain Oven Interior
Porcelain oven bottom, sides, and interior door panel help simplify cleanup and improve wear resistance.
Heavy-Duty Cast Iron Grates
Lift-off cast grates are separate from the aeration bowl to make cleaning easier.
Individual Burner Controls
Each burner has its own pilot and control for flexible operation.
Stainless Steel Construction
Stainless steel front, front top ledge, burner box, sides, base, and stub back are designed for commercial durability.
Counterweight Oven Door
The heavy-duty oven door uses counterweight hinges for smoother opening and closing.
Adjustable Stainless Legs
Six-inch adjustable stainless steel legs help level the range on the floor.
Commercial Gas Connections
The range includes a 1-1/2-inch front gas manifold and a 1-1/4-inch rear gas connection that is capped.
Oven Rack Setup
The convection oven measures 27 inches wide by 27 inches deep by 13 inches high and includes two racks with three rack positions.
Certifications & Compliance
Warranty & Protection
1-year limited parts and labor
