Vulcan

Vulcan V Series Heavy Duty 36-Inch 6-Burner Gas Range with Cabinet Base

SKU: V6B36B
$10,479.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Vulcan

Vulcan V Series Heavy Duty 36-Inch 6-Burner Gas Range with Cabinet Base

Open Burners, Stainless Steel, 210,000 BTU

Built for demanding kitchens, this 36-inch heavy-duty gas range pairs six 35,000 BTU open burners with a stainless steel cabinet base for rugged, dependable performance.

  • Six 35,000 BTU/hr. open burners deliver high-output cooking power across the top.
  • Cabinet base design includes a stainless steel door, universal rack guides, and one removable shelf.
  • Heavy-duty cast grates and lift-off burner heads help simplify cleanup and maintenance.
  • Stainless steel front, front top ledge, burner box, sides, base, and stub back add durability.
  • Individual pilots and controls let cooks manage each burner independently.
  • 6-inch adjustable stainless steel legs help with leveling during installation.
  • 210,000 BTU/hr. total input with a capped rear gas connection and front manifold.

Overall Dimensions:

36.0"W x 36.75"D x 36.0"H

Product Weight:

435.0 lb

Six 35,000 BTU Open Burners

Each burner is rated at 35,000 BTU/hr. for powerful, responsive heat.

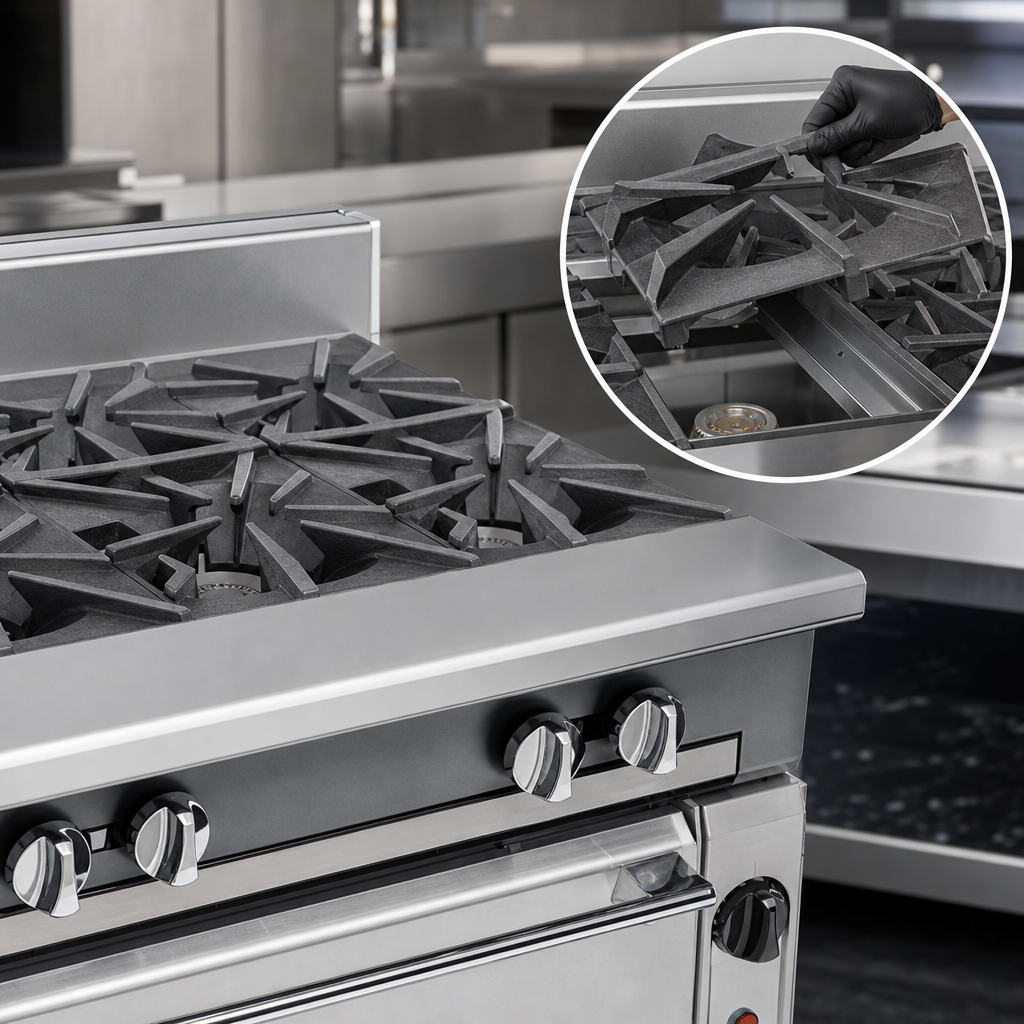

Heavy-Duty Cast Grates

Lift-off cast grates provide durability and make cleaning easier.

Stainless Steel Exterior Construction

Stainless steel front, front top ledge, burner box, sides, base, and stub back are built for commercial kitchen durability.

Cabinet Base Storage

The cabinet base includes a stainless steel door, universal rack guides, and one removable shelf.

Individual Burner Controls

Each burner has its own pilot and control for independent cooking control.

Adjustable Stainless Steel Legs

6-inch adjustable legs help level the range on the floor.

Gas Connection Layout

Features a 1 1/2-inch front gas manifold and a 1 1/4-inch rear gas connection that is capped.

Extra-Deep Crumb Tray

Helps catch debris for easier cleanup between shifts.

Type Heavy Duty Gas Range
Style Cabinet Base
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
BTU 210,000 BTU/hr.
Gas Connection Size 1 1/2 Inches Front Manifold / 1 1/4 Inches Rear Connection
Shipping Width 36 Inches
Shipping Depth 37 Inches
Shipping Height 36 Inches
Shipping Weight 435 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Video PDF Download PDF Parts manual PDF Download PDF Service manual PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. V6B36B is the cabinet base version; oven-base versions in the same family are V6B36S and V6B36C.
It has six open burners, each rated at 35,000 BTU/hr.
The range uses a 1 1/2-inch front gas manifold and a 1 1/4-inch rear gas connection, which is capped.
Yes. The documentation says to specify natural gas or propane when ordering, and the proper regulator must be installed.
For combustible surfaces, the required clearance is 10 inches at the rear and sides. For non-combustible surfaces, the clearance is 0 inches.
