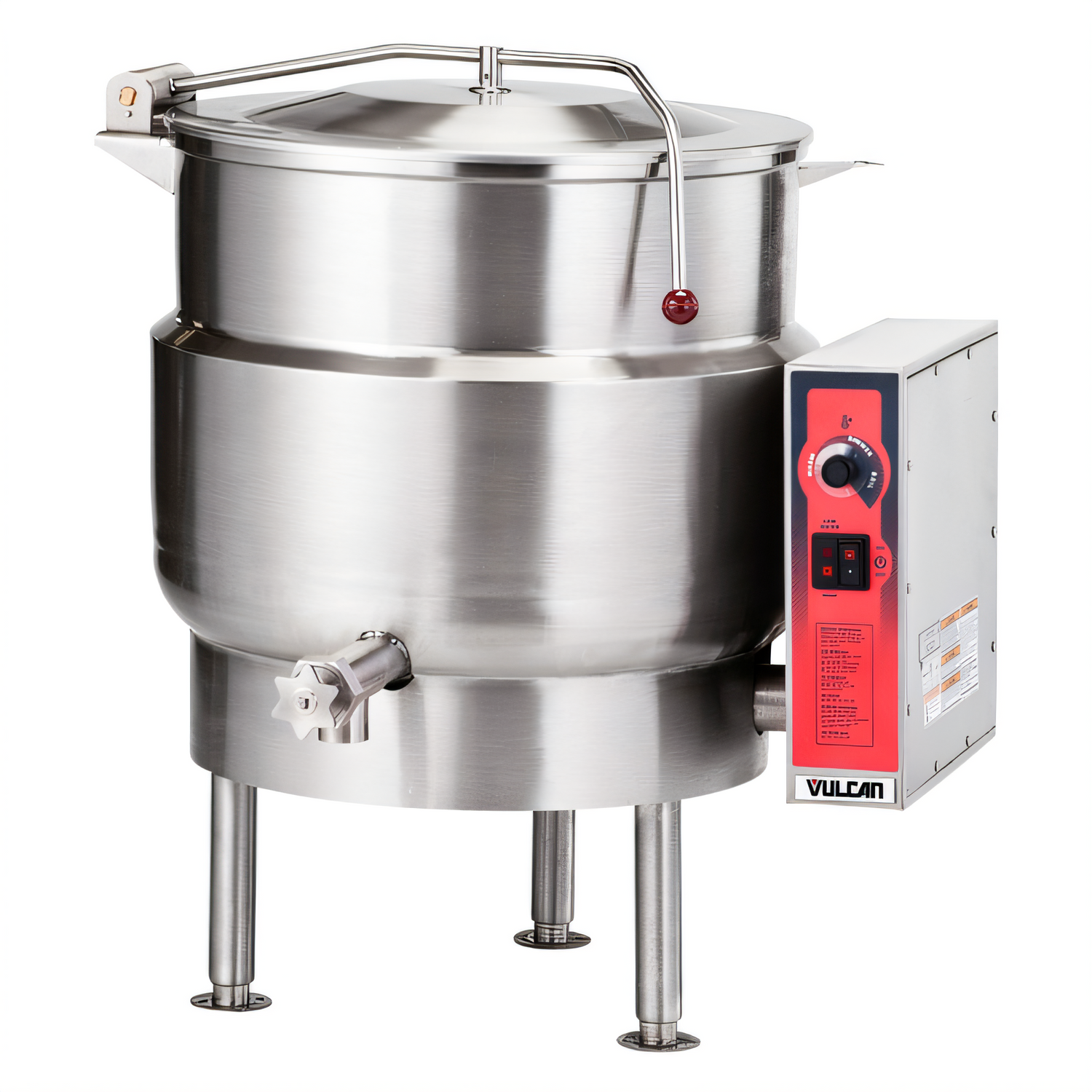

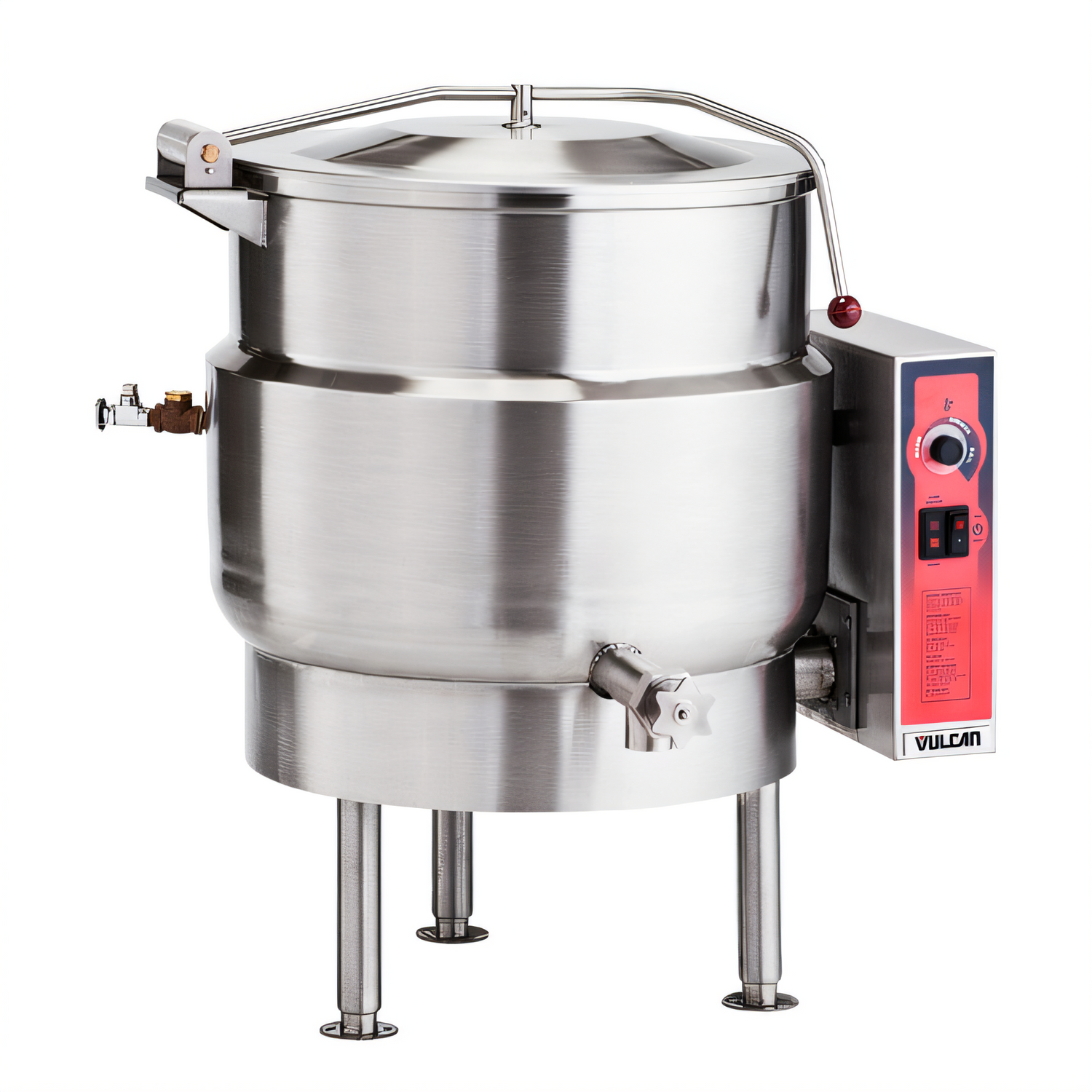

Vulcan K40EL 40-Gallon Electric Floor-Mounted Stationary 2/3-Jacketed Steam Kettle

SKU: K40EL
$25,791.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles Vulcan

Vulcan K40EL 40-Gallon Electric Floor-Mounted Stationary 2/3-Jacketed Steam Kettle

Tri-Leg Base, 316 Stainless Steel Liner, 18 kW, 208V/3-Phase Standard

This 40-gallon electric kettle delivers high-volume batch output with 2/3-jacketed heating, a durable 316 stainless steel liner, and a spring-assisted cover built for busy commercial kitchens.

  • 40-gallon true working capacity supports large-batch soups, sauces, and stews.
  • 2/3-jacketed electric construction promotes even heating and efficient operation.
  • 316 stainless steel liner with an ellipsoidal bottom is built for durability and easier cleanup.
  • Spring-assisted hinged cover with heavy-duty pivot assembly helps with safe, smooth operation.
  • 2-inch compression tangent draw-off valve with perforated strainer simplifies product removal.
  • Tri-leg stainless steel base and water-resistant controls are designed for commercial kitchen use.

Overall Dimensions:

37.7"W x 35.25"D x 37.1"H

Product Weight:

255.0 lb

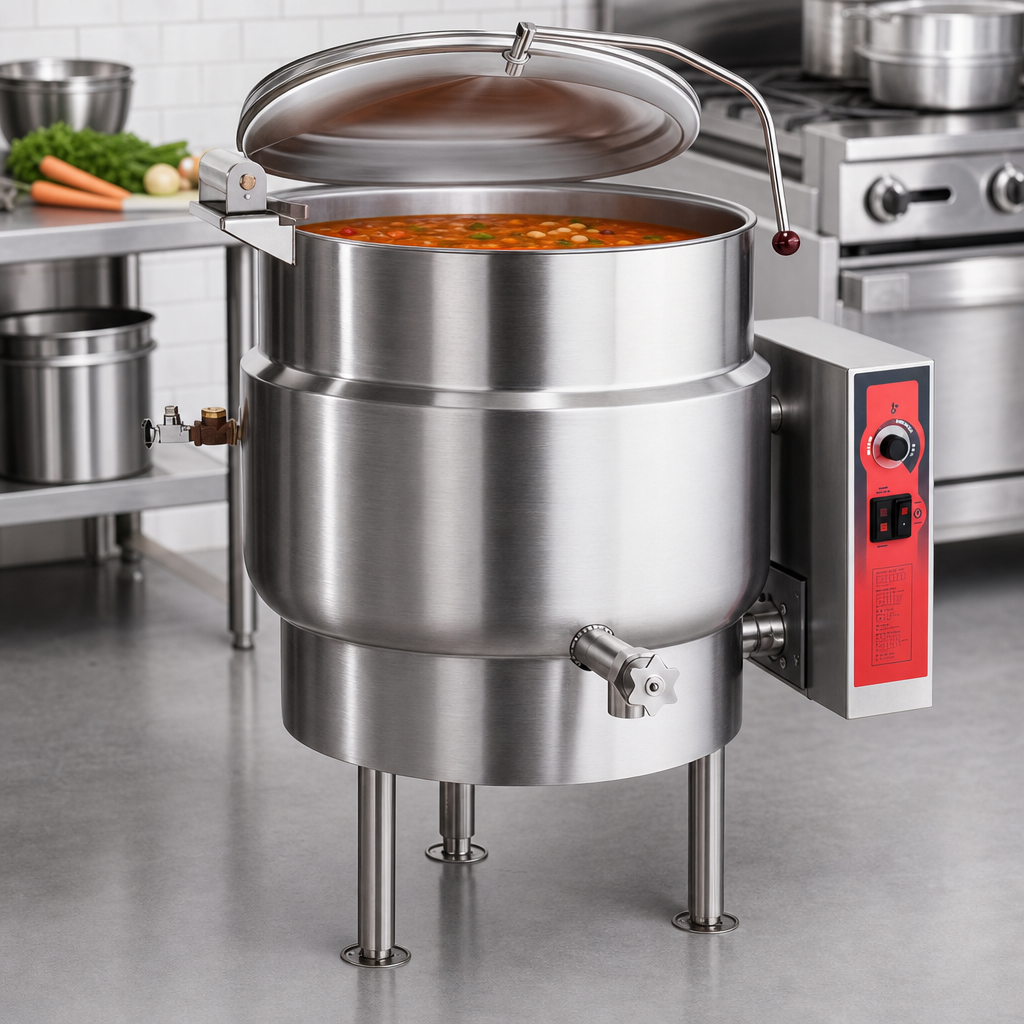

40-Gallon Working Capacity

True working capacity provides the volume needed for high-output batch cooking.

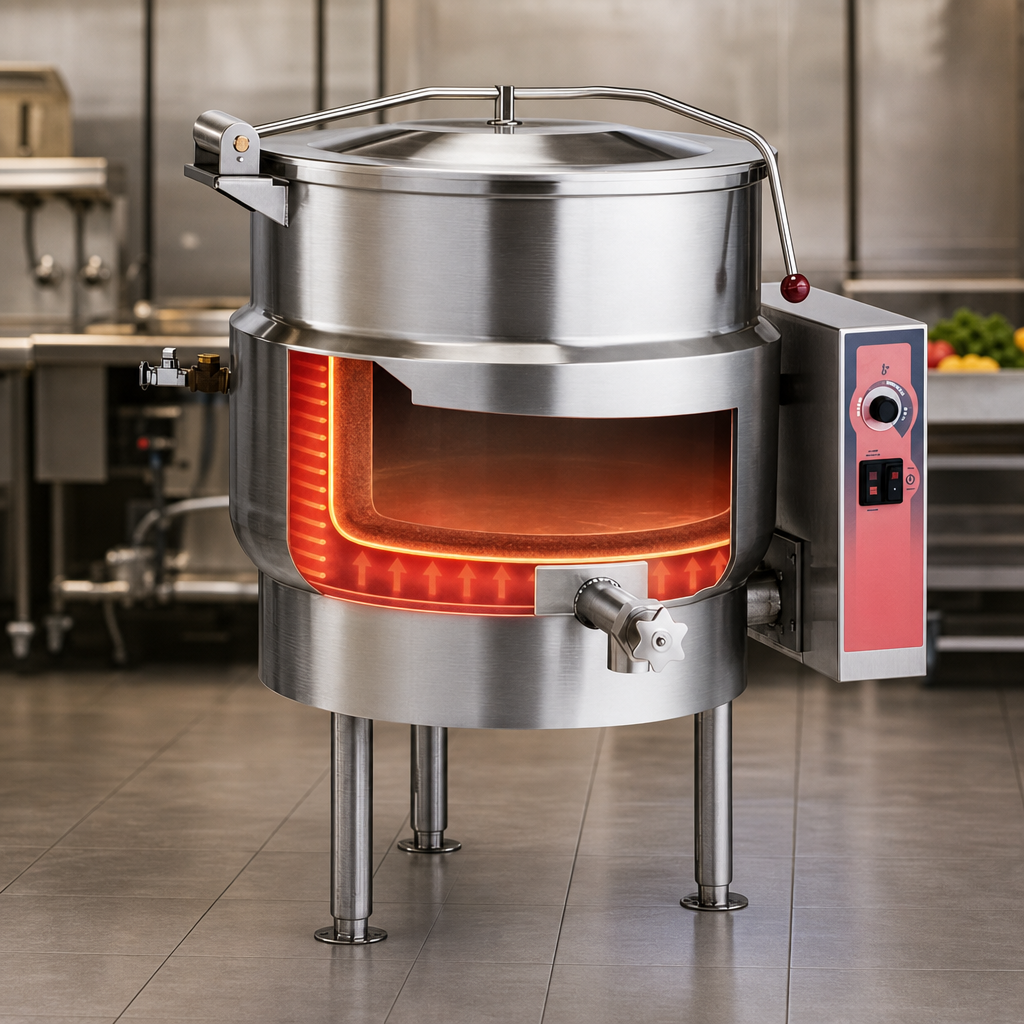

2/3-Jacketed Electric Construction

Jacketed heating helps distribute heat evenly for dependable kettle performance.

316 Stainless Steel Ellipsoidal Liner

The durable stainless steel liner and ellipsoidal bottom support easy cleaning and long service life.

Spring-Assisted Hinged Cover

A heavy-duty pivot assembly makes the cover easier to lift and close during production.

2-Inch Compression Tangent Draw-Off Valve

Includes a perforated strainer for controlled product transfer and reduced clogging.

Water-Resistant Control Enclosure

Controls are protected in a stainless steel enclosure and include solid-state temperature control, power switch, indicator light, vacuum/pressure gauge, pressure relief valve, low-water light, and low-water shut-off.

Tri-Leg Stainless Steel Base

A stable floor-mounted tri-leg base with flanged feet supports the kettle in demanding kitchen environments.

Faucet Bracket and Markings

Includes a faucet bracket positioned 130 degrees right of the draw-off and embossed gallon/liter markings for convenience.

Type Steam Kettle
Style Stationary
Installation Type Floor Model
Jacket Type 2/3 Jacketed
Base Tri-Leg
Capacity 40 Gallons
Material Stainless Steel
Interior Finish 316 Stainless Steel
Voltage 208 Volts
Amps 50.0 Amps
Watts 18 kW
Hertz 50/60 Hz
Phase 3-Phase
Controls Solid State
Water Connection Not Required
Shipping Width 38 Inches
Shipping Depth 36 Inches
Shipping Height 38 Inches
Shipping Weight 255 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Service manual PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a 40-gallon true working capacity.
The liner is 316 stainless steel with an ellipsoidal bottom.
The standard device ships for 208/50/60/3 electrical service and can be field converted to other listed configurations.
No. The kettle includes a faucet bracket, and faucet accessories are sold separately.
Standard features include a spring-assisted hinged cover, 2-inch compression tangent draw-off valve with perforated strainer, faucet bracket, tri-leg base, and water-resistant controls.
The standard warranty is one year limited parts and labor, and a second-year extended limited parts and labor warranty is available as an option.
