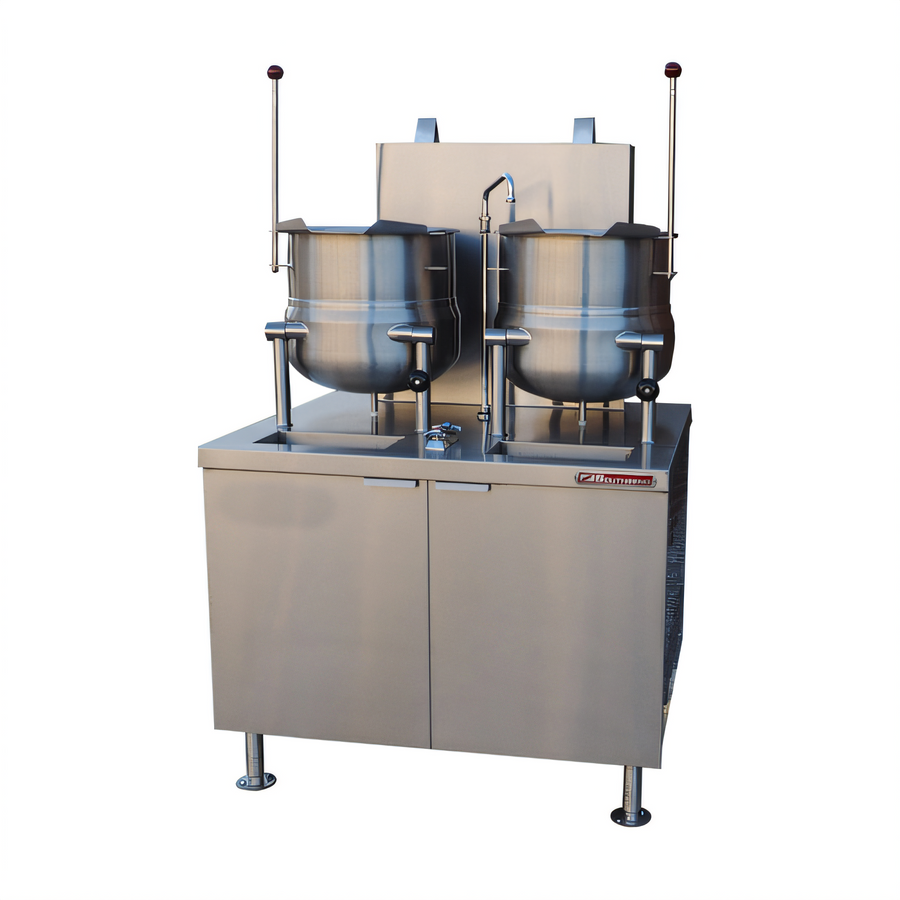

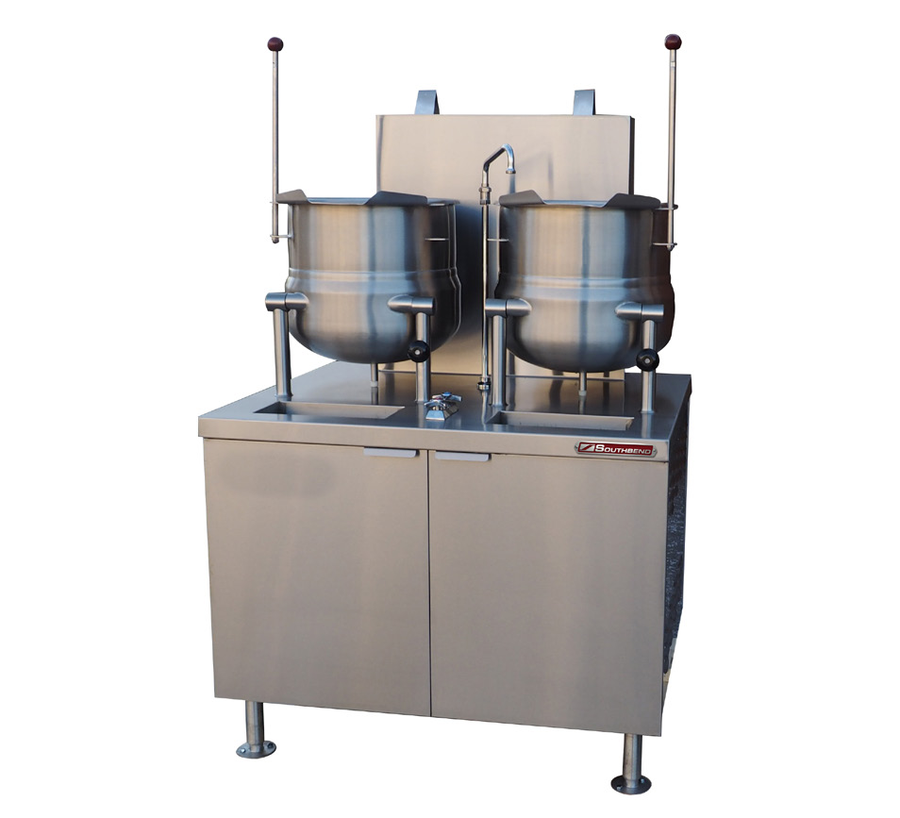

Southbend Steam Gas-Fired Kettle/Cabinet Assembly with Two 10-Gallon Tilting Kettles and 42-Inch Cabinet Base

2/3 Jacket, 316 Stainless Steel Liner, Electronic Ignition

Built for high-volume prep, this gas-fired kettle/cabinet assembly combines two tilting 10-gallon kettles with integrated plumbing, safety, and stainless steel construction.

  • Includes two 10-gallon tilting kettles for a total of 20 gallons of cooking capacity.
  • Gas-fired 2/3-jacket design supports efficient steam heating for batch production.
  • Integrated 42-inch cabinet base with 6-inch stainless steel legs and adjustable flanged feet.
  • Built with a 316 stainless steel liner and 304 stainless steel exterior finish for durability.
  • Includes electronic ignition, automatic boiler blowdown, safety relief valve, and CSD-1 package.
  • Supplied with a double pantry fill faucet, split water line, and 3-inch deep stainless steel sink.
  • Certified NSF, CSA Star, and CSA Flame.

Overall Dimensions:

42.0"W x 33.0"D x 65.13"H

Product Weight:

820.0 lb

Two 10-Gallon Tilting Kettles

Provides two separate 10-gallon kettles for a total of 20 gallons of batch-cooking capacity.

Gas-Fired 2/3 Jacket Design

Steam-jacketed kettle design promotes efficient heat transfer and consistent cooking performance.

42-Inch Cabinet Base

Integrated cabinet base supports the kettle assembly and houses the unit in a floor-mounted footprint.

Electronic Ignition

Supports reliable start-up for the gas-fired system.

Automatic Boiler Blowdown

Helps simplify boiler maintenance and water management.

Double Pantry Fill Faucet and Sink

Includes a double pantry fill faucet and a 3-inch deep stainless steel sink for filling and cleanup.

Safety Package

Includes a safety relief valve and CSD-1 package.

Stainless Steel Construction

Features a 316 stainless steel liner with a 304 stainless steel exterior finish.

Floor Support Legs

Equipped with 6-inch stainless steel legs and adjustable flanged feet for leveling.

NSF/CSA Certifications

Certified NSF, CSA Star, and CSA Flame.

Type Gas Kettle/Cabinet Assembly
Style Tilting
Installation Type Floor Model
Capacity 20 Gallons Total
Material Stainless Steel
Finish 304 Stainless Steel
Interior Finish 316 Stainless Steel
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 42 Inches
Shipping Depth 33 Inches
Shipping Height 66 Inches
Shipping Weight 820 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes two 10-gallon tilting kettles.
The assembly provides 20 gallons of total kettle capacity.
It has a 316 stainless steel liner and a 304 stainless steel exterior finish.
The unit includes a double pantry fill faucet, a 3-inch deep stainless steel sink, and a split water line.
It includes electronic ignition, automatic boiler blowdown, a safety relief valve, and a CSD-1 package.
It is certified NSF, CSA Star, and CSA Flame.
