Cleveland Range 36GMK1010300 Steam Kettles
Cleveland Range 36GMK1010300 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Cleveland Range 36GMK1010300 Steam Kettles
Description

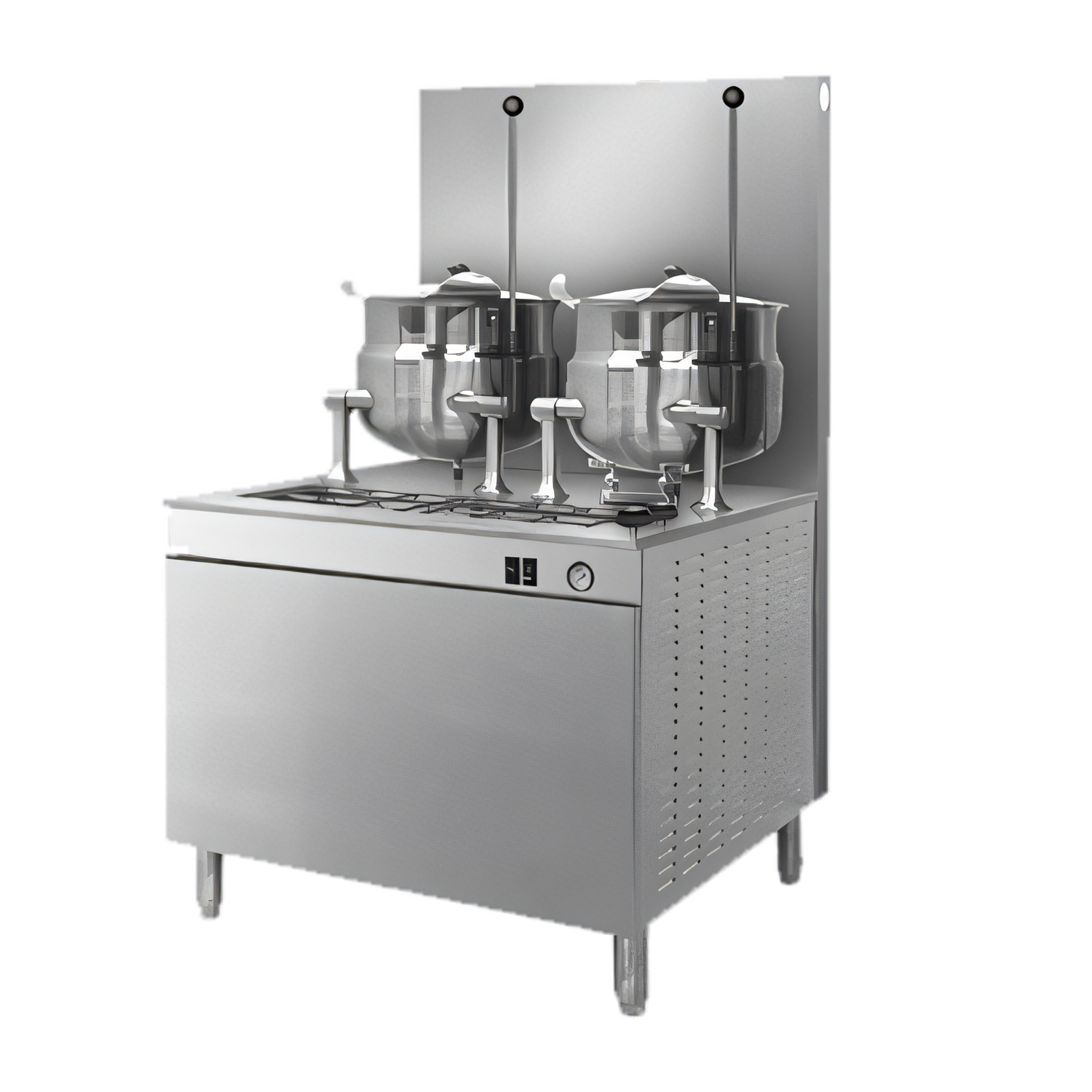

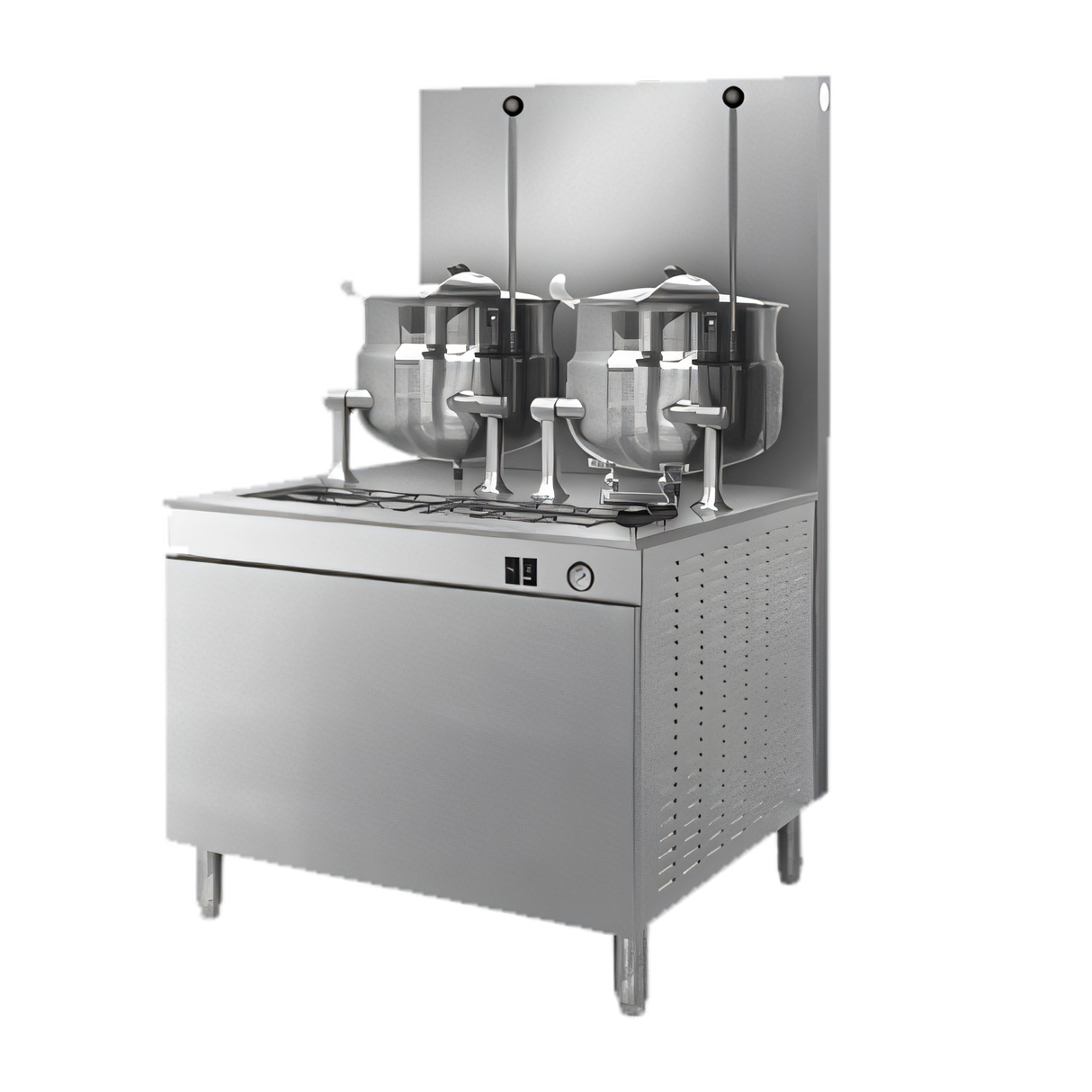

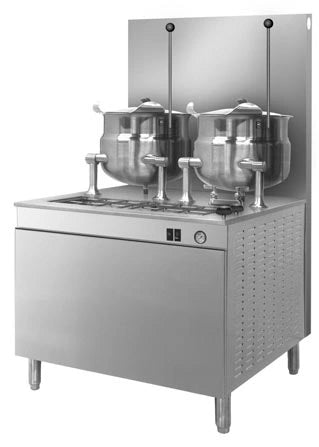

Cleveland 36-GM-K1010-300 Modular Kettle Station
Dual 10-gal Kettles • 36" NickelGuard™ Cabinet • 300,000 BTU Gas Boiler • 316 SS LinersEngineered for high-volume, scratch-cooking kitchens, this factory-assembled kettle/cabinet assembly pairs two 10-gallon manual-tilt kettles with a powerful 300 M BTU NickelGuard™ gas boiler—delivering continuous, on-demand steam in less than 6 ft2 of floor space. From delicate sauces to hearty soups, the 316-grade stainless liners resist acidic products while solid-state controls and automatic blow-down keep your operation running safely and efficiently shift after shift.
Why You’ll Love It
- 20 gallons total capacity (640 x 4 oz servings) with independent manual tilting for batch flexibility.
- NickelGuard™ 300,000 BTU gas boiler produces 15 psi steam in minutes and self-blows down at shut-off for simplified maintenance.
- 316 SS kettle liners handle tomato, citrus, and other high-acid recipes with zero pitting or flavor transfer.
- Solid-state water-level & electronic spark ignition slash energy waste and eliminate pilot outages.
- Built-in double pantry faucet, rinse sink & 1.5" drain trough keep your cookline clean and ergonomic.
- All major service points are front-accessible—no need to move the station for routine work.
Safety & Performance Features
- Low-water cut-off and secondary low-water protection (factory-installed).
- Pressure limit controls with 15 psi safety valve on boiler and 50 psi chrome-plated safety valves on kettles.
- Type 430 stainless cabinet with #4 finish resists dents and cleans fast.
- 6" adjustable stainless legs with flanged feet for code-approved floor bolting.
- Tilt handles can be field-mounted on either side to match your workflow.
What’s Included
- (2) 10-gal / 36 L, 2⁄3-jacketed kettles w/ lift-off covers & splash guard
- Factory-installed steam control kit(s)
- Hot & cold swing spout (double pantry) faucet
- Integrated sink & 1½" common drain connection
- NickelGuard™ gas boiler assembly & electronic control package
Technical Specifications
| Model | 36-GM-K1010-300 |
|---|---|
| Total Capacity | 20 gal / 72 L (2 x 10 gal) |
| Kettle Rating | 50 psi steam jacket, manual tilt |
| Boiler Input | 300,000 BTU/hr, natural or LP gas (specify) |
| Exterior Dimensions | 36" W × 30" D × 62" H (914 × 762 × 1575 mm) |
| Electric | 115 V, 1 φ, 50 W (controls only, non-GFI) |
| Water | C1 – ¼" IPS cold feed to boiler C2 – ⅜" NPT hot & cold for faucet |
| Drain | 1½" IPS common drain (floor drain outside footprint) |
| Clearances | 6" left / right / rear minimum |
| Controls Voltage | 115 V, 60 Hz, single phase |
Utility Requirements
- Natural gas: 1" IPS, 4" W.C. min / 14" W.C. max
- Propane: 1" IPS, 12" W.C. min / 14" W.C. max
- Incoming water quality must meet Cleveland guidelines: TDS 50–250 ppm; Hardness 50–200 ppm; pH 7–8.5.
Standard limited warranty: 1 year parts & labor + 4-year prorated boiler parts. Extended coverage available at purchase.
