Key specifications

BTU
135,000 BTU
Amps
3 Amps
Phase
1-Phase
Dimensions
58.5"W × 48.0"D × 44.0"H
Type
Stationary Kettle
Style
Fully Jacketed
Spec sheet
Vulcan SKU: GL80E

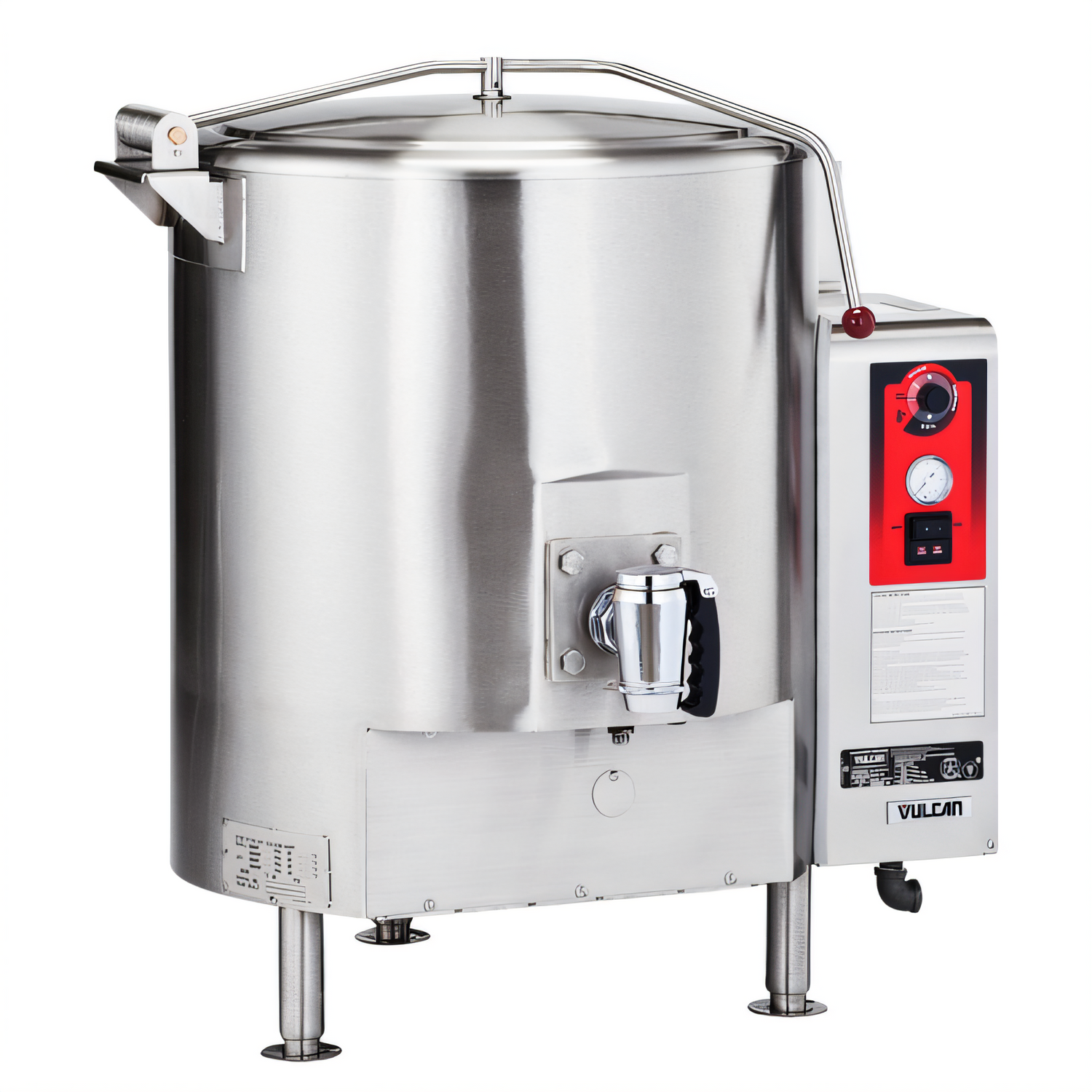

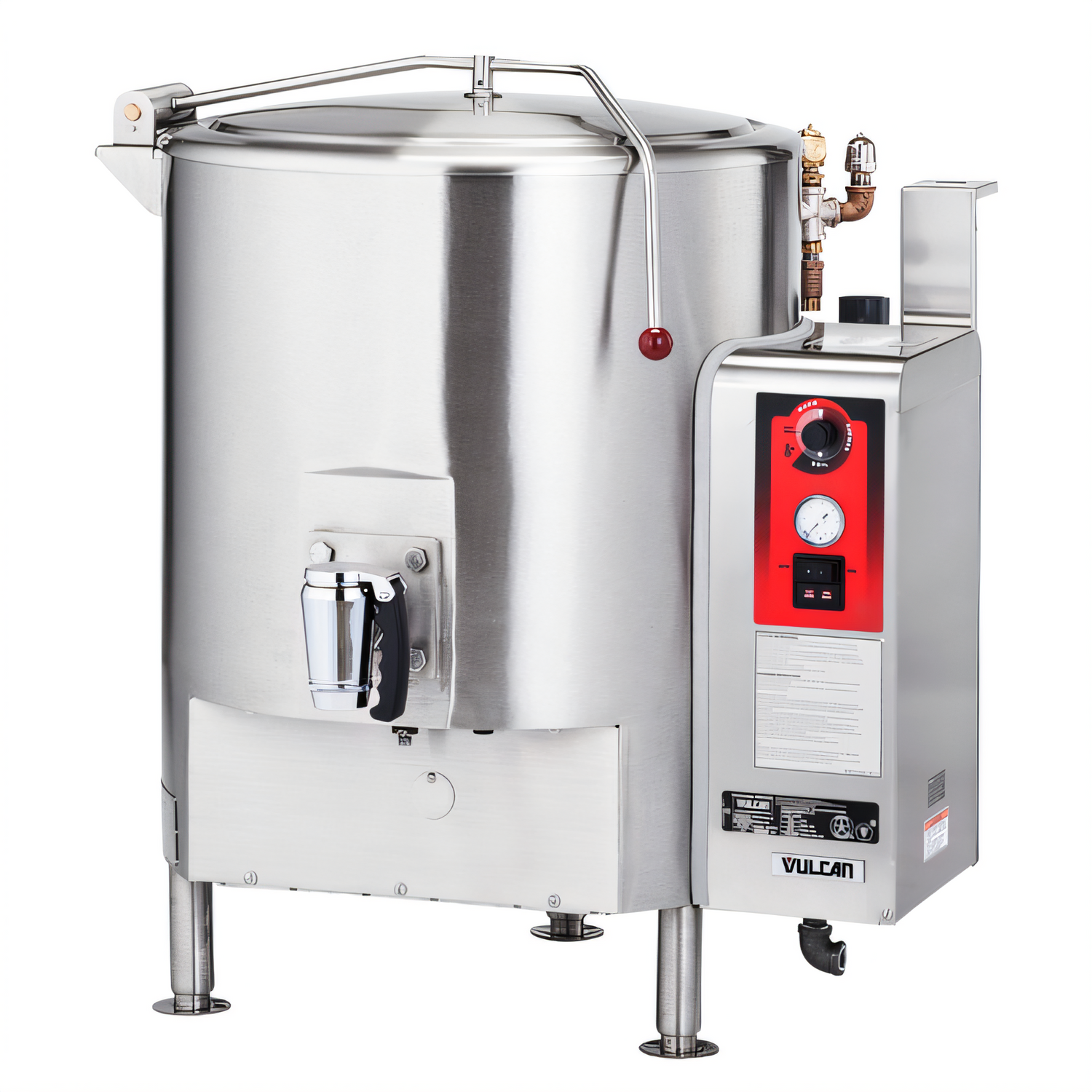

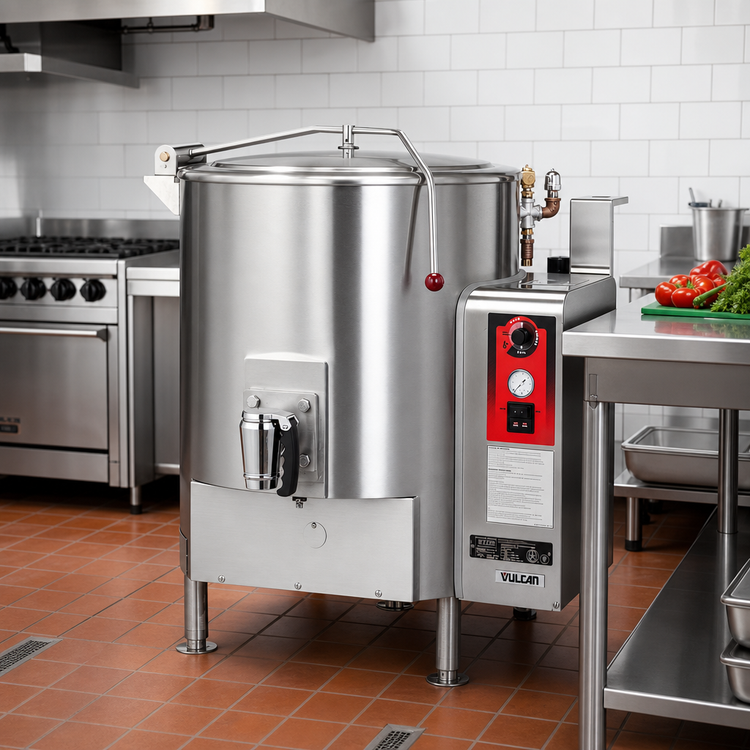

Vulcan GL80E 80-Gallon Fully Jacketed Stationary Kettle

$41,776.00
/each
Estimated to ship in 8–11 business days Free Shipping
Capacity
Gas typeRequired
Draw-off valve
Factory Add-Ons
Gas Connector
Included: Vulcan warranty One-year limited commercial equipment warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $3,864/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Stationary Kettle
Style Fully Jacketed
Installation Type Floor Model
Material Stainless Steel
Liner Material 316 Stainless Steel
Capacity 80 Gallons
Base Tri-Leg
BTU 135,000 BTU
Ignition Electric
Voltage 120 Volts
Amps 3 Amps
Hertz 60 Hz
Phase 1-Phase
Cover Type Spring-Assisted Hinged
Draw-Off Valve 2 in Plug

Description

The Vulcan GL80E is an 80-gallon fully steam-jacketed gas stationary kettle with stainless steel construction and a 316 series stainless steel liner.

  • 135,000 BTU gas input with electric ignition.
  • Spring-assisted hinged cover with a heavy-duty pivot assembly.
  • 2-inch plug draw-off valve with perforated strainer.
  • Graduated measuring rod and faucet bracket.
  • Stainless steel legs with adjustable flanged feet.

The kettle measures 58.5 inches wide by 48 inches deep by 44 inches high and weighs 899 pounds.

Overall Dimensions:

58.5"W x 48.0"D x 44.0"H

Product Weight:

899.0 lb

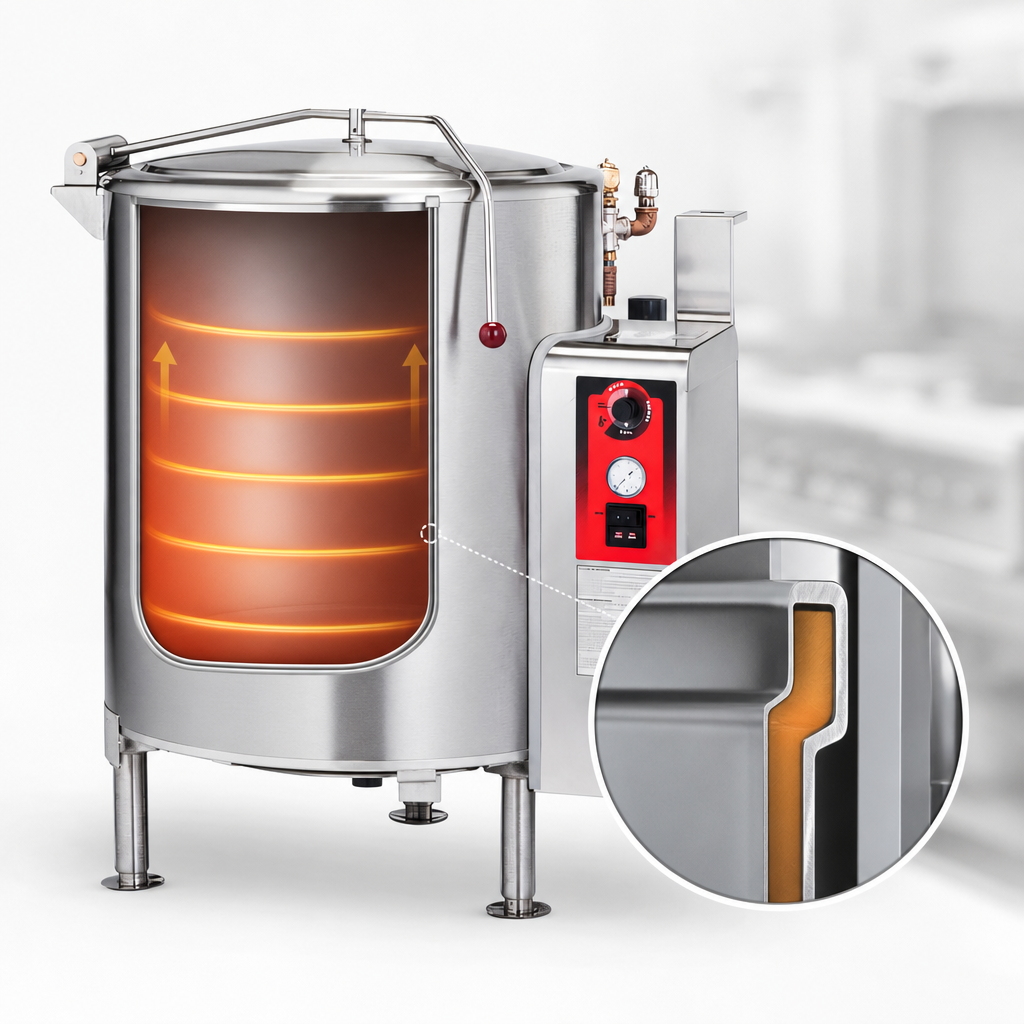

Fully Steam-Jacketed Construction

The kettle is fully steam jacketed for gas-fired stationary cooking operation.

316 Series Stainless Steel Liner

The kettle liner is constructed from 316 series stainless steel.

Spring-Assisted Hinged Cover

The stainless steel cover has spring assist and a heavy-duty pivot assembly.

2-Inch Plug Draw-Off Valve

The mounted draw-off valve is a 2-inch plug type and includes a perforated strainer.

Graduated Measuring Rod

A graduated measuring rod is included.

Electric Ignition

The gas kettle is equipped with electric ignition.

135,000 BTU Gas Input

The GL80E has a listed gas input of 135,000 BTU.

Adjustable Flanged Feet

The kettle is mounted on legs with adjustable flanged feet.

Frequently Asked Questions

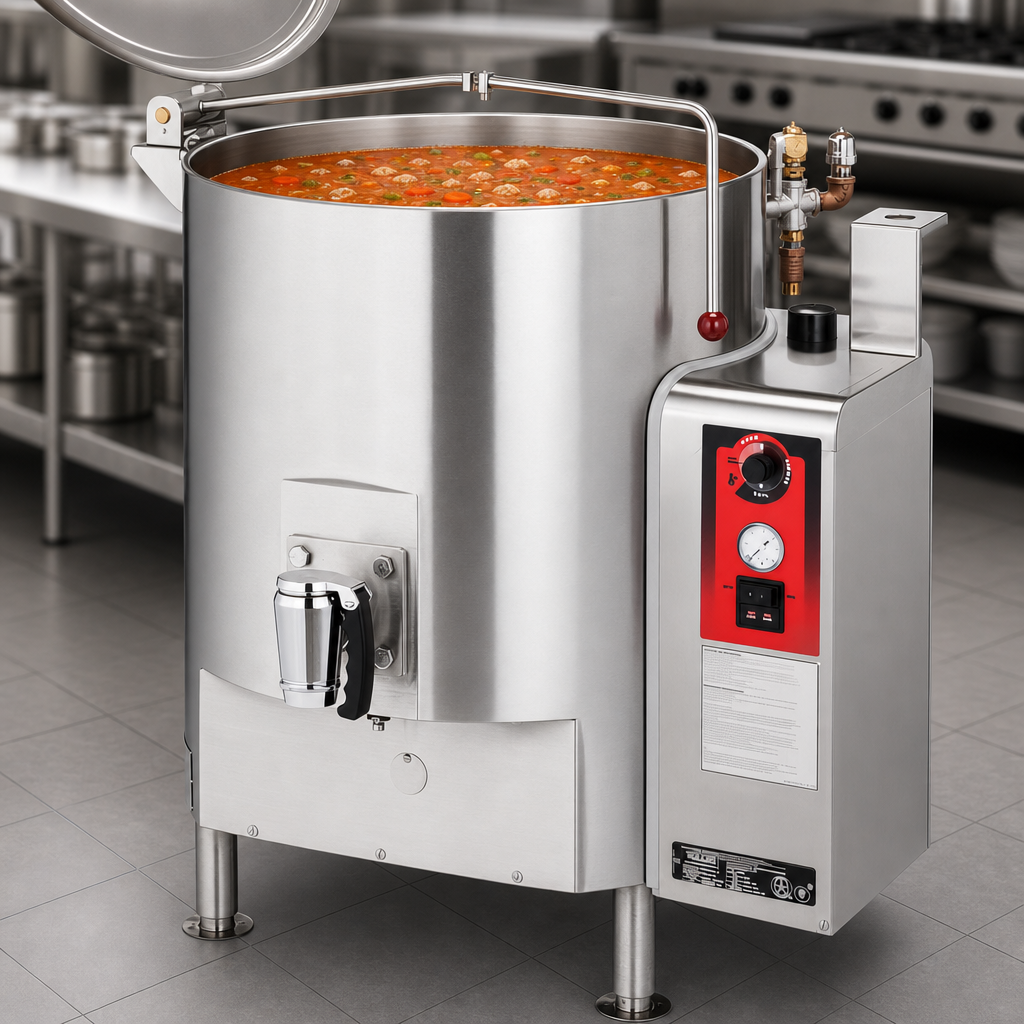

The GL80E has an 80-gallon brimful capacity, equivalent to 303 liters or 320 quarts.
It is a gas fully jacketed stationary kettle with a listed input of 135,000 BTU and electric ignition.
The installation information specifies a 120-volt, 60 Hz, 1-phase electrical connection with a 3-amp total draw.
The kettle has a 316 series stainless steel liner.
Yes. It includes a spring-assisted hinged stainless steel cover with a heavy-duty pivot assembly.
Product is drawn off through a 2-inch plug valve with a perforated strainer.
The kettle is 58.5 inches wide, 48 inches deep, and 44 inches high, with a listed weight of 899 pounds.
